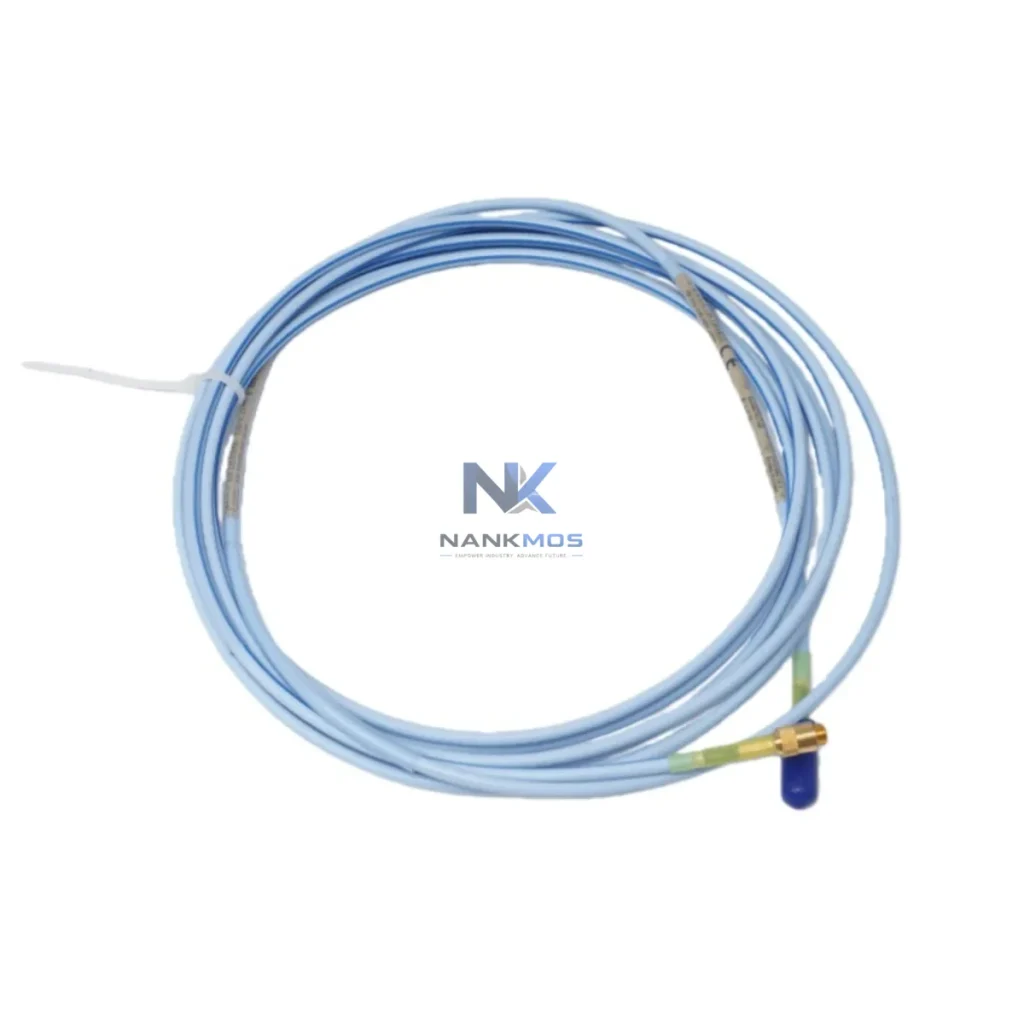

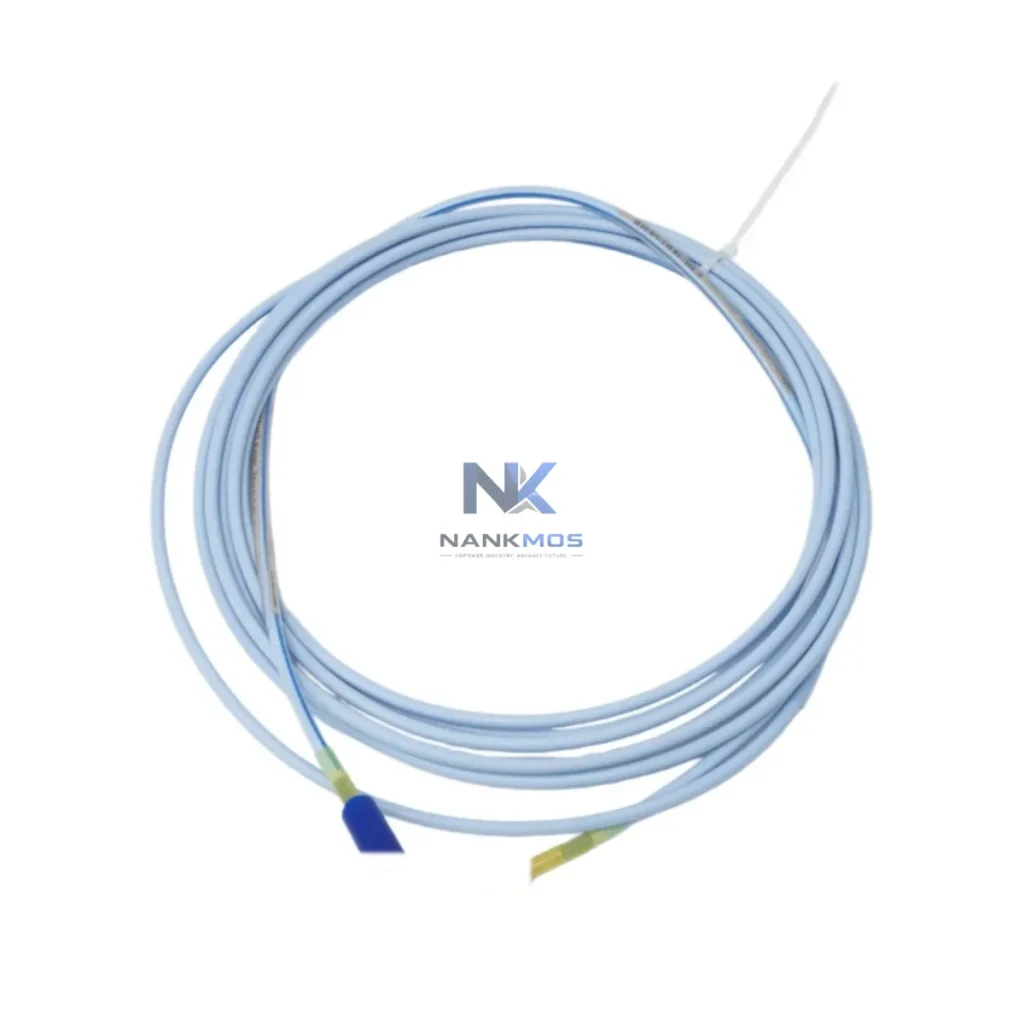

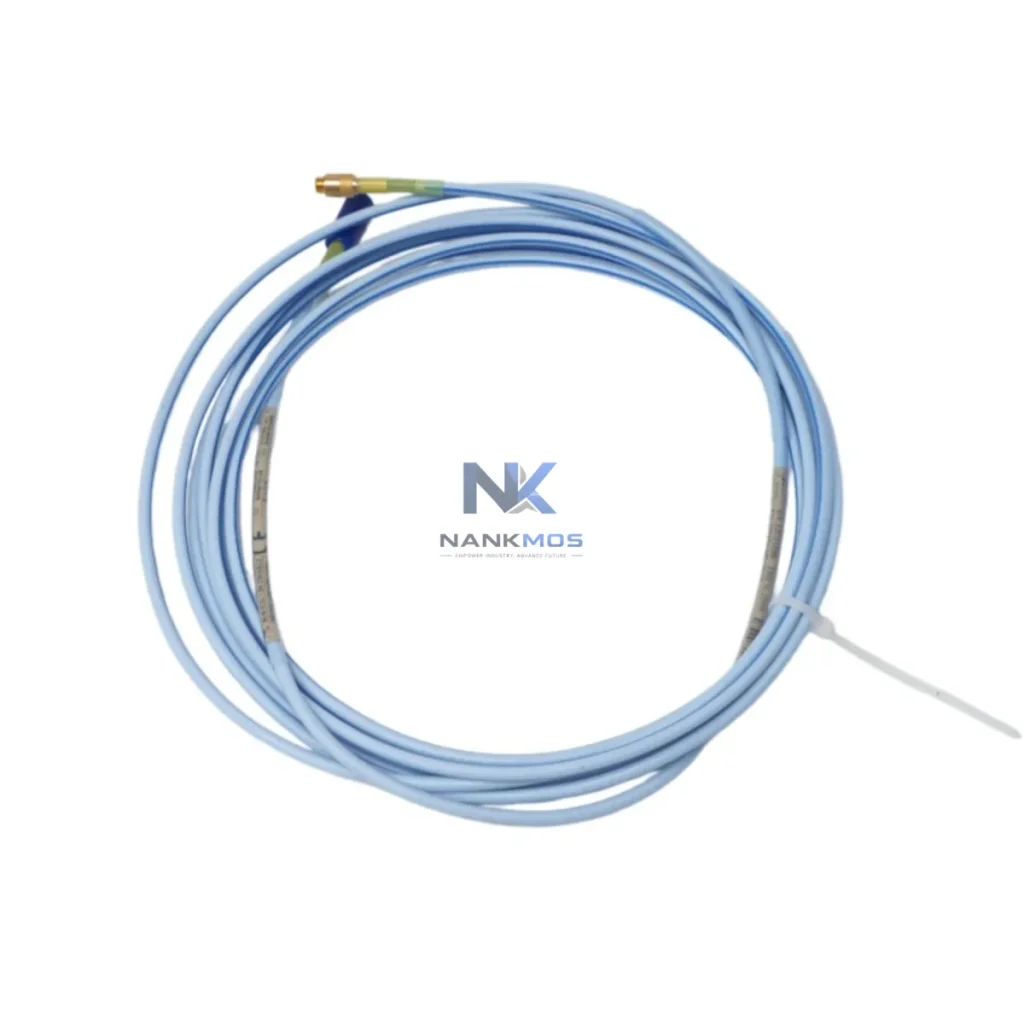

Bently Nevada 330854-040-25-00 Extension Cable

Product Details

330854-040-25-00 Product Description

The Bently Nevada 330854-040-25-00 is a precision-engineered extension cable designed to serve as a critical signal transmission component within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. In modern industrial automation environments, signal integrity between the proximity probe, the proximitor/extension driver, and the 3500 rack-mounted monitor modules is not merely a wiring consideration — it is a foundational element of system reliability, diagnostic accuracy, and long-term operational continuity. The 330854-040-25-00 fulfills this role with a 25-foot (approximately 7.62-meter) cable length, engineered to maintain consistent signal characteristics across the full transmission path from rotating machinery to the control room rack.

Within a complete Bently Nevada 3500 system architecture, the extension cable occupies the I/O signal layer, bridging the field-mounted proximity probe (such as the 330780 or 330730 series probes) and the proximitor/extension driver (such as the 330180 or 330100 series). This three-component signal chain — probe, extension cable, and driver — must be system-matched to ensure that the overall sensitivity, gap voltage, and frequency response remain within the calibrated specification of the connected 3500 monitor module. The 330854-040-25-00 is specifically matched for use with Bently Nevada's standard 5-meter probe and 5-meter driver configurations, completing a total system cable length that aligns with the 3500 Series monitor's input requirements.

At the control layer, the 3500 rack system integrates the signal delivered through this extension cable into its modular monitor cards — including the 3500/42M Proximitor/Seismic Monitor, the 3500/40M Proximitor/Seismic Monitor, and the 3500/45 Position Monitor — each of which processes the conditioned signal for vibration amplitude, phase, gap, and dynamic motion measurements. The rack's backplane architecture, supported by the 3500/20 Rack Interface Module and the 3500/15 Power Supply Module, ensures that all monitor cards receive stable, conditioned power and maintain synchronized communication with the host DCS or safety system via the 3500/22M Transient Data Interface or the 3500/92 Communication Gateway Module.

From a system integration perspective, the 330854-040-25-00 extension cable supports the broader goal of contextual integration — ensuring that field instrumentation data arrives at the control and protection layer with full fidelity, without signal attenuation, impedance mismatch, or electromagnetic interference that could compromise alarm setpoint accuracy or trip reliability. In high-consequence applications such as turbine protection, compressor monitoring, pump condition assessment, and gearbox diagnostics, the quality and system compatibility of every cable segment in the signal chain directly affects the dependability of the machinery protection system as a whole.

For engineering teams designing or maintaining a 3500 Series installation, the 330854-040-25-00 is not an interchangeable commodity cable. Its electrical characteristics — including capacitance per unit length, shield continuity, connector termination type, and overall cable impedance — are matched to the Bently Nevada signal conditioning specification. Substituting non-OEM or non-matched cables introduces calibration uncertainty and may invalidate the system's API 670 compliance posture, which is a critical consideration in rotating machinery protection applications governed by international machinery protection standards.

The 330854-040-25-00 extension cable is most effectively deployed as part of a fully integrated Bently Nevada 3500 Series automation platform. A complete machinery protection architecture built around this signal chain typically includes the following system components working in coordinated layers:

At the field instrumentation layer, the 330780-50-00 proximity probe or 330730-040-01-00 proximity probe is mounted at the machine bearing housing, providing the raw eddy-current signal. The 330854-040-25-00 extension cable transmits this signal to the 330180-51-05 proximitor/extension driver, which conditions and amplifies the signal for rack input. At the rack and monitor layer, the 3500/42M Proximitor/Seismic Monitor receives the conditioned signal and performs real-time vibration amplitude and phase measurement. The 3500/40M Proximitor/Seismic Monitor provides an alternative channel configuration for dual-probe or redundant measurement setups. The 3500/45 Position Monitor handles axial position and differential expansion measurements in turbine applications.

The power and rack infrastructure layer is anchored by the 3500/15 Power Supply Module, which provides regulated DC power to all monitor cards within the rack. The 3500/20 Rack Interface Module manages rack-level communication, configuration, and alarm relay outputs. For systems requiring transient data capture and waveform analysis, the 3500/22M Transient Data Interface integrates with the rack to support dynamic signal recording and machinery diagnostics. At the communication and integration layer, the 3500/92 Communication Gateway Module enables the 3500 rack to interface with plant-level DCS, SCADA, or safety instrumented systems via Modbus RTU, Modbus TCP/IP, or Ethernet/IP protocols, ensuring that vibration and position data from the 330854-040-25-00 signal chain is available to the broader control architecture for process optimization, predictive maintenance scheduling, and safety system integration.

For installations requiring HMI and operator interface, the System 1 Evolution software platform from Bently Nevada provides real-time visualization, trend analysis, alarm management, and machinery health reporting, consuming data from the 3500 rack via the communication gateway. This end-to-end architecture — from the 330854-040-25-00 extension cable at the field level to the System 1 operator interface at the control room level — represents a fully contextually integrated machinery protection solution.

Power Generation — Steam and Gas Turbines: In power plant turbine protection systems, the 330854-040-25-00 extension cable is deployed at each bearing measurement point on the turbine shaft, connecting proximity probes to the 3500 rack monitors that provide overspeed, high vibration, and axial position trip protection. The system's API 670 compliance ensures that the machinery protection architecture meets the requirements of turbine OEM specifications and insurance underwriter standards.

Oil & Gas — Centrifugal Compressors: Offshore platforms and onshore gas processing facilities use the 3500 Series with 330854-040-25-00 extension cables to monitor compressor rotor dynamics, bearing condition, and seal performance. The cable's EMI-shielded construction is essential in environments with high electrical noise from variable frequency drives, power converters, and high-voltage switchgear.

Petrochemical — Pump and Agitator Monitoring: In continuous process plants, the 330854-040-25-00 supports condition monitoring of critical pumps, agitators, and mixers, where early detection of rotor imbalance, misalignment, or bearing wear prevents unplanned shutdowns and product contamination events.

Mining and Minerals Processing — Mill and Crusher Drives: Large rotating equipment in mining applications — including SAG mills, ball mills, and gyratory crushers — benefit from the 3500 Series architecture with properly matched extension cables to ensure that vibration monitoring data accurately reflects machine condition despite the high-vibration, high-dust installation environment.

Marine and Offshore — Propulsion and Auxiliary Machinery: Shipboard machinery protection systems using Bently Nevada 3500 components rely on the correct cable system matching provided by the 330854-040-25-00 to maintain signal integrity in the electrically noisy marine environment, supporting classification society compliance for machinery monitoring systems.

Q1: Is the 330854-040-25-00 compatible with all Bently Nevada 3500 Series monitor modules?The 330854-040-25-00 is designed for use within the Bently Nevada 3500 Series system architecture, specifically as part of a system-matched cable set with a 5-meter proximity probe and a 5-meter proximitor/extension driver. Compatibility with specific 3500 monitor modules — including the 3500/42M, 3500/40M, and 3500/45 — depends on the complete cable system configuration. It is essential to verify the total system cable length and sensitivity specification against the monitor module's input requirements before installation. NANKMOS technical support can assist with system compatibility verification prior to order fulfillment.

Q2: What quality assurance and testing procedures are applied to the 330854-040-25-00 before shipment?Each 330854-040-25-00 unit supplied by NANKMOS undergoes pre-shipment functional verification, including continuity testing, shield integrity check, and connector inspection. Units are supplied with a 12-Month Warranty covering manufacturing defects and functional performance. NANKMOS maintains inventory of tested, ready-to-ship units to support urgent maintenance and replacement requirements in critical machinery protection applications.

Q3: How does the 330854-040-25-00 support long-term maintenance efficiency in a 3500 Series installation?By using OEM-matched extension cables such as the 330854-040-25-00, maintenance teams ensure that replacement components maintain the original system calibration without requiring recalibration of the proximitor or monitor module. This reduces maintenance downtime, eliminates calibration uncertainty, and preserves the integrity of the machinery protection system's alarm and trip setpoints over the long-term operational life of the installation. NANKMOS's stocking program for Bently Nevada 3500 Series components supports rapid replacement logistics for planned and unplanned maintenance events.
