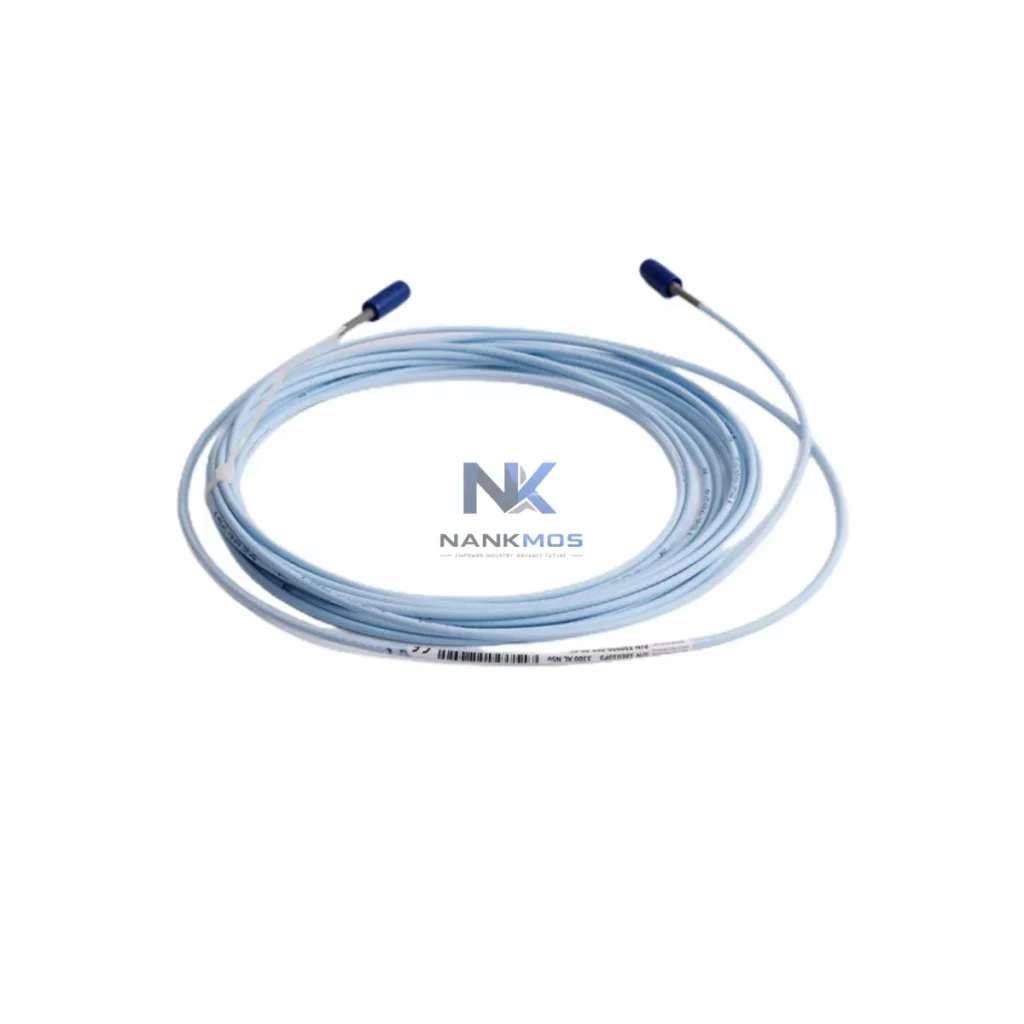

Bently Nevada 330930-060-00-00 Extension Cable

Product Details

330930-060-00-00 Product Description

The Bently Nevada 330930-060-00-00 is a precision-engineered extension cable designed for seamless integration within the Bently Nevada 3300 Series vibration monitoring and machinery protection architecture. This cable serves as the critical signal transmission link between the proximity transducer (proximitor) and the 3300 Series monitor rack, ensuring low-noise, high-fidelity signal delivery across the full operating range of rotating machinery protection systems. Engineered to exact Bently Nevada specifications, the 330930-060-00-00 maintains signal integrity across a 60-foot (approximately 18.3-meter) run, supporting consistent eddy-current proximity measurement performance in demanding industrial environments including turbines, compressors, pumps, and gearboxes.

Within a complete machinery protection architecture, signal path integrity from transducer to monitor is non-negotiable. The 330930-060-00-00 extension cable is the engineered solution that bridges the proximitor output to the 3300 monitor input without introducing impedance mismatch, ground loops, or capacitive loading that could corrupt vibration, position, or speed signals. Its shielded construction and matched electrical characteristics ensure that the 3300 Series monitor receives clean, calibrated signals — a prerequisite for accurate alarm setpoint triggering, trip logic execution, and long-term trend data reliability.

The 330930-060-00-00 extension cable is not a standalone component — it is a system-critical link within a fully integrated Bently Nevada machinery protection and condition monitoring platform. In a typical 3300 Series rack deployment, the signal chain begins at the 3300 XL 8mm Proximity Transducer (e.g., 330780-50-00) mounted on the machine bearing housing, passes through the 3300 XL Proximitor Sensor (e.g., 330180-91-00) which conditions the eddy-current signal, and then travels via this 330930-060-00-00 extension cable to the 3300/16 Dual Vibration Monitor or 3300/20 Radial Vibration Monitor installed in the rack.

The rack itself is powered by the 3300/15 Power Supply, which provides regulated -24 VDC to the proximitor circuit — a voltage level that the extension cable must transmit without resistive drop or noise injection. Adjacent slots in the same rack may house the 3300/46 Keyphasor Module for phase-reference signal acquisition, the 3300/25 Thrust Position Monitor for axial displacement measurement, and the 3300/55 Overspeed Detection Module for speed-based trip logic. All of these modules depend on clean signal cables — including extension cables of the 330930 family — to maintain measurement accuracy across the full rack.

At the communication layer, the rack interfaces with plant DCS or SCADA systems via the 3500/92 Communication Gateway Module (Modbus RTU/TCP or OPC-DA), enabling real-time vibration trend data to flow to historian platforms and control room displays. HMI visualization is typically handled by System 1 Evolution software, which aggregates waveform, spectrum, and trend data from all 3300 Series monitors. For installations requiring redundant power or extended I/O, the 3300/05 Rack Interface Module and 3300/10 Rack Power Distribution components complete the architecture. The 330930-060-00-00 cable is the precision interconnect that ensures every signal in this layered architecture arrives at the monitor with full fidelity — making it indispensable for system commissioning, long-term reliability, and maintenance efficiency.

Power Generation & Turbomachinery: In gas turbine and steam turbine protection systems, the 330930-060-00-00 extension cable connects shaft proximity transducers to 3300 Series monitors mounted in control room racks, often spanning significant distances across turbine enclosures. The cable's PTFE insulation and high-coverage braid shield ensure signal integrity in high-temperature, high-EMI environments typical of power plant turbine halls.

Petrochemical & Refinery Compressor Trains: Centrifugal and reciprocating compressor trains in refineries and LNG facilities rely on continuous vibration monitoring for API 670 compliance. The 330930-060-00-00 provides the certified signal path between field-mounted proximitors and rack-mounted monitors, supporting both radial vibration and axial position measurement channels simultaneously.

Water & Wastewater Pump Stations: Large vertical turbine pumps and horizontal split-case pumps in municipal water infrastructure increasingly use 3300 Series protection. The extension cable's robust connector design and wide operating temperature range make it suitable for outdoor pump station enclosures and underground vault installations.

Mining & Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mining operations generate extreme vibration and electrical noise. The 330930-060-00-00's shielded construction isolates the proximity signal from variable-frequency drive (VFD) interference and motor-generated EMI, maintaining alarm accuracy in these harsh environments.

Marine & Offshore: Shipboard propulsion turbines and offshore platform compressors require vibration monitoring systems certified for marine environments. The 330930-060-00-00 extension cable's temperature range and connector durability support continuous operation in salt-air, high-humidity marine installations.

Q1: Is the 330930-060-00-00 compatible with both 3300 XL 8mm and 11mm proximity transducer systems? Yes. The 330930-060-00-00 extension cable is designed for use with the full 3300 XL proximity transducer family, including 8mm (330780 series) and 11mm (330900 series) transducers, provided the proximitor model is also matched to the transducer gap range. The cable's electrical characteristics — impedance, capacitance, and shield configuration — are compatible with all standard 3300 Series proximitor outputs. Always verify the total cable length (armored cable + extension cable) does not exceed the system-specified maximum for your transducer/proximitor combination, as total cable length affects gap voltage calibration.

Q2: Can this extension cable be used in a redundant vibration monitoring architecture? Yes. In redundant 3300 Series architectures where dual monitors are configured for 1oo2 or 2oo2 voting logic, each monitor channel requires its own dedicated extension cable. The 330930-060-00-00 can be deployed in parallel cable runs — one per redundant monitor input — without signal cross-coupling, provided proper cable routing and separation practices are followed per Bently Nevada installation guidelines. Redundant power supplies (3300/15) and rack interface modules should also be verified for compatibility with the overall redundancy architecture.

Q3: What is the warranty coverage and lead time for the 330930-060-00-00? All 330930-060-00-00 extension cables supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. Units are pre-tested prior to shipment to verify connector integrity, shield continuity, and electrical characteristics. In-stock units typically ship within 3–5 business days globally. For project-volume orders or urgent requirements, contact NANKMOS directly to confirm current inventory status and expedited shipping options.
