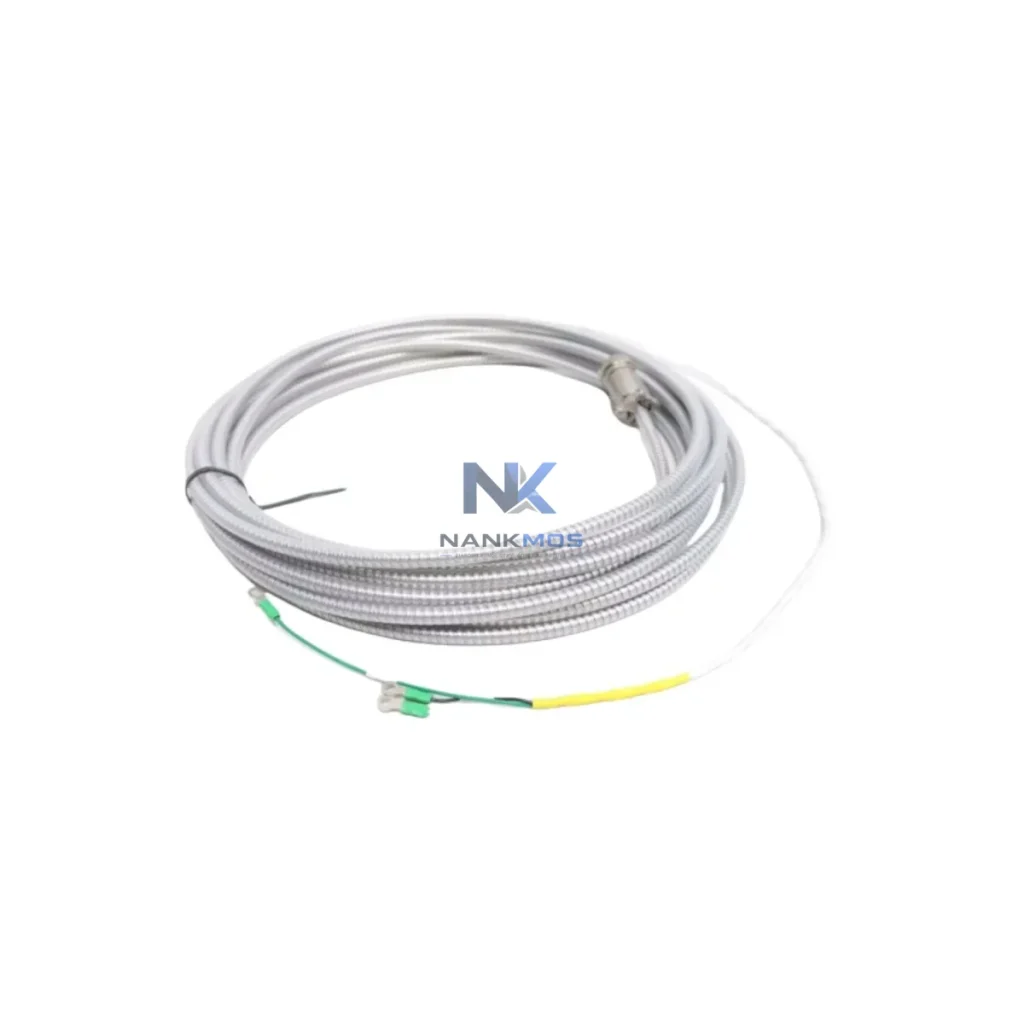

Bently Nevada 330930-060-04-05 Industrial Extension Cable

Product Details

330930-060-04-05 Product Description

The Bently Nevada 330930-060-04-05 is a precision-engineered extension cable designed for the 3300 XL Proximity Transducer System, enabling reliable signal transmission between proximity probes and field monitors in rotating machinery protection environments. In modern smart factory architectures, this cable serves as a critical physical data link — bridging field-level vibration sensors with plant-wide condition monitoring networks, SCADA platforms, and predictive maintenance systems. Its role extends far beyond simple signal routing: it anchors the integrity of the entire data chain from raw mechanical displacement measurement to actionable digital intelligence at the control room level.

In a fully integrated smart factory, the 330930-060-04-05 extension cable operates at the foundation of the condition monitoring data chain. The signal journey begins at the proximity probe tip — typically a Bently Nevada 330101 or 330103 series probe — where eddy-current technology captures shaft displacement and vibration in real time. The 330930-060-04-05 extension cable carries this raw analog signal from the probe, through the machine casing or bearing housing, to the Bently Nevada 3300 XL proximitor/oscillator driver, which conditions and amplifies the signal for downstream processing.

From the proximitor output, the conditioned signal feeds into a Bently Nevada 3500/42M Proximitor I/O Module or a 3500/40M Proximitor Monitor within the 3500 Series rack. These rack-mounted monitors perform real-time signal analysis — calculating gap voltage, direct vibration amplitude, and 1X/2X vector components — and generate alarm and danger relay outputs that interface directly with plant DCS or PLC systems such as Siemens S7-400 or Rockwell Automation ControlLogix platforms. The relay outputs trigger automated shutdown sequences or maintenance alerts without operator intervention, ensuring machine protection response times measured in milliseconds.

At the network communication layer, the 3500 rack's System 1 Evolution software gateway aggregates vibration data from multiple 330930-060-04-05 cable-connected measurement points across a turbine train, compressor, or pump set. This data is transmitted via Modbus TCP/IP or OPC-UA to plant SCADA systems — including GE iFIX, Wonderware System Platform, or Ignition SCADA — where operators monitor trend plots, orbit diagrams, and Bode plots on HMI dashboards in real time. Simultaneously, the 3500 rack communicates with historian servers such as OSIsoft PI System, archiving continuous waveform data for long-term reliability analysis and regulatory compliance reporting.

For facilities deploying edge computing architectures, the vibration data stream from the 330930-060-04-05 measurement chain can be routed through an industrial edge gateway — such as a Moxa MGate or Advantech ADAM-3600 — enabling local analytics and anomaly detection without round-trip latency to cloud servers. This edge-processed data then synchronizes with cloud-based asset performance management (APM) platforms, supporting predictive maintenance models that correlate vibration signatures with process variables from flow transmitters, pressure sensors, and temperature RTDs connected via HART or Foundation Fieldbus protocols.

The physical integrity of the 330930-060-04-05 cable directly determines the quality of every data point in this chain. Signal attenuation, impedance mismatch, or connector degradation at the extension cable level introduces measurement error that propagates through the entire monitoring system — corrupting alarm setpoints, distorting trend data, and potentially masking developing machinery faults. NANKMOS supplies this cable with pre-shipment electrical verification, ensuring cable capacitance, resistance, and connector continuity meet Bently Nevada OEM specifications before dispatch.

Industrial facilities operating rotating machinery face persistent data integrity challenges that originate at the physical measurement layer. When extension cables degrade — through connector corrosion, cable jacket damage, or impedance drift — the resulting signal noise appears as spurious vibration readings in the 3300 XL monitor. SCADA operators see erratic trend data, alarm systems generate false trips, and maintenance teams waste diagnostic hours chasing electrical artifacts rather than real mechanical faults. The 330930-060-04-05, supplied to OEM specification, eliminates this noise source at its origin.

Protocol fragmentation is another common barrier to plant-wide condition monitoring integration. Many older facilities run Bently Nevada 3300 XL systems in isolation — their vibration data trapped in standalone monitors with no pathway to the plant DCS or SCADA network. By pairing the 330930-060-04-05 measurement chain with a Bently Nevada 3500 rack equipped with a System 1 gateway or a third-party Modbus/OPC-UA converter, facilities can bridge this data island and incorporate vibration trending into unified plant dashboards alongside process variables from Yokogawa CENTUM VP or Honeywell Experion PKS DCS platforms.

Remote diagnostics capability is increasingly mandated in energy, petrochemical, and power generation facilities where unplanned downtime carries six-figure hourly cost penalties. The 330930-060-04-05 extension cable, as part of a fully commissioned 3300 XL or 3500 measurement chain, enables remote engineers to access live vibration waveforms, gap voltage readings, and alarm status via secure VPN connections to the plant historian or SCADA server — without requiring physical presence at the machine. This remote visibility supports condition-based maintenance scheduling, reduces site visit frequency, and accelerates fault diagnosis when abnormal vibration signatures appear.

System scalability is addressed through the modular architecture of the 3300 XL and 3500 platforms. Additional measurement points — axial position, differential expansion, speed — can be added to the monitoring network by deploying additional 330930-060-04-05 extension cables and corresponding probes, without disrupting existing measurement channels or requiring SCADA reconfiguration. This plug-and-extend architecture supports phased smart factory upgrades aligned with capital expenditure cycles.

Q1: Does the 330930-060-04-05 introduce signal delay or latency in the vibration monitoring chain?The 330930-060-04-05 is a passive analog cable — it introduces no processing latency. Signal propagation delay across 60 ft of coaxial cable is negligible (nanosecond range) and has no measurable impact on the 3300 XL monitor's real-time vibration measurement or alarm response. End-to-end system latency is determined by the monitor's signal processing cycle, typically less than 20 ms for danger relay activation.

Q2: Is this cable compatible with both 3300 XL and 3500 Series Bently Nevada systems?Yes. The 330930-060-04-05 is designed for the 3300 XL Proximity Transducer System and is electrically compatible with 3500 Series rack monitors that accept 3300 XL probe/extension/proximitor assemblies. Verify system documentation for your specific 3500 monitor module to confirm input impedance compatibility before installation.

Q3: Can this cable's measurement data be integrated into a Modbus or OPC-UA SCADA network?The 330930-060-04-05 itself is an analog signal cable and does not natively output digital protocol data. Integration into Modbus TCP/IP or OPC-UA SCADA networks is achieved through the connected 3300 XL monitor or 3500 rack system, which provides analog (4–20 mA), relay, and optionally digital communication outputs depending on the monitor model and installed communication option cards.

Q4: What warranty and pre-shipment testing does NANKMOS provide for this cable?Every 330930-060-04-05 supplied by NANKMOS carries a 12-month warranty covering manufacturing defects and electrical performance. Pre-shipment testing includes continuity verification, insulation resistance check, and connector integrity inspection to confirm the cable meets Bently Nevada OEM electrical specifications. In-stock units are available for immediate dispatch to minimize machinery downtime.
