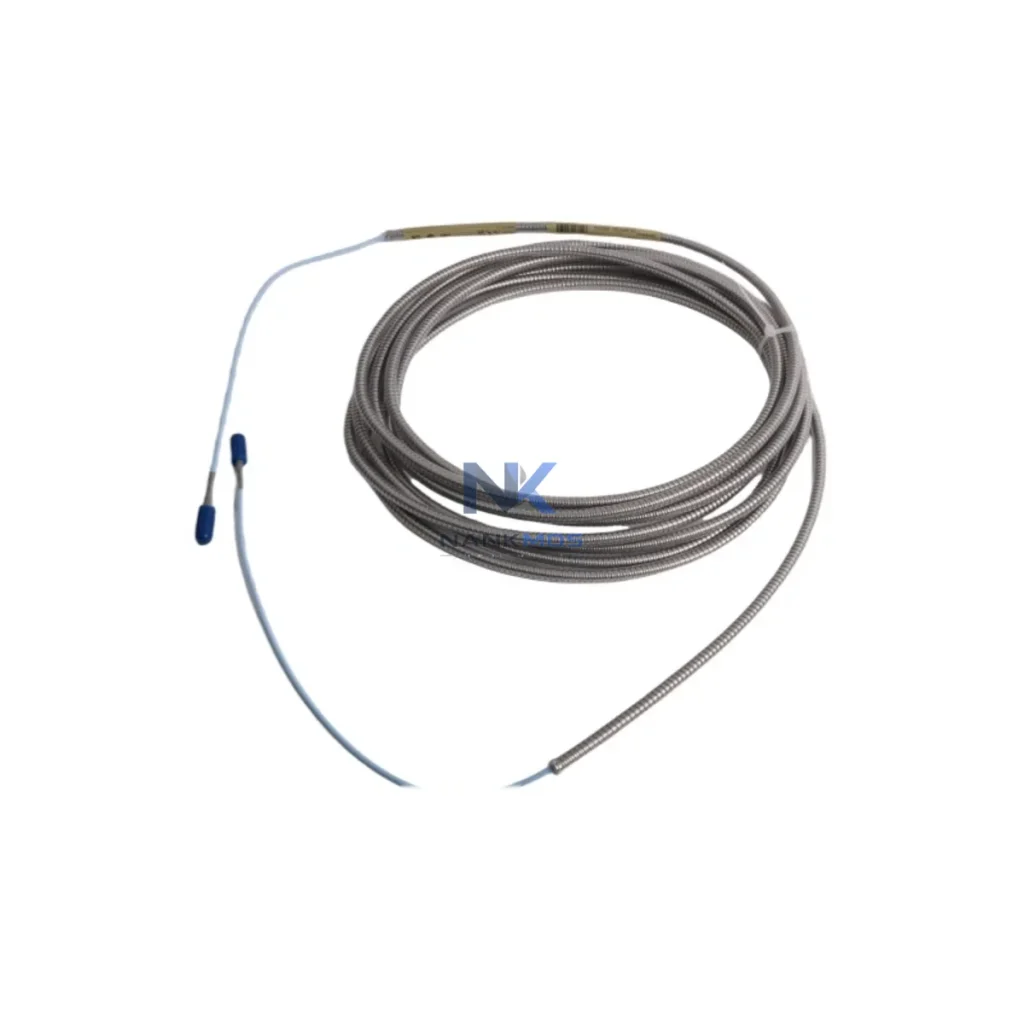

Bently Nevada 330930-065-01-01 Extension Cable

Product Details

330930-065-01-01 Product Description

The Bently Nevada 330930-065-01-01 is a precision-engineered extension cable designed for seamless integration within the 3300 XL proximity transducer system. As a critical signal-path component in rotating machinery protection architectures, this extension cable bridges the gap between the proximity probe and the Proximitor sensor, ensuring low-noise, high-fidelity signal transmission across the full measurement chain. Its system-matched construction guarantees electrical compatibility with Bently Nevada's 3300 XL series, preserving the integrity of eddy-current displacement signals from shaft and bearing monitoring points all the way to the monitoring rack.

In modern industrial control architectures, signal continuity between the field sensing layer and the processing layer is non-negotiable. The 330930-065-01-01 is engineered to maintain consistent cable impedance, shielding effectiveness, and connector geometry that the 3300 XL Proximitor sensor demands. Whether deployed in a simplex or redundant monitoring configuration, this extension cable supports the system's ability to deliver accurate gap voltage readings, enabling the 3500 Series monitoring rack to execute real-time protection logic, alarm annunciation, and trip relay actuation without signal degradation.

From a control architecture perspective, the 330930-065-01-01 occupies the sensing layer — the foundational tier upon which all higher-level control decisions depend. Accurate shaft displacement data, routed cleanly through this cable, feeds into the Proximitor driver, which conditions the signal before it reaches the 3500/40M or 3500/42M proximity monitor modules housed in the 3500 rack. These modules interface with the plant's DCS or safety instrumented system via hardwired relay outputs or communication modules such as the 3500/92 Ethernet communication gateway, enabling contextual integration with SCADA platforms, historian servers, and alarm management systems. The reliability of this entire signal chain begins with the mechanical and electrical quality of the extension cable itself.

Pre-shipment testing is performed on every 330930-065-01-01 unit to verify connector continuity, shield integrity, and insulation resistance before dispatch. This ensures that field installation proceeds without rework delays and that the monitoring system achieves its baseline performance from day one. All units are supplied with a 12-Month Warranty, covering manufacturing defects and electrical performance under normal operating conditions.

The 330930-065-01-01 extension cable is a foundational element within a fully integrated Bently Nevada machinery protection and condition monitoring platform. Its role becomes clear when viewed within the complete signal chain and control hierarchy:

At the sensing layer, the 330900-50-05 proximity probe is installed adjacent to the rotating shaft or thrust collar. The probe generates an eddy-current field whose gap voltage varies linearly with shaft displacement. The 330930-065-01-01 extension cable carries this raw signal from the probe tip — often located in a high-temperature, high-vibration machine casing — to the 330180-X1-05 Proximitor sensor mounted in a cooler, more accessible location. The Proximitor conditions the signal and outputs a calibrated DC voltage proportional to gap distance.

This conditioned signal then enters the 3500/40M proximitor, velocity, and acceleration monitor or the 3500/42M proximitor monitor installed in the 3500 Series monitoring rack. The rack's 3500/15 power supply module provides regulated DC power to all monitor cards, while the 3500/20 rack interface module manages system-level communication and relay logic. For plants requiring network integration, the 3500/92 Ethernet communication module enables Modbus TCP or OPC-DA connectivity to the plant DCS, historian, or SCADA system — completing the contextual integration pathway from raw shaft displacement to enterprise-level asset management.

In redundant architectures, dual extension cables and dual Proximitor sensors feed independent monitor channels within the same rack, ensuring that a single cable or sensor failure does not compromise the protection function. The 3500/22M transient data interface captures high-resolution waveform data during transient events such as machine startups and coastdowns, providing engineering teams with the diagnostic depth needed for root-cause analysis. Complementary components such as the 3300 XL 8 mm proximity transducer system and 330130-080-01-05 proximity probes are commonly deployed alongside the 330930-065-01-01 in multi-point shaft monitoring configurations on large turbines, compressors, and motor-driven pumps.

Power Generation: Steam turbines and gas turbines in power plants rely on multi-point shaft displacement monitoring to protect journal bearings and thrust bearings. The 330930-065-01-01 routes displacement signals from probes installed at each bearing location to the 3500 rack, enabling the turbine protection system to execute automatic trip logic if shaft displacement exceeds alarm or danger setpoints.

Petrochemical and Refining: Centrifugal compressors in ethylene, ammonia, and LNG plants operate continuously under high differential pressure. Shaft radial vibration and axial position monitoring using 3300 XL system components — including the 330930-065-01-01 — provides the early warning data that prevents catastrophic bearing failures and unplanned shutdowns.

Oil and Gas: Offshore and onshore gas compression trains require machinery protection systems that meet API 670 standards. The 3300 XL proximity system, with the 330930-065-01-01 as its signal interconnect, is a proven solution for API 670-compliant radial vibration, axial position, and differential expansion monitoring.

Water and Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in municipal water treatment facilities benefit from continuous shaft monitoring. The 330930-065-01-01 enables reliable signal routing in wet, corrosive environments where cable integrity is critical to sustained monitoring performance.

Mining and Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are high-value assets where unplanned downtime carries significant production cost. Proximity-based shaft monitoring using 3300 XL components provides the real-time displacement data needed to schedule predictive maintenance and avoid catastrophic failures.

Marine Propulsion: Ship propulsion systems and auxiliary machinery on LNG carriers and offshore vessels require compact, vibration-resistant monitoring solutions. The 330930-065-01-01's robust coaxial construction withstands the mechanical stress of marine environments while maintaining signal integrity across the full operating temperature range.

Q1: Is the 330930-065-01-01 compatible with both 3300 XL 5 mm and 8 mm proximity probe systems? The 330930-065-01-01 is designed for use within the Bently Nevada 3300 XL proximity transducer system. Compatibility depends on the specific probe and Proximitor sensor combination in your installation. The -01-01 suffix indicates a standard armored cable configuration. Always verify the complete system part number set — probe, extension cable, and Proximitor — against the Bently Nevada system compatibility matrix for your specific gap range and scale factor requirements. NANKMOS maintains in-stock inventory of matched system sets and can assist with configuration verification prior to order.

Q2: Can this extension cable be used in a redundant monitoring architecture with the 3500 Series rack? Yes. Redundant proximity monitoring architectures typically deploy two independent probe-cable-Proximitor signal chains feeding separate monitor input channels within the 3500 rack. The 330930-065-01-01 is suitable for use in both primary and redundant signal paths. The 3500/40M and 3500/42M monitor modules support dual-channel inputs, and the 3500/20 rack interface module manages voting logic between channels. Ensure that both extension cables are routed through separate conduit paths to maintain physical redundancy and prevent common-cause cable damage from defeating the redundancy benefit.

Q3: What is the warranty coverage and lead time for the 330930-065-01-01? All 330930-065-01-01 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and electrical performance under normal operating conditions. Units are pre-shipment tested for connector continuity, shield integrity, and insulation resistance before dispatch. In-stock units are available for immediate shipment. For volume procurement or project-based requirements, contact NANKMOS at [email protected] or +86 18359268345 to confirm availability and lead time.
