3500 £¬3500/92£¬3500/93 Product Description

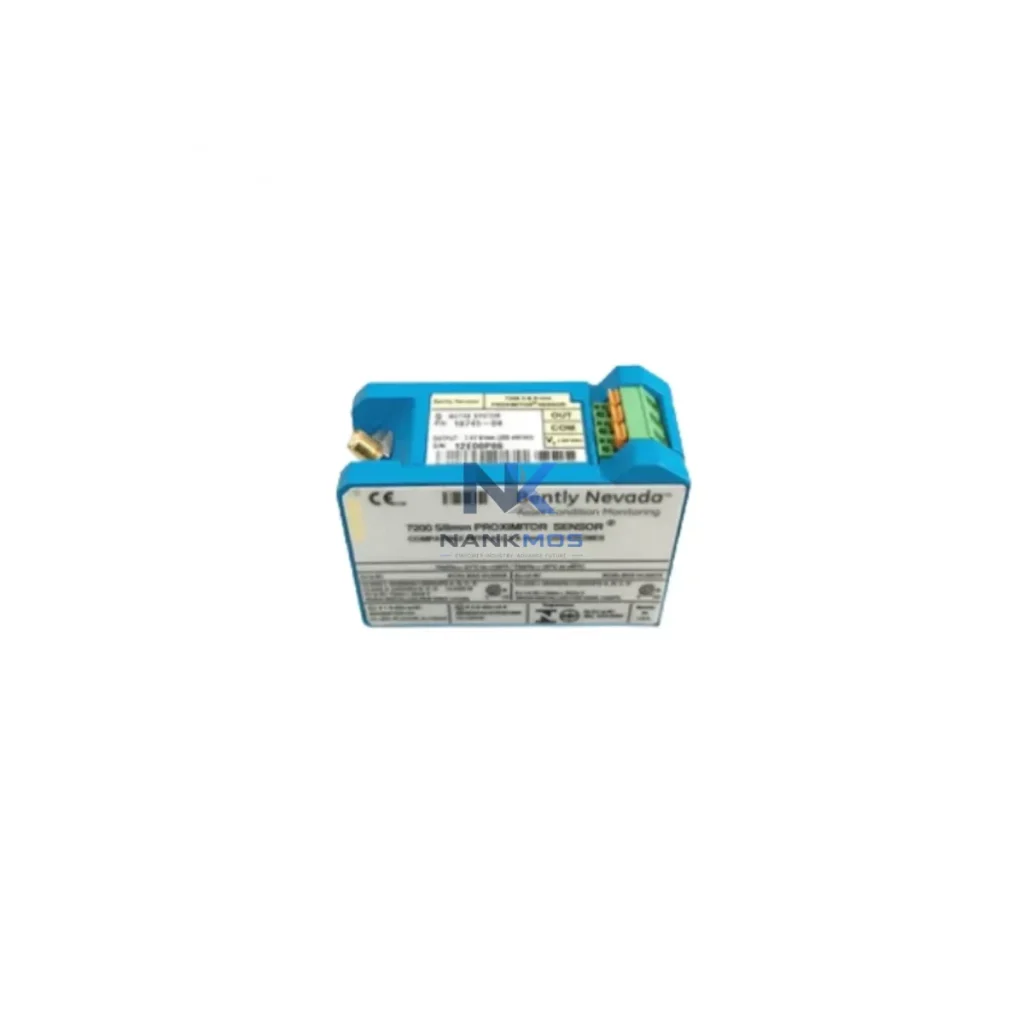

The Bently Nevada 3500/92 and 3500/93 Proximitor Sensors are precision eddy-current proximity transducer interface modules engineered for the 3500 Series machinery protection system. Designed to bridge rotating machinery field signals into plant-wide digital data networks, these modules serve as a critical node in the smart factory data chain — converting raw shaft displacement and vibration signals into structured, protocol-ready data streams accessible by SCADA, DCS, and asset management platforms.

In modern industrial environments — from petrochemical refineries and power generation turbines to compressor trains and large rotating machinery — real-time vibration data is the foundation of predictive maintenance and unplanned downtime prevention. The 3500/92 and 3500/93 modules ensure that every micron of shaft movement is captured, conditioned, and transmitted without latency across the plant network, enabling operators and engineers to act on live machine health data rather than lagging indicators.

The 3500/92 and 3500/93 modules sit at the signal-conditioning layer of the smart factory data architecture. In a typical deployment, eddy-current probes mounted on rotating shafts feed raw analog signals into the Proximitor Sensor module. The module conditions these signals — filtering noise, scaling gap voltage, and computing vibration amplitude and phase — before passing structured data to the 3500 Rack's communication backplane.

From the rack, data flows upstream through the plant network. In facilities running Bently Nevada System 1 software, the 3500 rack communicates directly over Ethernet TCP/IP, delivering real-time vibration trends, alarm states, and historical waveforms to the System 1 server. Operators at HMI workstations — whether running GE's own visualization tools or third-party SCADA platforms such as Wonderware, Ignition, or Emerson DeltaV — receive live machine health dashboards with sub-second update rates.

For plants requiring protocol bridging, a Modbus TCP/RTU gateway (such as those from Moxa, ProSoft Technology, or HMS Anybus) can be inserted between the 3500 rack's serial output and the plant Ethernet backbone, enabling seamless integration with Siemens S7 PLCs, Allen-Bradley ControlLogix controllers, or ABB AC800M DCS systems without modifying the existing rack configuration. Remote I/O modules and edge gateways — including devices like the Moxa ioLogik series or Advantech ADAM-6000 — can further extend data reach to cloud-based asset management platforms or enterprise MES/ERP systems.

In multi-machine protection architectures, the 3500/92 and 3500/93 modules operate alongside other 3500 Series cards: the 3500/40M Proximitor/Seismic Monitor, the 3500/42M Proximitor/Seismic Monitor with four-channel capability, the 3500/50 Tachometer Module for speed and phase reference, and the 3500/22M Transient Data Interface for waveform capture. Together, these modules form a fully integrated machinery protection network where every sensor channel contributes to a unified data stream — enabling plant-wide vibration trending, alarm correlation, and predictive maintenance scheduling from a single SCADA or asset management console.

Industrial Ethernet switches — such as the Hirschmann MACH series or Cisco IE3000 — provide the network backbone that carries this data reliably across the plant floor, ensuring deterministic latency and redundant ring topology for mission-critical protection systems. Variable frequency drives (VFDs) monitoring motor load and speed can be correlated with 3500 Series vibration data to identify resonance conditions before they escalate to bearing failure or shaft damage.

Many industrial sites face a persistent challenge: vibration data exists at the sensor level but never reaches the control room or enterprise systems in a usable, real-time format. The Bently Nevada 3500/92 and 3500/93 modules directly address this gap by providing a standardized, rack-integrated signal path from field sensor to plant network.

Protocol Fragmentation: Legacy plants often run a mix of serial Modbus, proprietary DCS protocols, and modern Ethernet-based systems. The 3500 Series architecture, combined with protocol gateways, eliminates data silos by translating Proximitor Sensor outputs into any required network format — Modbus TCP, OPC-UA, or PROFINET — without requiring sensor replacement or rack reconfiguration.

Remote Monitoring Gaps: For unmanned or remote installations — offshore platforms, pipeline compressor stations, or remote power generation sites — the 3500/92 and 3500/93 modules enable continuous remote diagnostics. Alarm states, vibration trends, and gap voltage readings are transmitted over plant WAN or cellular gateways to central monitoring centers, allowing engineers to assess machine health without site visits.

Production Line Transparency: By integrating 3500 Series vibration data into SCADA historian databases (OSIsoft PI, Aspentech IP.21, or Ignition Tag Historian), maintenance teams gain full production-line transparency — correlating machine vibration signatures with process variables such as flow rate, pressure, and temperature to identify root causes of abnormal behavior before unplanned shutdowns occur.

Alarm Tracking and Escalation: The 3500 rack's configurable alarm setpoints — Alert, Danger, and Trip — feed directly into plant DCS alarm management systems, ensuring that vibration exceedances trigger automated responses: load reduction, speed adjustment, or controlled shutdown sequences — all logged with timestamps for post-event analysis and regulatory compliance.

System Scalability: The modular 3500 rack architecture allows sites to expand from a single machine protection channel to a full plant-wide protection network by adding modules without replacing existing infrastructure. New machines, new sensor types, and new communication protocols can be integrated incrementally, protecting capital investment over the full asset lifecycle.

Q1: What communication protocols does the Bently Nevada 3500/92 / 3500/93 support for SCADA integration? The 3500/92 and 3500/93 modules communicate natively within the 3500 rack backplane and interface with Bently Nevada System 1 software over Ethernet TCP/IP. For third-party SCADA or DCS integration, Modbus RTU/TCP is the most common protocol path, typically implemented via a serial-to-Ethernet gateway. OPC-DA and OPC-UA connectivity is available through System 1 or third-party OPC servers, enabling integration with any modern SCADA platform.

Q2: Can these modules be integrated into existing Siemens or Rockwell Automation control architectures? Yes. Using Modbus TCP gateways or OPC servers, the 3500 Series data can be consumed by Siemens S7-300/400/1500 PLCs, Allen-Bradley ControlLogix/CompactLogix systems, or any DCS with standard Modbus or OPC client capability. No modification to the 3500 rack hardware is required — only gateway configuration and network addressing.

Q3: How is network stability and data integrity ensured in critical machinery protection applications? The 3500 rack architecture uses a dedicated backplane for internal module communication, isolating protection logic from network traffic. Plant Ethernet connections are typically implemented with redundant ring topology (using managed industrial switches with RSTP/MRP support) to ensure continuous data flow even during a single network link failure. All alarm and trip functions remain active regardless of network communication status.

Q4: What does the 12-month warranty cover, and how are units tested before shipment? All Bently Nevada 3500/92 and 3500/93 units supplied by NANKMOS undergo full functional testing prior to shipment — including power-on verification, signal conditioning validation, and communication interface checks. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are dispatched with test records and are available from in-stock inventory for fast global delivery.
