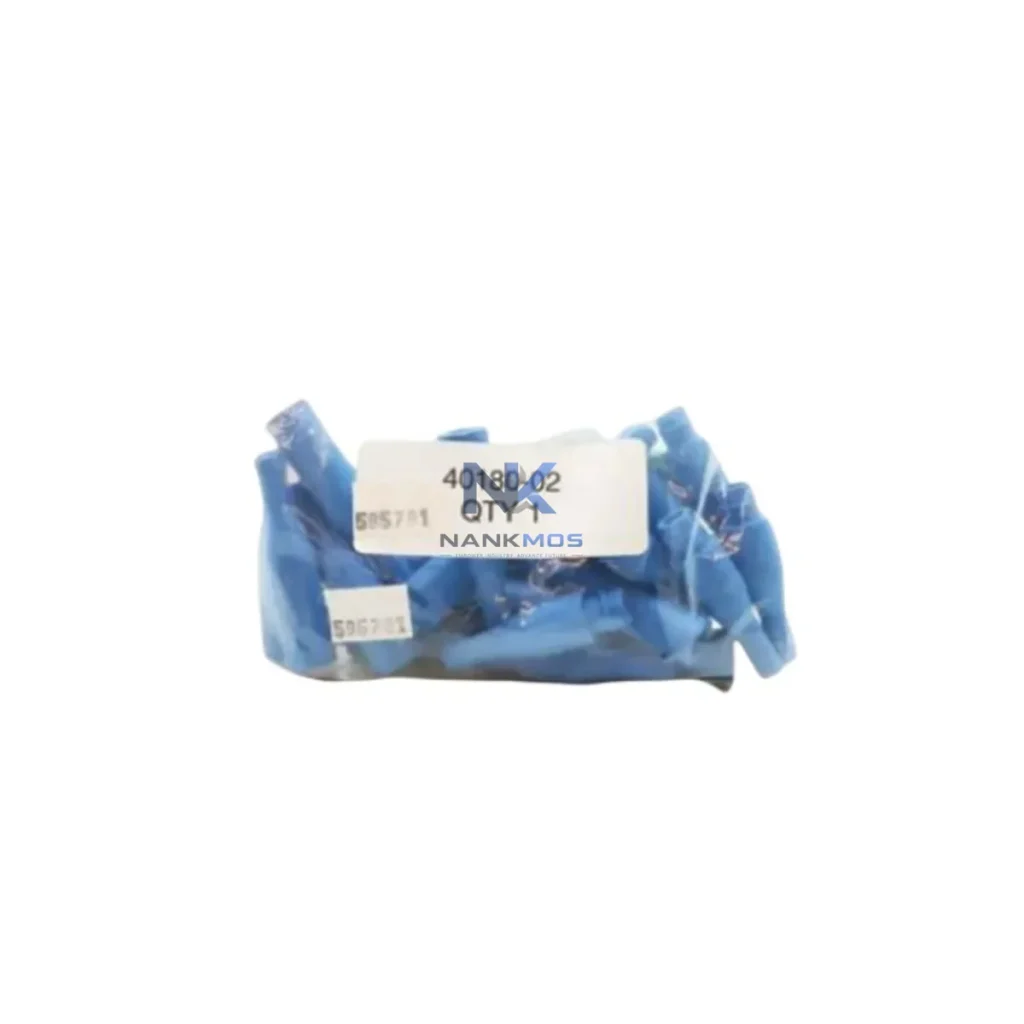

Bently Nevada 40180-02 Connector Protector

Product Details

40180-02 Product Description

The Bently Nevada 40180-02 is a precision-engineered Connector Protector designed specifically for the 3500 Series Machinery Protection System. Within a fully integrated industrial control architecture, connector integrity is a foundational requirement — not an afterthought. The 40180-02 safeguards the signal pathway between field-mounted transducers and the 3500 rack-based monitoring modules, ensuring that vibration, position, and process data arrive at the control layer without degradation, contamination, or mechanical interruption. For facilities operating continuous-process machinery — turbines, compressors, pumps, and rotating equipment — this component is a critical enabler of system uptime, diagnostic accuracy, and long-term maintenance efficiency.

Deployed across control cabinets in power generation, petrochemical, water treatment, and heavy manufacturing environments, the 40180-02 integrates directly into the 3500 rack ecosystem. It is compatible with the full range of 3500 Series I/O modules, including the 3500/40M Proximitor/Seismic Monitor, 3500/42M Proximitor/Seismic Monitor, and 3500/45 Position Monitor. By maintaining a clean, protected connector interface, the 40180-02 reduces the risk of signal noise, ground loops, and intermittent faults that can trigger false alarms or mask genuine machinery anomalies — both of which carry significant operational and safety consequences in high-availability plant environments.

The 40180-02 Connector Protector does not operate in isolation — it is a precision interface component embedded within a layered automation architecture. Understanding its role requires examining the full signal chain from the field instrument layer through to the supervisory control and data acquisition (SCADA) layer.

At the transducer layer, Bently Nevada proximity probes, accelerometers, and velocity sensors generate continuous analog signals representing shaft displacement, vibration amplitude, and phase. These signals are routed through armored cables and connector assemblies — the exact interface point where the 40180-02 provides mechanical and environmental protection. Without a properly seated, protected connector, even a high-quality Bently Nevada 3300 XL 8mm Proximity Transducer System or a 330180 Proximity Probe will deliver degraded data to the monitoring rack.

At the I/O and monitoring layer, the 3500 Series rack houses dedicated monitor modules such as the 3500/40M Proximitor/Seismic Monitor and the 3500/42M Proximitor/Seismic Monitor, which process raw transducer signals into engineering-unit values. The 3500/45 Position Monitor handles axial and differential expansion measurements, while the 3500/50M Tachometer provides speed and phase reference data essential for vector-based vibration analysis. The 40180-02 ensures that the connector interface feeding these modules remains clean and mechanically stable across thermal cycling, vibration, and maintenance access events.

At the rack and backplane layer, the 3500/01 Rack Interface Module (RIM) and the 3500/05 System Rack Power Supply provide the communication backbone and regulated DC power distribution across all installed monitor cards. A compromised connector at any I/O module can introduce ground reference shifts that affect adjacent channels — making the 40180-02 a system-level reliability component, not merely a mechanical accessory.

At the communication and integration layer, the 3500 rack communicates with plant DCS and SCADA platforms via the 3500/92 Communication Gateway Module, supporting Modbus RTU, Modbus TCP/IP, and Ethernet/IP protocols. Upstream integration with Bently Nevada System 1 software enables real-time trending, alarm management, and predictive maintenance analytics. The signal fidelity maintained by the 40180-02 directly impacts the quality of data available at this layer — clean connector interfaces mean accurate alarm setpoints and reliable trip logic.

At the HMI and operator layer, plant operators interact with machinery health data through System 1 Evolution software or third-party SCADA platforms. Alarm rationalization, trend analysis, and event-driven maintenance scheduling all depend on the integrity of the underlying signal chain — a chain that begins at the transducer connector interface protected by the 40180-02.

For facilities managing redundant monitoring architectures, the 40180-02 supports dual-channel and voting-logic configurations by ensuring that both primary and redundant signal paths maintain equivalent connector integrity. This is particularly relevant in API 670-compliant installations where false trips or missed alarms carry regulatory and operational consequences.

Power Generation: In gas turbine and steam turbine protection systems, the 40180-02 is deployed at the connector interface of radial vibration, axial position, and differential expansion monitoring channels. Turbine protection systems operating under API 670 require continuous, uninterrupted signal integrity — the 40180-02 ensures that connector degradation does not become a single point of failure in a critical protection loop.

Petrochemical & Refining: Compressor trains in ethylene, ammonia, and LNG facilities rely on Bently Nevada 3500 Series systems for continuous machinery health monitoring. The 40180-02 protects connector interfaces in environments subject to hydrocarbon vapors, thermal cycling, and high-frequency mechanical vibration — conditions that accelerate connector wear and signal degradation without proper protection.

Water & Wastewater Treatment: Large centrifugal pumps and blower trains in municipal water treatment facilities use 3500 Series monitoring for predictive maintenance programs. The 40180-02 supports long-interval maintenance cycles by ensuring connector interfaces remain serviceable and signal-stable between scheduled inspection periods.

Mining & Minerals Processing: Ball mills, SAG mills, and large fan drives in mining operations generate extreme vibration environments. The 40180-02 provides mechanical protection at the connector interface, reducing the frequency of signal-related maintenance interventions in remote, high-vibration installations.

Marine & Offshore: Shipboard machinery protection systems and offshore platform compressor monitoring applications require connector components rated for high-humidity, salt-air environments. The 40180-02 supports long-term connector integrity in these demanding installation contexts.

Q1: Is the Bently Nevada 40180-02 compatible with all 3500 Series monitor modules? The 40180-02 is designed for use within the Bently Nevada 3500 Series Machinery Protection System ecosystem. It is compatible with the standard connector interfaces used across the 3500/40M, 3500/42M, 3500/45, 3500/50M, 3500/60, and 3500/70M monitor modules. For specific connector pin configurations or rack slot assignments, reference the 3500 Series Rack Installation and Operation Manual (Bently Nevada document 129766-01). If you are integrating into a legacy 3300 Series or 7200 Series installation, contact our technical team to confirm compatibility before ordering.

Q2: How does the 40180-02 support long-term maintenance efficiency in a continuous-process plant? In continuous-process environments where machinery protection systems must remain online during scheduled maintenance windows, the 40180-02 reduces the risk of connector-related signal faults that require unplanned rack access. By maintaining a clean, mechanically stable connector interface, the 40180-02 extends the service interval between connector inspections and reduces the likelihood of nuisance alarms triggered by intermittent connector contact. This directly supports predictive maintenance programs built on System 1 trend data, where signal consistency is a prerequisite for accurate alarm setpoint calibration and machinery health trending.

Q3: What warranty and supply assurance does NANKMOS provide for the 40180-02? All Bently Nevada 40180-02 units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional performance. Each unit undergoes pre-shipment functional verification before dispatch. NANKMOS maintains stock inventory of the 40180-02 to support urgent replacement requirements and planned maintenance outages. For bulk procurement, scheduled delivery programs, or contextual integration support — including system-matched component selection across the 3500 Series rack — contact our technical sales team at [email protected] or +86 18359268345.
