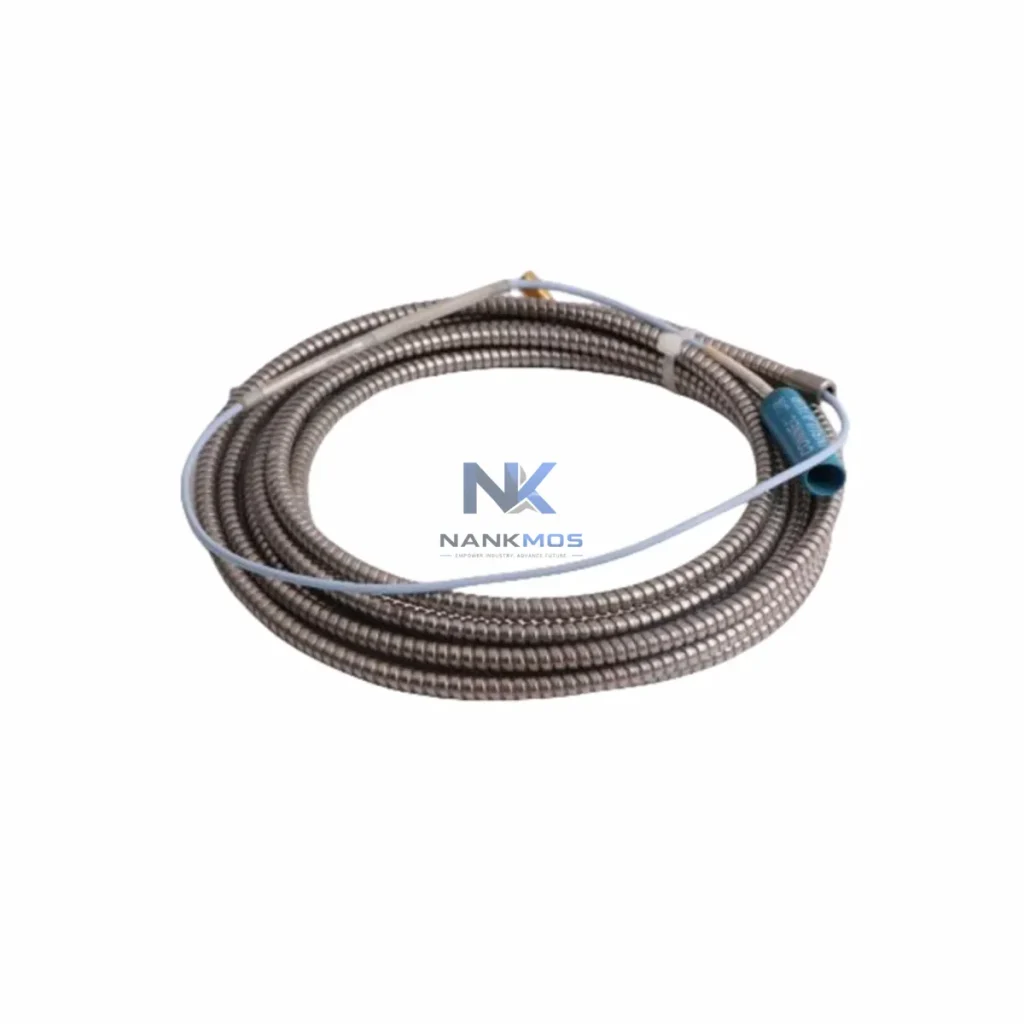

Bently Nevada 84661-60 Vibration Monitoring Cable

Product Details

84661-60 Product Description

The Bently Nevada 84661-60 is a precision-engineered Velomitor cable assembly designed for seamless integration within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. As a critical signal-path component, the 84661-60 bridges the Velomitor piezo-velocity sensor to the 3500/25 Keyphasor module, 3500/42M Proximitor/Seismic Monitor, or 3500/45 Position Monitor, ensuring low-noise, high-fidelity vibration data transmission across the full measurement chain. In demanding industrial environments—where signal integrity directly determines machinery uptime—the 84661-60 delivers the electrical and mechanical reliability that plant engineers and reliability teams depend on for continuous, uninterrupted condition monitoring.

Engineered to operate within the layered control hierarchy of modern process plants, the 84661-60 supports the 3500 rack's modular I/O philosophy. Whether deployed in a simplex or redundant rack configuration, the cable maintains consistent impedance characteristics that preserve the accuracy of velocity measurements fed into the 3500/20 Rack Interface Module and subsequently communicated to the plant DCS or safety system via the 3500/22M Transient Data Interface. This end-to-end signal consistency is foundational to predictive maintenance programs and machinery health dashboards that operations teams rely on around the clock.

The 84661-60 cable is not a standalone component — it is a precision link within a fully integrated Bently Nevada 3500 platform. In a typical turbine or compressor train monitoring architecture, the signal chain begins at the Velomitor CT sensor mounted on the bearing housing, travels through the 84661-60 cable to the 3500/42M Proximitor/Seismic Monitor housed in the 3500 rack. The rack itself is powered by the 3500/15 Power Supply module, which provides conditioned DC power to all I/O modules and ensures stable operation during grid transients.

Within the same rack, the 3500/25 Keyphasor Module provides the phase reference signal essential for vector-based vibration analysis, while the 3500/20 Rack Interface Module (RIM) aggregates all channel data and communicates upstream to the plant control system via Modbus TCP or OPC-DA. For facilities requiring redundant monitoring, the 3500 rack supports dual-channel configurations where a secondary 84661-60 cable feeds a redundant monitor slot, eliminating single points of failure in the vibration measurement chain.

At the HMI and supervisory layer, System 1 Evolution software (or System 1 Condition Monitoring) receives the digitized vibration vectors from the 3500/22M Transient Data Interface, enabling real-time trending, alarm management, and machinery diagnostics. Engineers working on multi-train installations often pair the 3500 rack with Bently Nevada 3300 XL 8mm proximity probes and 3300/55 extension cables for shaft displacement monitoring on the same machine, creating a unified vibration and position monitoring architecture from a single vendor platform.

For facilities integrating the 3500 system into a broader Honeywell Experion PKS or Emerson DeltaV DCS environment, the 3500/20 RIM's Ethernet gateway capability allows seamless data handoff without additional protocol converters. Power distribution to the monitoring cabinet is typically managed through a dedicated 24 VDC UPS rail, ensuring the 3500 rack remains operational during plant power events — a critical requirement for API 670-compliant machinery protection systems.

The Bently Nevada 84661-60 Velomitor cable finds application across a broad spectrum of heavy industrial sectors where rotating machinery health is mission-critical:

Oil & Gas / Petrochemical: In upstream and downstream facilities, the 84661-60 connects Velomitor sensors on gas compressor trains, centrifugal pumps, and steam turbines to the 3500 protection rack. Continuous velocity monitoring enables early detection of bearing defects, misalignment, and rotor imbalance — preventing unplanned shutdowns that can cost operators tens of thousands of dollars per hour.

Power Generation: Gas turbine and steam turbine generators in combined-cycle power plants rely on the 3500 system for API 670-compliant overspeed and vibration protection. The 84661-60 cable's double-shielded construction rejects the high electromagnetic interference generated by large generator stators and excitation systems, maintaining signal fidelity in electrically noisy environments.

Water & Wastewater Treatment: Large centrifugal pump stations and blower trains in municipal water treatment facilities use the 3500 system for condition-based maintenance programs. The 84661-60's robust cable jacket withstands the humid, chemically aggressive atmospheres common in these installations.

Mining & Minerals Processing: Ball mills, SAG mills, and large conveyor drive motors in mining operations generate significant vibration signatures. The 84661-60 cable, paired with the 3500/42M monitor, provides the continuous velocity data needed to schedule maintenance during planned shutdowns rather than reacting to catastrophic failures.

Marine & Offshore: Offshore platform compressors and marine propulsion systems operating under DNV or ABS classification requirements benefit from the 3500 system's proven reliability. The 84661-60's MIL-spec connectors and robust cable construction meet the mechanical demands of marine vibration environments.

Q1: Is the Bently Nevada 84661-60 compatible with both simplex and redundant 3500 rack configurations? Yes. The 84661-60 is fully compatible with both simplex and dual-channel redundant 3500 rack configurations. In redundant setups, two 84661-60 cables are routed from the Velomitor sensor to separate monitor modules within the same rack, eliminating single points of failure in the vibration measurement path. No additional adapters or signal conditioners are required — the cable's impedance and connector specifications are matched to all 3500-series monitor inputs.

Q2: What is the recommended installation practice for the 84661-60 in high-EMI environments such as motor control centers or large generator halls? In high-EMI environments, the 84661-60 should be routed in dedicated instrument cable trays, physically separated from power cables by a minimum of 300 mm (12 inches) per ISA-5.1 and IEC 61158 best practices. The cable's double-shielded coaxial construction provides inherent EMI/RFI rejection, but proper grounding of the shield at the monitor end (single-point grounding) is essential to prevent ground loops that can introduce 50/60 Hz noise into the velocity signal. Conduit installation is recommended in areas with severe mechanical abrasion risk.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for replacement stock? The 84661-60 is supplied with a 12-Month Warranty covering manufacturing defects in materials and workmanship from the date of shipment. Each unit undergoes pre-shipment electrical continuity, insulation resistance, and connector integrity testing before dispatch. Replacement stock is maintained in inventory for rapid fulfillment, with standard global shipping available to support both planned maintenance schedules and emergency replacement requirements. Contact [email protected] or +86 18359268345 for current stock availability and lead time confirmation.
