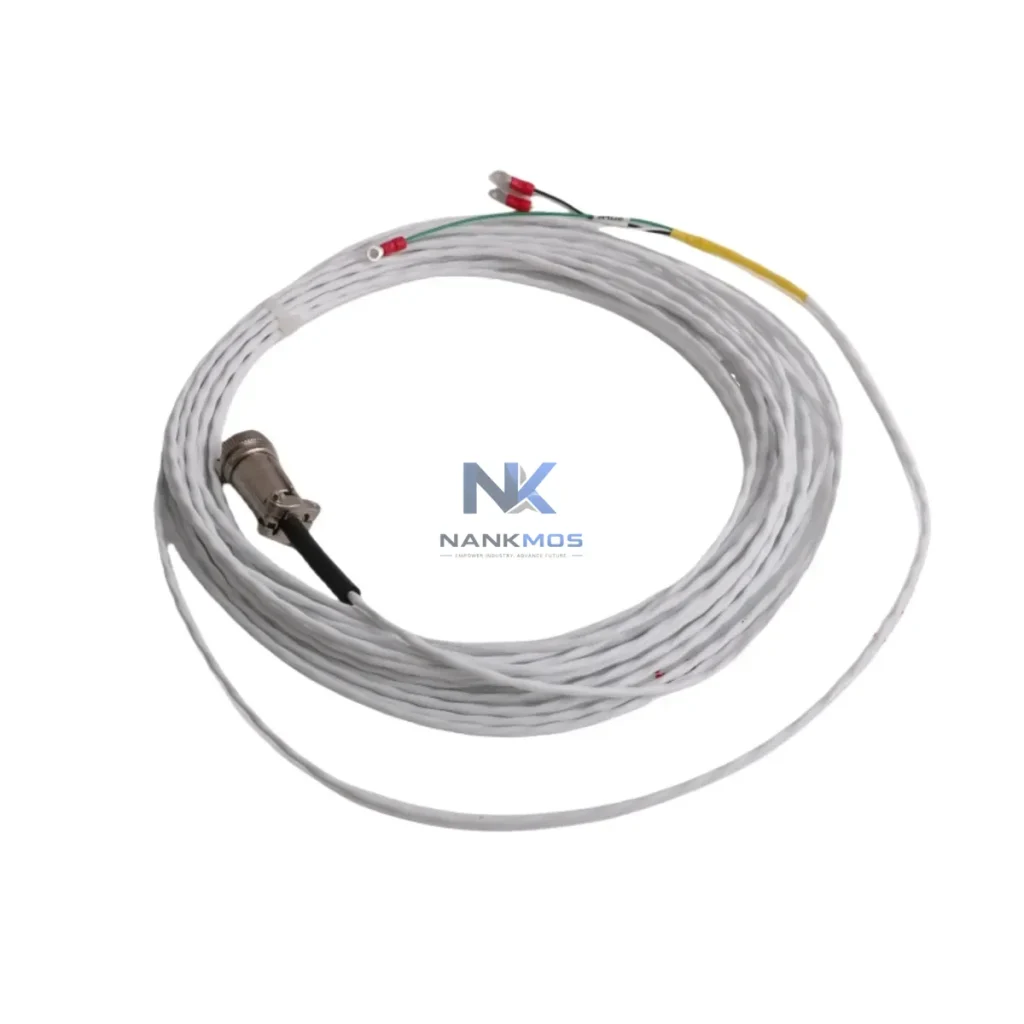

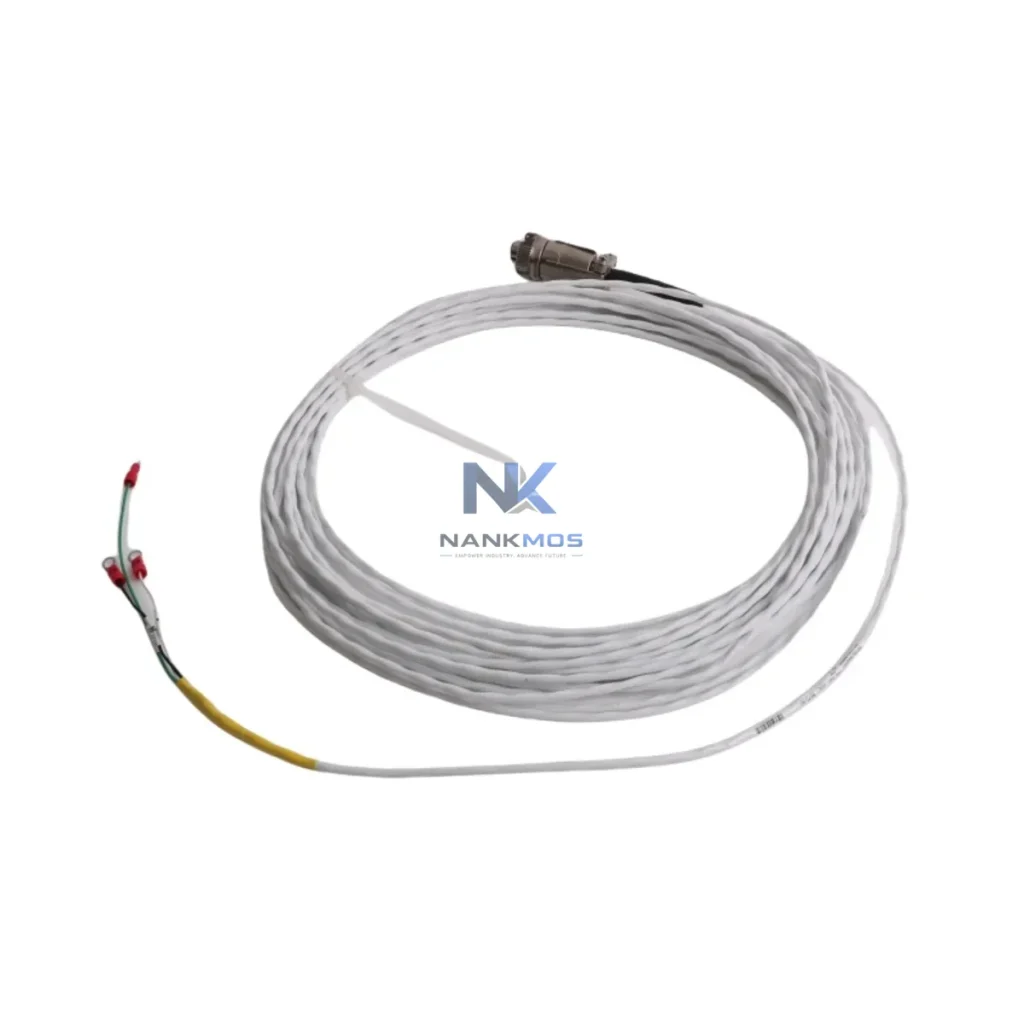

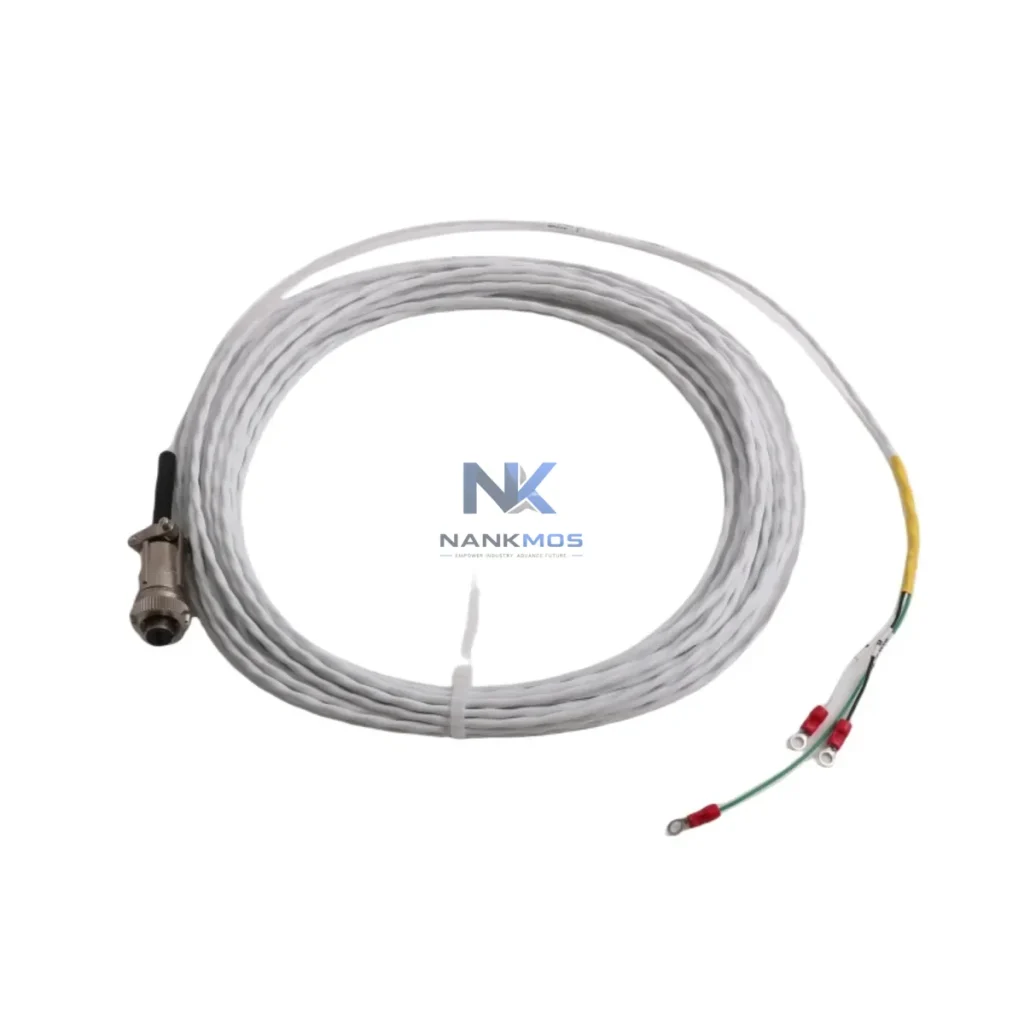

Bently Nevada 9571-33 Proximitor Interconnect Cable

Product Details

9571-33 Product Description

The Bently Nevada 9571-33 Proximitor Interconnect Cable is a precision-engineered signal transmission component designed for the 3300 Series vibration monitoring ecosystem. In modern smart factory environments, reliable signal integrity between field-mounted proximity transducers and rack-mounted monitoring modules is the foundation of every data-driven maintenance strategy. The 9571-33 fulfills this role by delivering low-noise, shielded interconnection between Proximitor drivers and the 3300 Series monitoring rack — ensuring that raw vibration and position data from rotating equipment reaches the control layer without degradation, delay, or interference.

As industrial facilities transition toward Industry 4.0 architectures, the demand for uninterrupted, high-fidelity sensor-to-system data paths has never been greater. The 9571-33 serves as the physical backbone of this chain — connecting eddy-current proximity probes mounted on turbines, compressors, pumps, and motors to the 3300/16 Monitor or 3300/20 Monitor input channels housed within the 3500 or 3300 rack assembly. Every millivolt of gap voltage and every micron of shaft displacement measured at the probe tip depends on the cable's shielding integrity, connector reliability, and dimensional compatibility — all of which the 9571-33 is engineered to deliver.

Within a connected factory data flow, the 9571-33 operates at the signal acquisition layer. Proximity probes — such as the 330101 or 330103 series — detect shaft radial position and dynamic vibration. The 9571-33 routes these analog signals to the 3300 XL 8mm Proximitor driver, which conditions and amplifies the signal before passing it upstream to the monitor card. From there, the 3300 Series rack communicates processed vibration data — including 1X, 2X amplitude, phase, and gap DC — to the plant's System 1 Evolution asset management platform via Modbus TCP or OPC-UA gateway interfaces. This structured data path enables real-time trending, alarm threshold management, and remote diagnostics from any SCADA or HMI terminal on the network.

In gas turbine and steam turbine applications, the 9571-33 is typically deployed alongside the 3300/55 Proximitor and 3300/65 Proximitor modules, where multiple cable runs are routed through conduit from the bearing housing junction boxes to the control room rack. Proper cable routing, grounding, and connector seating — all supported by the 9571-33's design — are critical to maintaining the signal-to-noise ratio required for accurate machinery protection decisions. When integrated with a 3500/42M Proximitor/Seismic Monitor, the data collected through the 9571-33 cable path feeds directly into the 3500 rack's communication backplane, which supports Ethernet/IP and Modbus RTU output to plant DCS and SCADA systems.

For facilities operating System 1 software or third-party SCADA platforms such as Wonderware, FactoryTalk, or Ignition, the signal chain anchored by the 9571-33 provides the raw measurement data that drives dashboards, alarm logs, and predictive maintenance workflows. Edge gateways — such as those running OPC-UA server stacks — can aggregate multi-channel vibration data from several 3300 rack outputs and forward structured datasets to cloud-based analytics platforms or on-premise historians. The 9571-33 ensures that the first link in this chain — the probe-to-Proximitor connection — remains stable, shielded, and dimensionally consistent across all installation points.

Remote diagnostics capabilities depend entirely on the quality of data entering the monitoring system. A compromised cable connection introduces noise, offset errors, or signal dropout that propagates through every downstream layer — from the monitor card to the SCADA alarm engine. By specifying the 9571-33 as the interconnect standard for 3300 Series installations, maintenance engineers eliminate a common source of false alarms and measurement uncertainty. This is particularly important in unmanned or remotely monitored facilities — offshore platforms, pipeline compressor stations, and remote power generation sites — where physical access for troubleshooting is limited and remote diagnostic accuracy is mission-critical.

The 9571-33 is pre-shipment tested and verified against Bently Nevada dimensional and electrical specifications before dispatch. Each unit is supplied with a 12-month warranty covering manufacturing defects and connector integrity. Stock is maintained for immediate dispatch, supporting both single-unit replacement orders and bulk procurement for multi-rack installations or plant-wide cable standardization programs.

The 9571-33 anchors the sensor-to-system data chain in a 3300 Series-based machinery protection architecture. At the field level, eddy-current proximity probes — including the 330101-00-06-10-02-00 and 330103 series — are mounted at bearing housings on rotating shafts. The 9571-33 cable routes the probe output signal to the 3300 XL 8mm Proximitor driver, which conditions the signal and outputs a calibrated DC gap voltage and AC vibration signal to the monitor card input.

The 3300/16 Monitor or 3300/20 Monitor processes these inputs, applies alarm setpoints, and outputs structured data to the 3300 rack communication backplane. For facilities using the 3500/42M Proximitor/Seismic Monitor, the same cable standard applies, with data flowing through the 3500 rack's Ethernet/IP or Modbus TCP communication module to the plant DCS or SCADA layer. An edge gateway running an OPC-UA server — such as those integrated with System 1 Evolution — aggregates multi-channel outputs from multiple rack slots and forwards real-time vibration vectors, alarm states, and trend data to historian databases or cloud analytics platforms.

At the HMI and SCADA layer, operators monitor shaft centerline plots, orbit diagrams, and spectral data sourced from the 9571-33-connected probe channels. Remote I/O modules and industrial Ethernet switches — operating on managed VLAN architectures — ensure that vibration data packets reach the control room with deterministic latency. Alarm events triggered by the 3300 monitor cards propagate through the network to PLC-based safety systems, enabling automated shutdown sequences or maintenance dispatch workflows without manual intervention.

Protocol Fragmentation: Many legacy machinery protection installations use proprietary analog signal formats that cannot be directly integrated into modern Modbus TCP or OPC-UA networks. The 9571-33, when used with 3300 Series monitors equipped with digital communication backplanes, bridges this gap — converting raw proximity probe signals into structured digital data streams compatible with plant-wide SCADA and DCS architectures.

Data Islands: Rotating equipment monitoring systems installed in isolation — without network connectivity to the plant historian or SCADA — create data islands that prevent cross-system correlation. By standardizing on the 9571-33 interconnect and pairing it with 3300/3500 rack communication modules, facilities can consolidate vibration data into unified asset management platforms such as System 1 Evolution, eliminating siloed monitoring and enabling fleet-wide trend analysis.

Remote Monitoring Gaps: In unmanned substations, offshore platforms, and remote compressor stations, physical access for cable inspection or replacement is costly and time-consuming. The 9571-33's robust connector design and shielded construction minimize in-service failures, reducing the frequency of remote site visits. When combined with remote diagnostic tools available through System 1 or third-party SCADA platforms, maintenance teams can assess signal quality and cable integrity from centralized control rooms.

Production Line Transparency: Without reliable sensor-to-rack connectivity, alarm thresholds cannot be trusted and production decisions are made on incomplete data. The 9571-33 ensures that every vibration measurement entering the 3300 monitoring system is accurate, consistent, and traceable — supporting transparent production reporting, regulatory compliance documentation, and predictive maintenance scheduling.

Q1: Is the Bently Nevada 9571-33 compatible with both 3300 and 3500 Series monitoring racks? The 9571-33 is designed for the 3300 Series Proximitor interconnect standard. It is compatible with 3300/16, 3300/20, 3300/55, and 3300/65 monitor modules. For 3500 Series applications, verify connector and cable length compatibility with the specific 3500 monitor card in use. Contact our technical team for cross-series compatibility confirmation before ordering.

Q2: What communication protocols does the 3300 Series support when using the 9571-33 in a SCADA-connected installation? The 9571-33 transmits analog signals from the proximity probe to the Proximitor driver and monitor card. The 3300 rack's communication backplane — depending on the installed communication module — supports Modbus RTU, Modbus TCP, and OPC-UA output to SCADA, DCS, and HMI systems. Protocol selection is configured at the rack communication module level, independent of the 9571-33 cable specification.

Q3: How is network stability maintained in high-vibration or high-EMI industrial environments? The 9571-33 uses shielded cable construction to suppress electromagnetic interference from variable frequency drives, high-voltage switchgear, and adjacent power cables. Proper grounding at the Proximitor driver end — per Bently Nevada installation guidelines — is essential for maintaining signal integrity in high-EMI environments. Cable routing through dedicated instrumentation conduit, separated from power cable runs, further reduces noise coupling.

Q4: What warranty and pre-shipment testing does the 9571-33 include? Every 9571-33 unit supplied by NANKMOS is pre-shipment tested against Bently Nevada dimensional and electrical specifications. A 12-month warranty covers manufacturing defects and connector integrity from the date of dispatch. Stock is maintained for immediate availability, supporting both urgent single-unit replacements and planned bulk procurement for multi-rack installations.
