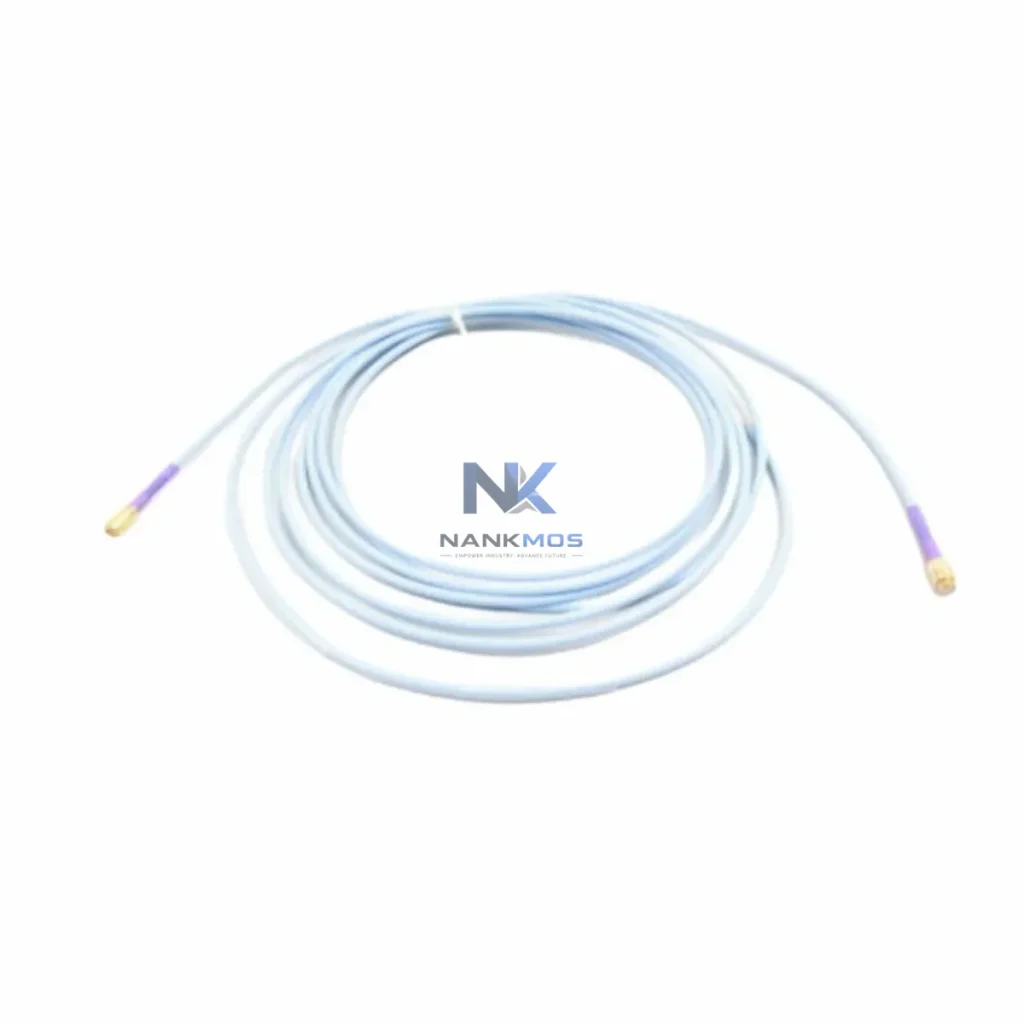

Bently Nevada BA21747-045-01 Extension Cable

Product Details

BA21747-045-01 Product Description

The Bently Nevada BA21747-045-01 Extension Cable is a precision signal-path component engineered specifically for the 3500 Machinery Protection System — one of the most widely deployed continuous machinery monitoring platforms in rotating equipment applications worldwide. Its role within the control architecture is deceptively critical: it bridges the proximity transducer mounted on the machine casing to the 3500 Series monitor module housed in the control rack, maintaining signal integrity across the full cable run without introducing impedance mismatch, capacitive loading errors, or ground-loop interference.

In a complete 3500 architecture, the BA21747-045-01 operates as part of a tightly matched signal chain. The Bently Nevada 3300 XL 8mm Proximity Transducer (or equivalent 7200 Series probe) generates a voltage output proportional to the gap between the probe tip and the rotating shaft. That raw signal travels through the BA21747-045-01 extension cable to the 3500/40M Proximitor / Seismic Monitor or 3500/42M Proximitor / Seismic Monitor, where it is conditioned, scaled, and compared against alarm setpoints. Any deviation in cable impedance or shielding continuity at this stage directly degrades the accuracy of radial vibration, axial position, or differential expansion measurements — making cable selection a system-level engineering decision, not a commodity procurement choice.

The broader 3500 rack infrastructure that the BA21747-045-01 supports includes the 3500/01 Rack Interface Module, which manages communication between the monitor modules and the plant DCS or safety system via Modbus RTU, Modbus TCP/IP, or OPC-DA protocols. The 3500/05 Power Supply Module provides regulated DC power to all modules in the rack, while the 3500/15 Power Supply supports redundant power configurations for SIL-rated installations. For facilities requiring continuous availability, the 3500/92 Communication Gateway Module enables seamless integration with plant historians, condition monitoring software such as System 1 Evolution, and enterprise asset management platforms.

When deploying the BA21747-045-01 in a multi-channel monitoring configuration, engineers typically pair it with the 3500/22M Transient Data Interface for startup and coast-down transient capture, and the 3500/25 Enhanced Keyphasor Module for phase-referenced vibration analysis. The Keyphasor signal — derived from a once-per-revolution notch or projection on the shaft — is routed through a dedicated extension cable of the same family, ensuring that phase angle measurements remain synchronized across all measurement channels in the rack. This synchronization is essential for orbit plot generation, balancing calculations, and torsional vibration analysis in multi-bearing machine trains such as steam turbines, compressors, and large pumps.

From a layered control architecture perspective, the BA21747-045-01 occupies the field instrumentation layer — the lowest and most physically exposed tier of the monitoring hierarchy. Above it, the 3500 monitor modules form the protection and conditioning layer, executing trip logic and alarm annunciation in hardware with response times well under 100 ms. The 3500/01 Rack Interface Module then elevates processed data to the supervisory and communication layer, where it is consumed by the plant DCS (such as an ABB 800xA, Emerson DeltaV, or Honeywell Experion PKS system) for integrated process and machinery oversight. This layered architecture ensures that a cable-level signal anomaly can be detected, alarmed, and acted upon at multiple levels of the control hierarchy — from local rack indication to enterprise-level condition monitoring dashboards.

Power Generation: In gas turbine and steam turbine generator sets, the BA21747-045-01 routes radial vibration and axial thrust signals from bearing-mounted proximity probes to the 3500 rack installed in the turbine control panel. Accurate signal transmission is critical during startup transients, load changes, and emergency trips, where shaft displacement can change by several mils within milliseconds.

Petrochemical and Refining: Centrifugal compressors in ethylene crackers, hydrogen reformers, and LNG liquefaction trains operate continuously at high speeds under corrosive process conditions. The BA21747-045-01 provides the reliable signal path needed to detect sub-synchronous instability, surge precursors, and bearing wear before they escalate to unplanned shutdowns. Its shielded coaxial construction resists electromagnetic interference from variable-frequency drives and high-voltage switchgear commonly co-located in compressor control buildings.

Water and Wastewater Treatment: Large vertical turbine pumps and horizontal split-case pumps in water treatment facilities benefit from continuous vibration monitoring to detect impeller imbalance, cavitation, and bearing degradation. The BA21747-045-01 supports long cable runs from wet-well-mounted probes to control room racks, maintaining signal fidelity across the full 45-foot extension length.

Mining and Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mineral processing plants operate in high-dust, high-vibration environments. The BA21747-045-01's robust connector design and shielded construction ensure reliable signal transmission even in the presence of mechanical shock and electrical noise from crusher drives and conveyor systems.

Marine and Offshore: Shipboard propulsion turbines, main engine turbochargers, and offshore platform compressors require machinery protection systems certified for marine environments. The BA21747-045-01 supports these applications by providing a mechanically robust, electrically stable signal path compatible with the 3500 system's marine-certified monitor modules.

Q1: Is the BA21747-045-01 compatible with all Bently Nevada 3500 Series monitor modules, or only specific channel types? The BA21747-045-01 is designed for use with eddy-current proximity transducer systems operating on the standard Bently Nevada –24 VDC bias supply. It is compatible with all 3500 Series monitor modules that accept proximity probe inputs, including the 3500/40M, 3500/42M, 3500/44M, and 3500/46M. It is not intended for use with velocity or accelerometer inputs, which use different connector and impedance specifications. Always verify the monitor module's input specification and the transducer's cable system requirements before selecting extension cable length and part number.

Q2: Can the BA21747-045-01 be used in a redundant monitoring architecture, and what are the installation considerations? Yes. In redundant 3500 configurations — where dual monitor modules observe the same measurement point for voting logic or continuous availability — each channel requires its own dedicated extension cable. The BA21747-045-01 should be routed in separate conduits or cable trays to prevent common-cause failure from mechanical damage or electromagnetic interference. Connector terminations should be inspected and torqued to specification during commissioning, and cable continuity and insulation resistance should be verified with a calibrated cable tester before system energization. NANKMOS supplies matched cable pairs for redundant channel configurations upon request.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term spare parts availability? The 12-Month Warranty covers manufacturing defects, connector integrity, and electrical performance to Bently Nevada OEM specifications from the date of shipment. NANKMOS maintains dedicated inventory of BA21747-045-01 and related 3500 Series cable assemblies to support both planned maintenance outages and emergency replacement requirements. All units undergo pre-shipment electrical testing — including continuity, insulation resistance, and connector seating verification — before dispatch. For long-term maintenance planning, NANKMOS recommends holding one spare cable assembly per monitored machine train as part of the site's critical spare parts inventory strategy.
