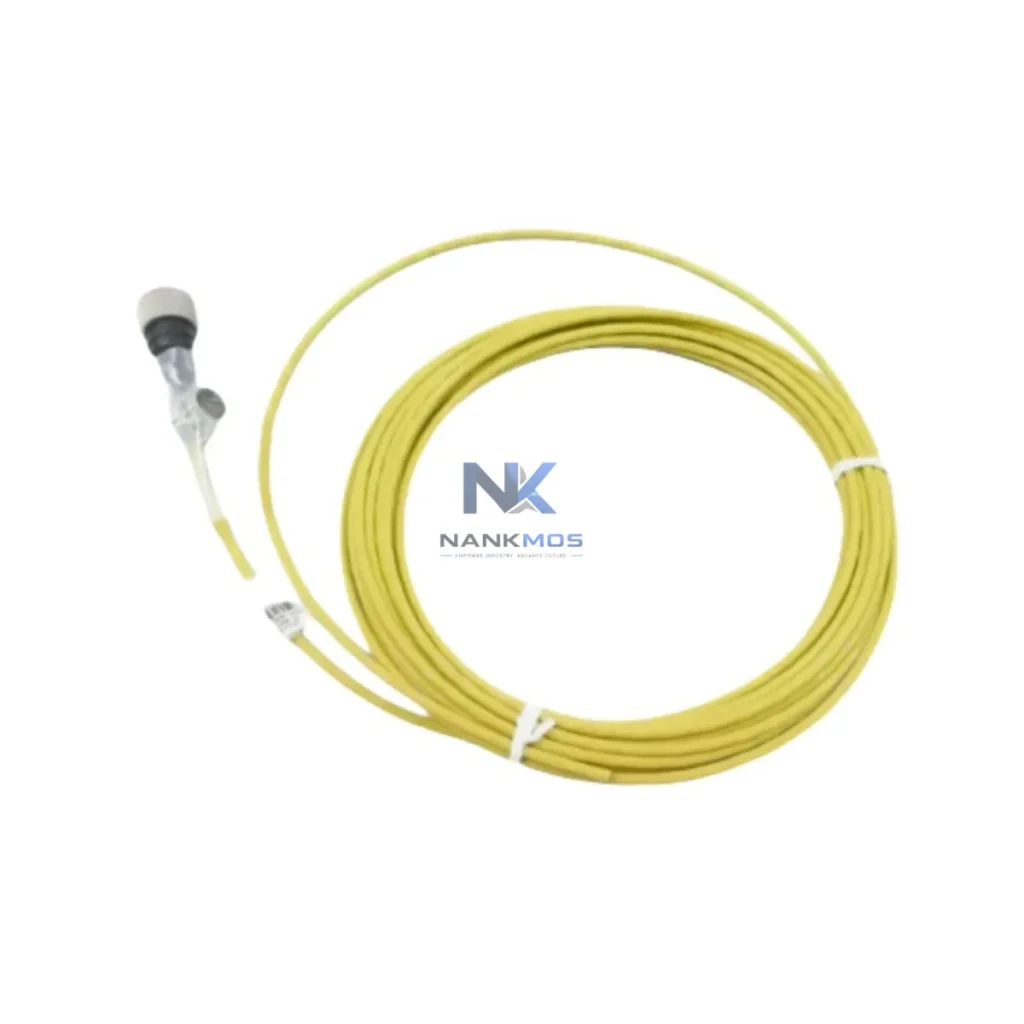

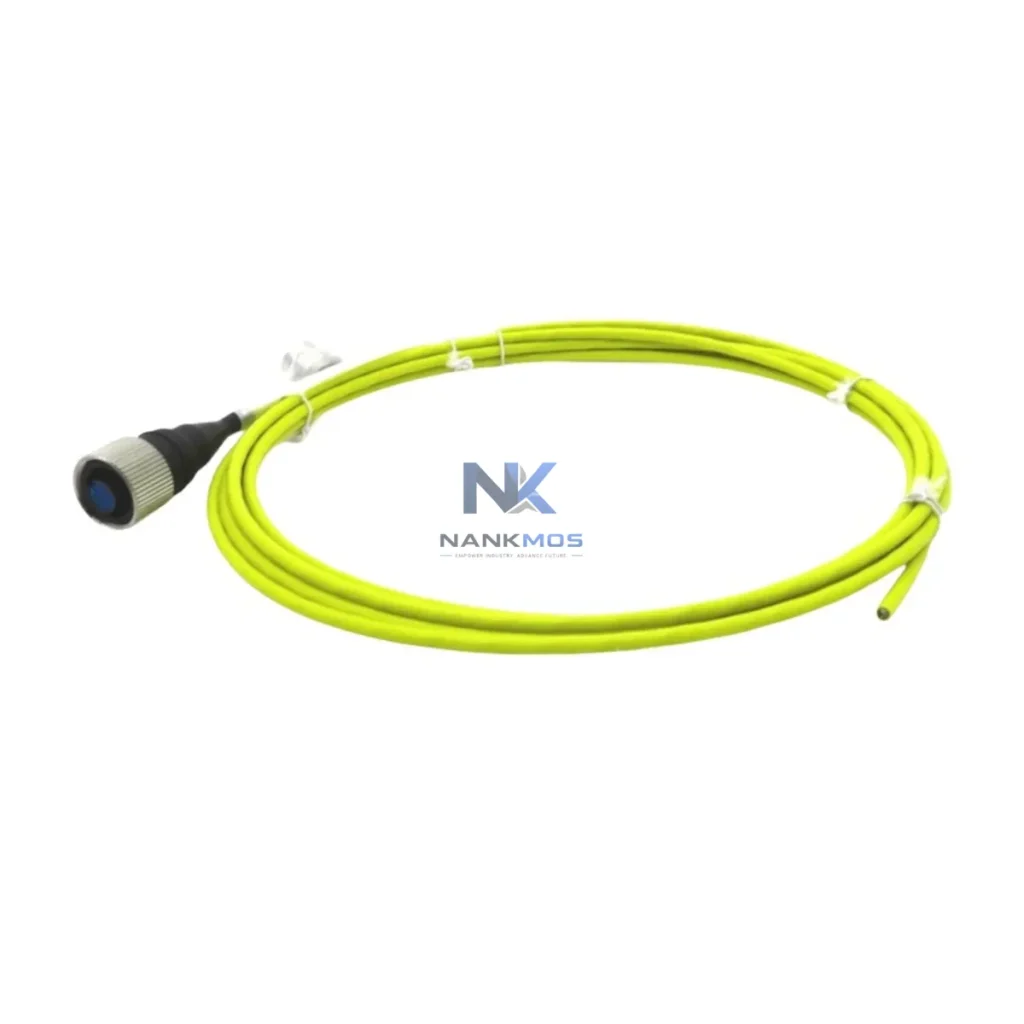

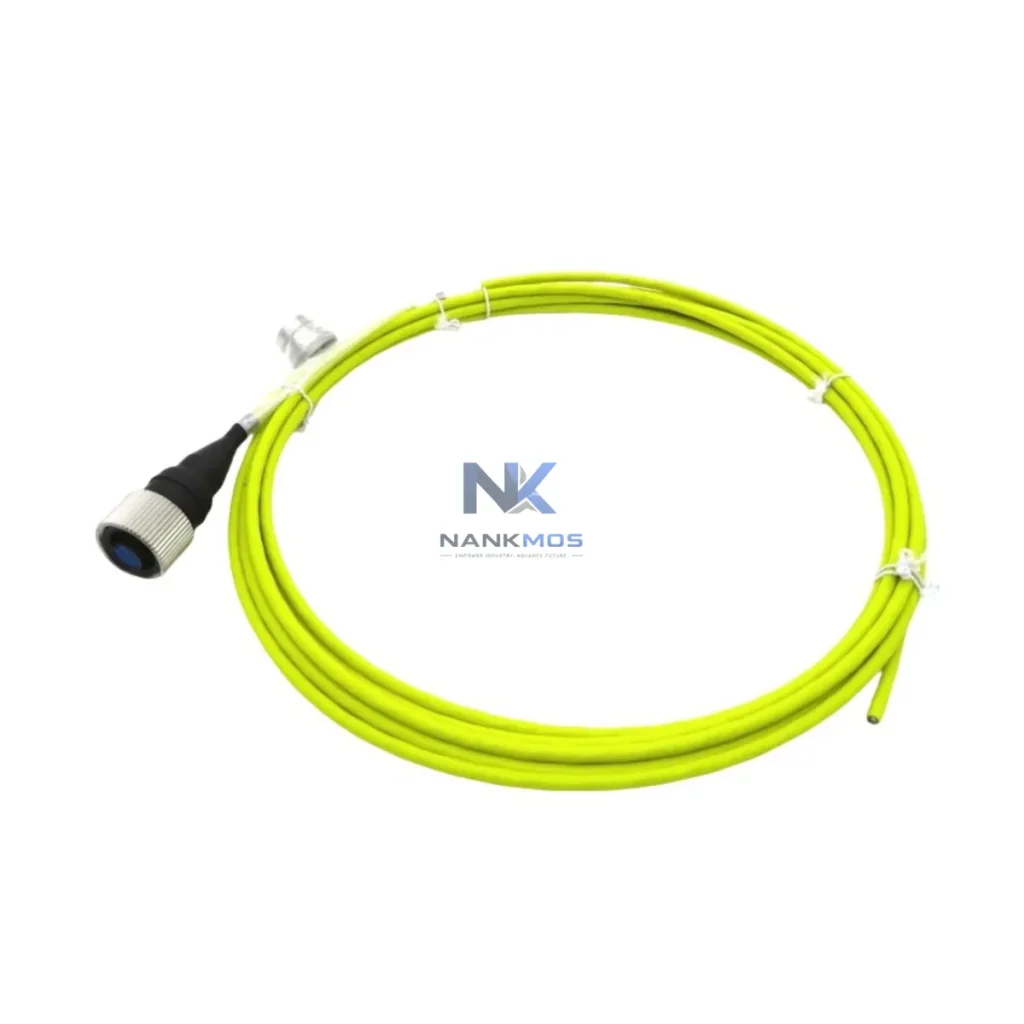

Bently Nevada CB2W100-125 Interconnect Cable

Product Details

CB2W100-125 Product Description

The Bently Nevada CB2W100-125 is a precision-engineered interconnect cable purpose-built for the CB2W rack-based condition monitoring architecture. Within a fully integrated automation platform, this cable serves as the critical signal pathway between the transducer input layer and the processing modules housed in the 3500 Series monitoring rack. Its role is not merely mechanical connection — it defines signal fidelity, system consistency, and long-term diagnostic reliability across the entire monitoring chain.

In modern industrial control environments, every layer of the architecture must communicate with precision. The CB2W100-125 ensures that vibration, position, and process variable signals originating at the machine train are transmitted without attenuation, noise injection, or impedance mismatch to the 3500/22M Transient Data Interface or the 3500/42M Proximitor/Seismic Monitor modules. This level of signal integrity is foundational to accurate machinery protection and predictive maintenance decision-making.

The CB2W100-125 does not operate in isolation. Its value is fully realized when considered within the broader context of the Bently Nevada 3500 Series machinery protection system. At the control layer, the 3500/05 Power Supply Module provides stable, conditioned DC power to all rack-resident modules, ensuring that signal processing is never compromised by power fluctuations. The CB2W100-125 connects directly to modules such as the 3500/42M Proximitor/Seismic Monitor and the 3500/40M Proximitor Monitor, which process proximity probe and seismic transducer signals for shaft displacement and bearing vibration analysis.

At the I/O layer, the cable interfaces with field-mounted transducers — including Bently Nevada 3300 XL 8mm Proximity Probes and 330180 Series Extension Cables — forming a continuous, low-noise signal chain from the machine surface to the monitoring rack. The 3500/22M Transient Data Interface captures high-speed transient events such as startup and shutdown waveforms, relying on the CB2W100-125 to deliver uncompromised signal data during these critical operational windows.

For communication and data integration, the 3500/92 Communication Gateway Module bridges the 3500 rack to plant-level DCS and SCADA systems via Modbus TCP or OPC-DA protocols. The integrity of the data transmitted through this gateway is directly dependent on the quality of the analog signal path established by the CB2W100-125 at the input stage. In redundant architecture deployments, a secondary 3500/05 Redundant Power Supply and mirrored monitor modules ensure continuous protection even during module replacement or maintenance cycles.

At the HMI and visualization layer, System 1 Evolution Software aggregates real-time and historical machinery data from the 3500 rack, enabling engineers to trend vibration signatures, configure alarm setpoints, and generate maintenance reports. The accuracy of these analytics traces back to the signal fidelity maintained by properly specified interconnect cables like the CB2W100-125. In cabinet-level installations, 3500/20 Rack Interface Module coordinates inter-module communication across the backplane, while the CB2W backplane itself provides the structural and electrical backbone for the entire monitoring system.

Contextual Integration of the CB2W100-125 within this layered architecture means that engineers specifying replacement or expansion cables must account for rack slot assignments, module input channel mapping, transducer output impedance, and cable routing constraints within the control cabinet. NANKMOS supplies this component with full traceability documentation to support system commissioning and audit requirements.

Power Generation & Utilities: In gas turbine and steam turbine protection systems, the CB2W100-125 connects proximity probes monitoring rotor shaft displacement to the 3500 Series rack. Accurate shaft position data is critical for trip system reliability and regulatory compliance in power plant environments.

Petrochemical & Refining: Compressor trains in ethylene crackers and LNG facilities rely on continuous vibration monitoring. The CB2W100-125 maintains signal integrity across long cable runs in high-EMI environments typical of compressor halls and motor control centers.

Oil & Gas Upstream: Offshore platform machinery protection systems demand components rated for harsh environments. The CB2W100-125's shielded construction and robust connector design support reliable operation in the vibration-intensive, humidity-exposed conditions of offshore installations.

Pulp, Paper & Heavy Manufacturing: Large rotating equipment such as paper machine rolls, fans, and gearboxes are monitored using 3500 Series racks. The CB2W100-125 enables modular expansion of monitoring points as production lines are upgraded or extended.

Mining & Minerals Processing: Ball mills, SAG mills, and conveyor drive systems in mining operations require robust machinery protection. The CB2W100-125 supports reliable signal transmission in dusty, high-vibration environments where signal degradation can lead to missed fault detection.

Marine & Shipboard Systems: Propulsion machinery and auxiliary systems on vessels equipped with Bently Nevada monitoring infrastructure benefit from the CB2W100-125's compatibility with the CB2W rack architecture, supporting condition-based maintenance programs at sea.

Q1: Is the CB2W100-125 compatible with all 3500 Series monitor modules, or only specific input types? The CB2W100-125 is designed for use with the CB2W backplane and is compatible with 3500 Series modules that accept CB2W-format interconnect cables, including the 3500/40M, 3500/42M, and 3500/22M. Compatibility depends on the specific rack slot configuration and module input channel assignment. Engineers should verify the rack I/O map and module documentation before installation to confirm correct cable-to-channel mapping. NANKMOS technical support can assist with configuration verification prior to shipment.

Q2: How does the CB2W100-125 support long-term maintenance efficiency and system uptime? The CB2W100-125 is a direct OEM-equivalent replacement component, meaning it can be swapped during scheduled maintenance windows without requiring recalibration of the connected monitor modules. Its standardized connector format ensures plug-and-play replacement within the CB2W rack architecture, minimizing mean time to repair (MTTR). NANKMOS maintains stock of this component to support just-in-time maintenance programs, and all units are shipped with a 12-Month Warranty covering manufacturing defects and functional performance.

Q3: What quality assurance and testing procedures does NANKMOS apply before shipping the CB2W100-125? Every CB2W100-125 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify connector integrity, shielding continuity, and signal path resistance. Units are inspected for physical damage, connector pin alignment, and cable jacket integrity before packaging. A 12-Month Warranty is provided from the date of shipment, covering defects in materials and workmanship. Customers requiring additional documentation such as test reports or certificates of conformance should contact NANKMOS at [email protected] prior to order placement.
