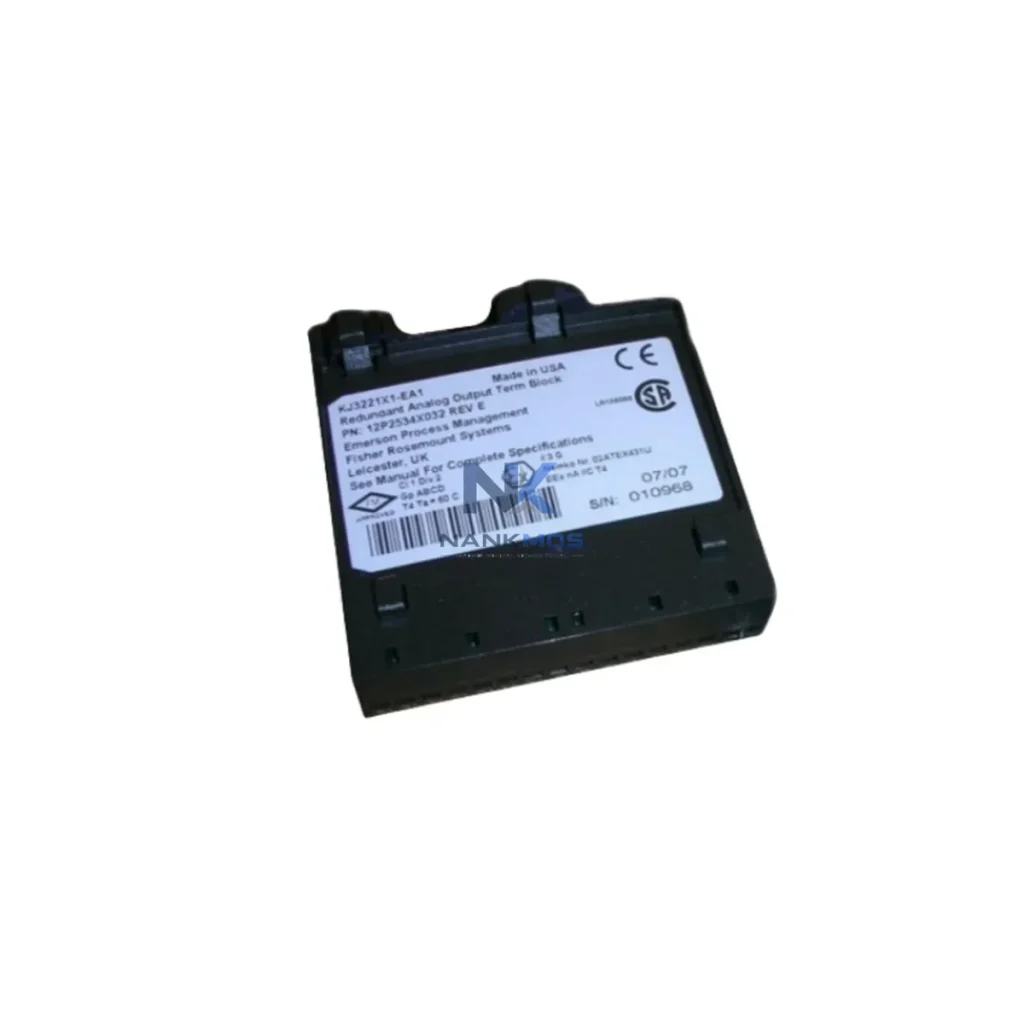

Emerson KJ3221X1-EA1 12P2534X032 Terminal Block

Product Details

KJ3221X1-EA1 12P2534X032 Product Description

The Emerson KJ3221X1-EA1 12P2534X032 is a precision-engineered DeltaV Series terminal block designed to serve as a critical junction point in industrial data communication architectures. Supporting both HART and FOUNDATION Fieldbus protocols, this module enables seamless signal acquisition from field instruments and transmits structured process data upward through the control hierarchy — from field device to PLC, from PLC to SCADA, and ultimately to enterprise-level MES and data visualization platforms.

In modern smart factory environments, the integrity of the data link between field instruments and control systems is non-negotiable. The KJ3221X1-EA1 12P2534X032 addresses this requirement by providing a stable, low-impedance termination interface that preserves signal fidelity across long cable runs and electrically noisy industrial environments. Whether deployed in oil and gas processing, chemical batch control, power generation, or pharmaceutical manufacturing, this terminal block ensures that every sensor reading, valve position, and actuator status is accurately captured and reliably forwarded to the DeltaV DCS controller.

The KJ3221X1-EA1 12P2534X032 sits at the foundation of a layered industrial data architecture. At the field level, HART-enabled transmitters — such as pressure, temperature, and flow sensors — connect directly to this terminal block, which interfaces with the Emerson KJ3221X1-BA1 analog input card housed in the DeltaV I/O subsystem. The HART secondary variable channel allows simultaneous process value transmission and device diagnostics without interrupting the 4–20 mA primary signal loop.

For FOUNDATION Fieldbus segments, the terminal block integrates with Emerson KJ3221X1-EA2 FF interface cards and Fieldbus segment conditioners, enabling multi-drop device topologies where up to 16 field devices share a single twisted-pair segment. This dramatically reduces field wiring costs while maintaining deterministic, time-synchronized data delivery to the DeltaV M-Series controller.

Data collected at the I/O level is aggregated by the DeltaV controller and forwarded via DeltaV Application Station to the plant SCADA layer. Here, Emerson DeltaV Operate HMI software renders real-time process graphics, trend displays, and alarm management dashboards. Operators can monitor loop performance, acknowledge field device alerts, and initiate remote diagnostic routines — all without physical access to the field panel.

For plants implementing edge computing strategies, the DeltaV data stream can be bridged to Emerson Edge Gateway devices or third-party industrial switches such as managed Layer 2/3 Ethernet switches with PROFINET or Modbus TCP support. This enables OPC-UA data publication to cloud-based analytics platforms, where machine learning models can identify process drift, predict instrument failures, and optimize energy consumption across the production line.

Remote I/O expansion is supported through DeltaV Remote I/O (ARIO) nodes, which extend the DeltaV control network to geographically distributed field panels without requiring additional controller hardware. Each ARIO node communicates over a redundant Ethernet backbone, ensuring that a single cable fault does not interrupt process data flow. The KJ3221X1-EA1 12P2534X032 terminal block is fully compatible with ARIO-hosted I/O cards, making it a versatile component for both centralized and distributed control architectures.

Variable frequency drives (VFDs) integrated into the same DeltaV network — such as those communicating via HART over the 4–20 mA speed reference signal — can also leverage this terminal block as the field wiring interface, enabling closed-loop speed control with real-time feedback to the DCS. Combined with DeltaV SIS safety instrumented system modules, the overall architecture delivers a unified, IEC 61511-compliant safety and process control platform.

Many industrial facilities operate with fragmented instrumentation ecosystems — legacy 4–20 mA loops alongside newer HART and Fieldbus devices, each managed by separate configuration tools and engineering databases. The result is data silos: critical process variables that exist in the field but never reach the SCADA historian, alarm conditions that are detected locally but never escalated to the control room, and maintenance events that are logged on paper rather than in the asset management system.

The Emerson KJ3221X1-EA1 12P2534X032, when deployed as part of a structured DeltaV I/O migration or greenfield installation, directly addresses these gaps. Its dual-protocol support means that both legacy HART devices and modern FF instruments can coexist on the same I/O subsystem, eliminating the need for separate marshalling cabinets or protocol converters. Engineering teams can use Emerson AMS Device Manager to perform online device configuration, calibration verification, and predictive diagnostics across all connected instruments — regardless of whether they communicate via HART or Fieldbus.

For remote monitoring applications, the DeltaV network's built-in redundancy and alarm propagation logic ensures that any field device fault — sensor drift, loop break, valve actuator failure — is immediately surfaced to the operator HMI and logged in the historian with a precise timestamp. This supports root-cause analysis, regulatory compliance reporting, and continuous improvement initiatives without requiring manual data collection from the field.

System expansion is equally straightforward: additional KJ3221X1-EA1 12P2534X032 terminal blocks can be added to existing DeltaV I/O carriers without controller reconfiguration, supporting phased capacity increases as production lines scale. Each new terminal block is automatically recognized by the DeltaV engineering environment, reducing commissioning time and minimizing the risk of configuration errors.

Q1: Does the KJ3221X1-EA1 12P2534X032 support simultaneous HART and FOUNDATION Fieldbus communication?A: The KJ3221X1-EA1 12P2534X032 is designed for use with specific DeltaV I/O card types — either HART analog input/output cards or FOUNDATION Fieldbus interface cards. The terminal block itself is protocol-agnostic at the wiring level, but the connected I/O card determines the active protocol. Consult the DeltaV I/O hardware reference for card-to-terminal block compatibility.

Q2: What is the maximum cable length supported for FOUNDATION Fieldbus segments connected through this terminal block?A: FOUNDATION Fieldbus H1 segments support a maximum total cable length of 1,900 meters (using Type A cable), with individual spur lengths up to 120 meters. The KJ3221X1-EA1 12P2534X032 does not impose additional cable length restrictions beyond the FF-H1 standard, provided that proper segment conditioners and terminators are installed.

Q3: How does the 12-month warranty apply to this module, and what does it cover?A: All KJ3221X1-EA1 12P2534X032 units supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, component failures under normal operating conditions, and functional non-conformance to published specifications. Pre-shipment functional testing is performed on every unit prior to dispatch. For warranty claims or RMA requests, contact [email protected].

Q4: Can this terminal block be used in safety instrumented system (SIS) applications?A: The KJ3221X1-EA1 12P2534X032 is a DeltaV Series component. For SIS applications requiring IEC 61511 compliance, verify compatibility with DeltaV SIS I/O hardware and consult Emerson's functional safety documentation. NANKMOS technical support can assist with application suitability assessment prior to procurement.
