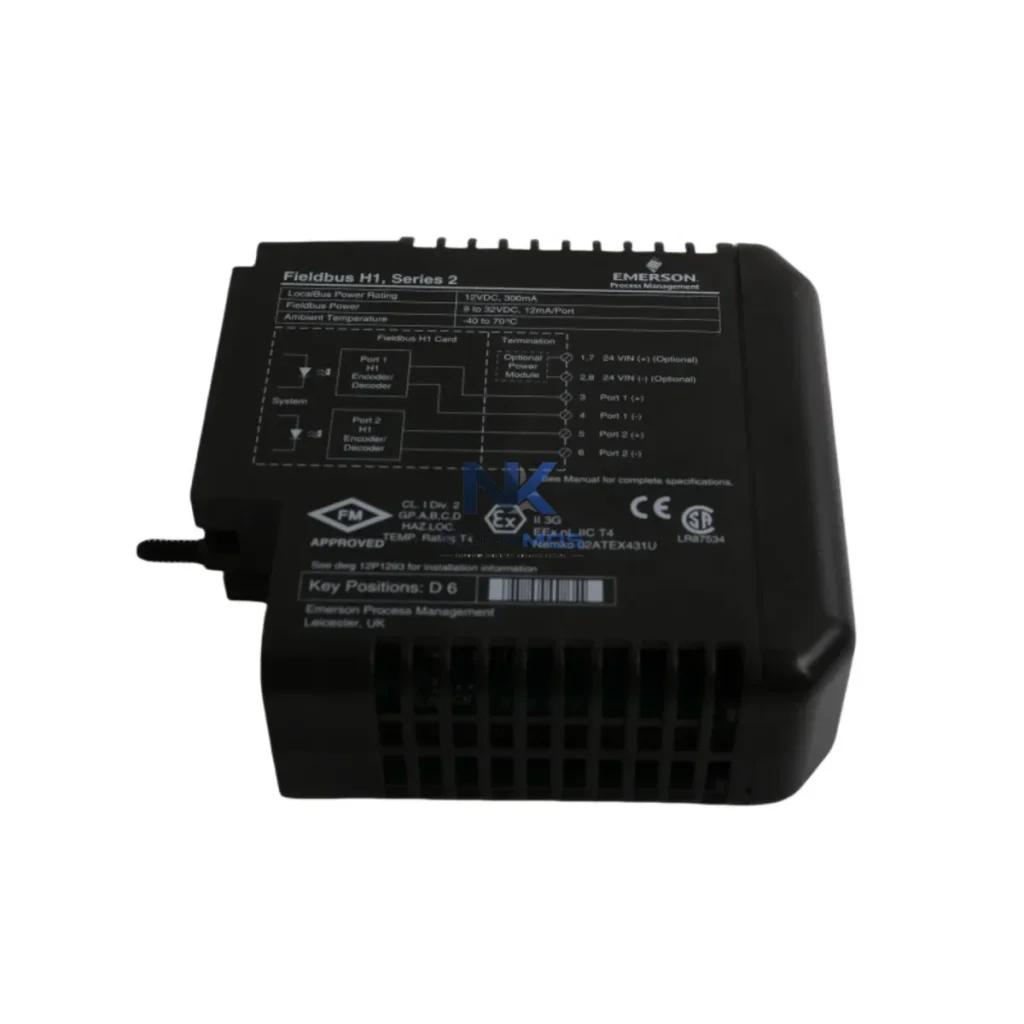

Emerson KJ3242X1-BA1 12P2471X062 Fieldbus Interface Card

Product Details

KJ3242X1-BA1 12P2471X062 Product Description

The Emerson KJ3242X1-BA1 (part number 12P2471X062) is a Foundation Fieldbus H1 interface card engineered for the DeltaV distributed control system platform. Designed to serve as a high-integrity communication bridge between field instrumentation and the DeltaV controller, this card enables deterministic, energy-aware process control across demanding industrial environments including oil & gas, chemical processing, power generation, and advanced manufacturing. By consolidating field device communication over a single H1 segment, the KJ3242X1-BA1 reduces wiring complexity, minimizes signal conversion losses, and contributes directly to measurable reductions in plant-wide energy consumption and thermal load.

Each unit is supplied from verified in-stock inventory, pre-shipment tested against OEM functional specifications, and backed by a 12-month warranty. Global logistics support ensures rapid deployment to minimize production downtime.

The KJ3242X1-BA1 operates as a core communication node within the Emerson DeltaV architecture, interfacing directly with the DeltaV S-series controller (such as the MD Plus or SD Plus) to manage H1 segment scheduling with minimal CPU overhead. In a typical smart production line deployment, this card works in concert with DeltaV I/O subsystems — including the KJ3001X1-BA1 Ethernet I/O card and KJ2201X1-BA1 analog input modules — to consolidate field signals and reduce the number of discrete wiring runs, cutting both installation energy costs and long-term thermal load in marshalling cabinets.

On the field device side, the H1 card communicates natively with Foundation Fieldbus-enabled instruments such as Emerson Rosemount 3051 pressure transmitters, Fisher FIELDVUE DVC6200 digital valve controllers, and Micro Motion Coriolis flow meters — all of which support on-device diagnostics that feed directly into the DeltaV AMS Device Manager for predictive maintenance scheduling. This closed-loop diagnostic capability reduces unplanned downtime and the associated energy waste of emergency restarts and thermal cycling.

For drive and motor control integration, the KJ3242X1-BA1 supports coordination with variable frequency drives (VFDs) connected via Fieldbus-to-HART or Modbus gateway modules, enabling the DeltaV system to receive real-time load feedback and adjust motor speed setpoints dynamically. This integration with drive systems — including platforms such as the Emerson Control Techniques Unidrive M series — allows production lines to operate motors at optimal efficiency points rather than fixed-speed baselines, delivering measurable kWh savings per shift.

At the supervisory level, the card's data is accessible to SCADA systems via OPC-UA server interfaces built into the DeltaV workstation layer, enabling energy management systems (EMS) and manufacturing execution systems (MES) to consume real-time process data for load balancing, demand response, and production scheduling optimization. Integration with Emerson Ovation DCS environments or third-party SCADA platforms is supported through standard OPC bridging, ensuring interoperability across mixed-vendor control architectures.

Foundation Fieldbus H1, as implemented through the KJ3242X1-BA1, fundamentally changes the energy economics of field instrumentation. Unlike conventional 4–20 mA analog loops — which require dedicated wiring pairs, individual signal conditioners, and analog-to-digital conversion at every I/O card — H1 segments carry both power and bidirectional digital communication on a single twisted pair. This architecture reduces the total copper wiring mass in a plant, lowers resistive heating losses in cable trays, and decreases the number of powered I/O termination assemblies required in the control room.

From a thermal management perspective, fewer active I/O cards in the DeltaV cabinet means lower aggregate heat dissipation, which directly reduces the duty cycle of cabinet cooling systems — a frequently overlooked source of auxiliary energy consumption in large process plants. Plants operating multiple DeltaV controller nodes with KJ3242X1-BA1 H1 cards in place of legacy analog I/O have reported measurable reductions in HVAC load within instrument rooms.

Production line rhythm stability is another key benefit. The deterministic scheduling of Foundation Fieldbus H1 — where each field device transmits at a precisely defined interval managed by the Link Active Scheduler (LAS) function within the KJ3242X1-BA1 — eliminates the jitter and latency variability inherent in polled analog systems. This timing precision supports tighter PID loop tuning, which in turn reduces process variability, minimizes off-spec production, and lowers the energy cost of rework and reprocessing cycles.

Predictive maintenance enabled by continuous device diagnostics — valve signature analysis via FIELDVUE controllers, transmitter self-diagnostics via Rosemount HART/FF instruments — allows maintenance teams to schedule interventions during planned shutdowns rather than responding to failures. This shift from reactive to predictive maintenance reduces the frequency of unplanned restarts, which are among the highest energy-intensity events in continuous process operations.

All units are dispatched from verified in-stock inventory following pre-shipment functional testing, ensuring that replacement or expansion deployments do not introduce untested hardware into live production environments. The included 12-month warranty provides operational assurance for budget planning and asset lifecycle management.

Q1: How does the KJ3242X1-BA1 contribute to measurable energy savings on a production line? By replacing multiple analog I/O loops with a single Foundation Fieldbus H1 segment, the card reduces wiring-related resistive losses, lowers the number of powered I/O termination points, and decreases cabinet thermal load. Combined with deterministic loop scheduling and real-time device diagnostics, it supports tighter process control and predictive maintenance — both of which reduce energy waste from process variability and unplanned downtime.

Q2: Is the KJ3242X1-BA1 compatible with existing DeltaV system versions and third-party SCADA platforms? Yes. The KJ3242X1-BA1 is designed for the Emerson DeltaV platform and is compatible with DeltaV S-series and M-series controller nodes. Data is accessible to third-party SCADA and MES platforms via OPC-DA and OPC-UA interfaces provided by the DeltaV workstation layer, supporting integration with mixed-vendor control architectures without requiring proprietary middleware.

Q3: What is the recommended replacement or upgrade path for plants currently using legacy analog I/O cards? Plants migrating from conventional analog I/O to Foundation Fieldbus H1 should conduct a segment design review to determine optimal device loading per H1 segment (typically 4–6 devices per segment for control applications). The KJ3242X1-BA1 can be introduced incrementally — replacing one marshalling group at a time — without requiring a full DeltaV system upgrade, provided the controller firmware version supports the H1 card revision in use.

Q4: What testing and warranty coverage is provided with each unit? Every KJ3242X1-BA1 unit shipped by NANKMOS undergoes pre-shipment functional testing against OEM baseline specifications, including H1 segment communication verification and power supply integrity checks. Each unit is covered by a 12-month warranty from the date of shipment. In-stock availability ensures rapid fulfillment to minimize production line exposure during replacement or expansion projects.
