Emerson PR6423/006-131 CON041 Proximity Transducer

Product Details

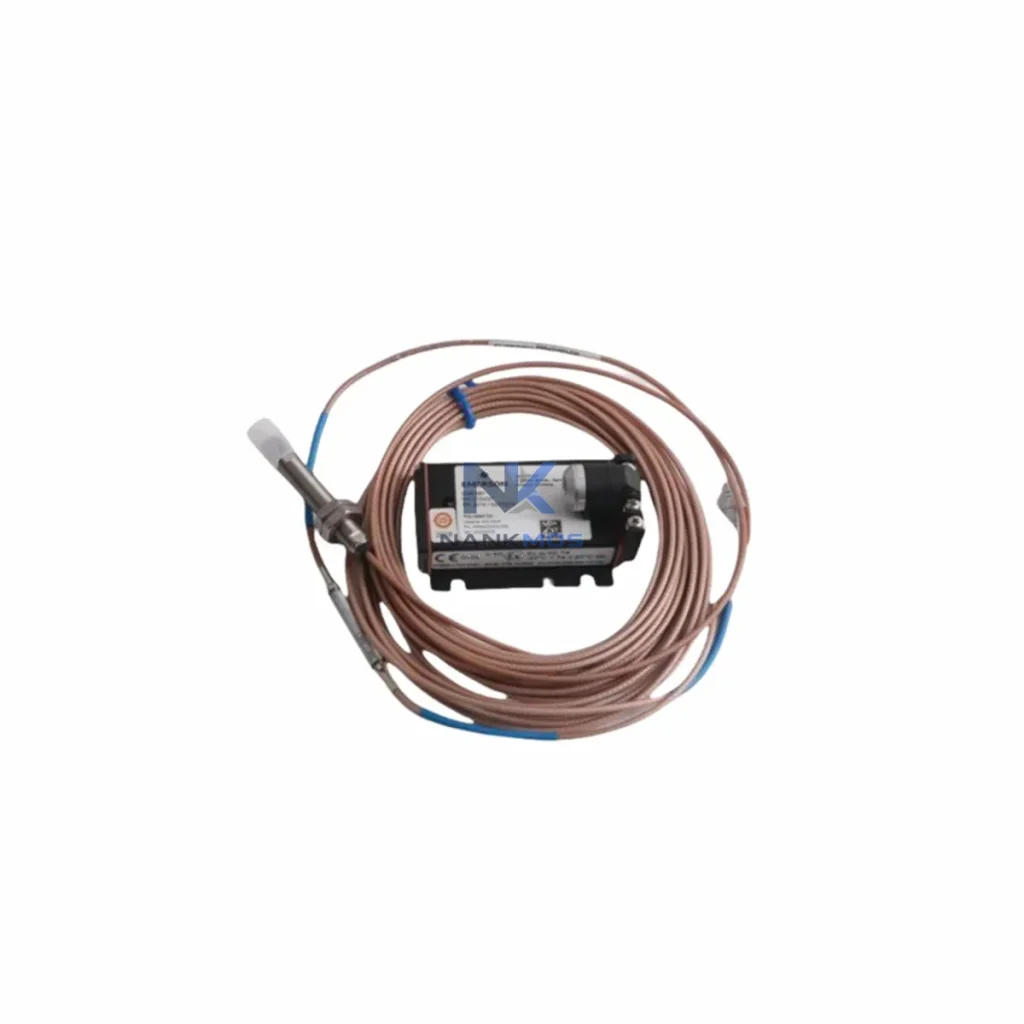

PR6423/006-131 CON041 Product Description

The Emerson PR6423/006-131 CON041 is a precision eddy current proximity transducer system from the Epro PR6423 series, engineered for continuous vibration monitoring, shaft displacement measurement, and real-time signal conditioning in turbomachinery protection and smart factory environments. Paired with the CON041 signal conditioner, this system delivers stable, low-noise analogue output that integrates seamlessly into modern industrial data architectures — from field-level sensors through PLC controllers, remote I/O modules, HMI panels, SCADA platforms, and edge gateways, forming a complete and transparent data chain across the connected factory floor.

Designed for demanding rotating machinery applications — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — the PR6423/006-131 CON041 provides the foundational signal layer upon which plant-wide condition monitoring and predictive maintenance strategies are built. Its eddy current sensing principle operates without physical contact, ensuring long service life and consistent measurement accuracy even in high-temperature, high-vibration, or oil-mist environments.

In a fully connected smart factory, the PR6423/006-131 CON041 serves as the critical signal origin point in the machinery health data chain. The eddy current probe detects shaft displacement and radial vibration at the rotating element, converting mechanical motion into a precise analogue voltage or current signal via the CON041 conditioner. This signal is then routed to the analogue input (AI) card of a Siemens S7-300 or S7-1500 PLC, or alternatively to a GE Fanuc Series 90 controller, where it is scaled, filtered, and processed against alarm thresholds defined in the machine protection logic.

From the PLC, the conditioned vibration data travels upstream through an industrial Ethernet backbone — typically via a managed industrial switch such as a Hirschmann MACH series or Moxa EDS-400 series switch — to the plant SCADA server. At the SCADA layer, platforms such as Wonderware InTouch, Ignition by Inductive Automation, or Emerson's own DeltaV system receive the real-time vibration trend data, displaying shaft orbit plots, vibration amplitude trends, and alarm event logs on operator HMI screens.

For plants requiring protocol bridging — for example, where legacy Modbus RTU field devices must communicate with a PROFINET-based control backbone — a Moxa MGate MB3000 series gateway or a Hilscher netTAP NT 100 protocol converter can be inserted between the PLC output and the SCADA network. This allows the PR6423/006-131 CON041's analogue data, once digitised by the PLC, to be re-encapsulated in PROFINET or OPC-UA frames for transmission to higher-level MES or ERP systems.

Remote I/O expansion is also a common deployment pattern. In distributed turbine protection panels, the CON041 output may feed into a Phoenix Contact Axioline or Beckhoff EtherCAT remote I/O module, extending the data reach across the plant without running long analogue cable runs. Edge computing nodes — such as a Moxa UC-8100 series industrial computer or a Siemens SIMATIC IPC — can then perform local pre-processing, anomaly detection, and data compression before forwarding summarised condition data to the cloud or central SCADA via MQTT or OPC-UA.

Variable frequency drives (VFDs) monitoring motor-driven compressors or pumps in the same machinery train can share the same SCADA data highway, with their speed reference and torque feedback signals appearing alongside the PR6423/006-131 CON041 vibration data on the same HMI trend screen. This unified view — combining vibration amplitude, shaft position, motor current, and process variables — is the foundation of a true predictive maintenance programme, enabling maintenance engineers to correlate mechanical symptoms with process upsets before a trip event occurs.

Protocol Fragmentation: Many turbomachinery protection systems still rely on proprietary analogue signal chains that cannot natively communicate with modern Modbus TCP or PROFINET networks. The PR6423/006-131 CON041's standard analogue output (4–20 mA) is universally accepted by any PLC or DCS analogue input card, making it the ideal bridge between legacy Epro protection panels and contemporary digital control architectures. Upstream protocol gateways then handle the final conversion to OPC-UA or PROFIBUS for SCADA integration.

Data Silos and Production Transparency: Without reliable vibration data at the SCADA level, rotating machinery health remains invisible to production managers and maintenance planners. By integrating the PR6423/006-131 CON041 into the plant data highway, real-time shaft vibration trends become available on every authorised HMI and remote dashboard, eliminating the data silo between the machinery protection system and the plant operations team.

Remote Monitoring and Alarm Tracking: In unmanned substations or remote compressor stations, the PR6423/006-131 CON041's signal can be routed through a cellular or fibre-connected edge gateway to a central monitoring centre. Alarm events — such as high vibration trips or proximity probe gap faults — are transmitted in real time, enabling remote engineers to diagnose faults, adjust alarm setpoints, and dispatch maintenance teams without requiring a site visit for initial assessment.

System Scalability: As plant capacity expands, additional PR6423 series probes and CON041 conditioners can be added to the protection panel without redesigning the upstream data architecture. The analogue signal standard ensures backward compatibility with existing PLC AI cards and SCADA historian tags, protecting the plant's investment in its control infrastructure while extending machinery coverage to new assets.

Q1: What communication protocols does the PR6423/006-131 CON041 support for SCADA integration? The CON041 signal conditioner provides a standard analogue output (typically 4–20 mA or ±voltage) that connects directly to any PLC or DCS analogue input card. The PLC then handles protocol conversion — Modbus RTU/TCP, PROFIBUS DP, PROFINET, or OPC-UA — for SCADA integration. No proprietary protocol is required at the sensor level, ensuring broad system compatibility.

Q2: How does the system handle network stability and signal integrity over long cable runs? The eddy current principle and CON041 conditioning electronics are designed for high noise immunity in industrial environments. For long cable runs, shielded twisted-pair cable with proper grounding at the conditioner end is recommended. The 4–20 mA current loop output is inherently resistant to voltage drop and electromagnetic interference, maintaining signal integrity over distances up to several hundred metres.

Q3: Can the PR6423/006-131 CON041 be used for remote diagnostics and predictive maintenance? Yes. When integrated with a SCADA historian (such as OSIsoft PI or Ignition Tag Historian), the continuous vibration trend data from the PR6423/006-131 CON041 enables long-term baseline tracking, alarm threshold optimisation, and early fault detection. Remote engineers can access live and historical vibration data via secure SCADA remote access or cloud dashboards, supporting condition-based maintenance decisions without on-site presence.

Q4: What warranty and pre-shipment testing does NANKMOS provide for this unit? All PR6423/006-131 CON041 units supplied by NANKMOS carry a 12-Month Warranty from the date of shipment. Each unit undergoes functional verification and output signal testing prior to dispatch. In-stock units are available for immediate shipment with short lead times. For volume orders or urgent requirements, please contact our team directly for availability confirmation and expedited logistics support.
