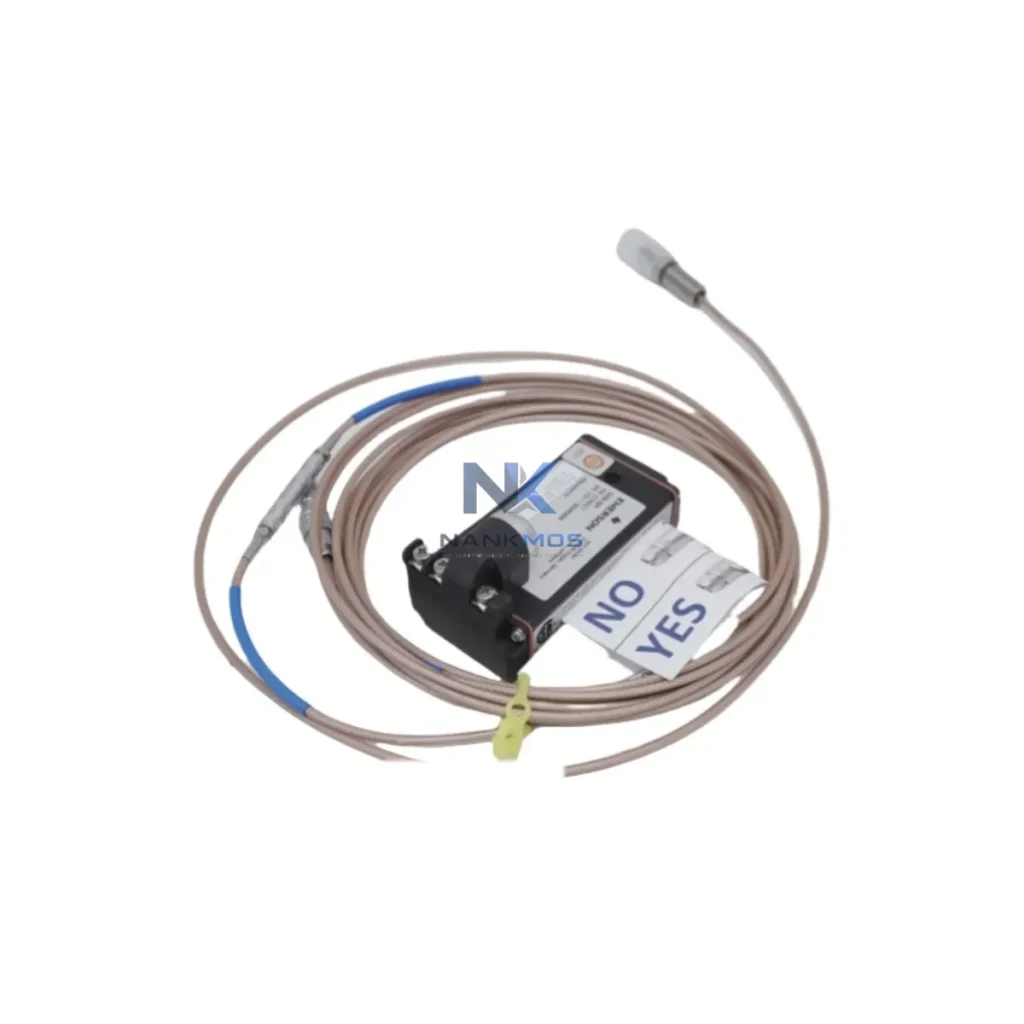

Emerson PR6423/015-030 Eddy Current Sensor

Product Details

PR6423/015-030 Product Description

The Emerson PR6423/015-030 is a precision eddy current proximity sensor engineered for seamless integration within the EPRO machinery protection and condition monitoring architecture. Designed to operate as a core sensing element in rotating equipment surveillance systems, this transducer delivers continuous, non-contact displacement and vibration measurements that feed directly into the signal processing and protection layers of a complete industrial control platform. Its system-matched design ensures electrical and mechanical compatibility with EPRO signal conditioning drivers, monitoring racks, and supervisory control networks — making it a foundational component for engineers building or maintaining high-availability machinery protection systems in power generation, petrochemical, oil and gas, water treatment, mining, and marine propulsion environments.

The PR6423/015-030 functions as the field-layer sensing node within a layered industrial automation architecture. Its analog output interfaces directly with the EPRO CON021 proximitor driver, which conditions the raw eddy current signal into a calibrated voltage suitable for rack-level processing. This conditioned signal is then routed to an EPRO 3500/22M Transient Data Interface or a 3500/42M Proximitor / Seismic Monitor module seated within the EPRO 3500 Series monitoring rack — the backbone of the protection layer in most rotating equipment installations.

At the I/O layer, the 3500 rack communicates with the plant DCS or safety system via Modbus TCP/IP or OPC-UA gateways, enabling real-time vibration and displacement data to flow into SCADA platforms and historian databases. Engineers integrating this sensor into a broader control architecture will typically pair it with a 3500/20 Rack Interface Module (RIM) for network communications, a 3500/15 Power Supply Module for redundant DC power distribution, and a 3500/05 System Rack chassis that accommodates up to sixteen monitor modules in a single 19-inch panel enclosure.

For installations requiring enhanced redundancy, the PR6423/015-030 is commonly deployed in dual-sensor configurations alongside a second proximity transducer — such as the PR6423/010-030 or PR6423/017-030 — mounted at 90° to the shaft to provide XY radial vibration coverage per API 670 standard. The dual-channel arrangement feeds into a 3500/42M dual-channel monitor, enabling voted trip logic and eliminating single-point failure risk at the sensing layer.

At the HMI and supervisory layer, vibration trend data from the PR6423/015-030 is visualized through Emerson System 1 Condition Monitoring Software, which aggregates waveform, spectrum, and trend data from all rack-connected transducers. This platform enables predictive maintenance workflows, alarm rationalization, and long-term asset health tracking without requiring manual data extraction. Integration with AMS Device Manager further extends diagnostic capability to the field instrument level, supporting calibration records and sensor health verification across the full transducer population.

Terminal block assemblies, shielded signal cables, and DIN-rail mounted signal isolators complete the installation, ensuring galvanic isolation between the field sensing loop and the rack input to prevent ground loop interference — a critical consideration in high-noise environments such as turbine halls, compressor stations, and pump skids.

Power Generation: In gas turbine and steam turbine protection systems, the PR6423/015-030 monitors shaft radial displacement at journal bearings, providing the primary trip signal to the turbine control system (TCS) when vibration exceeds API 670 alarm and danger setpoints. Its fast response time and stable analog output ensure that the protection layer can initiate an emergency shutdown within milliseconds of a rotor excursion event.

Petrochemical and Oil & Gas: Centrifugal compressors and high-speed pumps in refinery and upstream processing facilities rely on continuous proximity monitoring to detect rotor instability, oil whirl, and bearing wear before catastrophic failure. The PR6423/015-030, paired with the EPRO 3500 rack and CON021 driver, provides the signal integrity and environmental robustness required for Zone 1 / Zone 2 hazardous area installations when used with appropriate certified barriers.

Water Treatment and Utilities: Large vertical pump motors and blower units in municipal water treatment plants benefit from non-contact vibration monitoring to extend bearing life and reduce unplanned downtime. The sensor's IP67 rating and wide operating temperature range make it suitable for outdoor and semi-enclosed pump house environments.

Mining and Metallurgy: Ball mills, SAG mills, and conveyor drive systems in mining operations generate high levels of mechanical vibration and shock. The PR6423/015-030's robust construction and coaxial cable assembly withstand the mechanical stress and electromagnetic interference typical of heavy industrial environments, maintaining signal fidelity throughout the measurement chain.

Marine Propulsion: Shipboard propulsion systems and auxiliary machinery require compact, vibration-tolerant sensors capable of operating in high-humidity, salt-air environments. The PR6423/015-030 meets these demands while integrating with onboard condition monitoring systems for classification society compliance and predictive maintenance scheduling.

Q1: Is the PR6423/015-030 directly compatible with the EPRO 3500 Series monitoring rack without additional signal conditioning? No — the PR6423/015-030 requires a dedicated proximitor driver, typically the EPRO CON021 or an equivalent –24 VDC signal conditioner, to power the sensor and convert the eddy current impedance change into a calibrated analog voltage output. This conditioned signal is then connected to the appropriate 3500 Series monitor module input. Attempting to connect the sensor directly to a rack input without a proximitor driver will result in incorrect readings and potential damage to the monitor module input circuit.

Q2: Can this sensor be used in a redundant voting architecture, and what configuration is recommended for API 670 compliance? Yes. For API 670-compliant installations, a 2-out-of-3 (2oo3) or 1-out-of-2 (1oo2) voting configuration is standard for radial vibration protection. Two PR6423/015-030 sensors are mounted at 90° intervals around the shaft (X and Y planes), each connected to a separate channel of the 3500/42M dual-channel monitor. The 3500/20 Rack Interface Module manages inter-channel communication and voted trip output to the safety instrumented system (SIS) or turbine control system. NANKMOS supplies matched sensor pairs with calibration documentation to support this configuration.

Q3: What is the lead time, warranty coverage, and pre-shipment testing procedure for the PR6423/015-030? All PR6423/015-030 units supplied by NANKMOS are in-stock and available for immediate dispatch. Each unit undergoes pre-shipment functional testing — including output linearity verification, cable continuity check, and connector integrity inspection — before packaging. A 12-Month Warranty is provided from the date of shipment, covering manufacturing defects and electrical performance within published specifications. For bulk procurement or project-specific supply schedules, contact NANKMOS directly to confirm allocation and delivery timelines.
