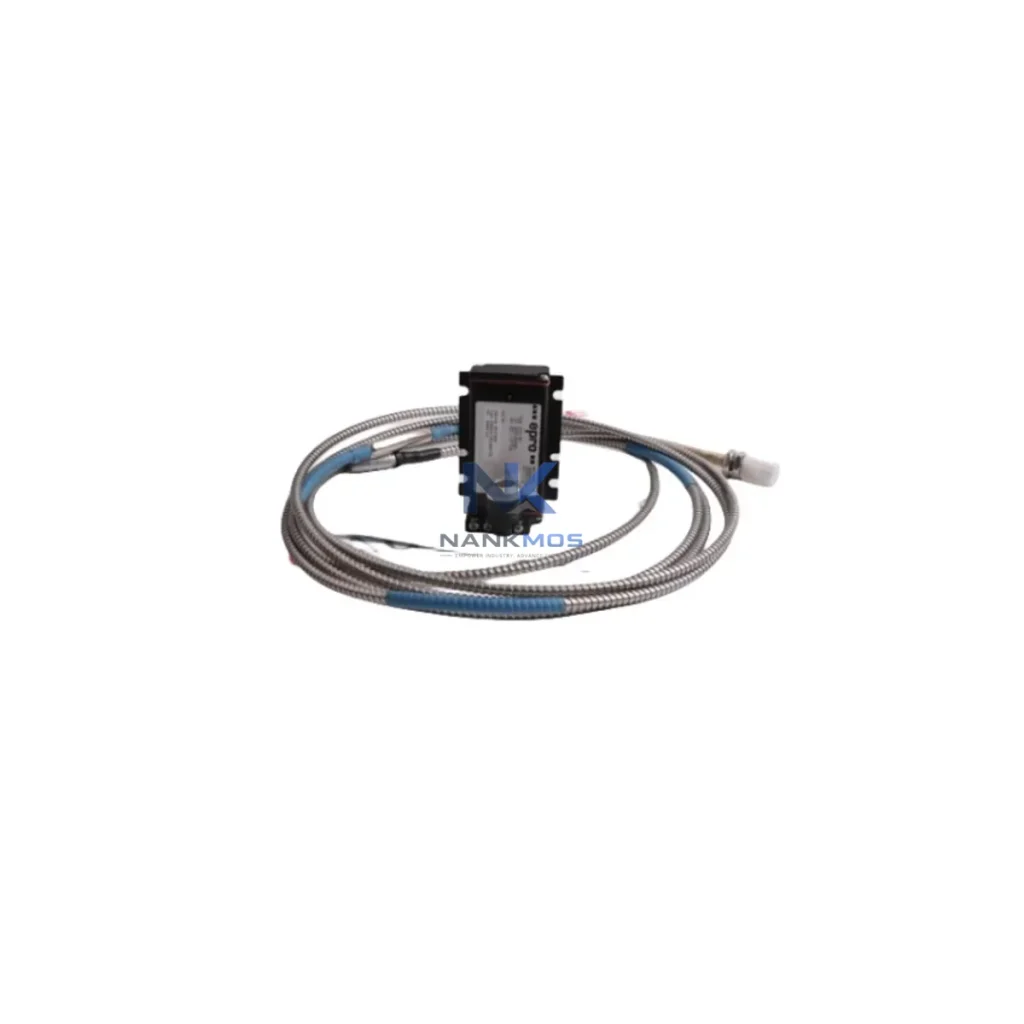

Emerson PR6423/11R-131 CON021 Vibration Sensor

Product Details

PR6423/11R-131 CON021 Product Description

The Emerson PR6423/11R-131 CON021 is a precision eddy-current vibration sensor engineered for seamless integration into distributed control and condition monitoring architectures. Designed as a system-matched component within the Emerson Bently Nevada PR6423 series, this sensor delivers high-resolution shaft displacement and vibration data directly to the control layer, enabling real-time machinery protection, predictive diagnostics, and coordinated response across multi-tier industrial automation platforms. Whether deployed in turbomachinery protection systems, rotating equipment monitoring panels, or process-critical control cabinets, the PR6423/11R-131 CON021 provides the signal fidelity and architectural compatibility required for long-term operational reliability.

At NANKMOS, every PR6423/11R-131 CON021 unit undergoes pre-shipment functional testing and is backed by a 12-Month Warranty, ensuring confidence in both immediate deployment and long-term maintenance planning. In-stock availability supports rapid replacement cycles and minimizes unplanned downtime across manufacturing, power generation, petrochemical, and heavy industrial environments.

The PR6423/11R-131 CON021 functions as the primary sensing node within a layered machinery protection and control architecture. Its signal output feeds directly into the Bently Nevada 3500/42M Proximitor I/O module, which processes raw proximity voltage into calibrated vibration and position data for the protection rack. The 3500 Series rack — including the 3500/15 Power Supply and 3500/20 Rack Interface Module — provides the backbone for multi-channel vibration monitoring, with redundant power inputs ensuring continuous operation even during single-point power failures.

At the control layer, the conditioned analog output from the CON021 signal conditioner interfaces with DeltaV S-Series I/O modules or equivalent DCS analog input cards, enabling the distributed control system to incorporate vibration trend data into process logic and alarm management. For facilities running Emerson System 1 condition monitoring software, the PR6423/11R-131 CON021 integrates natively, providing waveform capture, spectrum analysis, and long-term trend archiving without additional signal conversion.

In communication-intensive architectures, the sensor data path extends through FOUNDATION Fieldbus H1 linking devices or Modbus RTU/TCP gateways to SCADA and historian platforms, maintaining signal integrity across long cable runs typical in large rotating equipment installations. The TK-11 extension cable and CON021 signal conditioner form a matched system pair, ensuring the scale factor and linearity of the PR6423 sensor are preserved from tip to rack input.

For HMI integration, vibration alarm states and trend values are surfaced on Emerson DeltaV Operate or third-party SCADA displays via OPC-DA/UA data servers, giving operators real-time visibility into shaft dynamics without leaving the control room. In redundant architectures, dual PR6423/11R-131 CON021 sensors mounted at 90° intervals (X-Y configuration) feed independent channels of the 3500/42M, enabling orbit plot generation and cross-channel voting logic for trip decisions — a standard requirement in API 670-compliant machinery protection systems.

At the protection and safety layer, the sensor's output participates in the overall Safety Instrumented System (SIS) architecture when paired with Bently Nevada 3500/33 16-Channel Relay Module outputs, which drive trip relays and solenoid valves in response to vibration threshold exceedances. This end-to-end signal chain — from the PR6423/11R-131 CON021 sensor tip through the CON021 conditioner, 3500 rack, DCS I/O, and SIS relay — represents a fully integrated, standards-compliant machinery protection solution.

Power Generation: Steam turbine and gas turbine shaft monitoring in combined-cycle power plants, where the PR6423/11R-131 CON021 provides continuous radial vibration data to the 3500 protection rack, enabling automatic trip on high-vibration events and integration with plant DCS for load shedding coordination.

Petrochemical & Refining: Compressor and pump train monitoring in hazardous-area installations (ATEX Zone 1/2), where the sensor's IP67 rating and ATEX-compatible configuration support reliable long-term deployment in aggressive chemical environments. Paired with System 1 software, it enables predictive maintenance scheduling based on vibration trend analysis.

Water & Wastewater Treatment: Large centrifugal pump and blower monitoring in municipal water treatment facilities, where the PR6423/11R-131 CON021 provides early warning of bearing wear and rotor imbalance, reducing unplanned outages in critical infrastructure.

Mining & Minerals Processing: Crusher, mill, and conveyor drive monitoring in high-dust, high-vibration environments. The sensor's robust construction and sealed cable entry support reliable operation in conditions where standard instrumentation would fail prematurely.

Marine & Offshore: Propulsion shaft and auxiliary machinery monitoring on vessels and offshore platforms, where the sensor's wide operating temperature range and corrosion-resistant construction meet the demands of marine-grade installations.

Packaging & Discrete Manufacturing: High-speed rotating equipment monitoring on production lines, where integration with the plant DCS enables vibration-triggered maintenance alerts without interrupting production schedules.

Q1: Is the PR6423/11R-131 CON021 directly compatible with the Bently Nevada 3500 Series protection rack? Yes. The PR6423/11R-131 CON021 is a system-matched sensor-conditioner pair designed for direct integration with the Bently Nevada 3500 Series machinery protection rack, specifically the 3500/42M Proximitor I/O module. The CON021 signal conditioner maintains the standard Bently Nevada scale factor (7.87 V/mm / 200 mV/mil), ensuring accurate calibration without field adjustment. No additional signal conversion is required for rack input compatibility.

Q2: Can this sensor be used in a redundant X-Y vibration monitoring configuration, and what are the installation requirements? Yes. The PR6423/11R-131 CON021 is fully suitable for X-Y redundant shaft monitoring configurations as required by API 670. Two sensors are mounted at 90° intervals around the shaft journal, each connected to an independent channel of the 3500/42M module. This configuration enables orbit plot generation, cross-channel voting logic, and enhanced diagnostic capability. Cable routing should follow Bently Nevada installation guidelines to minimize electromagnetic interference, and the CON021 conditioner should be mounted within the specified cable length range for the PR6423 series.

Q3: What warranty and supply assurance does NANKMOS provide for the PR6423/11R-131 CON021? NANKMOS provides a 12-Month Warranty on all PR6423/11R-131 CON021 units. Every sensor undergoes pre-shipment functional testing to verify output linearity, scale factor accuracy, and cable integrity before dispatch. In-stock inventory is maintained to support rapid replacement requirements, minimizing lead times for both planned maintenance and emergency breakdown situations. For long-term supply agreements or multi-unit procurement, contact NANKMOS directly to discuss inventory reservation and scheduled delivery options.
