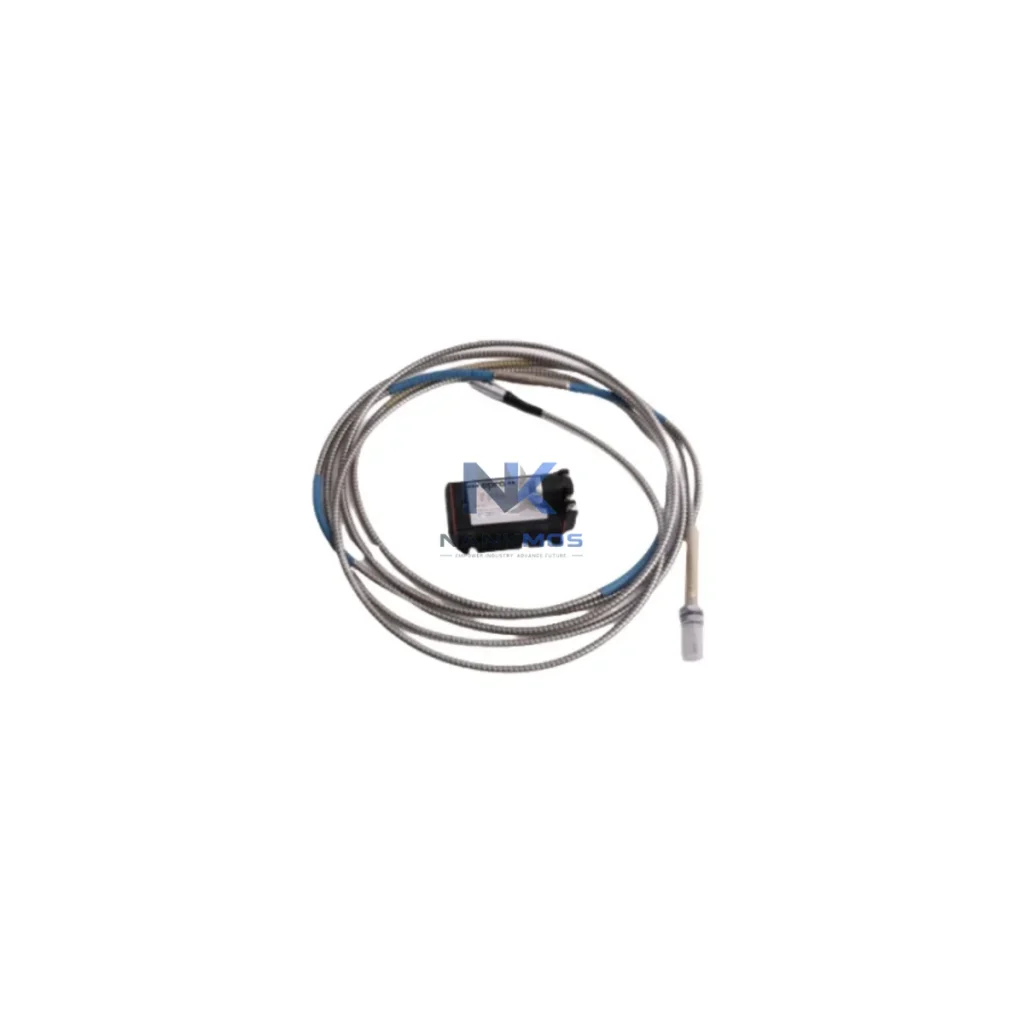

Emerson PR6426/000-131 CON041/916-200 Eddy Current Sensor

Product Details

PR6426/000-131 CON041/916-200 Product Description

The Emerson PR6426/000-131 CON041/916-200 is a high-precision eddy current sensor engineered for demanding industrial environments where real-time signal acquisition, protocol-transparent data transmission, and seamless integration into smart factory architectures are non-negotiable. As part of Emerson's Proximity Series, this sensor delivers reliable non-contact displacement and vibration measurement while serving as a critical node in the plant-wide data chain — from field device to SCADA dashboard.

In modern automated facilities, the gap between physical measurement and digital intelligence is bridged by devices like the PR6426/000-131. Whether deployed on rotating machinery, turbine shafts, compressor trains, or precision CNC spindles, this sensor feeds continuous analog signals into the data acquisition layer, where they are conditioned, digitized, and routed through industrial communication networks to supervisory systems for real-time monitoring, alarm management, and predictive maintenance.

The PR6426/000-131 sits at the origin of the smart factory data chain. Its eddy current probe continuously measures shaft displacement or surface gap at the field level, generating a low-noise analog signal that is fed into the Emerson CON041 signal conditioner — the companion driver module included in this assembly. The conditioner amplifies, linearizes, and outputs a clean 4–20 mA or voltage signal ready for ingestion by the next layer of the automation stack.

From the conditioner output, the signal enters a distributed I/O module — such as a Siemens ET 200SP remote I/O or a Rockwell Allen-Bradley 1734 POINT I/O — where it is digitized and packetized for transmission over the plant network. In PROFIBUS DP environments, the data travels upstream to a Siemens S7-300 or S7-1500 PLC, which executes real-time control logic based on the displacement readings. In EtherNet/IP architectures, the same data stream reaches a Rockwell ControlLogix L8x controller within milliseconds, enabling closed-loop feedback on rotating equipment.

For facilities running mixed-protocol environments, a Moxa MGate MB3480 Modbus-to-EtherNet/IP gateway or an HMS Anybus Communicator bridges the signal from legacy serial networks to modern Ethernet backbones, ensuring the PR6426/000-131 data is accessible across the entire plant topology without protocol barriers. This gateway layer is essential in brownfield upgrades where older Modbus RTU infrastructure must coexist with newer PROFINET or EtherNet/IP segments.

At the supervisory level, the digitized sensor data is consumed by Emerson Ovation DCS or third-party SCADA platforms such as Wonderware System Platform (AVEVA) or Ignition by Inductive Automation. Here, the displacement and vibration trends are visualized on operator HMI screens, logged to historian databases, and cross-referenced with alarm thresholds. When the PR6426/000-131 detects abnormal shaft movement — indicative of bearing wear, rotor imbalance, or misalignment — the SCADA system triggers alarm notifications and initiates maintenance workflows automatically.

Edge computing nodes, such as an Advantech UNO-2484G industrial edge gateway, can be deployed between the field I/O layer and the cloud or enterprise MES to perform local data preprocessing, reducing latency and bandwidth load on the upstream network. This architecture supports real-time analytics at the edge while still forwarding aggregated data to cloud-based asset performance management platforms for long-term trend analysis and predictive maintenance scheduling.

Industrial Ethernet switches — such as the Hirschmann MACH104 managed switch — provide the network backbone that carries all this data with deterministic latency, VLAN segmentation, and redundant ring topology (MRP/RSTP), ensuring that a single cable fault does not interrupt the data flow from the PR6426/000-131 to the control room. Power for the sensor and conditioner assembly is supplied by a Phoenix Contact QUINT 24VDC DIN rail power supply, maintaining stable excitation voltage even under load fluctuations.

Protocol Fragmentation: Many plants operate a mix of HART, Modbus RTU, PROFIBUS, and EtherNet/IP devices. The PR6426/000-131, with its standard analog output, integrates into any of these environments via the appropriate signal conditioner or protocol gateway, eliminating the need for proprietary communication hardware and reducing integration complexity.

Data Silos and Blind Spots: Rotating machinery monitored only by local gauges creates data silos that prevent plant-wide visibility. By connecting the PR6426/000-131 into the plant network through remote I/O and SCADA, operators gain continuous, centralized visibility into shaft dynamics across all monitored assets — eliminating blind spots that lead to unplanned downtime.

Remote Monitoring and Diagnostics: With the sensor data flowing through the plant network to SCADA and historian systems, maintenance engineers can remotely access real-time and historical displacement trends from any workstation or mobile device. This capability is critical for facilities with unmanned substations, offshore platforms, or geographically distributed assets where on-site inspection is costly or impractical.

Production Line Transparency: Integrating the PR6426/000-131 data into MES and ERP systems via OPC-UA or REST API connectors enables production managers to correlate machine health data with output quality metrics, shift schedules, and maintenance records — delivering the production transparency required for ISO 55000 asset management compliance and continuous improvement programs.

Alarm Tracking and System Expansion: The sensor's data feeds into configurable alarm management frameworks within the SCADA or DCS, enabling multi-level alarm prioritization (advisory, warning, critical) with full audit trails. As the plant expands, additional PR6426-series sensors can be added to the network without architectural changes, supporting scalable condition monitoring across new machinery or production lines.

Q1: What communication protocols does the PR6426/000-131 support for SCADA integration? The PR6426/000-131 outputs a standard analog signal (4–20 mA or voltage) from the CON041 conditioner. This signal is compatible with any analog input module on PROFIBUS PA, HART, Modbus RTU/TCP, EtherNet/IP, or PROFINET networks via the appropriate I/O module or protocol gateway. No proprietary driver is required for SCADA integration.

Q2: How is network stability ensured when this sensor is part of a large-scale monitoring system? The analog output of the PR6426/000-131 is inherently noise-immune over short to medium cable runs. For long-distance transmission, signal repeaters or 4–20 mA loop isolators maintain signal integrity. At the network layer, managed industrial switches with RSTP/MRP redundancy ensure continuous data delivery even in the event of a network segment failure.

Q3: Can the PR6426/000-131 be integrated into an existing PROFIBUS or EtherNet/IP plant network without replacing current infrastructure? Yes. The sensor's analog output connects to any standard analog input module on your existing remote I/O rack — whether PROFIBUS DP, EtherNet/IP, or Modbus. No changes to the existing network topology are required. For brownfield sites, a protocol gateway such as the HMS Anybus Communicator can bridge the signal to the target network protocol transparently.

Q4: What quality assurance and warranty coverage is provided with this unit? Every PR6426/000-131 CON041/916-200 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify output linearity, signal stability, and connector integrity. All units are covered by a 12-month warranty from the date of shipment. In-stock inventory ensures rapid dispatch for maintenance emergencies and planned shutdowns, minimizing equipment downtime.
