IC660HHM501S Product Description

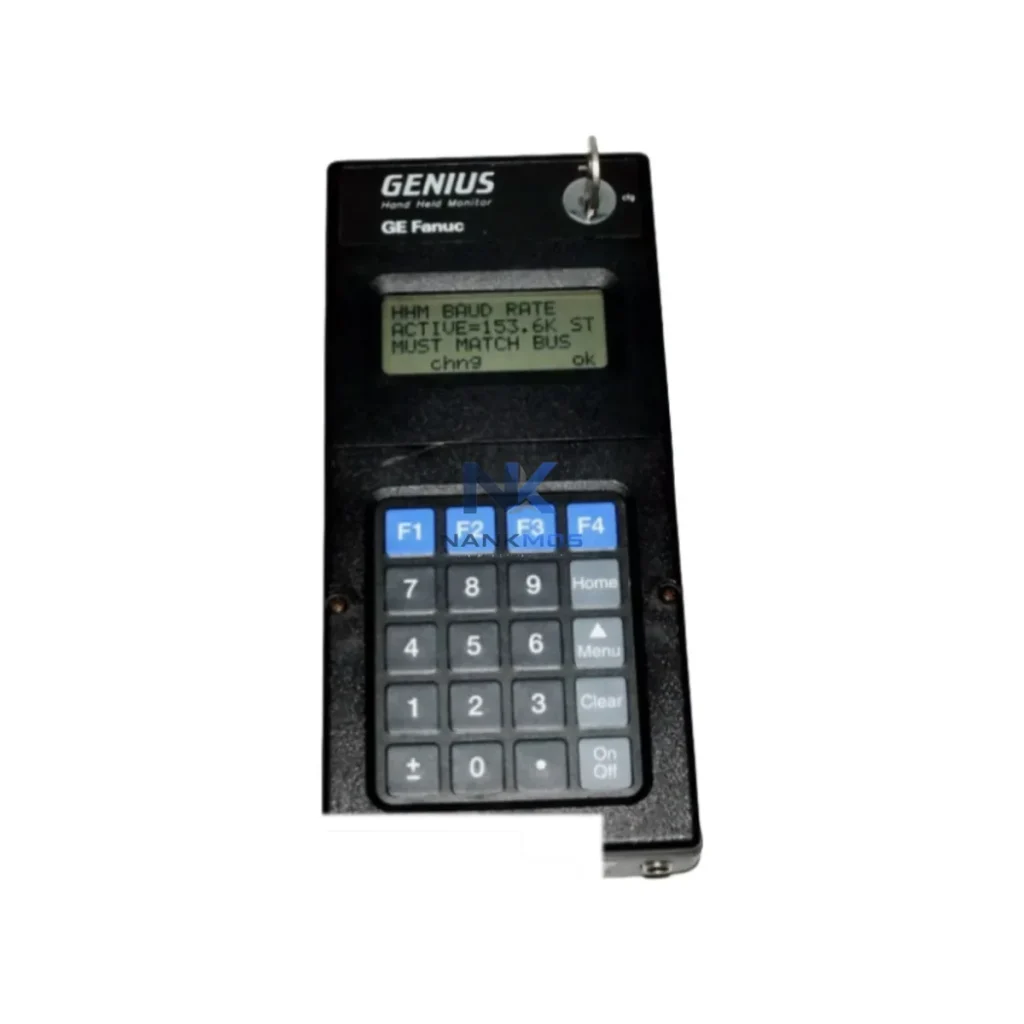

The GE Fanuc IC660HHM501S Hand-Held Monitor is a dedicated operator interface and diagnostic tool engineered for seamless integration within the GE Series Six programmable controller architecture. Designed to serve as the primary human-machine interface at the field level, this unit enables direct communication with Series Six CPUs, allowing engineers and technicians to monitor ladder logic execution, inspect register values, force discrete I/O points, and perform real-time fault diagnostics without requiring a dedicated programming workstation. Its rugged, portable form factor makes it an indispensable tool across control cabinet environments in power generation, petrochemical processing, water treatment, mining, and marine propulsion systems.

Within a layered industrial control architecture, the IC660HHM501S occupies the HMI layer while maintaining tight coupling with the control layer, I/O layer, and communications layer. It connects directly to the Series Six CPU module — such as the IC660CPU100 or IC660CPU105 — via the dedicated programmer port, enabling contextual integration that reflects live system state without intermediary software dependencies. This direct-connect capability ensures that diagnostic sessions remain accurate and low-latency, even in environments where network infrastructure is limited or unavailable.

The monitor's architecture-aware design means it understands the Series Six rack topology, including the IC660CBL500 and IC660CBL501 cable assemblies used to extend reach within large control cabinets or distributed panel configurations. When paired with Series Six I/O modules such as the IC660BBD100 discrete input module or the IC660BBA100 analog input module, the IC660HHM501S allows technicians to verify signal integrity at the source, confirming that field sensor outputs are correctly mapped to the CPU's data table before escalating to higher-level SCADA diagnostics.

From a system redundancy and maintenance perspective, the IC660HHM501S plays a critical role in reducing mean time to repair (MTTR). During planned maintenance windows or unplanned fault events, the hand-held monitor allows a single technician to traverse the control architecture — from the power supply module through the backplane bus to individual I/O slots — without requiring remote desktop access or network connectivity. This independence from the communications layer (whether the system uses Genius Bus, SRTP Ethernet, or legacy serial protocols) ensures that the HMI layer remains operational as a standalone diagnostic resource even when the communications layer is under reconfiguration or experiencing faults.

In integrated automation platform designs, the IC660HHM501S complements higher-level HMI solutions such as GE's Cimplicity SCADA software and iFIX process visualization platforms by providing a ground-truth reference at the PLC level. Engineers commissioning new control panels can use the hand-held monitor to validate I/O mapping, confirm CPU scan cycle behavior, and verify that the Series Six rack — including the IC660CBB900 or IC660CBB901 baseplate — is correctly populated and communicating before bringing the supervisory layer online. This phased commissioning approach reduces integration risk and accelerates project handover timelines.

For facilities operating mixed-generation control architectures, the IC660HHM501S bridges legacy Series Six installations with modern maintenance workflows. It supports coexistence in panels where Series Six racks share cabinet space with newer GE 90-30 or PACSystems RX3i controllers, allowing maintenance teams to standardize their diagnostic toolkit across multiple controller generations without investing in separate programming software licenses for each platform. The hand-held monitor's self-contained operation also eliminates software version compatibility concerns that frequently arise when using PC-based programming tools in long-lifecycle industrial environments.

The IC660HHM501S achieves its full diagnostic value when deployed within a complete Series Six automation platform. At the control layer, it interfaces directly with the IC660CPU100 and IC660CPU105 CPU modules, providing real-time access to the program scan and data table. The rack infrastructure — built on the IC660CBB900 or IC660CBB901 baseplate — houses I/O modules including the IC660BBD100 discrete input module and IC660BBA100 analog input module, all of which can be inspected and forced through the hand-held monitor's interface.

At the power layer, the IC660PWR100 power supply module provides regulated DC power to the rack backplane, and the IC660HHM501S can be used to verify that power-related fault codes are correctly logged in the CPU fault table. For extended reach within large control cabinets, the IC660CBL500 and IC660CBL501 programmer cables allow the hand-held monitor to be positioned ergonomically without compromising connection integrity.

In systems where the Series Six communicates upstream via Genius Bus, the IC660BBA020 Genius Bus Controller module manages the field bus segment, and the IC660HHM501S provides a local verification point to confirm that bus block addresses and I/O assignments are correctly configured before the Genius network is brought online. For facilities integrating Series Six data into modern SCADA platforms via OPC-UA or Modbus/TCP gateways, the hand-held monitor serves as the baseline commissioning tool that validates PLC-side data integrity prior to gateway configuration.

When the control architecture includes redundant CPU configurations or hot-standby arrangements, the IC660HHM501S supports switchover validation by allowing technicians to independently connect to each CPU module and confirm that program versions, data table states, and I/O configurations are synchronized. This capability is particularly valuable in power generation and petrochemical applications where unplanned switchover events must be diagnosed and resolved rapidly to maintain process continuity.

Power Generation: In turbine and boiler control systems, the IC660HHM501S enables operators to monitor combustion control logic, verify analog input scaling for temperature and pressure sensors, and force discrete outputs during pre-startup interlock testing — all without requiring a networked engineering workstation in the field.

Petrochemical & Oil and Gas: In hazardous area control panels where network access is restricted, the hand-held monitor provides a self-contained diagnostic interface for verifying Series Six logic execution, inspecting PID loop parameters, and confirming emergency shutdown (ESD) interlock states during safety system audits.

Water Treatment & Municipal Utilities: For pump station and filtration control systems built on Series Six architecture, the IC660HHM501S allows maintenance technicians to perform on-site fault diagnosis and I/O verification without disrupting the SCADA communications link to the central control room.

Mining & Metallurgy: In conveyor, crusher, and mill control applications, the rugged handheld form factor withstands the vibration and dust exposure typical of mining environments, providing reliable diagnostic access to Series Six controllers managing high-power drive systems and safety interlocks.

Marine Propulsion & Shipboard Systems: For vessel automation systems where space is constrained and network infrastructure is minimal, the IC660HHM501S provides a compact, portable HMI solution that integrates directly with Series Six propulsion and auxiliary control panels, supporting both commissioning and underway maintenance activities.

Packaging & Discrete Manufacturing: In high-speed packaging lines where Series Six controllers manage servo coordination and product handling sequences, the hand-held monitor enables rapid fault isolation during production stoppages, reducing downtime and supporting efficient changeover validation.

Q1: Is the IC660HHM501S compatible with all Series Six CPU variants, and can it be used across different rack configurations? The IC660HHM501S is designed for use with GE Fanuc Series Six CPU modules, including the IC660CPU100 and IC660CPU105. It connects via the dedicated programmer port present on Series Six CPUs and is compatible with all standard Series Six rack configurations built on IC660CBB900 and IC660CBB901 baseplates. It does not require any additional software or drivers, making it immediately deployable across existing Series Six installations regardless of rack size or I/O complement.

Q2: How does the IC660HHM501S support long-term maintenance in aging Series Six installations, and what is the warranty coverage? The IC660HHM501S is supplied with a 12-Month Warranty and is pre-shipment tested to confirm full operational functionality before dispatch. For long-lifecycle Series Six installations, the hand-held monitor provides a hardware-independent diagnostic path that remains valid regardless of changes to the facility's IT infrastructure, programming software versions, or network topology. Its self-contained operation ensures that maintenance teams retain direct PLC access even as surrounding systems are upgraded or replaced, supporting a cost-effective long-term maintenance strategy without requiring platform migration.

Q3: Can the IC660HHM501S be used during live production to monitor system performance without interrupting control execution? Yes. The IC660HHM501S operates in a read-only monitoring mode by default, allowing technicians to observe ladder logic execution, register values, and I/O states in real time without affecting the CPU's scan cycle or control outputs. Write operations — such as forcing I/O points or editing register values — require deliberate mode selection, providing a safeguard against accidental modification during live production monitoring. This design makes the hand-held monitor suitable for use during normal operations in manufacturing, utilities, and process control environments where continuous production availability is a primary requirement.
