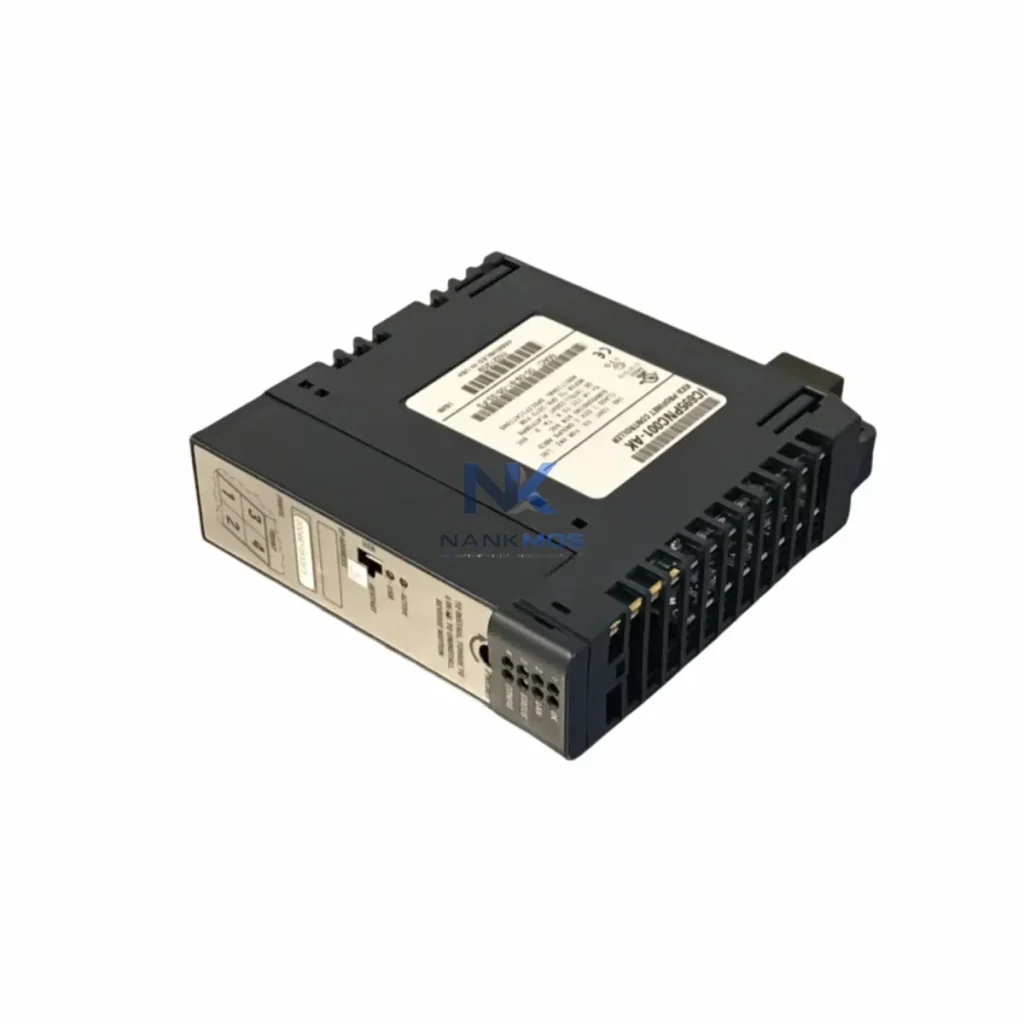

GE Fanuc IC695PNC001-AK PROFINET Controller Module

Product Details

IC695PNC001-AK Product Description

The GE Fanuc IC695PNC001-AK is a high-performance PROFINET Controller Module designed for the PACSystems RX3i platform, engineered to deliver precise network coordination, real-time load management, and energy-aware automation across demanding industrial environments. As factories transition toward smart production and energy optimization, the IC695PNC001-AK serves as a critical communication backbone — enabling deterministic data exchange between field devices, drives, and supervisory systems while minimizing unnecessary energy consumption and thermal overhead.

Built to IEC 61158 PROFINET standards, this module supports both PROFINET IO Controller and IO Device modes, allowing flexible integration into existing RX3i rack architectures. Its ability to manage up to 128 IO devices per controller makes it an ideal fit for large-scale production lines where synchronized device communication directly impacts cycle time, energy draw, and equipment utilization rates.

In a modern energy-optimized production environment, the IC695PNC001-AK does not operate in isolation — it functions as the communication hub that ties together an entire ecosystem of power-aware automation components. When paired with a GE Fanuc CPE330 or CPE400 CPU, the controller enables high-speed scan cycles that reduce unnecessary actuator hold times, directly cutting standby energy consumption at the field device level.

On the drive side, the IC695PNC001-AK communicates seamlessly with PROFINET-capable variable frequency drives (VFDs) such as the Siemens SINAMICS G120 or ABB ACS880, enabling real-time speed reference and torque feedback loops. This closed-loop integration allows the PLC to dynamically adjust motor output based on actual load demand rather than fixed setpoints — a key strategy for reducing motor energy waste during partial-load production phases. The result is measurable reduction in kWh consumption per production cycle without sacrificing throughput.

For servo-driven axes, the module supports coordination with servo drives such as the Yaskawa SGDV series or Omron 1S servo drives via PROFINET, enabling synchronized multi-axis motion profiles that minimize acceleration energy spikes and reduce mechanical stress. Smooth ramp profiles managed through the RX3i CPU — informed by real-time feedback from the IC695PNC001-AK network — translate directly into lower peak current draw and reduced thermal load on drive cabinets.

Power monitoring is equally critical. When integrated with power measurement modules such as the GE Fanuc IC694ACC300 or third-party PROFINET power meters, the IC695PNC001-AK enables the RX3i system to collect granular energy data — per-zone, per-machine, or per-shift — and feed it upstream to SCADA platforms such as GE iFIX or Ignition. This data pipeline supports real-time energy dashboards, anomaly detection, and demand-response strategies that prevent peak-load penalties.

On the I/O side, the module works in conjunction with RX3i analog and digital I/O modules — including the IC694MDL754 discrete output module and IC695ALG600 analog input module — to capture sensor signals from temperature transmitters, pressure transducers, and flow meters. These inputs feed energy models within the CPU logic, enabling condition-based load shedding and predictive maintenance triggers before equipment degradation leads to energy inefficiency or unplanned downtime.

HMI integration via PROFINET-connected panels such as the GE Fanuc QuickPanel+ or Siemens TP1200 Comfort provides operators with live visibility into network health, device status, and energy KPIs — empowering line supervisors to make informed decisions about production scheduling and load balancing without requiring SCADA-level access.

The IC695PNC001-AK contributes to factory energy optimization through three primary mechanisms: communication determinism, load-aware scheduling, and fault isolation speed.

Communication Determinism: PROFINET's isochronous real-time (IRT) capability, supported by the IC695PNC001-AK, ensures that all field devices — drives, sensors, actuators — receive and respond to commands within a guaranteed time window. This eliminates the communication jitter that causes drives to over-compensate with excess torque, a common hidden source of energy waste in older fieldbus architectures. Stable, predictable communication means drives operate at their designed efficiency points more consistently.

Load-Aware Scheduling: By providing the RX3i CPU with real-time device status from all 128 connected IO nodes, the IC695PNC001-AK enables the control program to implement intelligent load sequencing. Rather than starting all motors simultaneously — creating inrush current spikes that stress power infrastructure and trigger demand charges — the system can stagger starts, pre-condition equipment, and ramp loads progressively. This approach reduces peak demand, extends equipment life, and lowers the thermal burden on switchgear and cabling.

Fault Isolation Speed: When a field device fault occurs, the IC695PNC001-AK's PROFINET diagnostics deliver device-level fault identification to the CPU within milliseconds. Rapid fault isolation prevents cascading failures where a single faulty device causes an entire production zone to idle at full power draw without productive output. Faster fault response means shorter mean time to repair (MTTR), higher overall equipment effectiveness (OEE), and lower energy cost per unit produced.

Across all three mechanisms, the net effect is a production line that consumes less energy per unit of output, experiences fewer unplanned stops, and maintains consistent cycle times — the three pillars of sustainable industrial efficiency. Every IC695PNC001-AK shipped from NANKMOS inventory undergoes pre-shipment functional testing to verify PROFINET communication integrity, backplane interface health, and firmware version compatibility, ensuring it performs to specification from day one.

Q1: How does the IC695PNC001-AK contribute to measurable energy savings on a production line? By enabling deterministic PROFINET communication between the RX3i CPU and up to 128 field devices — including VFDs, servo drives, and power meters — the IC695PNC001-AK allows the control system to implement load-aware scheduling, dynamic speed references, and real-time energy monitoring. These capabilities collectively reduce idle energy consumption, eliminate inrush current spikes from simultaneous motor starts, and provide the data needed for continuous energy optimization. Customers integrating this module with PROFINET-capable drives and power monitoring modules typically report measurable reductions in per-cycle energy consumption.

Q2: Is the IC695PNC001-AK compatible with my existing PACSystems RX3i rack and CPU? Yes. The IC695PNC001-AK is designed for the PACSystems RX3i universal backplane and is compatible with RX3i CPUs including the CPE305, CPE310, CPE330, and CPE400. It requires CPU firmware version 7.80 or later for full PROFINET IO Controller functionality. If you are upgrading from an older RX3i configuration, NANKMOS recommends verifying your CPU firmware version prior to installation. Our technical team can assist with compatibility confirmation before shipment.

Q3: What does the pre-shipment testing process cover, and what warranty is provided? Every IC695PNC001-AK unit supplied by NANKMOS undergoes pre-shipment testing that includes PROFINET port communication verification, backplane connector integrity check, LED diagnostic validation, and firmware version confirmation. Units are shipped only after passing all functional checkpoints. Each unit is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Warranty support includes technical diagnosis, replacement coordination, and application guidance.

Q4: What is the typical lead time, and do you maintain stock for urgent replacement needs? NANKMOS maintains ready inventory of the IC695PNC001-AK to support urgent replacement and MRO procurement requirements. Standard orders are processed and shipped within 1-3 business days. For critical production line downtime situations, expedited processing is available — contact [email protected] or call +86 18359268345 to confirm current stock availability and arrange priority dispatch.
