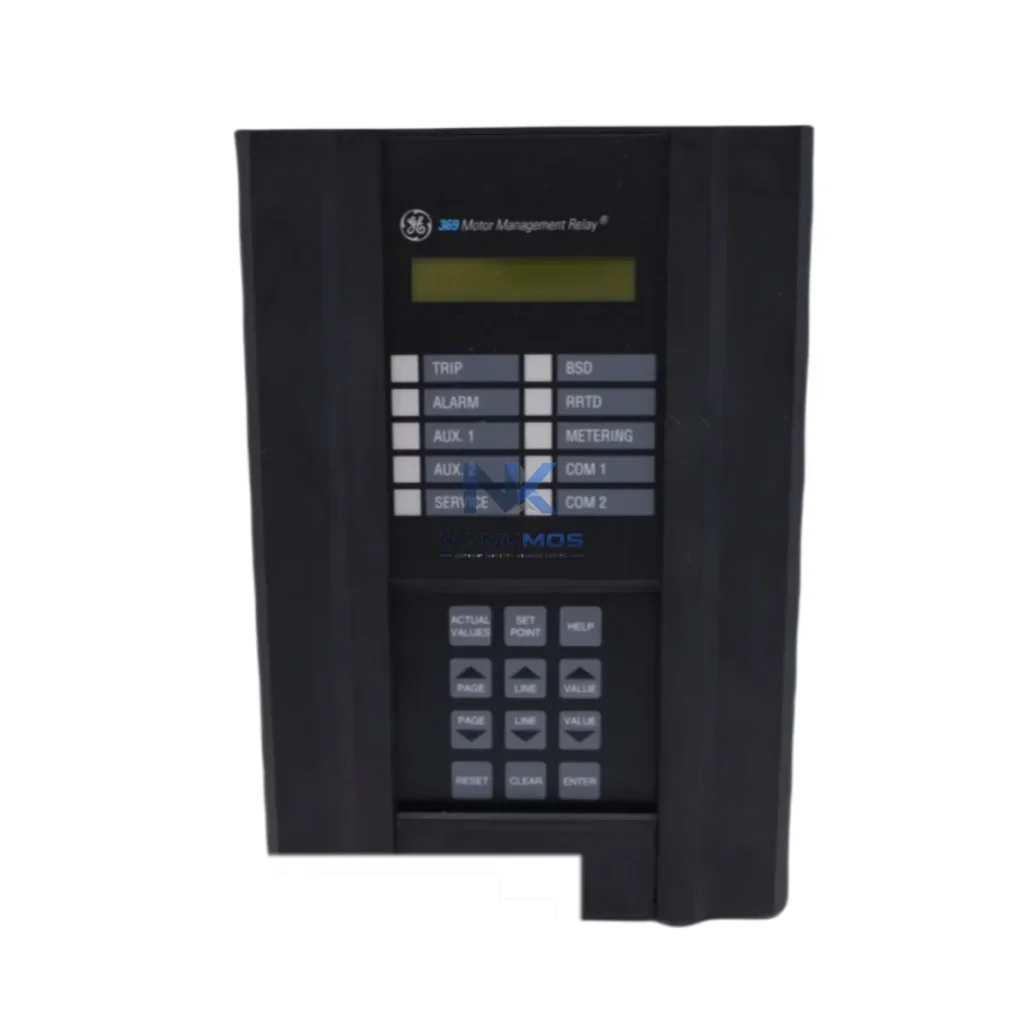

GE 369-HI-R-M-0-0-0 Motor Protection Relay

Product Details

369-HI-R-M-0-0-0 Product Description

The GE 369-HI-R-M-0-0-0 is a high-performance motor protection relay from GE's Multilin series, engineered to serve as a critical node in the industrial data chain of modern smart factories. Beyond its core function of protecting medium-voltage motors from overload, phase imbalance, ground fault, and thermal stress, the 369-HI-R-M-0-0-0 integrates seamlessly into plant-wide communication architectures through its native Modbus RTU/RS-485 interface. This connectivity transforms it from a standalone protection device into an active participant in the facility's real-time data ecosystem — feeding motor health data upstream to SCADA platforms, DCS controllers, and HMI visualization systems without requiring additional protocol converters in most standard deployments.

In a connected factory environment, the 369-HI-R-M-0-0-0 sits at the field device layer, collecting high-resolution electrical parameters — current, voltage, power factor, thermal capacity used, and fault event logs — and transmitting them continuously over the RS-485 bus to upstream systems. A typical data path begins at the motor terminals, passes through the relay's measurement circuits, and exits via the Modbus RTU port to a GE Multilin SR750 feeder protection relay or a dedicated Moxa NPort 5150 serial-to-Ethernet device server, which converts the RS-485 signal to TCP/IP for integration with Ethernet-based plant networks. From there, data flows into a Siemens S7-1500 PLC or Rockwell ControlLogix controller acting as the network master, aggregating field data from multiple protection relays across the motor control center (MCC).

At the SCADA layer, platforms such as Wonderware InTouch, Ignition by Inductive Automation, or GE iFIX poll the 369-HI-R-M-0-0-0 registers at configurable intervals, displaying real-time motor load curves, trip history, and thermal model status on operator HMI screens. Alarm conditions — overcurrent trips, ground fault events, RTD over-temperature — are immediately propagated as discrete alarm tags to the SCADA alarm management system, enabling operators to respond within seconds rather than minutes. This closed-loop alarm feedback is essential in petrochemical, power generation, and water treatment facilities where unplanned motor downtime carries significant operational cost.

For facilities deploying edge computing architectures, the 369-HI-R-M-0-0-0 data stream can be routed through an Advantech ADAM-6717 edge gateway or a Hilscher netFIELD edge device, which applies local analytics — trend detection, predictive maintenance algorithms — before forwarding condensed data packets to cloud-based asset management platforms. This edge-to-cloud pipeline reduces network bandwidth consumption while preserving the granularity needed for long-term motor health trending and remaining useful life (RUL) estimation.

Remote diagnostics capability is a defining strength of the 369-HI-R-M-0-0-0 in distributed plant topologies. Maintenance engineers can interrogate the relay's event recorder and fault data log remotely via the Modbus interface, retrieving pre-fault current waveforms and sequence-of-events records without dispatching field personnel to the MCC room. When paired with a GE Multilin EnerVista 369 Setup Software workstation connected over the plant LAN, full relay configuration, setpoint adjustment, and firmware management can be performed from the control room — a significant advantage in hazardous area installations where physical access is restricted.

System scalability is straightforward: the RS-485 bus supports up to 32 devices per segment, allowing a single Modbus master to poll multiple 369-HI-R-M-0-0-0 relays protecting different motors across the same MCC lineup. For larger installations, Moxa MB3480 Modbus gateways or ProSoft Technology MVI56-MCM communication modules extend the network to hundreds of field devices while maintaining deterministic polling cycles. This architecture supports the incremental expansion typical of brownfield plant upgrades, where new motor protection points are added to an existing Modbus network without redesigning the communication infrastructure.

The 369-HI-R-M-0-0-0 also supports integration with power monitoring systems. Its metering-grade current and voltage measurements — accurate to ±0.5% — make it a valid data source for energy management platforms tracking motor efficiency, power consumption trends, and demand peaks. When aggregated across a fleet of motors via the plant SCADA, this data supports ISO 50001 energy management compliance and identifies candidates for variable frequency drive (VFD) retrofits, such as replacing fixed-speed pumps with ABB ACS880 or Danfoss FC302 drives to reduce energy consumption by 20–40%.

Every GE 369-HI-R-M-0-0-0 unit supplied by NANKMOS is sourced from verified supply channels, pre-shipment tested against GE Multilin factory acceptance criteria, and shipped with full documentation including relay test reports and configuration files. Units are in stock and available for immediate dispatch. A 12-month warranty covers all hardware defects, ensuring operational confidence for critical motor protection applications in power generation, oil and gas, petrochemical, mining, and marine propulsion environments.

The 369-HI-R-M-0-0-0 anchors the field device layer of a multi-tier industrial network. At the lowest layer, motor-mounted Pt100 RTD temperature sensors and current transformers feed analog signals directly into the relay's measurement inputs. The relay processes these signals in real time, applying thermal model calculations and protection logic before making trip or alarm decisions in under 50 milliseconds.

Processed data exits the relay via the RS-485 Modbus port. In a typical MCC installation, a Moxa NPort 5150A serial device server converts the RS-485 signal to Modbus TCP over Ethernet, connecting the relay to the plant LAN through a Hirschmann SPIDER 8-port industrial Ethernet switch. The Ethernet segment connects upstream to a Siemens S7-1500 CPU 1515 PLC running the Modbus TCP client function block, which polls all protection relays in the MCC at 500 ms intervals and maps their data into the PLC's process image for logic processing and interlocking.

The PLC communicates with the plant DCS or SCADA server — running Ignition SCADA with the Modbus TCP driver — via PROFINET or OPC-UA, depending on the site architecture. The SCADA server hosts the HMI screens displaying motor load trends, alarm banners, and energy dashboards. Alarm events from the 369-HI-R-M-0-0-0 — ground fault, overload, phase loss — appear on the HMI within one polling cycle and are logged to the historian for post-event analysis. For sites using GE iFIX or Wonderware System Platform, the relay's Modbus map is imported directly into the SCADA tag database, enabling drag-and-drop HMI development without custom scripting.

At the edge layer, an Advantech ECU-1251 edge gateway running Node-RED aggregates data from multiple 369-HI-R-M-0-0-0 relays and applies local anomaly detection before publishing summarized motor health metrics to an MQTT broker or cloud IoT platform. This architecture supports predictive maintenance workflows where motor thermal trends and vibration data — sourced from co-located Bently Nevada 3300 XL proximity systems — are correlated to predict bearing failures weeks in advance.

Protocol fragmentation is one of the most common barriers to plant-wide data visibility. Legacy motor protection relays using proprietary communication or no communication at all create data islands that prevent SCADA systems from monitoring motor health centrally. The 369-HI-R-M-0-0-0 resolves this by providing a standardized Modbus RTU interface that is natively supported by virtually every PLC, DCS, and SCADA platform in the market — eliminating the need for custom protocol converters or middleware in most installations.

Remote monitoring gaps in distributed facilities — where motors are located in remote pump stations, offshore platforms, or underground mining levels — are addressed by the relay's ability to transmit complete motor health data over long RS-485 cable runs (up to 1200 m) or via serial-to-fiber converters for electrically noisy environments. Combined with a cellular or satellite RTU at the remote site, the 369-HI-R-M-0-0-0 enables full motor protection visibility from a central control room thousands of kilometers away.

Production line transparency improves significantly when motor protection data is integrated into the MES or ERP layer. By exposing motor runtime hours, trip counts, and energy consumption through the Modbus interface, the 369-HI-R-M-0-0-0 provides the raw data needed for OEE (Overall Equipment Effectiveness) calculations and planned maintenance scheduling — shifting maintenance from reactive to predictive and reducing unplanned downtime by 30–50% in documented case studies.

System expansion is non-disruptive: adding a new 369-HI-R-M-0-0-0 to an existing Modbus RS-485 network requires only assigning a unique device address and adding the relay's register map to the SCADA tag database. No rewiring of the communication backbone is needed, making it the preferred choice for phased MCC upgrades in brownfield plants.

Q1: What is the typical Modbus polling latency for the 369-HI-R-M-0-0-0 in a multi-relay RS-485 network? With a baud rate of 9600 bps and 10 relays on the bus, typical round-trip polling latency per device is 50–150 ms, depending on register count per poll. For time-critical alarm detection, the relay's internal protection logic operates independently of the communication bus — trips are executed in hardware within 50 ms regardless of network load.

Q2: Is the 369-HI-R-M-0-0-0 compatible with Modbus TCP SCADA systems without a serial gateway? The relay's native interface is Modbus RTU over RS-485. For Modbus TCP SCADA integration, a serial-to-Ethernet gateway such as the Moxa NPort 5150A or ProSoft Technology AN-X2-AB-DHRIO is required. This is a standard, low-cost addition that does not affect relay performance or protection functionality.

Q3: Can the relay's setpoints and configuration be modified remotely over the Modbus network? Yes. The 369-HI-R-M-0-0-0 supports remote setpoint write via Modbus holding registers, subject to password protection. Full configuration management — including protection settings, communication parameters, and relay output assignments — is performed using GE Multilin EnerVista 369 Setup Software connected over the RS-485 or via a PC serial port.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 369-HI-R-M-0-0-0? All units supplied by NANKMOS carry a 12-month warranty covering hardware defects under normal operating conditions. Each unit undergoes pre-shipment functional testing — including communication port verification, protection element response testing, and metering accuracy check — before dispatch. Units are in stock and available for immediate shipment with full documentation.
