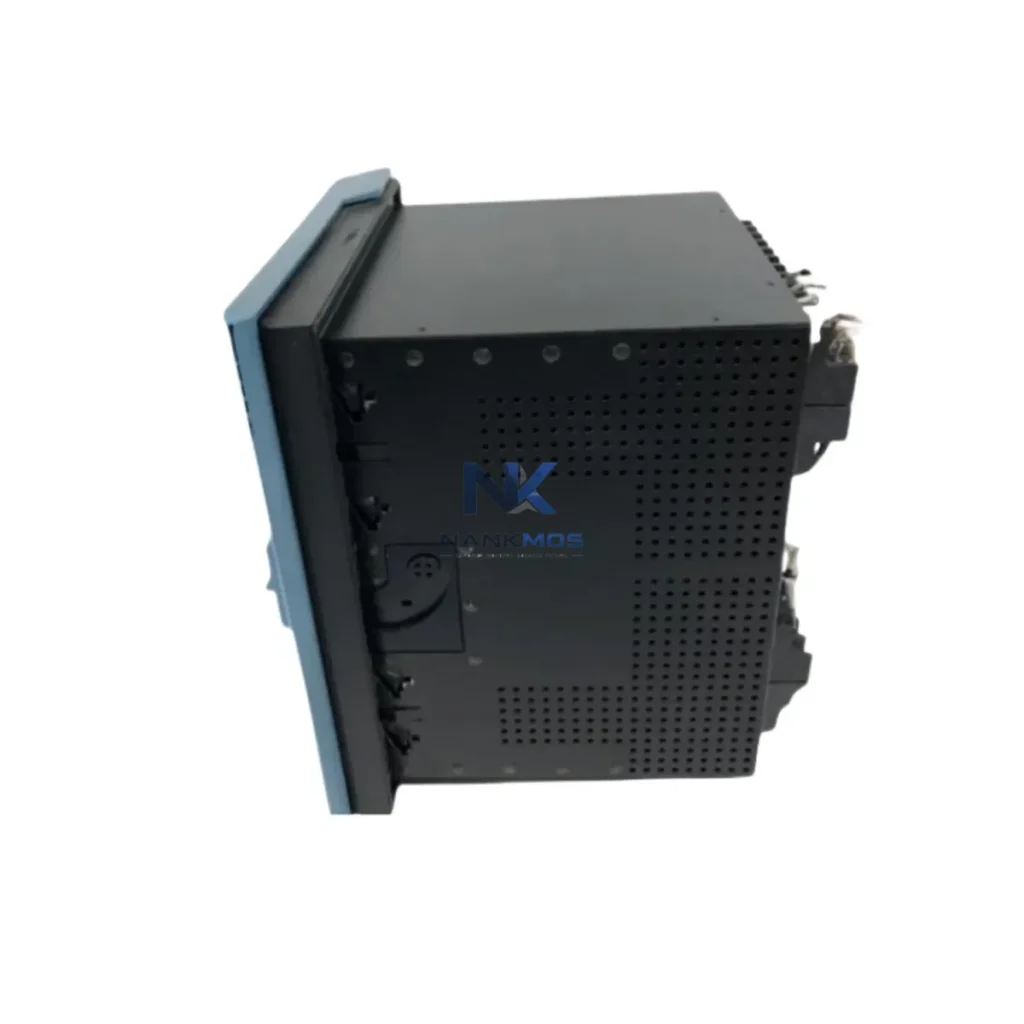

GE 469-P5-HI-A1-E-H Motor Protection Relay

Product Details

469-P5-HI-A1-E-H Product Description

The GE Multilin 469-P5-HI-A1-E-H is a high-performance motor protection relay engineered for seamless integration into modern industrial communication architectures. Combining advanced motor protection with dual-port Ethernet and Modbus RTU connectivity, this relay serves as a critical data node in smart factory environments — bridging field-level motor assets with PLC controllers, SCADA platforms, HMI systems, and enterprise-level data infrastructure. Whether deployed in petrochemical plants, water treatment facilities, mining operations, or discrete manufacturing lines, the 469-P5-HI-A1-E-H delivers real-time motor health data, fault diagnostics, and protection event logs directly into the automation network.

In a connected factory, every motor represents a data source. The 469-P5-HI-A1-E-H captures current, voltage, power factor, thermal capacity, and fault history at the device level, then transmits this structured data upstream via Modbus RTU or Ethernet TCP/IP to supervisory systems. This eliminates the data silos that traditionally isolate motor protection equipment from the broader automation ecosystem. Engineers and operators gain full visibility into motor performance without manual inspection, enabling predictive maintenance strategies and reducing unplanned downtime across production lines.

The 469-P5-HI-A1-E-H sits at the intersection of field instrumentation and supervisory control, making it a cornerstone component in any industrial data flow architecture. At the field level, current transformers and voltage inputs feed real-time electrical parameters into the relay's onboard processor. These measurements — including motor current, thermal capacity used, power factor, and energy consumption — are continuously processed and made available to upstream systems via the relay's Modbus RTU or Ethernet interface.

In a typical smart factory deployment, the 469-P5-HI-A1-E-H connects to a GE PACSystems RX3i PLC or a Modbus-compatible PLC controller acting as the Modbus master. The PLC polls the relay at configurable intervals, collecting motor status registers and fault codes that are then forwarded to a SCADA platform such as GE iFIX, Wonderware, or Ignition. Operators monitoring the SCADA HMI receive live motor health dashboards, thermal trend graphs, and alarm notifications without leaving the control room.

For distributed plant architectures, the relay's Ethernet port enables direct integration with industrial Ethernet switches — such as managed Layer 2 switches supporting VLAN segmentation — ensuring that motor protection data travels on a dedicated network segment, isolated from general IT traffic. This network design supports deterministic communication latency, which is critical for time-sensitive protection coordination and alarm response.

Remote I/O modules and edge gateways deployed at the motor control center level can aggregate data from multiple 469-series relays and forward consolidated datasets to cloud-based analytics platforms or on-premise historians. When paired with a GE Multilin 369 Motor Management Relay or a GE Multilin 339 Motor Protection Relay on adjacent feeders, the 469-P5-HI-A1-E-H contributes to a unified motor fleet monitoring strategy across the entire facility.

Variable frequency drives (VFDs) controlling the same motor assets can be integrated into the same Modbus network segment, allowing the SCADA system to correlate drive output frequency and torque data with the relay's thermal and current measurements. This cross-device data correlation enables engineers to detect early signs of mechanical stress, bearing wear, or process overload before a trip event occurs. Communication gateways — such as Modbus-to-PROFIBUS or Modbus-to-EtherNet/IP converters — extend the relay's connectivity to PLC platforms using alternative fieldbus protocols, ensuring the 469-P5-HI-A1-E-H integrates cleanly into mixed-protocol automation environments.

For facilities using industrial power monitoring systems, the relay's energy metering outputs (kWh, kVAR, demand) feed directly into power management dashboards, supporting energy efficiency reporting and ISO 50001 compliance initiatives. Paired with GE Multilin 850 feeder protection relays on the upstream distribution side, the 469-P5-HI-A1-E-H provides end-to-end protection and monitoring from the medium-voltage feeder down to the individual motor load.

Protocol Fragmentation: Many industrial sites operate mixed-protocol environments where legacy serial devices coexist with modern Ethernet-based systems. The 469-P5-HI-A1-E-H addresses this by supporting both Modbus RTU over RS-485 and Modbus TCP over Ethernet simultaneously, allowing it to communicate with both legacy PLCs and modern SCADA platforms without requiring protocol conversion middleware.

Data Silos and Motor Blind Spots: Traditional motor protection relays operate as standalone devices with no upstream data connectivity. The 469-P5-HI-A1-E-H eliminates this blind spot by exposing over 200 Modbus registers covering protection settings, real-time measurements, fault records, and event logs. SCADA engineers can map these registers directly into historian databases, creating a continuous motor performance record that supports root cause analysis and maintenance planning.

Remote Monitoring and Diagnostics: For unmanned substations or remote pump stations, the relay's Ethernet connectivity enables remote access to motor status and fault data without dispatching field technicians. Maintenance teams can review the last 64 fault events, thermal capacity trends, and protection setting configurations from a central engineering workstation, dramatically reducing diagnostic travel time and accelerating fault resolution.

Production Line Transparency: By integrating the 469-P5-HI-A1-E-H into the plant's SCADA/MES data layer, production managers gain real-time visibility into motor availability, load trends, and protection trip history. This transparency supports OEE (Overall Equipment Effectiveness) calculations and enables data-driven decisions about motor maintenance scheduling, load balancing, and capacity planning.

Alarm Tracking and System Expansion: The relay's configurable alarm outputs and Modbus alarm registers integrate directly with plant-wide alarm management systems. As production lines expand, additional 469-series relays can be added to the Modbus network with minimal engineering effort, supporting scalable motor fleet management without redesigning the communication architecture.

Q1: What communication protocols does the GE 469-P5-HI-A1-E-H support, and how does it integrate with existing SCADA systems? The 469-P5-HI-A1-E-H supports Modbus RTU over RS-485 and Modbus TCP/IP over Ethernet. Both protocols are natively supported by major SCADA platforms including GE iFIX, Wonderware InTouch, Ignition, and Citect. Integration requires mapping the relay's Modbus register map to the SCADA tag database — a process typically completed within a few hours by a qualified automation engineer. No additional protocol converters or middleware are required for standard Modbus-based SCADA systems.

Q2: How does the relay handle network latency and communication stability in high-noise industrial environments? The 469-P5-HI-A1-E-H is designed for industrial-grade communication reliability. The RS-485 Modbus RTU interface supports shielded twisted-pair cabling with termination resistors, minimizing signal degradation in electrically noisy environments such as motor control centers. The Ethernet port supports standard TCP/IP error correction and retransmission, ensuring data integrity even in environments with moderate network congestion. Communication watchdog timers can be configured to trigger alarms if the SCADA polling cycle is interrupted.

Q3: Can the 469-P5-HI-A1-E-H be expanded to support additional network protocols or integrated with EtherNet/IP and PROFIBUS systems? The relay natively supports Modbus RTU and Modbus TCP. For integration with EtherNet/IP or PROFIBUS-based PLC platforms, a protocol gateway — such as a Modbus-to-EtherNet/IP or Modbus-to-PROFIBUS converter — can be installed between the relay and the target PLC network. This approach preserves the relay's native communication stack while enabling seamless data exchange with Allen-Bradley ControlLogix, Siemens S7, or other non-Modbus PLC platforms.

Q4: What does the 12-month warranty cover, and how is the relay tested before shipment? Every 469-P5-HI-A1-E-H unit supplied by NANKMOS is covered by a 12-month warranty against manufacturing defects and functional failures. Prior to shipment, each unit undergoes functional verification including communication port testing, protection function checks, and power supply validation. Units are sourced from authorized distribution channels and stored in climate-controlled inventory to maintain product integrity. In-stock units are available for immediate dispatch, with lead times confirmed at the time of order.
