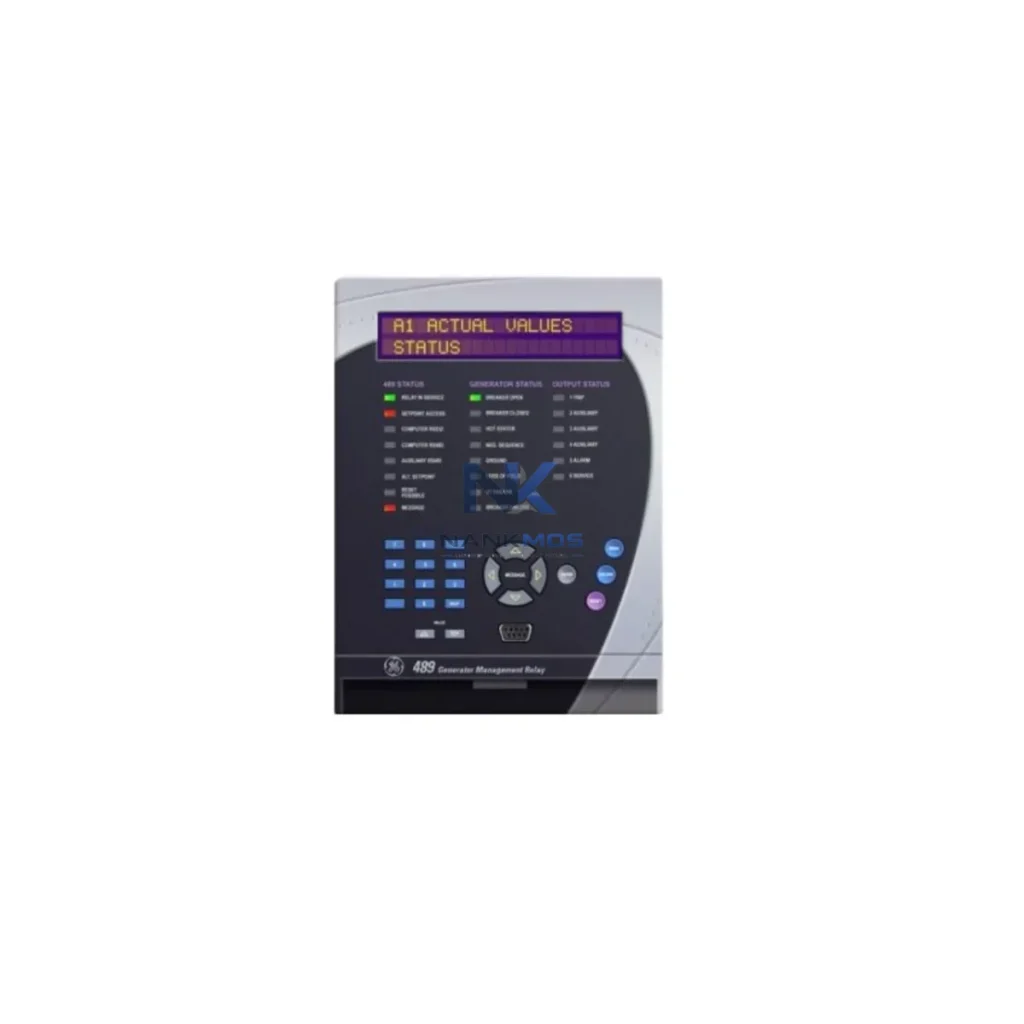

GE 489-P1-HI-A20-E-H Generator Protection Relay

Product Details

489-P1-HI-A20-E-H Product Description

The GE Multilin 489-P1-HI-A20-E-H is a high-performance generator protection relay engineered for energy-conscious industrial environments. Designed to safeguard generators operating in demanding production settings, this relay integrates seamlessly into smart automation architectures where energy efficiency, load stability, and equipment uptime are mission-critical. With comprehensive protection functions covering overcurrent, differential, voltage, frequency, and thermal overload, the 489-P1-HI-A20-E-H delivers the precision monitoring and fast fault isolation that modern energy management systems demand.

In a fully integrated smart production line, the GE Multilin 489-P1-HI-A20-E-H operates as a central node in the power protection and energy monitoring architecture. It communicates directly with Siemens S7-1500 PLCs and Allen-Bradley ControlLogix controllers via Modbus RTU, enabling real-time generator status data to flow into the plant's supervisory control layer. This bidirectional data exchange allows the PLC to trigger load shedding sequences automatically when the relay detects abnormal generator conditions, preventing energy waste from uncontrolled fault states.

When paired with ABB ACS880 variable frequency drives controlling large induction motors on the production floor, the 489-P1-HI-A20-E-H provides upstream generator protection that ensures the VFD's power supply remains stable and within tolerance. Sudden load transients from motor starts are monitored through the relay's current metering inputs, and coordinated protection settings prevent nuisance tripping while still catching genuine fault conditions. Similarly, integration with Schneider Electric PowerLogic PM8000 power monitoring modules allows plant energy managers to correlate generator output data with downstream consumption metrics, identifying inefficiencies across the entire power distribution chain.

The relay's IEC 61850 GOOSE messaging capability enables high-speed peer-to-peer communication with other protective relays and intelligent electronic devices on the substation bus, reducing fault clearance times and minimizing the energy dissipated during fault events. For facilities using GE Mark VIe turbine control systems or GE Multilin 750/760 feeder protection relays, the 489-P1-HI-A20-E-H integrates natively within the same protection coordination scheme, simplifying engineering and reducing commissioning time.

On the human-machine interface layer, operators using Wonderware InTouch or GE iFIX SCADA platforms can visualize generator protection status, metering values, and alarm histories in real time. The relay's front-panel display and RS-485 communication port also support local configuration and diagnostics without requiring a laptop connection, reducing maintenance downtime. For distributed I/O architectures, the relay's digital output contacts interface directly with Beckhoff EtherCAT I/O terminals or Phoenix Contact Axioline modules, enabling fast trip signal routing to circuit breakers and generator excitation systems.

Generator protection relays are often overlooked in energy optimization programs, yet they play a decisive role in determining how efficiently a facility's backup and co-generation assets operate. The GE Multilin 489-P1-HI-A20-E-H addresses this gap by combining protection accuracy with energy metering intelligence. Its built-in power metering functions track real power (kW), reactive power (kVAR), apparent power (kVA), power factor, and energy consumption (kWh), giving energy managers the data they need to optimize generator dispatch schedules and reduce idle running time.

In production environments where generators operate in parallel with the utility grid or in island mode, the 489-P1-HI-A20-E-H's synchronization check and reverse power protection functions prevent costly motoring conditions that waste energy and accelerate mechanical wear. By detecting reverse power flow early and issuing a controlled trip, the relay avoids the thermal stress and energy losses associated with prolonged abnormal operation. This directly reduces heat load on generator windings and associated cooling systems, lowering HVAC energy consumption in generator rooms.

For facilities implementing predictive maintenance programs, the relay's event logging and fault recording capabilities provide the historical data needed to identify degradation trends before they cause unplanned outages. Thermal model tracking monitors winding temperature accumulation over time, allowing maintenance teams to schedule generator servicing during planned production downtime rather than reacting to emergency failures. This shift from reactive to predictive maintenance reduces both energy waste from emergency restarts and the production losses associated with unplanned stoppages.

Load shedding coordination is another key energy optimization function. When the 489-P1-HI-A20-E-H detects generator overload conditions, it can trigger staged load shedding sequences through its programmable output relays, selectively disconnecting non-critical loads to maintain generator stability and prevent a full plant blackout. This controlled response preserves production line continuity for critical processes while shedding energy from auxiliary systems, optimizing the overall energy balance during peak demand periods.

Q1: How does the 489-P1-HI-A20-E-H contribute to measurable energy savings in a production facility? The relay's built-in energy metering (kW, kVAR, kWh, power factor) provides the baseline data required for energy audits and optimization programs. By enabling precise generator dispatch control through SCADA integration and preventing energy-wasting fault conditions through fast, accurate protection, facilities typically reduce generator fuel consumption and associated cooling loads. Reverse power protection and thermal model tracking further prevent energy losses from abnormal operating conditions.

Q2: Which control systems and communication protocols does this relay support? The GE Multilin 489-P1-HI-A20-E-H supports Modbus RTU, Modbus TCP, DNP3, and IEC 61850, making it compatible with the majority of industrial PLC, DCS, SCADA, and power management platforms in use today. It integrates with GE, Siemens, Rockwell Automation, Schneider Electric, and ABB control architectures without requiring protocol converters in most standard configurations.

Q3: Can this relay replace an existing generator protection relay, and what is the testing process before shipment? The 489-P1-HI-A20-E-H is a direct replacement for earlier GE Multilin 489 series variants in most applications, subject to auxiliary power supply and CT/VT input compatibility verification. Every unit supplied by NANKMOS undergoes pre-shipment functional testing covering protection element pickup, timing accuracy, communication port operation, and output relay continuity. Units are verified against GE factory specifications before dispatch, and all test results are available upon request.

Q4: What inventory availability and warranty terms apply to this product? NANKMOS maintains in-stock inventory of the GE Multilin 489-P1-HI-A20-E-H to support urgent replacement and maintenance requirements. Orders are processed and dispatched promptly with full pre-shipment testing completed. All units are covered by a 12-Month Warranty against manufacturing defects and operational failures under normal industrial operating conditions. Warranty support includes technical assistance, fault diagnosis, and unit replacement as applicable.
