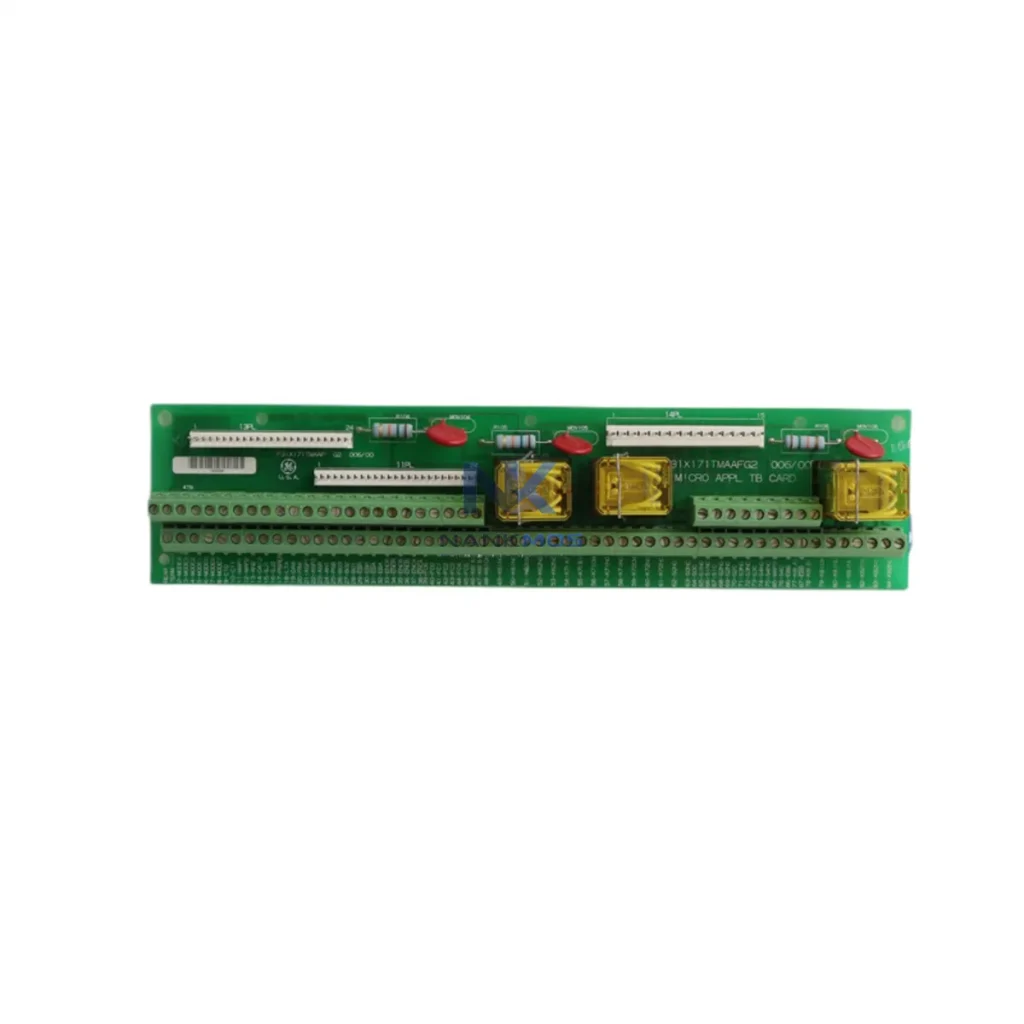

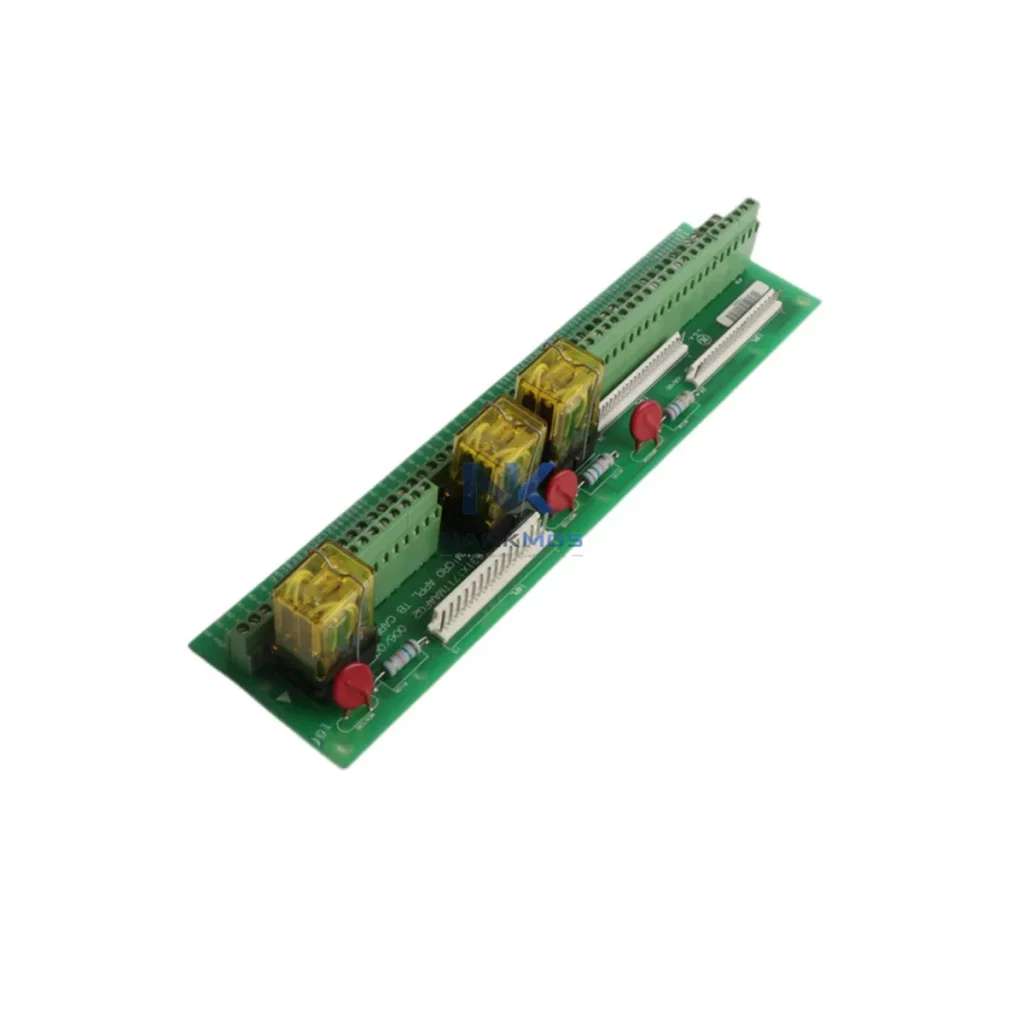

GE 531X171TMAAFG2 Relay Output Module

Product Details

531X171TMAAFG2 Product Description

The GE 531X171TMAAFG2 is a system-ready relay output card engineered for the GE 531X Series digital control platform, widely deployed across turbine control, generator excitation, and process automation architectures. Designed to operate within GE's modular Mark V and Mark VI control cabinet ecosystems, this relay card delivers deterministic output switching, robust signal isolation, and long-term field reliability in demanding industrial environments. Its architecture-native design ensures seamless integration with the broader 531X Series backplane, eliminating compatibility risk and reducing commissioning time for both new installations and retrofit projects.

Within a layered industrial control architecture, the 531X171TMAAFG2 occupies the output execution layer, translating controller logic decisions into discrete relay contact closures for downstream actuators, contactors, solenoids, and alarm annunciators. Its role is not isolated — it functions as a coordinated node within a multi-layer system that spans the control layer (531X305ADAG1 or 531X307ADAG1 processor boards), the I/O layer (531X121ADAG1 analog input cards, 531X132ADAG1 digital input modules), the power layer (DS200PTBAG1A power distribution boards), the communication layer (IS200EACFG1A Ethernet adapter cards), and the HMI layer (Cimplicity or ToolboxST operator interfaces). Each layer depends on the relay card's output integrity to maintain system-wide control coherence.

The 531X171TMAAFG2 supports redundant output configurations when paired with companion relay cards in dual-channel architectures, ensuring that a single card failure does not interrupt critical process outputs. This redundancy capability is essential in power generation, petrochemical, and water treatment facilities where unplanned shutdowns carry significant operational and safety consequences. The card's relay contacts are rated for industrial-grade switching loads, providing stable performance across the full operating temperature range specified for the 531X Series platform.

Signal flow integrity is maintained through the card's direct backplane interface, which eliminates the need for external wiring between the relay output stage and the controller logic board. This architecture reduces signal propagation delay, minimizes noise susceptibility, and simplifies fault tracing during maintenance cycles. When integrated with the IS200TRESG1A terminal board or equivalent I/O termination assemblies, the 531X171TMAAFG2 provides a clean, documented wiring interface that supports rapid field replacement without disturbing adjacent wiring harnesses.

Diagnostic efficiency is a core design attribute of the 531X171TMAAFG2. The card supports online diagnostics through the GE Mark VI control system's diagnostic framework, enabling maintenance engineers to monitor relay contact status, detect coil drive faults, and log switching events without taking the system offline. This capability reduces mean time to repair (MTTR) and supports predictive maintenance strategies that extend overall system availability. Integration with ToolboxST configuration software allows engineers to map relay outputs to specific logic functions, verify contact assignments, and validate output behavior during pre-commissioning testing.

Modular deployment is straightforward: the 531X171TMAAFG2 installs directly into the 531X Series card rack, aligning with the platform's standardized slot architecture. No additional mounting hardware or external power supplies are required beyond the rack's integrated power distribution. This plug-and-play modularity supports phased system expansions, allowing operators to add relay output capacity incrementally as process requirements evolve, without redesigning the control cabinet layout or modifying the backplane wiring.

Long-term maintenance efficiency is supported by NANKMOS's inventory commitment to the 531X Series platform. Replacement cards are pre-tested, serialized, and shipped with full functional verification documentation, reducing the risk of receiving untested or refurbished units that may introduce latent failures. Each unit is covered by a 12-Month Warranty, providing assurance of post-shipment support for the full warranty period. Contextual Integration support is available for customers requiring application-specific configuration guidance, wiring diagram review, or compatibility verification with existing 531X Series rack assemblies.

The 531X171TMAAFG2 relay card achieves its full operational value when deployed within a complete GE 531X / Mark VI automation platform. A typical integrated architecture includes the following coordinated components:

This multi-layer integration ensures that the 531X171TMAAFG2 operates not as a standalone component, but as a precision node within a coherent, diagnostically transparent, and maintainable control architecture.

Power Generation & Turbine Control: The 531X171TMAAFG2 is extensively deployed in gas turbine and steam turbine control panels using GE Mark V and Mark VI systems. Relay outputs drive fuel valve solenoids, lube oil pump contactors, and trip relay circuits, providing the discrete switching interface between the digital control layer and high-voltage field devices.

Petrochemical & Refinery Process Control: In refinery distributed control architectures, the relay card interfaces with emergency shutdown (ESD) systems, providing hardwired output paths for critical process isolation valves and compressor trip circuits. Its redundancy support aligns with SIL-rated protection layer requirements.

Water Treatment & Pumping Stations: Municipal water treatment facilities use the 531X171TMAAFG2 to control pump motor starters, valve actuators, and chemical dosing systems within SCADA-integrated control panels, where reliable relay switching directly impacts process continuity and regulatory compliance.

Mining & Mineral Processing: In conveyor drive control and crusher automation panels, the relay card provides the output interface for motor protection relay circuits, enabling the control system to execute start/stop sequences and fault isolation commands with deterministic timing.

Metallurgy & Steel Production: Rolling mill and furnace control systems leverage the 531X171TMAAFG2 for coordinated relay output sequences that manage burner ignition, cooling water valves, and drive enable signals across multi-axis production lines.

Marine & Offshore Automation: Offshore platform control systems and marine propulsion control panels deploy the 531X Series relay cards for thruster control, ballast pump management, and fire and gas system output interfaces, where environmental robustness and long service intervals are mandatory.

Q1: Is the 531X171TMAAFG2 compatible with both Mark V and Mark VI control systems? Yes. The 531X171TMAAFG2 is designed for the GE 531X Series card rack platform, which is shared across Mark V and Mark VI control architectures. Compatibility with specific rack revisions and backplane configurations should be verified against the system's Bill of Materials (BOM) or the GE Mark VI hardware compatibility matrix. NANKMOS provides Contextual Integration support to assist with compatibility verification prior to procurement.

Q2: Can the relay card be replaced online without shutting down the control system? Hot-swap capability depends on the specific rack configuration and whether the output channel is configured in a redundant dual-card arrangement. In redundant architectures, the companion relay card maintains output continuity during card replacement. For simplex configurations, a controlled output inhibit sequence is recommended before card extraction. NANKMOS supplies pre-tested replacement units with functional verification documentation to minimize replacement downtime.

Q3: What warranty and post-shipment support does NANKMOS provide for the 531X171TMAAFG2? Every 531X171TMAAFG2 shipped by NANKMOS is covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Contextual Integration support is available throughout the warranty period, including wiring diagram review, configuration guidance, and compatibility consultation. Units are serialized and tested prior to shipment, with test records available upon request. Contact NANKMOS at [email protected] or +86 18359268345 for warranty claims or pre-shipment technical consultation.
