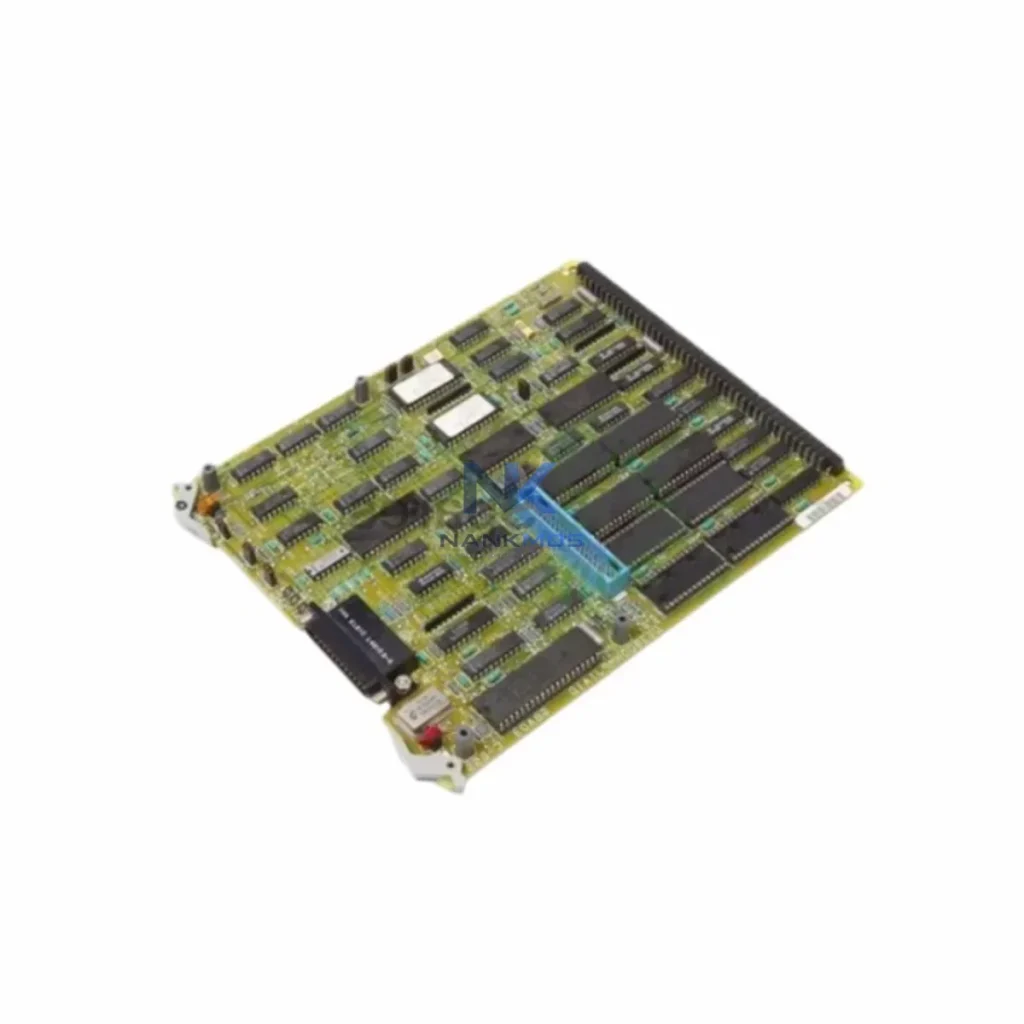

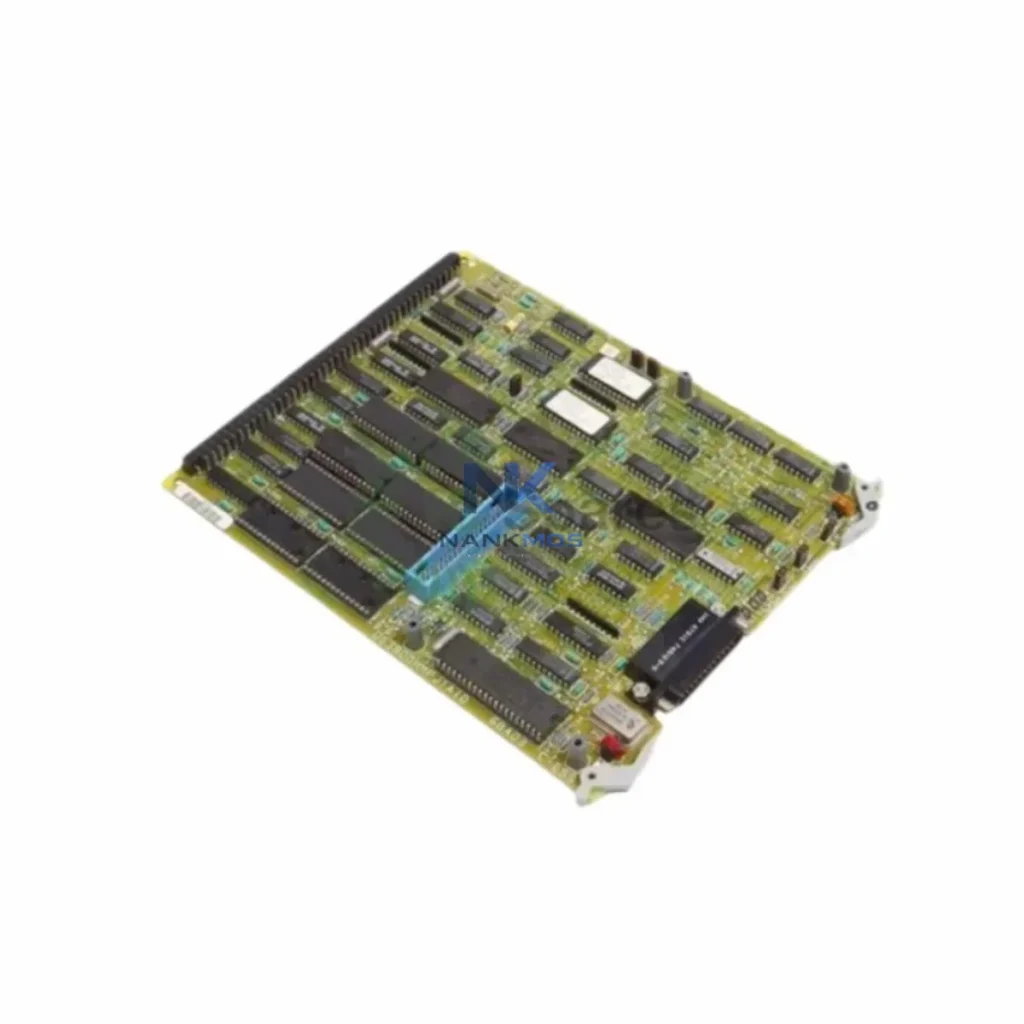

GE DS3800HMPK1J1J Microprocessor Board

Product Details

DS3800HMPK1J1J Product Description

The GE DS3800HMPK1J1J is a system-ready microprocessor board engineered for the GE Mark IV turbine control platform. Designed to serve as the central processing unit within a distributed control architecture, this module coordinates real-time signal acquisition, logic execution, and inter-module communication across the full automation stack. Its role extends beyond standalone computation — it functions as the architectural anchor that synchronizes the control layer, I/O layer, communication layer, and power layer into a coherent, high-reliability system.

In a complete Mark IV control cabinet, the DS3800HMPK1J1J operates in close coordination with I/O interface boards such as the DS3800HSIA and DS3800HSIB, which handle analog and digital signal conditioning from field instruments including thermocouples, RTDs, pressure transmitters, and proximity probes. The microprocessor board receives pre-conditioned signals from these I/O modules via the backplane bus, executes turbine protection logic, and issues control outputs to actuators, servo valves, and trip solenoids. This tightly coupled signal flow ensures deterministic response times critical for turbine overspeed protection and load control sequences.

System consistency is further reinforced through the DS3800HMPK1J1J's compatibility with the GE Mark IV power supply modules, including the DS3800DPCA and DS3800DPCB, which provide regulated DC rails to the processor and associated boards. Stable power delivery is a prerequisite for sustained microprocessor operation, particularly in environments subject to voltage transients from motor starts, transformer switching, or grid disturbances. The board's internal voltage monitoring circuitry provides early warning of power anomalies, enabling the control system to initiate a controlled shutdown before hardware damage occurs.

Communication architecture within the Mark IV platform relies on the DS3800HMPK1J1J to manage serial data exchange with the operator interface panel and remote I/O racks. In multi-unit installations — such as combined-cycle power plants with multiple gas turbines sharing a common DCS backbone — the microprocessor board supports coordinated sequencing through its inter-processor communication links. This capability is essential when integrating the Mark IV system with higher-level SCADA platforms or distributed control systems from vendors such as Emerson DeltaV or Honeywell Experion, using gateway modules like the DS3800HUMB or equivalent serial-to-Ethernet converters.

Redundancy design is a key consideration in critical turbine control applications. The DS3800HMPK1J1J supports hot-standby configurations when paired with a redundant processor module and the appropriate voting logic boards. In triple-modular redundancy (TMR) architectures, three processor boards execute identical logic in parallel, with a majority-vote circuit determining the valid output. This arrangement eliminates single-point failures at the control layer and is widely specified in power generation, petrochemical, and offshore applications where unplanned shutdowns carry significant safety and financial consequences.

Diagnostic capability is embedded in the DS3800HMPK1J1J's firmware, providing continuous self-test routines that monitor memory integrity, watchdog timer status, and inter-board communication health. Fault codes are logged to the system diagnostic register and surfaced on the operator panel, enabling maintenance engineers to isolate faults to the board level without requiring oscilloscope-level signal tracing. This reduces mean time to repair (MTTR) and supports predictive maintenance programs by providing early indicators of board degradation before a hard failure occurs.

Modular deployment is straightforward: the DS3800HMPK1J1J installs into the standard Mark IV card rack using the defined slot assignment, with edge connector alignment ensuring correct backplane bus engagement. No field wiring modifications are required when replacing a like-for-like board, making it suitable for emergency swap-out procedures during planned or unplanned outages. Pre-shipment functional testing against GE Mark IV test fixtures verifies processor boot sequence, memory read/write integrity, and communication port operation before dispatch.

Long-term maintenance efficiency is supported by NANKMOS's inventory program, which maintains stock of DS3800HMPK1J1J boards alongside complementary Mark IV components including the DS3800HSIA, DS3800HSIB, DS3800DPCA, DS3800NTCB, DS3800HUMB, DS3800NPSB, DS3800HFPG, and DS3800HRCA. This co-stocking approach allows maintenance teams to source a complete board set for a Mark IV cabinet refurbishment from a single supplier, reducing procurement lead time and simplifying incoming inspection logistics.

Every DS3800HMPK1J1J unit supplied by NANKMOS is covered by a 12-Month Warranty and undergoes pre-shipment functional verification. Units are packaged in anti-static enclosures with humidity indicator cards and shipped with full traceability documentation.

The DS3800HMPK1J1J achieves its full operational value when deployed within a complete Mark IV automation platform. At the I/O layer, the DS3800HSIA and DS3800HSIB analog input boards condition thermocouple, RTD, and 4–20 mA signals before presenting them to the microprocessor via the backplane. Digital I/O is managed through the DS3800NTCB terminal board assembly, which provides the physical wiring interface between field devices and the card rack. At the power layer, the DS3800DPCA and DS3800DPCB power supply boards deliver regulated DC rails, while the DS3800NPSB provides auxiliary power distribution for peripheral boards.

Communication integration is handled by the DS3800HUMB universal memory board, which supports data buffering and inter-processor messaging in multi-processor Mark IV configurations. For HMI connectivity, the DS3800HFPG front panel gateway board provides the operator display interface, surfacing alarm states, setpoints, and diagnostic codes to the control room panel. Relay output functions are executed through the DS3800HRCA relay contact assembly, which interfaces the microprocessor's digital outputs to field trip circuits, solenoid valves, and alarm annunciators. Together, these modules form a fully integrated control architecture in which the DS3800HMPK1J1J serves as the processing core, coordinating signal flow, logic execution, and system-wide diagnostics.

The DS3800HMPK1J1J is deployed across a broad range of industrial sectors where GE Mark IV turbine control systems remain in active service. In power generation, it controls gas turbine sequencing, fuel valve positioning, and overspeed protection in both simple-cycle and combined-cycle plants. In petrochemical and refinery applications, it manages compressor train control and process gas turbine drives where continuous availability is mandatory. Steel and metallurgical facilities use Mark IV systems to control rolling mill drives and blast furnace blower turbines, relying on the microprocessor board's deterministic scan cycle for precise speed regulation.

In water and wastewater treatment plants, Mark IV-controlled pump turbines benefit from the DS3800HMPK1J1J's robust diagnostic architecture, which supports remote fault monitoring over serial communication links. Marine and offshore installations — including LNG carriers and FPSO vessels — specify Mark IV systems for their proven reliability in high-vibration, high-humidity environments, where the board's conformal coating and wide operating temperature range are critical. Mining and mineral processing operations use the platform for large induced-draft fan and conveyor drive control, where the microprocessor board's redundancy support enables continuous operation through maintenance windows. Across all these sectors, the DS3800HMPK1J1J's combination of processing capability, system integration depth, and long-term parts availability makes it the preferred replacement and upgrade choice for Mark IV installed base maintenance.

Q1: Is the DS3800HMPK1J1J compatible with all Mark IV card rack configurations, and can it replace earlier microprocessor board revisions?The DS3800HMPK1J1J is designed for the GE Mark IV Speedtronic platform and is compatible with the standard Mark IV card rack backplane. It is a direct form-fit-function replacement for earlier DS3800HMP series revisions in most configurations. However, firmware version compatibility with the specific turbine application software should be verified against the site's Mark IV configuration documentation before installation. NANKMOS technical support can assist with revision cross-reference and compatibility confirmation prior to order.

Q2: What is the recommended procedure for commissioning a replacement DS3800HMPK1J1J in a live turbine control system?Replacement should be performed during a planned outage with the turbine at rest and the Mark IV control power isolated. After physical installation into the designated card rack slot, the system should be powered up in diagnostic mode to verify processor boot, memory self-test completion, and backplane communication with adjacent I/O and power supply boards. Configuration parameters stored in the system's EEPROM or battery-backed RAM should be verified against the site baseline before returning the turbine to service. NANKMOS supplies each board with pre-shipment test documentation to support incoming inspection and commissioning records.

Q3: How does NANKMOS support long-term availability of the DS3800HMPK1J1J given that the Mark IV platform is a mature technology?NANKMOS maintains a dedicated inventory program for GE Mark IV components, including the DS3800HMPK1J1J and its associated I/O, power, communication, and relay boards. Stock is held in climate-controlled storage with periodic functional re-verification to ensure long-term reliability. All units are supplied with a 12-Month Warranty and full traceability documentation. For sites managing multi-year maintenance contracts or capital spares programs, NANKMOS can provide volume reservation agreements to guarantee availability across planned maintenance cycles.
