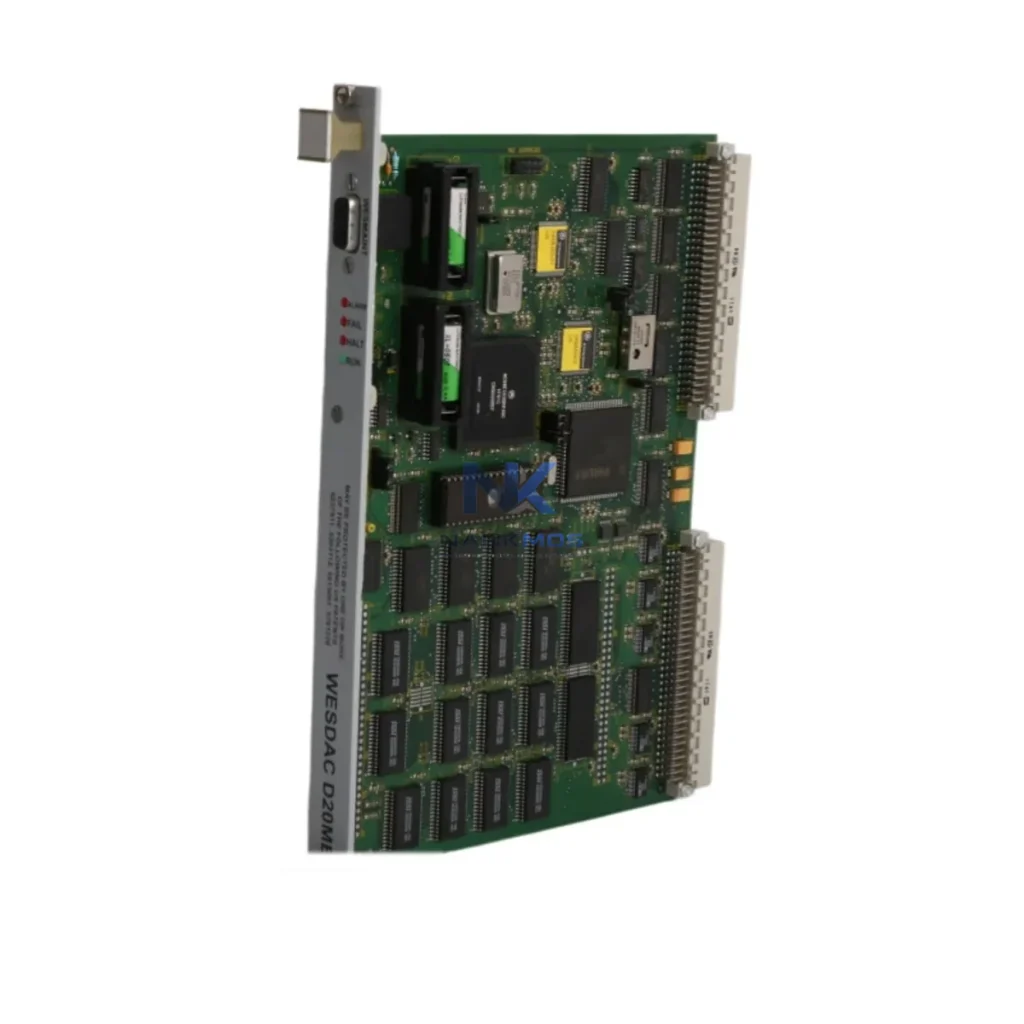

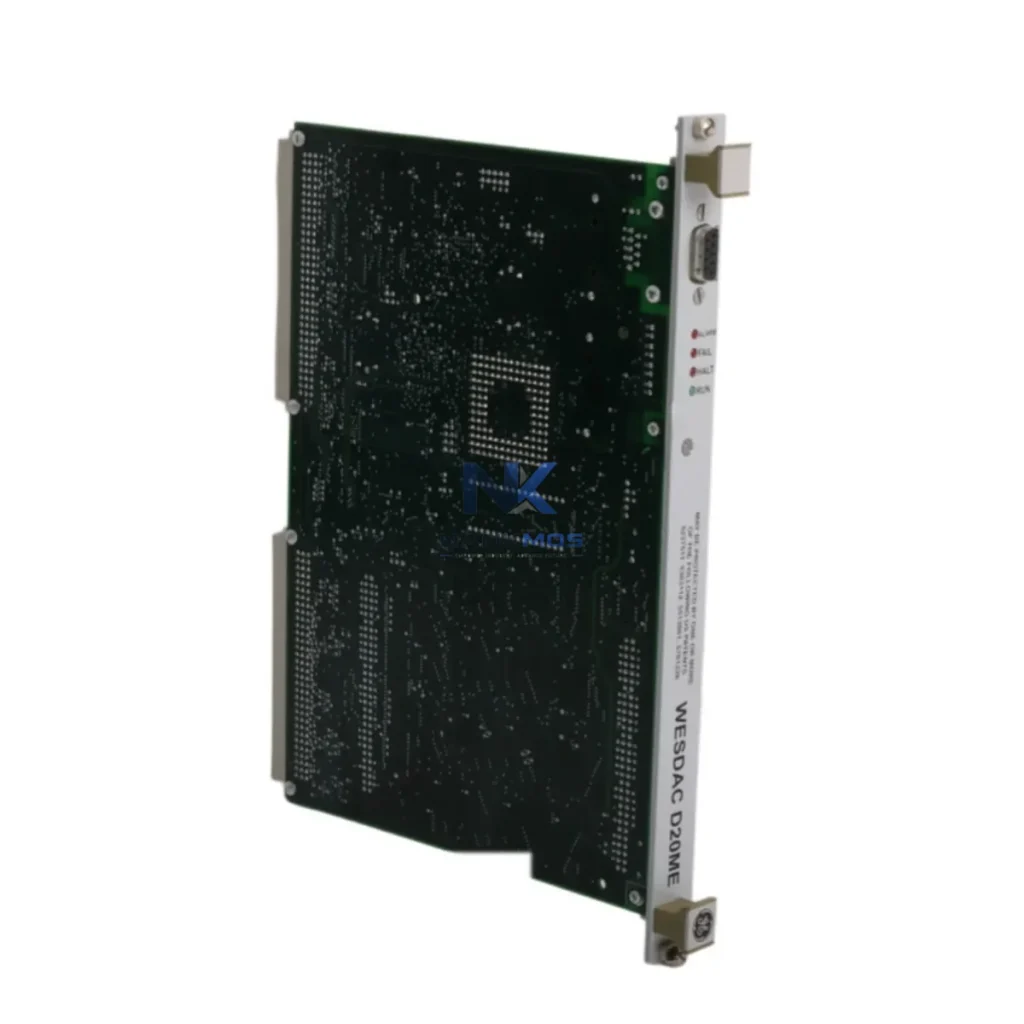

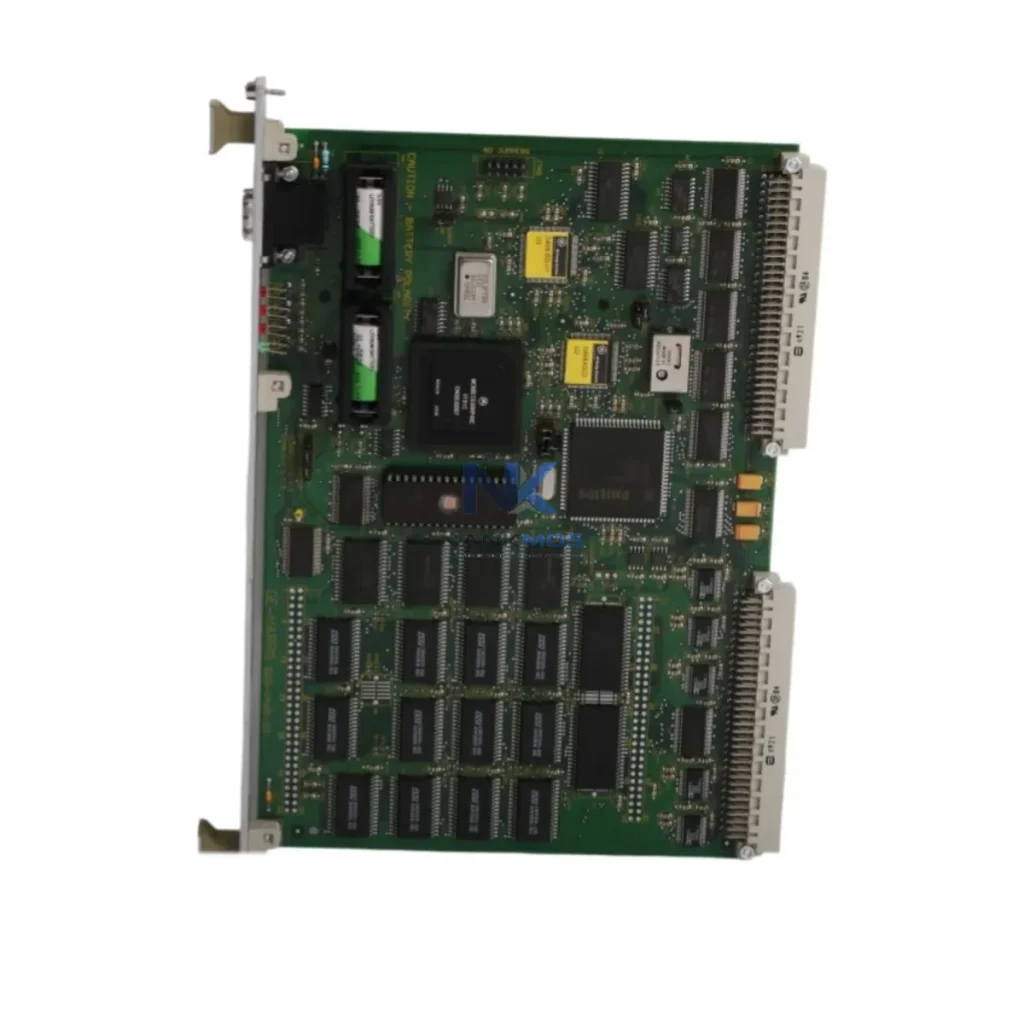

GE D20 ME Communication Gateway

Product Details

D20 ME Product Description

The GE D20ME is a high-performance industrial communication gateway engineered for the demands of modern smart factory environments and substation automation systems. As a core node in the industrial data chain, the D20ME bridges the gap between field-level devices and upper-level control systems, enabling seamless, real-time data flow across every layer of the automation hierarchy. From signal acquisition at the sensor level to protocol conversion, network transmission, real-time monitoring, alarm feedback, remote diagnostics, and data visualization, the D20ME delivers end-to-end connectivity that transforms isolated equipment into a unified, intelligent network.

Designed for deployment in power utilities, process industries, and advanced manufacturing facilities, the D20ME supports multiple industrial communication protocols including DNP3, Modbus RTU, Modbus TCP/IP, and IEC 60870-5-101/104, making it a versatile protocol conversion hub capable of integrating legacy field devices with modern SCADA and HMI platforms. Its robust architecture ensures network stability even in electrically noisy industrial environments, providing the reliable data backbone that smart factory operations depend on.

In a fully connected smart factory, the GE D20ME serves as the central communication backbone, orchestrating data flow between every layer of the automation stack. At the field level, sensors and transmitters — including temperature, pressure, and flow measurement devices — feed raw process data into the D20ME via RS-485 Modbus RTU links. The gateway performs real-time protocol conversion, translating this data into DNP3 or IEC 60870-5-104 frames for transmission over Industrial Ethernet to upstream SCADA servers and historian databases.

Within the control layer, the D20ME interfaces directly with GE D20 Series RTUs and compatible PLCs, enabling the controller to receive consolidated field data and issue control commands back to actuators and drives. Variable frequency drives (VFDs) connected via Modbus TCP/IP report speed, torque, and fault status in real time, while the D20ME aggregates this information alongside data from remote I/O modules distributed across the plant floor. This consolidated data stream is then made available to HMI panels and operator workstations, where process engineers can monitor live production metrics, configure alarm thresholds, and initiate remote diagnostic routines without leaving the control room.

At the network layer, the D20ME connects to industrial-grade managed Ethernet switches, forming a resilient ring or star topology that ensures continuous data availability even during partial network failures. Edge gateway devices deployed at the plant perimeter collect the D20ME's aggregated data streams and forward them to cloud-based MES or ERP platforms, enabling enterprise-wide production visibility. The GE D20MX expansion module can be paired with the D20ME to extend the number of supported communication ports, while the GE D20 Series power supply modules ensure uninterrupted operation during grid fluctuations. For facilities running mixed protocol environments, the D20ME's multi-protocol support eliminates the need for separate protocol converters, reducing panel space and simplifying network architecture. SCADA platforms such as GE iFIX or third-party systems using OPC-DA/OPC-UA can connect directly to the D20ME's Ethernet port, receiving structured data objects that map directly to SCADA tag databases for immediate visualization and trending.

Remote diagnostic capability is one of the D20ME's most valuable features in smart factory deployments. Maintenance engineers can access the gateway's diagnostic interface over the plant network to review communication statistics, error logs, and port status in real time. This eliminates the need for on-site visits to diagnose communication faults, reducing mean time to repair (MTTR) and minimizing production downtime. Alarm events generated by field devices are captured by the D20ME, time-stamped with millisecond precision, and forwarded to the SCADA alarm management system for logging and escalation. This complete alarm chain — from field device to SCADA to operator notification — ensures that no critical event goes undetected.

Industrial automation sites frequently struggle with fragmented communication architectures where legacy serial devices, modern Ethernet-based controllers, and cloud-connected edge systems operate in isolation, creating data silos that undermine production transparency and operational efficiency. The GE D20ME directly addresses these challenges through its multi-protocol gateway architecture.

Protocol incompatibility is one of the most common barriers to plant-wide data integration. Sites running a mix of older Modbus RTU serial devices alongside newer DNP3 or IEC 60870-5-104 Ethernet systems often find that data from legacy equipment cannot be accessed by modern SCADA or MES platforms without costly hardware replacements. The D20ME resolves this by acting as a transparent protocol bridge, converting serial Modbus data into DNP3 or IEC 60870-5-104 packets that any modern SCADA system can consume natively, extending the useful life of existing field equipment while enabling full data integration.

Remote monitoring and production line transparency are equally critical in modern smart factory operations. Without a reliable communication gateway, operators are forced to rely on manual data collection or periodic polling cycles that introduce latency and reduce the accuracy of production reporting. The D20ME's continuous, event-driven data reporting model ensures that SCADA and HMI systems always reflect the true state of the plant, enabling real-time KPI dashboards, OEE calculations, and predictive maintenance alerts based on live equipment data.

System scalability is another area where the D20ME delivers measurable value. As production lines expand and new equipment is added, the gateway's modular architecture allows additional communication ports and protocol mappings to be configured without disrupting existing network operations. This makes the D20ME a future-proof investment for facilities planning phased automation upgrades or gradual migration from legacy DCS platforms to modern IIoT-enabled architectures.

All units are fully tested prior to shipment, with communication functionality verified across all supported protocols. Stock is maintained for immediate dispatch, and every GE D20ME is backed by a 12-month warranty covering hardware defects and communication performance.

Q1: What communication protocols does the GE D20ME support, and is it compatible with third-party SCADA systems?The GE D20ME supports DNP3, Modbus RTU, Modbus TCP/IP, IEC 60870-5-101, and IEC 60870-5-104. It is compatible with any SCADA or HMI platform that supports these standard industrial protocols, including GE iFIX, Wonderware, Ignition, and OPC-based systems.

Q2: How does the D20ME handle communication latency in real-time monitoring applications?The D20ME uses event-driven unsolicited reporting for DNP3 and IEC 60870-5-104 communications, which minimizes latency by transmitting data changes immediately rather than waiting for polling cycles. This ensures that SCADA systems receive critical process updates within milliseconds of the event occurring at the field device.

Q3: Can the GE D20ME be used to expand an existing D20 Series substation automation system?Yes. The D20ME is designed as a network interface module for the GE D20 Series platform and integrates directly with existing D20 RTU hardware. It can be added to operational systems without requiring changes to existing field wiring or controller configurations, making it an ideal solution for incremental system expansion.

Q4: What warranty and pre-shipment testing does the GE D20ME include?Every GE D20ME unit undergoes full functional testing prior to shipment, including protocol communication verification across all supported interfaces. The unit is backed by a 12-month warranty covering hardware defects and communication performance. In-stock units are available for immediate dispatch to minimize project lead times.
