GE DS200DCFBG1BNC Power Supply Board

Product Details

DS200DCFBG1BNC Product Description

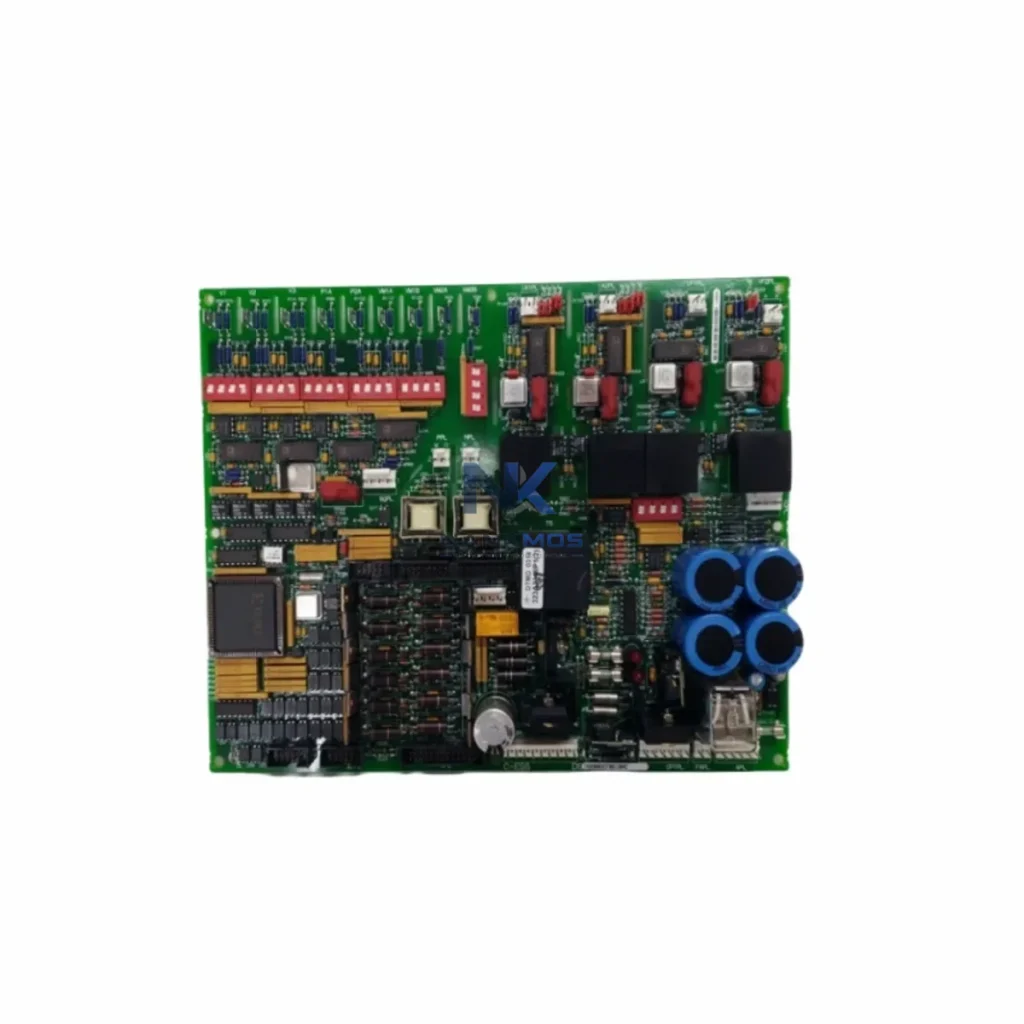

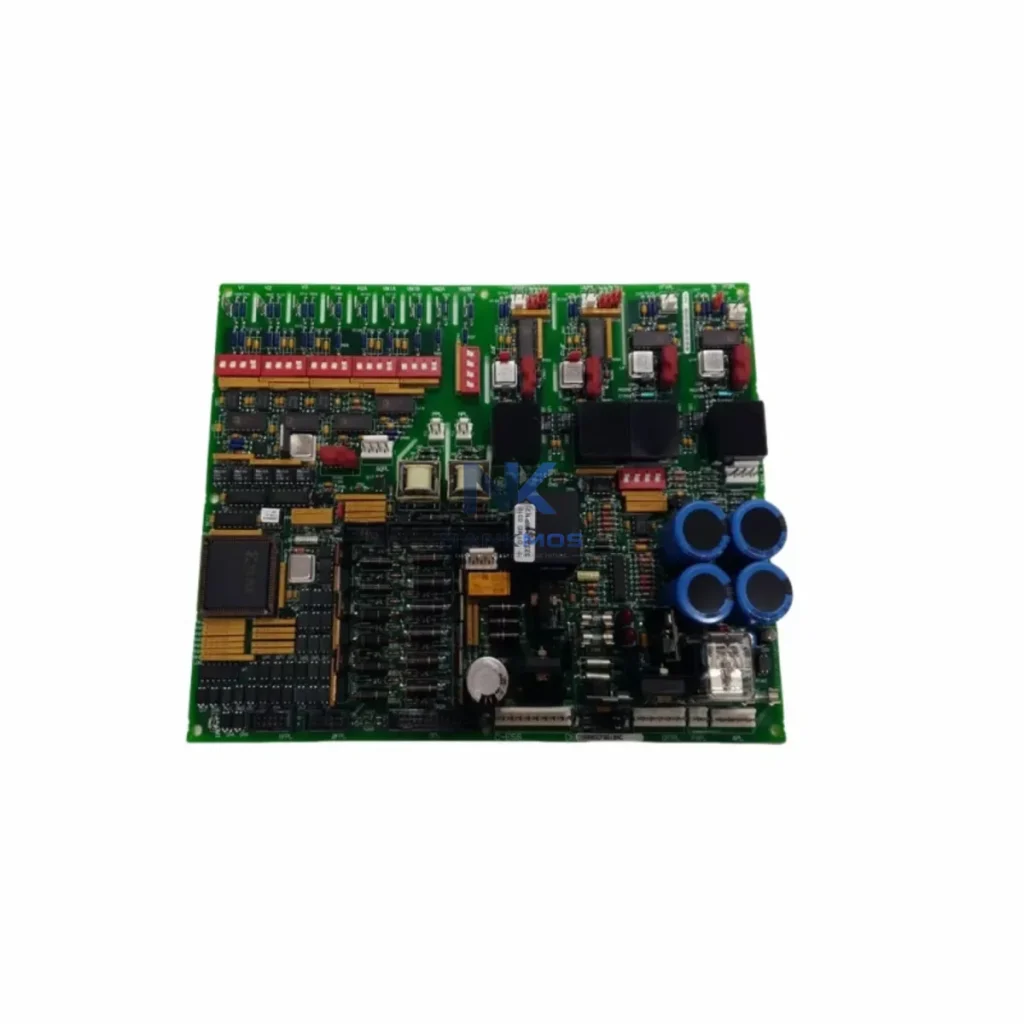

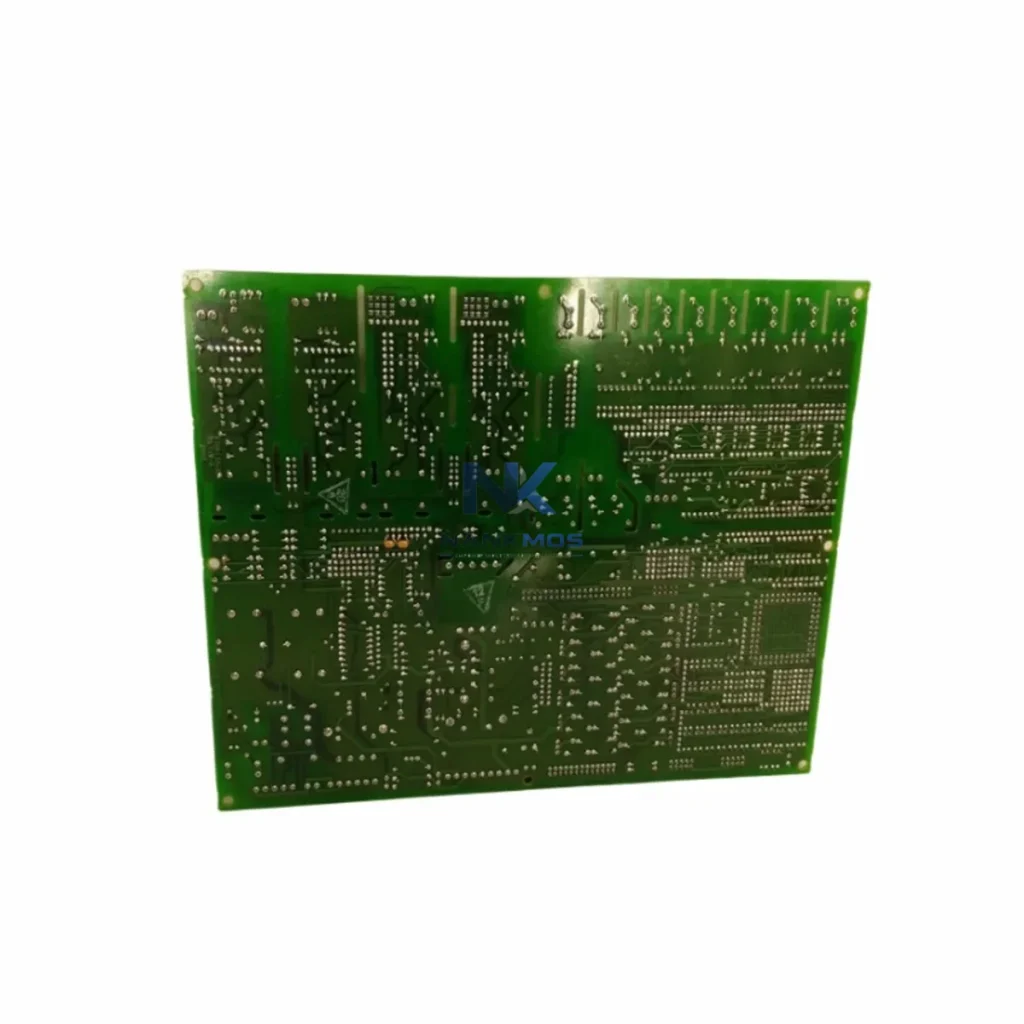

The GE DS200DCFBG1BNC is a precision-engineered DC power supply board designed for seamless integration within the GE Mark V turbine control system. As a foundational component of the power layer in distributed control architectures, this board delivers regulated, stable DC power to the Mark V's I/O, processor, and communication modules — ensuring uninterrupted operation across all control hierarchy levels. Its role extends beyond simple power conversion: the DS200DCFBG1BNC actively supports system-wide voltage stability, enabling consistent signal integrity across the control layer, I/O layer, and communication layer simultaneously.

In modern industrial automation platforms, power supply reliability is the cornerstone of system availability. The DS200DCFBG1BNC is engineered to meet the demanding requirements of gas turbine, steam turbine, and combined-cycle power generation environments, where control system uptime is non-negotiable. Its architecture supports redundant power configurations, allowing engineers to deploy dual-supply topologies that eliminate single points of failure — a critical design consideration for high-availability installations in power generation, petrochemical processing, and offshore oil and gas platforms.

Within the Mark V control rack, the DS200DCFBG1BNC interfaces directly with the DS200TCQAG1BHF I/O terminal board and the DS200SDCCG1AFB speed and dynamics control card, providing the stable voltage rails required for accurate analog signal processing and high-speed digital I/O operations. The board's regulated output ensures that the DS200TCDAG1AAA analog I/O board maintains measurement-grade accuracy across thermocouple, RTD, and 4–20 mA signal channels — a prerequisite for precise turbine temperature and pressure monitoring.

At the communication layer, the DS200DCFBG1BNC supports the operational continuity of the DS200DSPCH1ADA digital signal processor and the DS200TCEAG1BHF communication interface board, which manage Modbus RTU, PROFIBUS, and proprietary GE serial protocols for SCADA and DCS integration. Stable power delivery to these communication modules is essential for maintaining deterministic data exchange cycles — any voltage fluctuation at this layer can introduce latency or data corruption in real-time process control loops.

The DS200DCFBG1BNC also plays a critical role in supporting the HMI and historian layers. By ensuring clean power delivery to the DS200TCCAG1BAA core controller card, operators benefit from uninterrupted HMI refresh cycles and reliable event logging — both essential for post-incident analysis and regulatory compliance in power generation and petrochemical facilities. In conjunction with the DS200EXPSG1ADA expansion power supply, the DS200DCFBG1BNC enables modular rack expansion without compromising the voltage stability of the primary control chassis.

For maintenance engineers, the DS200DCFBG1BNC's modular form factor simplifies hot-swap replacement procedures, minimizing planned and unplanned downtime. Its compatibility with the standard Mark V rack backplane means no firmware reconfiguration is required upon replacement — a significant advantage in time-critical maintenance windows. Each unit supplied by NANKMOS undergoes pre-shipment functional testing, including load regulation verification, ripple measurement, and thermal cycling, ensuring that the board performs to GE's original design specifications from the moment it is installed.

Backed by a 12-Month Warranty and maintained in ready-to-ship inventory, the DS200DCFBG1BNC is available for immediate dispatch to support both planned maintenance schedules and emergency replacement scenarios across global installations.

The DS200DCFBG1BNC operates as the power backbone of the Mark V control chassis, enabling reliable co-operation across all system layers. In a fully integrated Mark V automation platform, this power supply board works in concert with the following components to deliver a coherent, high-availability control architecture:

Together, these components form a layered control architecture that supports redundant processing, deterministic I/O scanning, and fault-tolerant communication — all dependent on the stable power delivery provided by the DS200DCFBG1BNC.

The DS200DCFBG1BNC is deployed across a broad spectrum of industrial control applications where the GE Mark V system serves as the primary turbine control platform:

Q1: Is the DS200DCFBG1BNC compatible with both simplex and TMR Mark V configurations? Yes. The DS200DCFBG1BNC is designed for use in both simplex (single-controller) and Triple Modular Redundant (TMR) Mark V rack configurations. In TMR systems, redundant power supply boards are typically deployed to eliminate single points of failure at the power layer. Each R, S, and T controller board receives independent power, and the DS200DCFBG1BNC's regulated output ensures that all three processors operate from stable, isolated voltage rails — a prerequisite for valid TMR voting logic.

Q2: What pre-installation checks are recommended when replacing the DS200DCFBG1BNC in a live Mark V system? Before installation, verify that the replacement board's revision suffix (G1BNC) matches the existing board's revision to ensure backplane connector and firmware compatibility. Measure the incoming 125 VDC bus voltage to confirm it is within the board's input tolerance range. After installation, monitor the regulated output voltages (±15 VDC, +5 VDC) under load using the Mark V diagnostic display or a calibrated multimeter before returning the system to automatic control. NANKMOS supplies each DS200DCFBG1BNC with a pre-shipment test report documenting load regulation and ripple measurements.

Q3: What warranty and supply assurance does NANKMOS provide for the DS200DCFBG1BNC? NANKMOS provides a 12-Month Warranty on all DS200DCFBG1BNC units, covering manufacturing defects and functional failures under normal operating conditions. Units are maintained in ready-to-ship inventory and undergo pre-shipment functional testing prior to dispatch. For critical installations requiring guaranteed lead times, NANKMOS offers priority allocation and expedited shipping to minimize control system downtime. Contact [email protected] or +86 18359268345 for availability confirmation and bulk procurement inquiries.
