GE IC695PSD040F Power Supply Module

Product Details

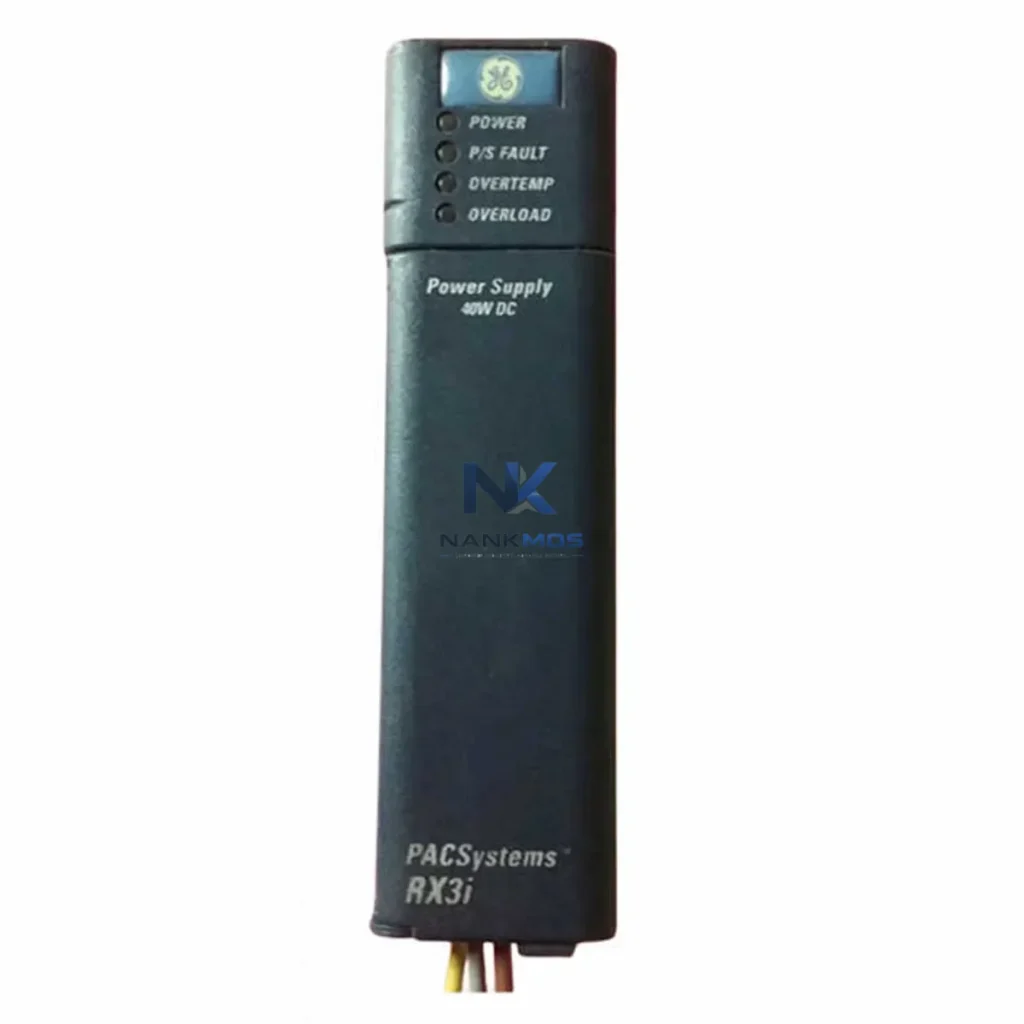

IC695PSD040F Product Description

The GE IC695PSD040F is a high-efficiency 40W DC power supply module engineered for the PACSystems RX3i platform, purpose-built to deliver stable, regulated power across demanding industrial automation environments. As manufacturing facilities push toward leaner energy consumption and higher equipment utilization, the IC695PSD040F plays a central role in reducing unnecessary power draw, minimizing thermal load, and sustaining consistent production line throughput. Every unit shipped by NANKMOS undergoes pre-shipment functional verification to confirm output stability, inrush current behavior, and thermal performance under rated load conditions.

Designed to slot directly into the IC695CHS007 or IC695CHS012 RX3i backplane, the IC695PSD040F supplies clean, conditioned DC power to the CPU rack, I/O modules, and communication cards within the same chassis. Its regulated output architecture prevents voltage sag during high-demand switching cycles, which is critical when the IC695CPU320 or IC695CPU315 controller is executing high-frequency scan tasks or coordinating multi-axis motion sequences. Stable rack power directly translates to fewer nuisance faults, reduced PLC restart events, and lower mean-time-to-repair across the production cell.

In a fully integrated PACSystems RX3i control architecture, the IC695PSD040F does not operate in isolation — it anchors the power budget for every module sharing the same backplane. When the IC695CPU320 CPU module is running high-density logic with concurrent Ethernet communications via the IC695ETM001 Ethernet module, the power supply must deliver clean, ripple-free voltage to prevent data corruption on the backplane bus. Any instability at the power layer propagates directly into scan-cycle jitter, which in turn affects the determinism of motion commands sent to downstream AKD servo drives or PowerFlex 755 variable frequency drives managing conveyor and spindle loads.

On the field side, IC694MDL655 discrete input modules and IC694MDL754 discrete output modules rely on stable 5V logic power to accurately sample sensor states and actuate field devices without false triggering. When these modules are connected to proximity sensors, photoelectric barriers, or encoder feedback lines monitoring production line position, any power fluctuation introduces noise that can corrupt position data and cause unnecessary line stops. The IC695PSD040F's regulated output eliminates this risk by maintaining tight voltage tolerance across the full load range.

For energy monitoring integration, the IC695PSD040F works alongside power measurement modules and SCADA-connected energy meters to provide a complete picture of rack-level consumption. When paired with a Proficy Historian data collection layer or a third-party SCADA system communicating over SRTP or Modbus TCP through the IC695ETM001, operators can trend power supply load versus production output, identify periods of overcapacity, and right-size future rack configurations to eliminate wasted standby draw. This data-driven approach to power management is increasingly central to ISO 50001 energy management compliance in discrete manufacturing.

The IC695PSD040F also supports hot-redundancy configurations when paired with a second power supply module in dual-feed backplane slots, ensuring that a single power supply fault does not interrupt production. This redundancy model is particularly valuable in continuous-process lines where an unplanned stop carries significant restart costs in terms of both energy and material waste.

Factory energy optimization begins at the rack level. When a PACSystems RX3i system is configured with an undersized or aging power supply, the entire control node becomes a source of thermal inefficiency — excess heat generated by an overloaded or poorly regulated supply raises ambient temperature inside the control cabinet, forcing HVAC systems to work harder and shortening the service life of adjacent modules. The IC695PSD040F addresses this directly by delivering precisely regulated output power matched to the 40W load envelope of a fully populated RX3i rack, minimizing resistive losses and keeping cabinet temperatures within the operating range of sensitive communication and CPU modules.

At the production line level, stable PLC power translates to consistent scan-cycle execution, which is the foundation of synchronized multi-axis coordination. When the RX3i controller is managing a packaging line with servo-driven pick-and-place units, label applicators, and vision inspection stations, any scan-cycle variation caused by power instability introduces timing offsets that reduce throughput and increase reject rates. By maintaining a clean power baseline, the IC695PSD040F enables the controller to sustain the tight inter-device timing that high-speed production demands.

Predictive maintenance programs also benefit from a stable power foundation. When vibration sensors, temperature transmitters, and current transducers feeding into the RX3i analog input modules receive clean excitation power, their readings are more accurate and consistent — improving the reliability of condition-monitoring algorithms running in the PLC or in an edge computing layer connected via the IC695ETM001. Accurate sensor data means earlier detection of motor bearing wear, pump cavitation, or conveyor belt tension drift, allowing maintenance teams to schedule interventions during planned downtime rather than responding to unplanned failures.

NANKMOS maintains verified stock of the IC695PSD040F with full pre-shipment testing, ensuring that every unit delivered is confirmed operational before it reaches your facility. With a 12-Month Warranty covering manufacturing defects and functional performance, procurement teams can source replacement or expansion units with confidence, reducing the risk of extended downtime caused by incoming inspection failures or early-life module faults.

Q1: How does the IC695PSD040F contribute to factory energy savings? By delivering tightly regulated DC power to the RX3i rack, the IC695PSD040F eliminates the resistive losses and thermal overhead associated with unregulated or aging power supplies. Stable rack power reduces nuisance faults and PLC restarts, which in turn reduces the energy cost of unplanned production stops and restart sequences. When integrated with an energy monitoring system via SCADA, rack-level power consumption can be trended against output KPIs to identify and eliminate overcapacity.

Q2: Is the IC695PSD040F compatible with all PACSystems RX3i backplanes and CPU modules? The IC695PSD040F is designed for the IC695 series backplanes, including the IC695CHS007 (7-slot) and IC695CHS012 (12-slot) configurations. It is compatible with IC695CPU320, IC695CPU315, and other RX3i CPU modules. For mixed-series racks or legacy RX7i configurations, consult the GE PACSystems hardware compatibility matrix or contact NANKMOS for application-specific guidance.

Q3: What is the recommended replacement process and lead time? NANKMOS stocks the IC695PSD040F as a verified, tested unit ready for same-day or next-business-day dispatch. The replacement process involves powering down the RX3i rack, removing the existing power supply module from the backplane slot, inserting the IC695PSD040F, and restoring power — no firmware configuration is required. NANKMOS recommends keeping one spare unit on-site for critical production nodes to eliminate lead-time risk during unplanned failures.

Q4: What does the 12-Month Warranty cover and how is it supported? The 12-Month Warranty covers manufacturing defects and confirmed functional failures under normal operating conditions. Each IC695PSD040F unit is tested prior to shipment to verify output voltage stability, load regulation, and thermal performance. In the event of a warranty claim, NANKMOS provides direct technical support and replacement coordination. Contact [email protected] or +86 18359268345 to initiate a warranty assessment.
