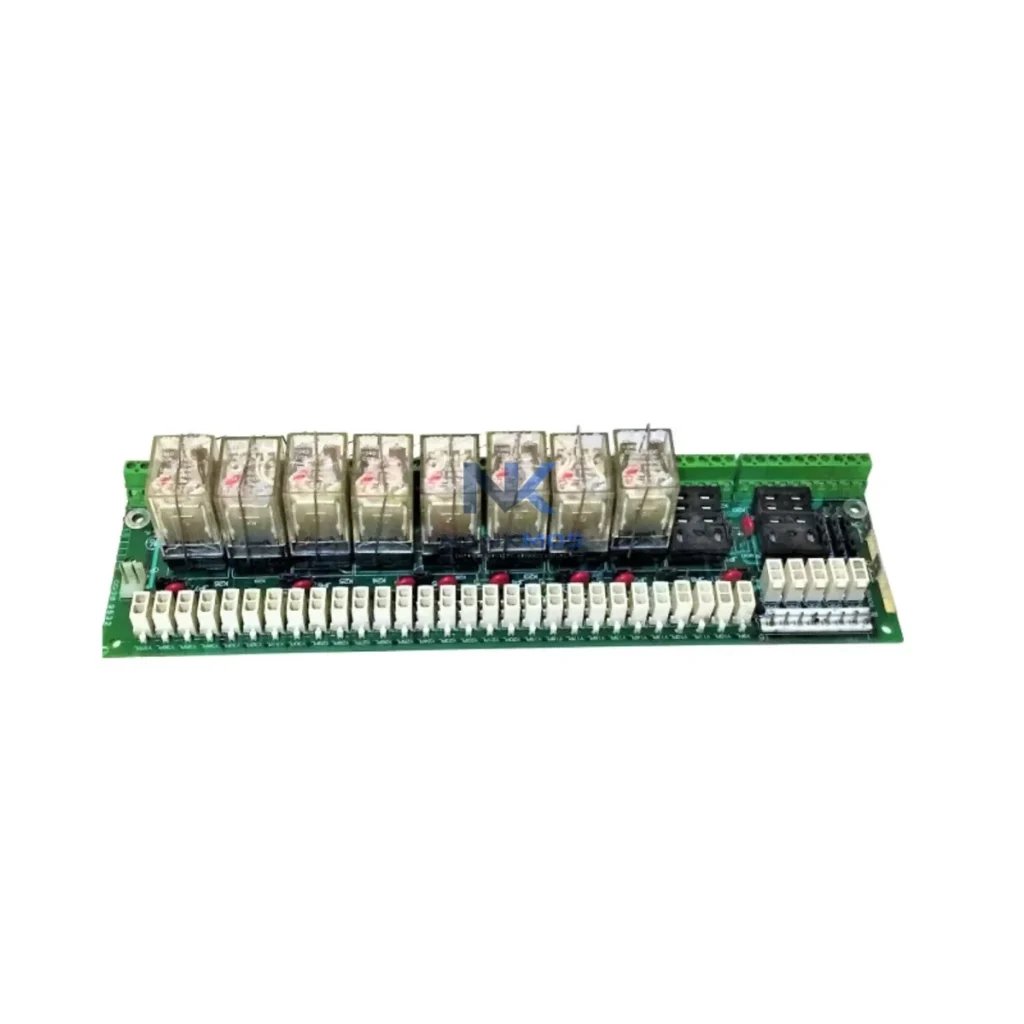

GE DS200RTBAG2AHC Relay Card

Product Details

DS200RTBAG2AHC Product Description

The GE DS200RTBAG2AHC is a precision relay card engineered for the GE Mark V turbine control platform, delivering reliable switching logic, load management, and energy-aware signal routing across high-demand industrial production environments. Designed to operate within GE's proven Mark V architecture, this relay card serves as a critical interface between the control system's logic solver and field-level actuators, enabling deterministic response times and minimizing unnecessary power cycling that contributes to energy waste and thermal stress on downstream equipment.

In modern smart production lines where energy efficiency is a measurable KPI, the DS200RTBAG2AHC plays a foundational role in reducing idle-state power draw and ensuring that switching events are executed only when process conditions demand them. By integrating tightly with the Mark V's I/O architecture — including companion boards such as the DS200TCQAG1BHF I/O terminal board and the DS200SDCCG1AFB speed detector card — the relay card ensures that load transitions are smooth, coordinated, and energy-conscious.

The DS200RTBAG2AHC does not operate in isolation — its energy optimization value is realized through tight integration with the broader GE Mark V control ecosystem. Within a typical turbine control cabinet, this relay card interfaces with the DS200TCDAG1BHF analog I/O board to receive process variable signals that determine when relay switching is warranted, preventing unnecessary actuator cycling that wastes energy and accelerates mechanical wear.

On the drive side, the relay outputs from the DS200RTBAG2AHC can be used to enable or inhibit variable frequency drives (VFDs) connected to auxiliary motor loads — such as cooling fans, lube oil pumps, and fuel gas compressors — ensuring these loads are energized only when turbine operating conditions require them. This load-on-demand strategy, coordinated through the Mark V's DS200TCQCG1BHF core I/O card, directly reduces parasitic energy consumption during partial-load or standby turbine states.

For power monitoring integration, the relay card's switching events can be logged and correlated with data from external power quality analyzers or the plant's SCADA system via the Mark V's communication gateway — such as the DS200TCPSG1AHF communication board — enabling energy managers to track relay actuation frequency, identify inefficient switching patterns, and optimize turbine dispatch schedules. When paired with the DS200TCEAG1BHF excitation terminal board, the system gains a complete picture of both real and reactive power flows, supporting power factor correction strategies at the plant level.

HMI operators monitoring turbine status through GE's ToolboxST or third-party SCADA platforms receive relay state feedback in real time, allowing them to correlate relay switching events with energy consumption trends. The DS200SDCCG1AFB speed detector card provides rotational feedback that the Mark V uses to determine optimal relay engagement timing during turbine start-up and shutdown sequences — phases where energy waste is highest if relay logic is not precisely coordinated.

In combined-cycle and cogeneration facilities, the DS200RTBAG2AHC contributes to production line energy optimization by ensuring that turbine auxiliary systems are switched in and out of service with precision. Poorly timed relay switching — whether due to card degradation or incorrect configuration — leads to repeated motor starts, voltage transients, and elevated thermal loads across the control panel. Replacing a faulty relay card with a tested DS200RTBAG2AHC restores switching precision and immediately reduces these energy penalties.

From a predictive maintenance perspective, relay card health directly impacts production line availability. A degraded relay output can cause intermittent actuator faults that force operators into manual override modes, increasing labor costs and disrupting the automated energy management routines programmed into the Mark V. By maintaining a verified spare DS200RTBAG2AHC in inventory, plant engineers ensure that mean time to repair (MTTR) is minimized and that the turbine returns to its optimized operating envelope — and its associated energy efficiency targets — as quickly as possible.

The card's compatibility with the Mark V's redundant I/O architecture also supports uninterrupted production during maintenance windows. When one relay channel is taken offline for inspection, the control system can redistribute switching logic across remaining channels, maintaining production line rhythm without full turbine shutdown. This capability is central to achieving high equipment utilization rates and meeting energy intensity targets (kWh per unit of output) that modern industrial facilities track as core operational KPIs.

Every DS200RTBAG2AHC unit supplied by NANKMOS undergoes pre-shipment functional testing to verify relay coil integrity, contact resistance, and isolation voltage — ensuring that the card performs to GE specification from the moment it is installed. This testing protocol, combined with our 12-Month Warranty, gives plant engineers confidence that the energy optimization gains achieved through precise relay control will be sustained over the long term.

Q1: How does the DS200RTBAG2AHC contribute to energy savings in a Mark V turbine system? The DS200RTBAG2AHC controls the switching of field-connected loads — including auxiliary motors, solenoid valves, and alarm circuits — based on logic commands from the Mark V controller. By ensuring that these loads are energized only when process conditions require it, the card eliminates unnecessary power draw during standby and partial-load operation, directly reducing the turbine auxiliary system's energy consumption.

Q2: Is the DS200RTBAG2AHC compatible with Mark VI or other GE control platforms? The DS200RTBAG2AHC is natively designed for the GE Mark V platform. Compatibility with Mark VI or other GE control systems depends on backplane configuration and I/O mapping. We recommend consulting your system documentation or contacting our technical team at [email protected] to confirm cross-platform compatibility before ordering.

Q3: What is the replacement process, and how quickly can a unit be dispatched? NANKMOS maintains in-stock inventory of the DS200RTBAG2AHC, enabling same-day or next-business-day dispatch for verified orders. Each unit is pre-tested prior to shipment. Installation follows standard Mark V card replacement procedures — power down the affected I/O rack, remove the faulty card, seat the replacement, and restore power. No firmware flashing is required for direct replacement within the same Mark V revision.

Q4: What does the 12-Month Warranty cover? The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions as specified by GE for the Mark V platform. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed through NANKMOS directly — contact [email protected] with your order reference and a description of the fault for rapid resolution.
