GE DS200SVAAG1A DS200SVAAG1ACB Voltage Attenuator Card

Product Details

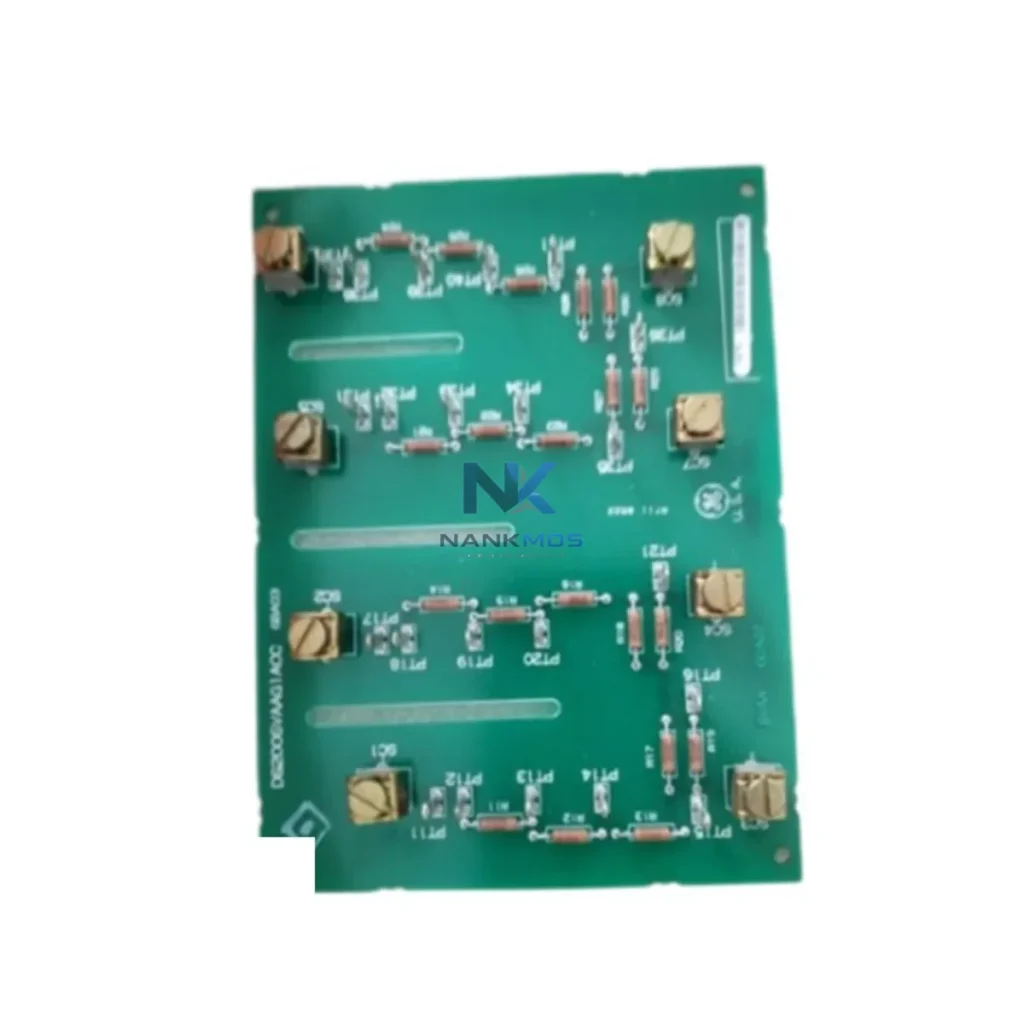

DS200SVAAG1A DS200SVAAG1ACB Product Description

The GE DS200SVAAG1A (alternate suffix: DS200SVAAG1ACB) is a precision Voltage Attenuator Card engineered for deployment within GE's DS200 turbine control platform — a modular, rack-based architecture widely adopted across gas turbine, steam turbine, and combined-cycle power generation facilities. As a signal-conditioning component at the I/O layer, the DS200SVAAG1A performs a structurally critical function: it scales high-magnitude analog voltage signals to levels compatible with downstream analog input modules, protecting sensitive measurement circuits and ensuring signal fidelity across the full control loop. Its role is not peripheral — without accurate voltage attenuation at the field interface, the integrity of turbine speed, temperature, and load feedback signals feeding the Mark V or Mark VI controller is compromised, directly affecting closed-loop stability and protection response time.

In a fully integrated DS200 control cabinet, the DS200SVAAG1A operates in close coordination with multiple platform components. The DS200SDCCG1A (Speed and Dynamics Control Card) depends on clean, attenuated analog inputs to compute accurate speed derivatives and issue precise fuel control commands. The DS200TCQCG1A (Turbine Control and Quad Core Card) aggregates conditioned signals from multiple I/O cards — including the SVAA — to execute protection logic and sequencing. The DS200EXPNG1A I/O expansion card extends the rack's analog channel capacity, and the DS200SVAAG1A's attenuated outputs feed directly into its input registers. On the power layer, the DS200PTBAG1A terminal board and DS200TBQCG1A I/O terminal board provide the physical field-wiring interface, ensuring that attenuated signals are correctly routed from field transmitters through the SVAA to the controller backplane. The DS200SLCCG1A (Sequence and Load Control Card) relies on stable, conditioned analog references to manage load-sharing and synchronization sequences in multi-unit configurations. For communication integrity, the DS200CPCBG1A (Communication and Processor Card) handles inter-card data exchange over the DS200 backplane bus, and signal noise introduced upstream of the SVAA can propagate as measurement error into the processor's data tables. The DS200DSPXG1A (Digital Signal Processor Card) performs real-time FFT and harmonic analysis on vibration and flux signals — tasks that require the upstream attenuation stage to be correctly calibrated. Finally, the DS200UPSAG1A uninterruptible power supply card ensures that the entire rack, including the SVAA, maintains regulated supply voltage during grid transients, preventing measurement drift caused by supply instability.

This system-level interdependency is why replacement of the DS200SVAAG1A must be treated as an architecture event, not a component swap. Incorrect attenuation ratios — whether from a misconfigured replacement or a degraded card — will shift analog input readings across all dependent control loops simultaneously, triggering nuisance trips or, more critically, masking real process deviations. NANKMOS supplies the DS200SVAAG1A as a tested, system-ready unit with full functional verification against GE DS200 platform specifications, ensuring drop-in compatibility without recalibration of upstream field transmitters or downstream controller scaling parameters.

The DS200SVAAG1A is most effectively understood as a node within GE's DS200 distributed control architecture rather than a standalone component. In a typical Mark V or Mark VI turbine control panel, the control layer is anchored by the DS200TCQCG1A quad-core turbine controller, which executes protection, sequencing, and closed-loop control algorithms at scan rates measured in milliseconds. Feeding this controller are multiple I/O cards — analog input, analog output, digital input, and digital output — each interfacing with field instruments through dedicated terminal boards such as the DS200TBQCG1A and DS200PTBAG1A. The DS200SVAAG1A sits at the boundary between the field wiring layer and the analog input layer, attenuating raw field voltages before they enter the AI module's measurement range.

At the communication layer, the DS200CPCBG1A manages backplane communication between all cards in the rack, serializing I/O data and forwarding it to the processor for real-time computation. Any signal error introduced at the attenuation stage — whether from card degradation, incorrect gain setting, or connector contamination — will appear as a systematic offset in the processor's analog data table, affecting every control function that references that signal. The DS200DSPXG1A digital signal processor, responsible for vibration monitoring and flux analysis, is particularly sensitive to upstream signal quality because its algorithms operate on small-amplitude variations superimposed on the attenuated DC baseline.

At the power layer, the DS200UPSAG1A provides regulated DC supply to all rack cards, and the DS200SLCCG1A sequence and load control card manages startup permissives and load-sharing logic that depend on accurate analog feedback from the SVAA's output. In redundant configurations — common in baseload gas turbines and critical steam turbines — a second DS200 rack may mirror the primary, with the DS200SDCCG1A speed and dynamics card in each rack cross-checking attenuated speed signals to detect sensor or card faults before they propagate to the protection layer. The DS200EXPNG1A expansion card extends the rack's I/O capacity for larger turbine units with more field instruments, and the DS200SVAAG1A's attenuation function scales proportionally to support the expanded channel count without architectural redesign.

This integrated platform design philosophy — where each card's performance is a function of the cards it interfaces with — is why NANKMOS emphasizes system-matched supply: the DS200SVAAG1A shipped from NANKMOS is tested not only for individual card function but for compatibility with the DS200 backplane signal protocol and terminal board wiring conventions, ensuring that installation does not require re-engineering of adjacent cards or field wiring.

The DS200SVAAG1A is deployed across a range of heavy industrial sectors where GE Mark V and Mark VI turbine control systems remain the installed base standard:

Power Generation (Gas & Steam Turbine): In combined-cycle power plants, the DS200SVAAG1A conditions voltage signals from generator excitation systems, turbine inlet temperature transmitters, and compressor discharge pressure sensors. Accurate attenuation at this layer is a prerequisite for stable closed-loop fuel control and load dispatch response. Plants operating under grid frequency regulation requirements — where turbine response time is contractually specified — cannot tolerate measurement drift introduced by a degraded SVAA card.

Petrochemical & Refinery: Compressor trains in ethylene crackers and LNG liquefaction facilities use GE Mark V controllers for anti-surge and load-sharing control. The DS200SVAAG1A conditions high-voltage signals from suction and discharge pressure transmitters, feeding the surge control algorithm with the accuracy required to operate compressors at maximum efficiency without surge margin violations.

Water & Wastewater Treatment: Large pumping stations and desalination facilities using GE turbine-driven pump sets rely on DS200-based control for speed regulation and protection. The SVAA card conditions motor terminal voltage signals used for power factor monitoring and protection relay coordination.

Mining & Mineral Processing: Grinding mill drives and large conveyor systems in copper, iron ore, and gold processing facilities use GE control platforms for variable-speed operation. Voltage attenuation at the I/O layer ensures that high-voltage feedback from drive systems is correctly scaled for the DS200 controller's analog input range.

Marine & Offshore: Offshore platform gas turbine generators and LNG carrier propulsion systems using GE Mark VI controls require DS200 I/O cards rated for marine environmental conditions. The DS200SVAAG1A's robust construction supports operation in high-humidity, high-vibration environments typical of offshore installations.

Metallurgy & Steel: Rolling mill main drives and blast furnace blower turbines controlled by GE Mark V systems use the DS200SVAAG1A to condition high-voltage signals from large synchronous motors, ensuring accurate torque and speed feedback for the mill's tension control system.

Q1: Is the DS200SVAAG1ACB suffix interchangeable with DS200SVAAG1A in a DS200 rack?A: Yes. The suffix difference (G1A vs. G1ACB) reflects GE's internal revision and conformal coating designation, not a functional or electrical change. Both variants perform identical voltage attenuation functions and are pin-compatible with the DS200 backplane and associated terminal boards (DS200TBQCG1A, DS200PTBAG1A). NANKMOS verifies both suffix variants against DS200 platform specifications before shipment. If your existing rack uses one suffix and you receive the other, no reconfiguration of adjacent cards or field wiring is required.

Q2: How do I verify that the DS200SVAAG1A is correctly calibrated after installation in my Mark V or Mark VI system?A: After installation, use GE's Toolbox software (for Mark VI) or the Mark V HMI diagnostic screens to compare the attenuated analog input readings against known reference signals from your field transmitters. The SVAA's attenuation ratio is fixed by hardware design, so if the card is functioning correctly, the displayed engineering-unit values should match your transmitter's calibrated output within the system's specified accuracy band. If readings are offset, check terminal board wiring polarity and connector seating before suspecting the card. NANKMOS-supplied units are pre-tested at known input voltages, and test records are available upon request.

Q3: What is covered under NANKMOS's 12-Month Warranty for the DS200SVAAG1A, and what is the process if a fault is identified after installation?A: NANKMOS's 12-Month Warranty covers functional failure of the DS200SVAAG1A under normal operating conditions — including attenuation accuracy degradation, backplane communication faults, and component-level failures attributable to the card itself. Physical damage caused by incorrect installation, overvoltage events beyond the card's rated input range, or environmental exposure outside GE's specified operating conditions is excluded. If a fault is identified post-installation, contact NANKMOS at [email protected] or +86 18359268345 with your order reference and a description of the fault symptom. NANKMOS will arrange return logistics and either repair or replace the unit within the warranty period. Advance replacement is available for critical applications where downtime cost justifies expedited handling.
