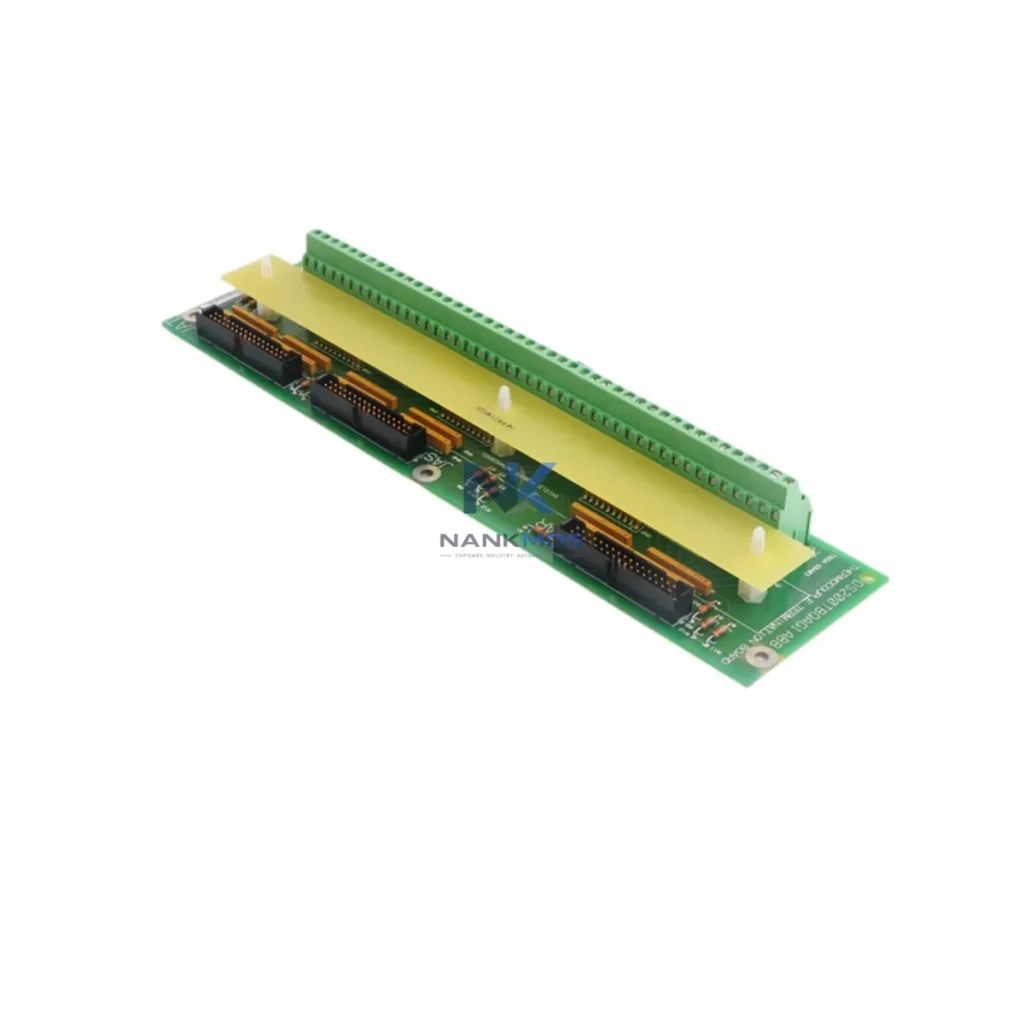

GE DS200TBQCC1AAA Turbine Control PC Board

Product Details

DS200TBQCC1AAA Product Description

The GE DS200TBQCC1AAA is a dedicated turbine control PC board engineered for deployment within the Speedtronic Mark V control system — GE's landmark distributed control platform for gas turbine, steam turbine, and combined-cycle power generation assets. Designed to operate as a core signal processing and sequencing node within the Mark V's triple-redundant control architecture, the DS200TBQCC1AAA delivers deterministic I/O handling, robust electrical isolation, and long-cycle reliability across demanding power generation environments. With in-stock availability, pre-shipment functional testing, and a 12-Month Warranty, this board supports both emergency replacement and planned maintenance programs without compromising system uptime.

The DS200TBQCC1AAA does not operate in isolation — its value is fully realized within the layered architecture of the Speedtronic Mark V control system. At the control layer, the board works in concert with the DS200SDCIG2AEB (Signal Distribution and Control Interface board) and the DS200TCQAG1BHF (Turbine Control Quad board) to maintain synchronized sequencing logic across the R, S, and T redundant controllers. The Mark V's TMR design ensures that any single board failure is voted out without process interruption, making the DS200TBQCC1AAA a critical participant in continuous availability architecture.

At the I/O layer, the board interfaces with terminal boards such as the DS200TBCIG1AEB and DS200TCCAG1BHF, which aggregate analog and discrete field signals from thermocouples, pressure transmitters, speed pickups, and flame detectors. These terminal boards route conditioned signals to the DS200TBQCC1AAA for processing, enabling the control system to execute fuel control, inlet guide vane positioning, and protective trip logic with high signal fidelity.

Communication stability across the Mark V architecture is maintained through the DS200DSPCH1ADA (Digital Signal Processor and Communication Handler), which manages ARCNET-based inter-panel data exchange between the control panels and the operator interface panel. The DS200EXPSG1ADA power supply board provides regulated DC power to the control and I/O boards, ensuring voltage stability under variable load conditions — a prerequisite for deterministic board-level performance.

At the HMI and supervisory layer, the Mark V system connects to operator workstations via the DS200CPCAG1A (Communication Processor Card), enabling real-time turbine parameter visualization, alarm management, and historical trending. For applications requiring extended I/O capacity, the DS200IOCAG1ABA I/O controller board expands the system's field signal handling capability without architectural redesign. In redundant power configurations, the DS200PCCAG1AEB power conditioning card ensures clean power delivery to sensitive signal processing boards including the DS200TBQCC1AAA.

For facilities managing mixed-generation fleets, the DS200TBQCC1AAA is also compatible with broader GE Speedtronic ecosystem components including the DS200TCDAG1AEB (Turbine Control Diagnostic board) and the DS200ADPAG1ADB (Analog and Digital Processing board), both of which extend diagnostic resolution and signal conditioning depth within the same Mark V backplane environment.

Power Generation — Gas Turbine Plants: The DS200TBQCC1AAA is most commonly deployed in gas turbine power plants operating GE Frame 6, Frame 7, and Frame 9 turbines under Speedtronic Mark V control. In these environments, the board manages fuel control sequencing, compressor protection logic, and startup/shutdown automation — functions that demand deterministic execution and fault-tolerant redundancy. The TMR architecture ensures that a single board anomaly does not result in an unplanned trip, protecting both generation capacity and equipment integrity.

Combined-Cycle and Cogeneration Facilities: In combined-cycle plants, the Mark V system coordinates gas turbine, steam turbine, and heat recovery steam generator (HRSG) control from a unified architecture. The DS200TBQCC1AAA participates in cross-system sequencing logic, ensuring that turbine state transitions — from ignition through full-load operation — are executed in coordination with steam system parameters. This integration reduces inter-system latency and supports plant-wide efficiency optimization.

Petrochemical and Refinery Compressor Trains: Mechanical drive gas turbines in petrochemical facilities rely on Speedtronic Mark V for compressor train control. The DS200TBQCC1AAA supports anti-surge logic, speed governing, and protective shutdown sequencing in these high-availability applications, where unplanned downtime carries significant process and safety consequences.

Marine and Offshore Power Systems: Offshore platforms and LNG carriers operating GE turbine-driven generators use Mark V control systems in space-constrained, vibration-exposed environments. The DS200TBQCC1AAA's board-level design is suited to these conditions, providing reliable control node performance within the panel-mount Mark V cabinet architecture.

Maintenance and Retrofit Programs: For aging Mark V installations approaching end-of-support cycles, the DS200TBQCC1AAA serves as a direct replacement board for life-extension programs. Its in-stock availability and pre-tested condition reduce mean time to repair (MTTR) and support planned maintenance intervals without requiring full system upgrades.

Q1: Is the DS200TBQCC1AAA compatible with all Mark V panel configurations, including simplex and TMR systems?The DS200TBQCC1AAA is designed for the GE Speedtronic Mark V platform and is compatible with both simplex and TMR triple-redundant configurations. In TMR systems, the board occupies a designated controller slot and participates in the voting logic that defines the Mark V's fault-tolerant operation. Compatibility should be confirmed against the specific panel revision and backplane configuration of the target installation. Our technical team can assist with cross-referencing your panel's bill of materials prior to order.

Q2: What pre-shipment testing is performed, and how does the 12-Month Warranty apply?Each DS200TBQCC1AAA unit undergoes functional verification testing prior to shipment, confirming board-level power integrity, signal path continuity, and communication interface operability. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are supported by our technical team, with replacement or repair options available to minimize system downtime. Documentation of test results is available upon request for quality assurance records.

Q3: How should the DS200TBQCC1AAA be handled during installation to avoid damage to the Mark V backplane?Board installation must follow GE Speedtronic Mark V maintenance procedures, including full system power-down prior to board removal or insertion unless the TMR architecture supports hot-swap under specific conditions documented in the site's maintenance manual. ESD precautions — grounded wrist straps and anti-static packaging — are mandatory during handling. The board's edge connectors should be inspected for contamination or mechanical damage before installation. For sites without in-house Mark V commissioning expertise, NANKMOS can provide remote technical guidance to support safe board replacement and system restart verification.
