DS3800NERA1P1D Product Description

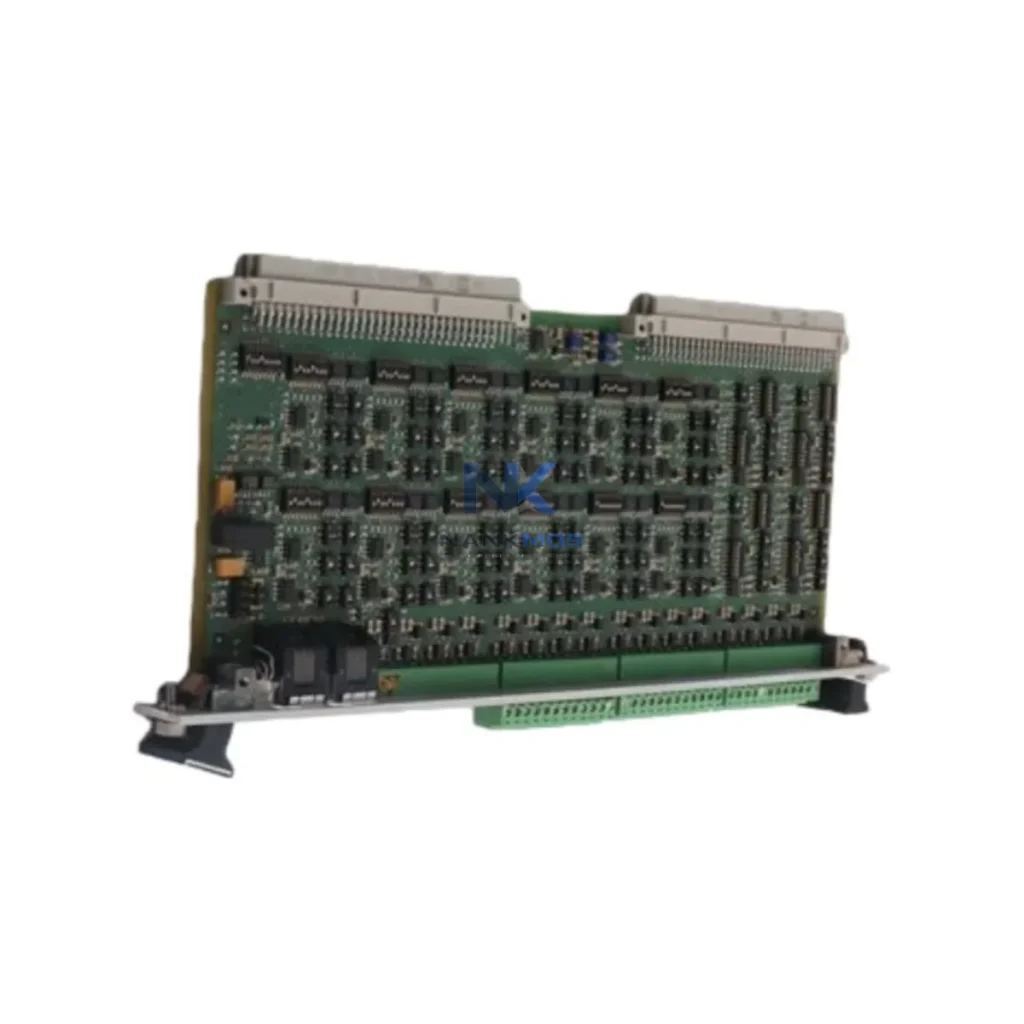

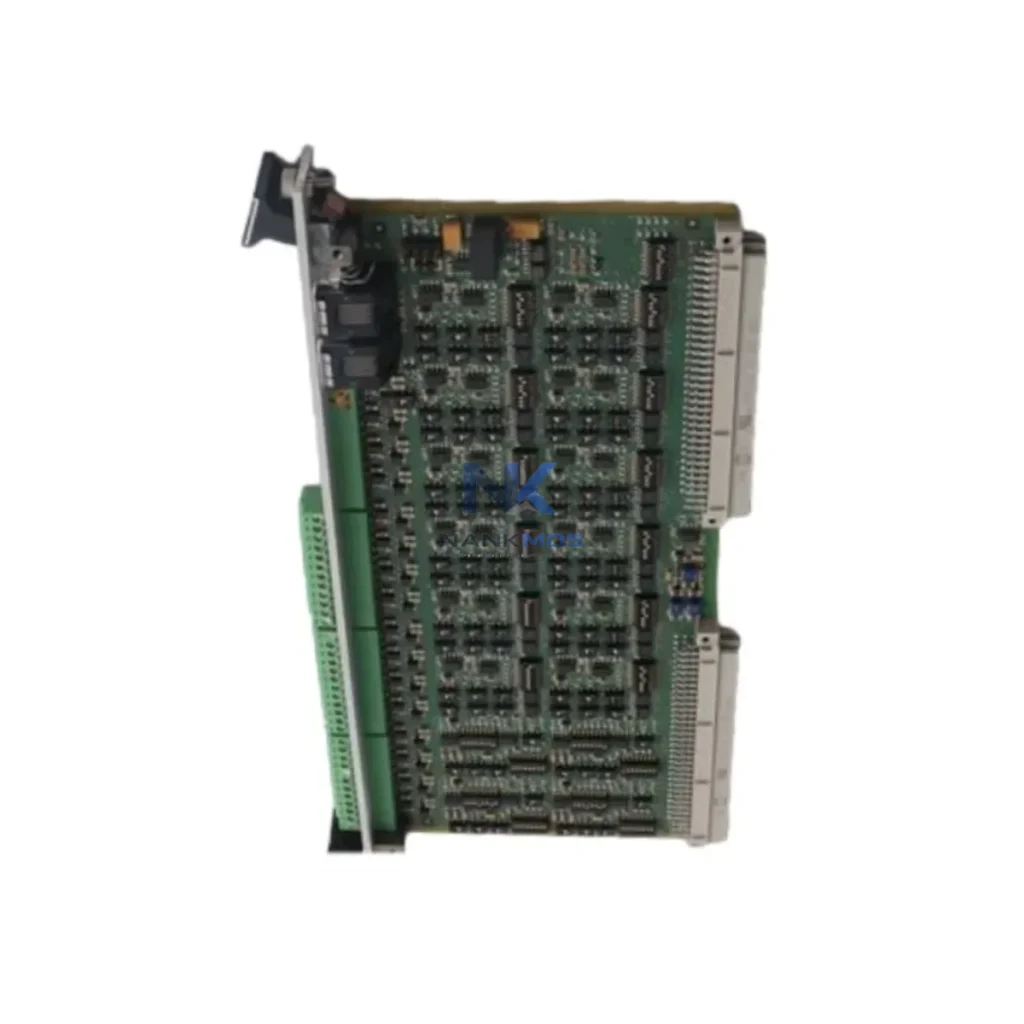

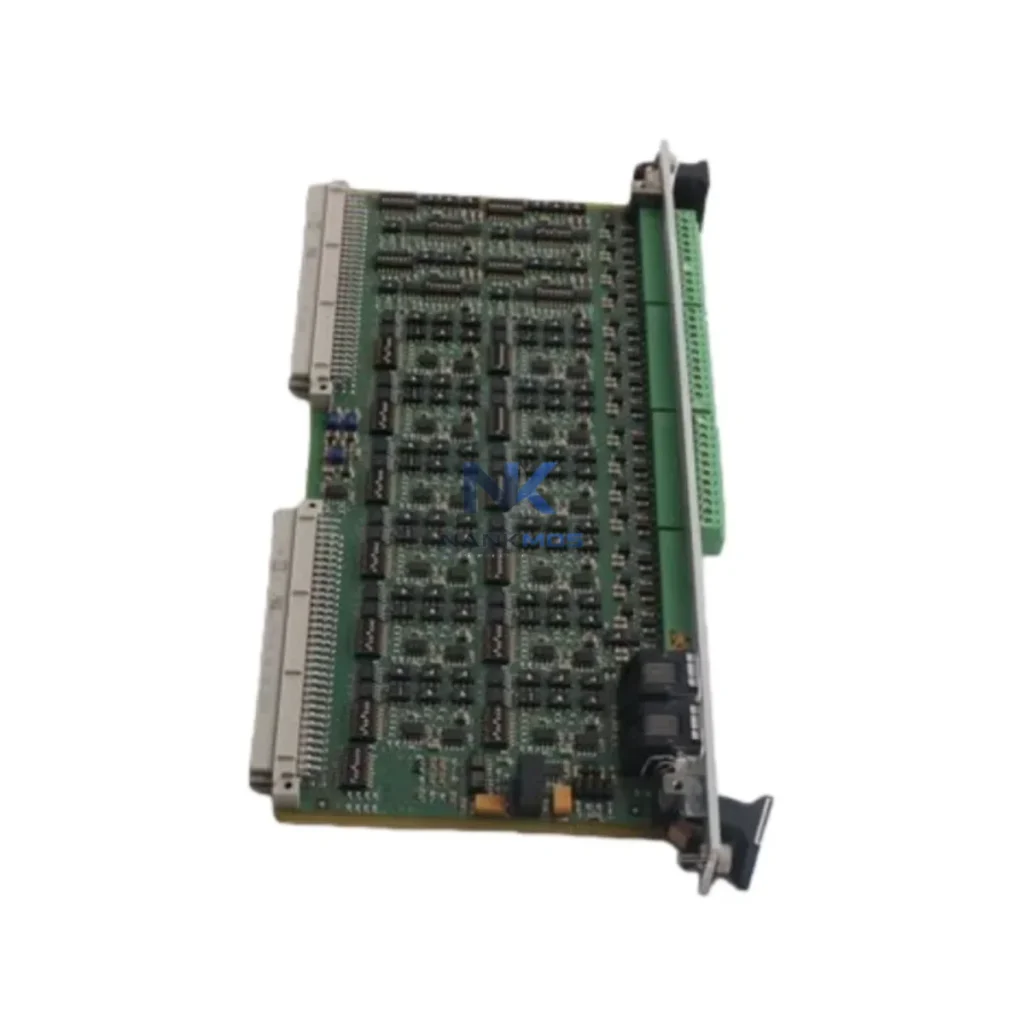

The GE DS3800NERA1P1D is a high-performance analog microprocessor and network interface module engineered for GE Mark VI turbine control systems. Designed to serve as a critical node in the industrial data chain, this module bridges field-level analog signal acquisition with upper-layer control, monitoring, and diagnostic platforms. In modern smart factory environments where real-time data visibility and system interoperability are non-negotiable, the DS3800NERA1P1D delivers the communication backbone that connects rotating equipment, process instrumentation, and enterprise-level SCADA systems into a unified, transparent automation network.

From the moment analog signals are captured at the sensor level — thermocouples, RTDs, pressure transmitters, and vibration probes — the DS3800NERA1P1D processes and conditions those signals for transmission across the Mark VI control architecture. Its onboard microprocessor handles real-time signal validation, scaling, and fault detection, ensuring that data integrity is maintained from the field device all the way to the operator HMI and historian database. This end-to-end signal fidelity is what makes the module indispensable in power generation, oil and gas, and heavy industrial automation sites where process deviations must be detected and acted upon within milliseconds.

In a fully integrated smart factory or power plant automation architecture, the DS3800NERA1P1D occupies a pivotal position in the data flow hierarchy. At the field level, analog sensors and transmitters — including thermocouple arrays, vibration probes, and 4–20mA pressure transmitters — feed raw process signals into the module's analog input channels. The onboard microprocessor performs real-time signal conditioning, linearization, and engineering unit conversion before passing structured data onto the Mark VI backplane bus.

Within the Mark VI rack, the DS3800NERA1P1D works in concert with companion modules such as the DS3800HPID (power interface board), DS3800NPSB (power supply board), and DS3800NDSA (digital signal acquisition board) to form a complete I/O subsystem. The Mark VI controller — typically a IS215UCVEH2A or IS215UCVEH2AE VME controller card — aggregates data from all I/O modules and executes the turbine control logic at scan rates measured in milliseconds.

Processed control data is then transmitted upstream via the IONet Ethernet-based communication network — GE's proprietary industrial Ethernet protocol — to the plant-level SCADA system. At this layer, operator workstations running GE iFIX or Cimplicity HMI platforms receive real-time process values, alarm states, and trend data from the DS3800NERA1P1D's signal chain. Historians such as the GE Proficy Historian archive time-stamped process data for long-term trend analysis, regulatory compliance, and predictive maintenance modeling.

For sites requiring protocol bridging between the Mark VI IONet environment and third-party systems — such as Modbus TCP/IP-based DCS platforms, OPC UA-enabled MES systems, or cloud-based IIoT analytics platforms — an industrial protocol gateway such as the Moxa MGate MB3660 or Anybus X-gateway can be deployed at the network boundary. This gateway translates IONet data into standard industrial protocols, enabling seamless integration with Siemens SIMATIC WinCC SCADA, Rockwell FactoryTalk, or ABB System 800xA without modifying the core Mark VI control architecture.

At the edge layer, industrial-grade managed Ethernet switches — such as the Hirschmann MACH104 or Cisco IE-3400 series — provide the network infrastructure that carries IONet traffic between the Mark VI controller rack, the SCADA server, and remote I/O panels. These switches support VLAN segmentation, IGMP snooping, and redundant ring topologies (MRP/RSTP), ensuring that the DS3800NERA1P1D's data stream reaches the control room with deterministic latency and zero packet loss — even in electrically noisy industrial environments.

Protocol Fragmentation: Many power generation and heavy industrial sites operate mixed-vendor control environments where GE Mark VI systems must coexist with Siemens, ABB, or Rockwell PLCs. The DS3800NERA1P1D, when paired with an appropriate protocol gateway, eliminates data silos by making Mark VI analog process values available to any OPC DA/UA or Modbus-compatible supervisory system. This means a single SCADA dashboard can display turbine exhaust temperatures from the DS3800NERA1P1D alongside compressor discharge pressures from a Siemens S7-300 — without custom middleware development.

Data Island Elimination: Legacy turbine control installations often suffer from isolated data islands where critical process parameters — bearing temperatures, vibration amplitudes, fuel flow rates — are visible only at the local HMI panel. By ensuring the DS3800NERA1P1D is correctly configured within the Mark VI IONet architecture, all analog measurements become available to plant-wide SCADA historians, enabling cross-system correlation analysis and eliminating the blind spots that lead to unplanned outages.

Remote Monitoring and Diagnostics: The DS3800NERA1P1D supports remote fault diagnostics through the GE Mark VI Toolbox software suite. Maintenance engineers can interrogate module health, review analog channel calibration status, and examine alarm logs from a remote engineering workstation connected to the IONet network — without requiring physical access to the control cabinet. This capability dramatically reduces mean time to diagnosis (MTTD) for analog signal faults and enables predictive maintenance scheduling based on signal drift trends.

Production Line Transparency: In combined-cycle power plants and industrial process facilities, the DS3800NERA1P1D's analog data feeds directly into KPI dashboards that track turbine efficiency, heat rate, and availability metrics. By ensuring continuous, high-fidelity analog data flow from field sensors through the Mark VI controller to the SCADA historian, plant operators gain the real-time production transparency needed to optimize dispatch decisions and minimize fuel consumption.

Alarm Management and Traceability: The module's onboard signal validation logic generates structured alarm events when analog inputs exceed configured high/high-high or low/low-low thresholds. These alarms are propagated through the Mark VI IONet to the SCADA alarm management system, where they are time-stamped, prioritized, and logged for post-incident analysis. This alarm traceability is essential for root cause analysis following turbine trips or process upsets.

System Scalability: The DS3800NERA1P1D is designed to operate within the modular Mark VI rack architecture, allowing additional I/O modules to be added as plant expansion projects require. Whether integrating new gas turbine units, adding remote I/O panels for balance-of-plant (BOP) systems, or extending the IONet to new SCADA nodes, the DS3800NERA1P1D's role as a standardized analog interface module ensures that system expansion does not require architectural redesign.

Q1: What communication protocols does the GE DS3800NERA1P1D support, and can it integrate with third-party SCADA systems? The DS3800NERA1P1D communicates natively over the GE Mark VI backplane bus and IONet industrial Ethernet protocol. For integration with third-party SCADA platforms — such as Wonderware, Ignition, or Siemens WinCC — an OPC DA/UA server or Modbus TCP gateway is deployed at the IONet boundary. This approach allows the module's analog data to be consumed by any standards-compliant supervisory system without modifying the Mark VI control program.

Q2: How does the DS3800NERA1P1D perform in terms of communication latency and network stability in high-noise industrial environments? The module is designed for deterministic real-time performance within the Mark VI control architecture, with analog scan cycles typically in the range of 10–40ms depending on system configuration. The IONet communication layer uses managed industrial Ethernet infrastructure with VLAN isolation and redundant ring topology support to maintain network stability in environments with high electromagnetic interference (EMI) from variable frequency drives, large motors, and high-voltage switchgear.

Q3: Can the DS3800NERA1P1D support remote diagnostics, and what tools are required? Yes. Remote diagnostics are supported through the GE Mark VI Toolbox engineering software, which can be accessed from any workstation connected to the IONet network. The Toolbox provides real-time module health monitoring, analog channel calibration verification, alarm log review, and firmware status checks — all without requiring physical access to the control cabinet. This capability supports predictive maintenance programs and reduces unplanned downtime.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the DS3800NERA1P1D? All DS3800NERA1P1D units supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. Each unit undergoes functional testing prior to dispatch to verify analog channel integrity, backplane communication, and microprocessor operation. In-stock units are available for immediate shipment, minimizing plant downtime during emergency replacement scenarios. For technical support or procurement inquiries, contact our team at [email protected] or +86 18359268345.
