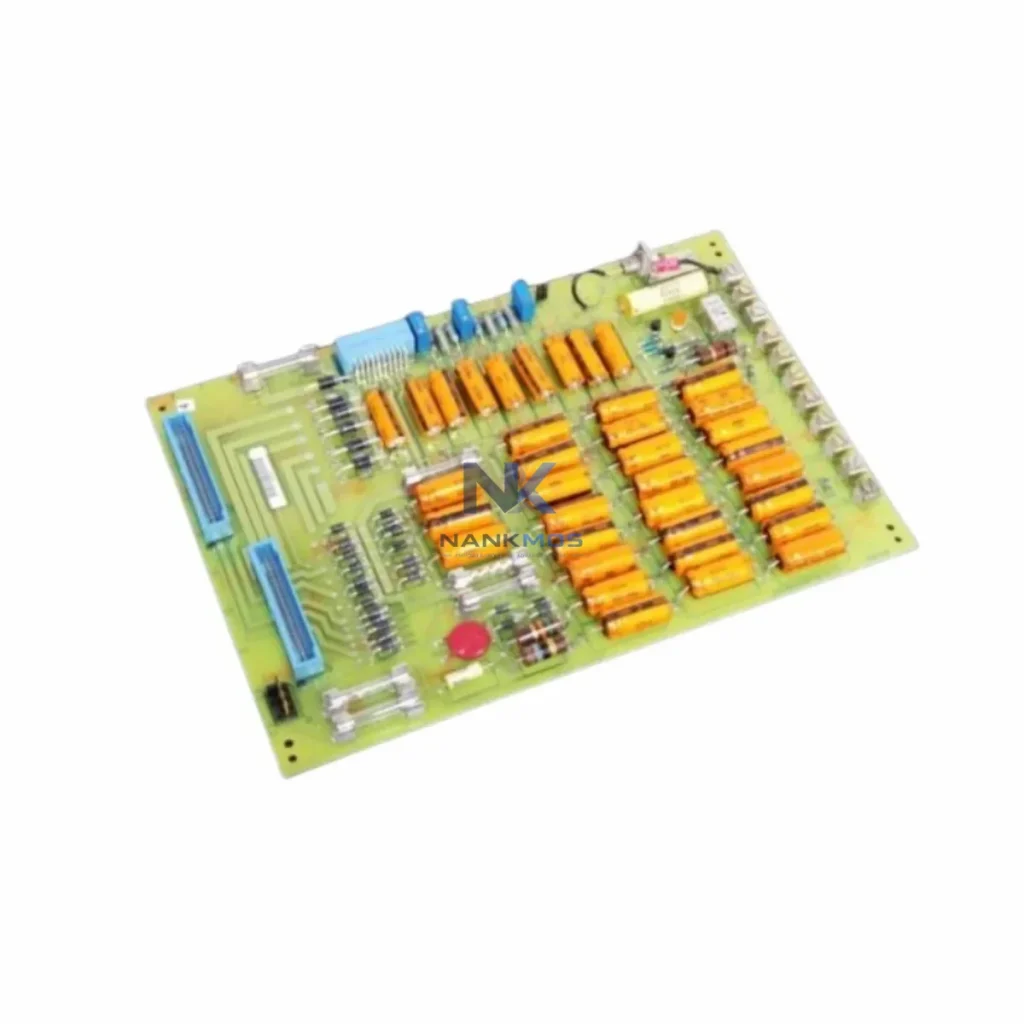

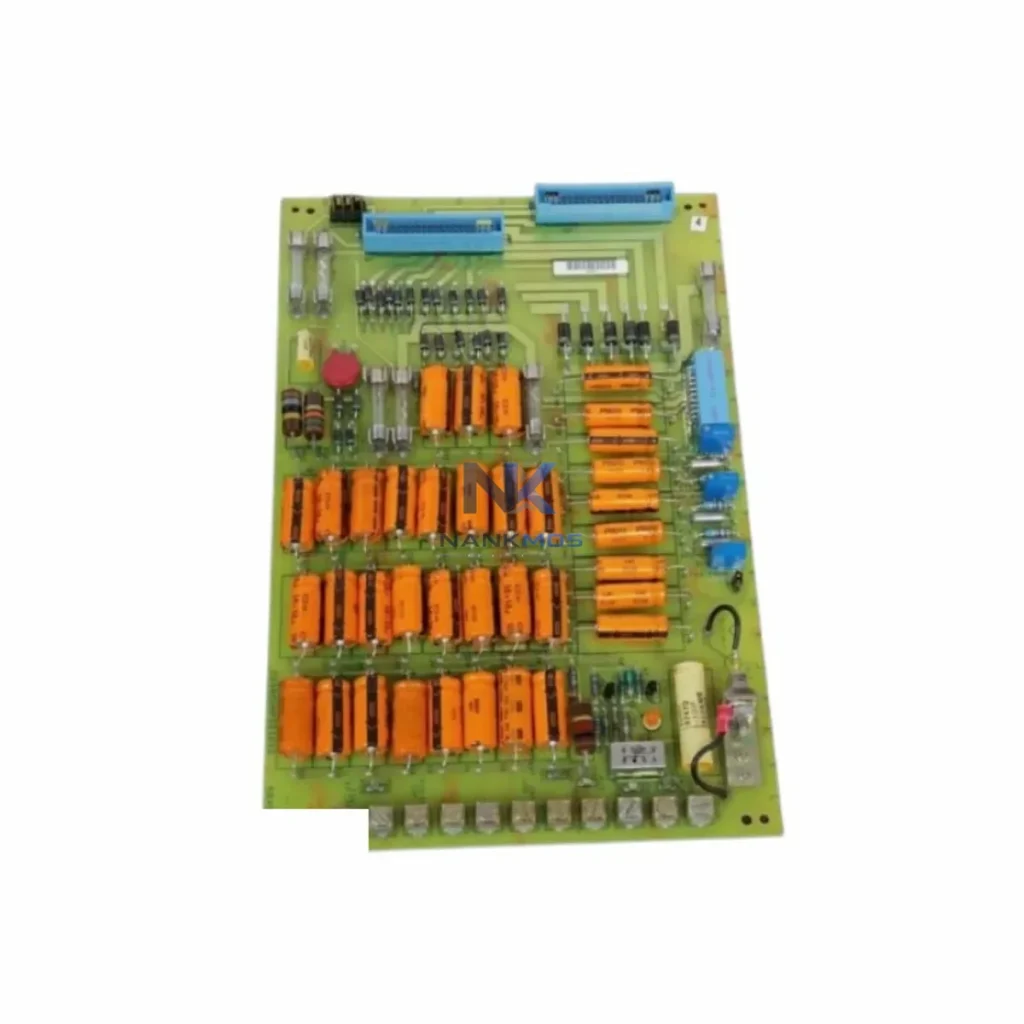

GE DS3800NPSE1E1G Power Supply Board

Product Details

DS3800NPSE1E1G Product Description

The GE DS3800NPSE1E1G is a dedicated power supply board engineered for the GE Speedtronic Mark IV turbine control system, delivering regulated, stable DC power across the full control architecture. Designed to operate within GE's modular backplane ecosystem, this board ensures consistent voltage distribution to CPU modules, I/O boards, communication interfaces, and signal conditioning layers — all of which depend on clean, uninterrupted power to maintain system integrity during continuous turbine operation. As a system-matched component, the DS3800NPSE1E1G is not a generic power module; it is purpose-built to interface directly with the Mark IV rack assembly, providing the electrical foundation that every downstream control layer relies upon.

In modern turbine control architectures, the power supply layer is the most critical single point of system stability. The DS3800NPSE1E1G addresses this by delivering tightly regulated output voltages that meet the operational tolerances of GE's proprietary control boards, including the DS3800HPSC speed control board, DS3800NDAC digital-to-analog converter, DS3800HMPG master processor board, and DS3800NPSB auxiliary power supply board. When deployed alongside these modules within the same Mark IV rack, the DS3800NPSE1E1G ensures that voltage ripple, transient spikes, and load fluctuations do not propagate into the signal processing or logic execution layers — a requirement that is especially critical in gas turbine, steam turbine, and combined-cycle power generation environments where control reliability directly affects plant availability.

The board integrates seamlessly into the Mark IV backplane, drawing input from the system's main power bus and distributing conditioned outputs to the board-level power rails. Its design supports the redundant power architecture common in high-availability turbine control configurations, where dual power supply boards operate in parallel to eliminate single-point failures. In such configurations, the DS3800NPSE1E1G can be paired with a secondary DS3800NPSB or equivalent standby module, ensuring that a board-level fault triggers automatic load transfer without interrupting turbine operation or triggering a protective trip. This redundancy capability is a core requirement in baseload power generation, where unplanned outages carry significant operational and financial consequences.

From a signal flow perspective, the DS3800NPSE1E1G sits at the base of the power distribution hierarchy. Its outputs feed directly into the logic boards responsible for speed sensing, temperature monitoring, fuel control, and protective relay actuation. Boards such as the DS3800NTBA turbine board assembly and DS3800NANA analog input board depend on stable power delivery to maintain accurate signal resolution across their input channels. Any instability at the power supply level introduces noise into analog measurement circuits, degrades digital logic timing, and can cause spurious alarms or false protective trips — outcomes that the DS3800NPSE1E1G is specifically designed to prevent through its regulated, low-noise output architecture.

Installation of the DS3800NPSE1E1G follows standard Mark IV board replacement procedures. The board is inserted into its designated slot within the Mark IV rack, secured via the standard card-edge connector, and locked with the front panel retaining hardware. No field calibration is required upon installation; the board's internal regulation circuitry self-adjusts to the system bus voltage within normal operating parameters. Commissioning engineers should verify output voltage levels at the rack test points following installation to confirm that all rails are within specification before returning the turbine control system to service. This verification step is standard practice in turbine outage maintenance windows and ensures that the replacement board is performing identically to the original factory-configured unit.

For long-term maintenance planning, the DS3800NPSE1E1G is a recommended spare for any facility operating GE Speedtronic Mark IV turbine control systems. Power supply boards are among the highest-wear components in any control system due to their continuous thermal cycling and load-bearing role. Maintaining at least one spare DS3800NPSE1E1G in the plant's critical spares inventory reduces mean time to repair (MTTR) during unplanned outages and supports the plant's overall reliability-centered maintenance (RCM) strategy. All units supplied by NANKMOS are tested prior to shipment, verified against GE's original performance specifications, and covered by a 12-Month Warranty, providing procurement teams with the confidence needed to qualify this component for critical spare inventory programs.

The DS3800NPSE1E1G operates as the power foundation within a fully integrated GE Speedtronic Mark IV automation platform. At the CPU layer, the DS3800HMPG master processor board depends on stable power delivery to execute turbine sequencing logic, protective algorithms, and operator command processing without interruption. The DS3800HPSC speed control board, which processes magnetic pickup signals from the turbine shaft and generates fuel control outputs, requires clean power rails to maintain the microsecond-level timing accuracy that speed governing demands. At the I/O layer, the DS3800NANA analog input board and DS3800NTBA turbine board assembly receive conditioned power from the DS3800NPSE1E1G to support their multi-channel signal acquisition functions, ensuring that thermocouple, RTD, and 4–20 mA process signals are digitized without power-induced offset errors.

The DS3800NDAC digital-to-analog converter board, responsible for generating analog output signals to fuel control valves and actuators, also draws from the power rails established by the DS3800NPSE1E1G. In communication-intensive configurations where the Mark IV system interfaces with a plant DCS via Modbus or proprietary GE protocols, the communication gateway modules installed in the rack rely on the same regulated power bus. At the HMI layer, operator interface terminals connected to the Mark IV system receive their data from the processor boards, which in turn depend on the power supply layer for uninterrupted operation. The DS3800NPSB auxiliary power supply board can be deployed alongside the DS3800NPSE1E1G in redundant configurations, with both boards sharing the load and providing automatic failover capability. Terminal blocks, signal isolators, and relay output modules installed in the same control cabinet complete the architecture, with the DS3800NPSE1E1G providing the stable electrical environment that allows all these components to perform to specification across the full turbine operating cycle.

The DS3800NPSE1E1G is deployed across a wide range of industrial sectors where GE Speedtronic Mark IV turbine control systems are in active service. In power generation facilities — including gas-fired peaking plants, combined-cycle baseload stations, and industrial cogeneration systems — the board supports continuous turbine operation by maintaining power supply integrity across all control layers during both steady-state generation and transient load-following events. In the oil and gas sector, Mark IV systems control gas compression turbines at pipeline compressor stations and offshore platform power generation units, where the DS3800NPSE1E1G's reliability directly affects production continuity and safety system availability.

In petrochemical and refinery applications, turbine-driven compressors and pumps controlled by Mark IV systems depend on the DS3800NPSE1E1G to maintain control system availability during continuous process operation. Steel mills and heavy industrial facilities operating captive power generation equipment also rely on this board as a critical maintenance spare. Water treatment and desalination plants using turbine-driven high-pressure pumps benefit from the board's long service life and compatibility with the existing Mark IV architecture. In all these applications, the DS3800NPSE1E1G supports the plant's maintenance strategy by providing a direct, specification-matched replacement that restores full system functionality without requiring control system reconfiguration or software updates.

Q1: Is the DS3800NPSE1E1G compatible with all Mark IV rack configurations, and does it require any parameter adjustment after installation?The DS3800NPSE1E1G is designed for direct installation into GE Speedtronic Mark IV rack assemblies. No parameter adjustment or field calibration is required following board replacement. After installation, output voltage levels should be verified at the rack test points as part of standard commissioning practice to confirm that all power rails are within the Mark IV system's specified tolerances before returning the turbine control system to service.

Q2: Can the DS3800NPSE1E1G be used in a redundant power supply configuration, and how does failover operate?Yes. The DS3800NPSE1E1G supports parallel redundant power supply configurations when deployed alongside a compatible secondary power supply board such as the DS3800NPSB. In this configuration, both boards share the rack power load simultaneously. If one board develops a fault, the remaining board assumes full load without interrupting power delivery to the control modules, preventing turbine trips caused by power supply failures. This redundancy architecture is standard practice in baseload and critical-service turbine applications.

Q3: What warranty and quality assurance does NANKMOS provide for the DS3800NPSE1E1G, and what is the typical lead time?All DS3800NPSE1E1G units supplied by NANKMOS are tested prior to shipment and covered by a 12-Month Warranty against manufacturing defects and functional failures. Units are verified against GE's original performance specifications before dispatch. Stock is maintained for immediate shipment to minimize turbine downtime during unplanned outages. For procurement and availability inquiries, contact NANKMOS at [email protected] or +86 18359268345.
