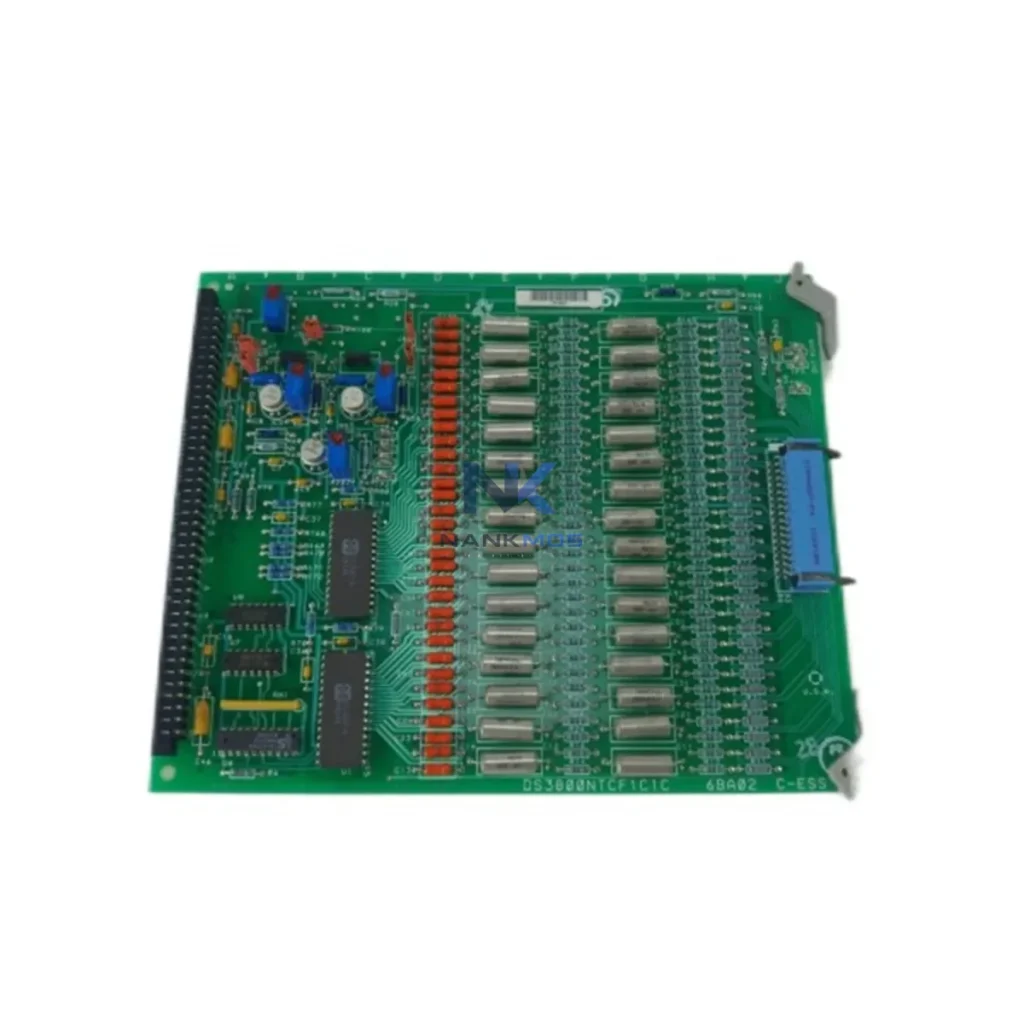

GE DS3800NTCF1C1C Thermocouple Input Card

Product Details

DS3800NTCF1C1C Product Description

The GE DS3800NTCF1C1C is a high-precision thermocouple input card engineered for the GE Mark IV turbine control platform. Designed to deliver accurate thermal signal acquisition across multi-channel inputs, this card plays a critical role in energy-aware industrial automation — enabling real-time temperature monitoring, load-adaptive control, and proactive thermal management across gas turbine, steam turbine, and combined-cycle power generation systems. By providing reliable thermocouple data to the Mark IV controller, the DS3800NTCF1C1C directly supports energy consumption monitoring, heat load reduction, and production line rhythm stabilization in energy-intensive industrial environments.

Within a GE Mark IV turbine control architecture, the DS3800NTCF1C1C thermocouple input card serves as the thermal sensing backbone for the entire energy management loop. It feeds real-time temperature data to the Mark IV core processor board — such as the DS3800HPID or DS3800NPPC — which uses this information to modulate fuel flow, adjust combustion parameters, and optimize turbine output relative to actual thermal load. This closed-loop thermal feedback is essential for preventing over-temperature trips that waste energy through unplanned shutdowns and restart cycles.

In integrated plant automation environments, the DS3800NTCF1C1C works in concert with the DS3800DMPX digital output card and DS3800NPSB power supply board to maintain stable control bus operation. The thermocouple data it provides is also consumed by SCADA systems — typically via the Mark IV's serial communication interface or through gateway modules bridging to Modbus RTU or PROFIBUS DP networks — allowing plant-level energy management systems to correlate thermal trends with fuel consumption and load dispatch decisions.

For facilities running parallel turbine trains, the DS3800NTCF1C1C integrates with I/O expansion racks and communicates upstream to HMI workstations running GE's proprietary control software, giving operators a unified view of thermal performance across multiple generating units. When paired with power monitoring modules and variable frequency drives (VFDs) on auxiliary systems such as cooling fans and lube oil pumps, the thermal data from this card enables dynamic speed adjustment — reducing parasitic energy losses during low-load periods and extending equipment service intervals.

The DS3800NTCF1C1C contributes directly to factory and plant energy optimization by ensuring that thermal anomalies are detected early, before they escalate into forced outages or equipment damage. In gas turbine power plants and industrial cogeneration facilities, undetected thermocouple drift or signal loss can cause the control system to operate turbines at suboptimal combustion ratios — burning excess fuel while delivering less usable output. The DS3800NTCF1C1C's multi-channel input design provides redundant thermal coverage, so the Mark IV controller always has valid temperature references for combustion tuning and exhaust temperature control.

From a production line rhythm perspective, stable thermal monitoring translates directly into fewer unplanned stops. Each unplanned turbine trip in a power-dependent manufacturing facility — whether in automotive stamping, chemical processing, or paper production — disrupts downstream equipment synchronization and forces energy-intensive restart sequences. By maintaining continuous, accurate thermocouple signal acquisition, the DS3800NTCF1C1C helps sustain the steady operating cadence that energy managers depend on for load forecasting and demand-side management.

Predictive maintenance programs benefit significantly from the data quality this card provides. When integrated with condition monitoring platforms, the thermocouple trends captured by the DS3800NTCF1C1C can reveal bearing degradation, combustion liner wear, and cooling system inefficiencies weeks before they cause failures — allowing maintenance teams to schedule interventions during planned outages rather than emergency shutdowns. This shift from reactive to predictive maintenance reduces both energy waste and total cost of ownership across the turbine fleet.

All units are shipped fully tested, with each DS3800NTCF1C1C verified for signal accuracy, channel isolation, and communication integrity under simulated Mark IV operating conditions. Stock is maintained for immediate dispatch, supporting both emergency replacement and planned upgrade projects. Every card is backed by a 12-Month Warranty covering manufacturing defects and functional performance.

Q1: How does the DS3800NTCF1C1C contribute to energy savings in turbine control systems? By providing accurate, real-time thermocouple data to the GE Mark IV controller, the DS3800NTCF1C1C enables precise combustion tuning and exhaust temperature management. This reduces fuel overconsumption caused by conservative control margins applied when temperature data is unreliable, directly lowering heat rate and improving turbine thermal efficiency.

Q2: Is the DS3800NTCF1C1C compatible with GE Mark V or other control platforms? The DS3800NTCF1C1C is designed for the GE Mark IV platform. While some signal conditioning characteristics are compatible with legacy Mark V interface racks in mixed-generation control cabinets, full compatibility should be verified against your specific panel revision. Contact us for cross-reference and substitution guidance before installation.

Q3: What is the replacement and testing process for this card? Each DS3800NTCF1C1C is 100% function-tested prior to shipment, including thermocouple signal simulation across all input channels, channel isolation verification, and bus communication checks. Replacement is a direct board swap within the Mark IV I/O rack — no firmware changes are required. Typical installation time is under 30 minutes for qualified control system technicians.

Q4: What warranty and supply terms apply? All DS3800NTCF1C1C units are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Units are in stock and ship within 1–3 business days. Expedited shipping is available for emergency replacement requirements. For volume orders or long-term supply agreements, contact our industrial parts team directly.
