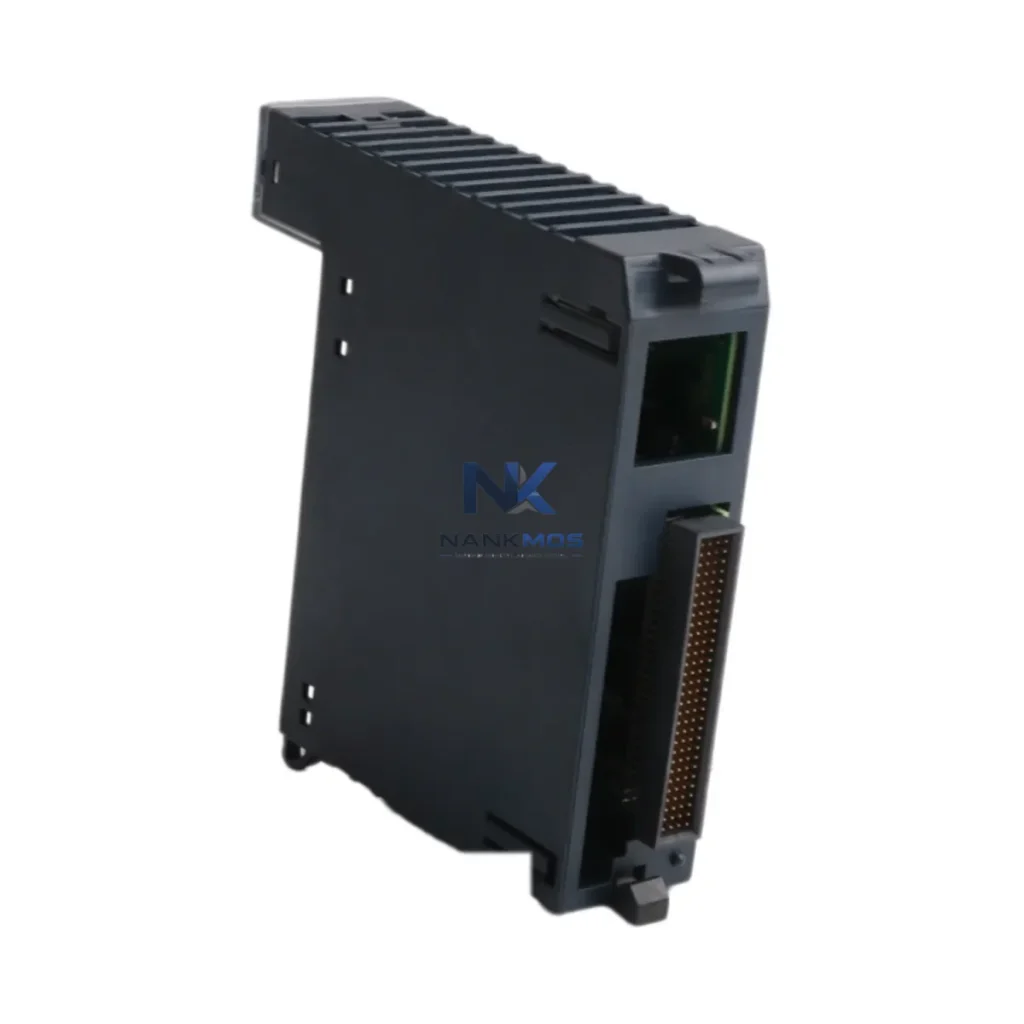

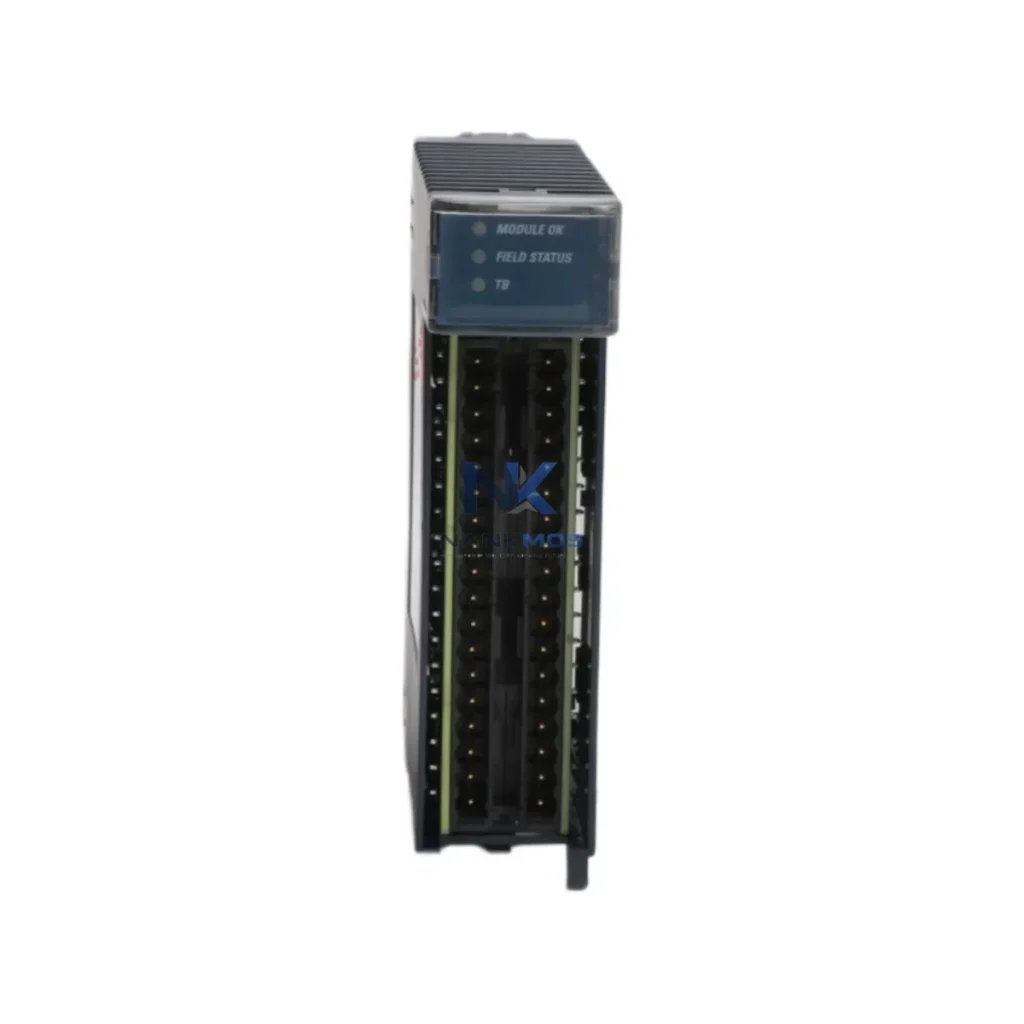

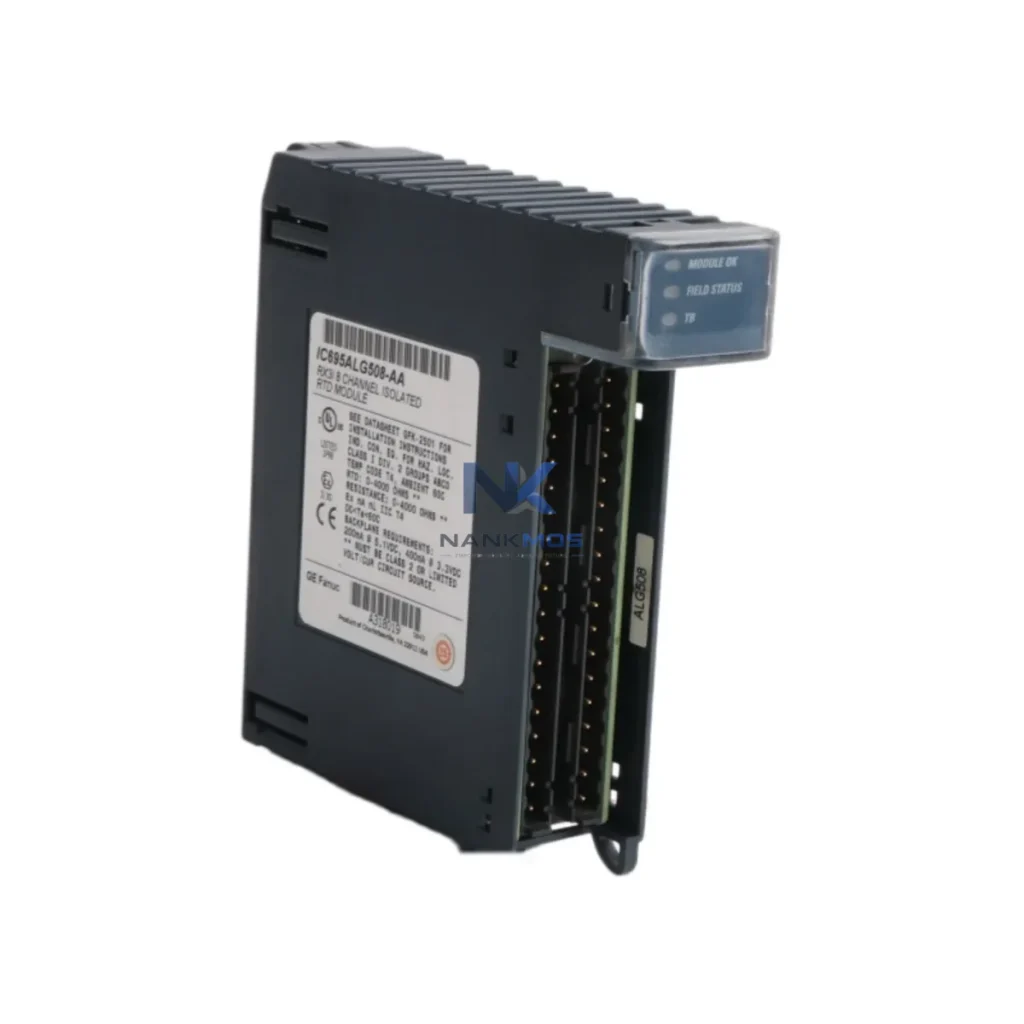

GE IC695ALG508 RTD Input Module

Product Details

IC695ALG508 Product Description

The GE IC695ALG508 is an 8-channel isolated RTD input module engineered for the GE PACSystems RX3i platform, delivering precision temperature signal acquisition across demanding industrial environments. Designed to serve as a critical node in the smart factory data chain, the IC695ALG508 bridges field-level thermal sensing with upper-layer control, monitoring, and analytics systems — enabling seamless data flow from sensor to SCADA with minimal latency and maximum signal integrity.

In modern automated production facilities, temperature data is not merely a process variable — it is a real-time diagnostic indicator, a quality assurance parameter, and a predictive maintenance trigger. The IC695ALG508 captures RTD signals from Pt100, Pt1000, Ni120, and other resistance temperature detector types across all 8 isolated channels, converting analog thermal readings into precise digital values that feed directly into the PACSystems RX3i CPU backplane via the high-speed RX3i Universal Backplane bus. This architecture eliminates signal degradation across long cable runs and ensures channel-to-channel isolation that protects measurement accuracy even in electrically noisy plant environments.

The IC695ALG508 operates at the signal acquisition layer of the smart factory data architecture. RTD sensors installed on motors, heat exchangers, furnaces, and process pipelines feed analog temperature signals into the module's isolated input channels. These signals are digitized and passed through the GE PACSystems RX3i backplane to the CPU — typically a GE IC695CPE330 or IC695CPE400 — where ladder logic or function block programs process the data for alarm thresholds, PID control loops, and data logging.

From the RX3i CPU, temperature data travels upstream via Profinet or Ethernet/IP to plant-level networks. Industrial-grade managed switches — such as those in the Hirschmann RS20 or Moxa EDS-510A series — route this data across segmented factory VLANs, ensuring deterministic communication between the PLC rack, remote I/O stations, and the control room. Where legacy field devices communicate over Modbus RTU or PROFIBUS DP, protocol gateways such as the Anybus X-gateway or Moxa MGate MB3480 translate signals into Ethernet-compatible formats, eliminating data silos between old and new automation layers.

At the HMI layer, operators interact with live temperature trends through panels running GE Cimplicity or third-party platforms like Ignition by Inductive Automation, where the IC695ALG508's channel data is visualized as real-time trend graphs, alarm dashboards, and process overviews. For remote monitoring, SCADA servers aggregate multi-zone temperature data from multiple RX3i racks — each equipped with IC695ALG508 modules — providing plant managers with a unified view of thermal conditions across the entire production line.

Edge computing nodes, such as the Advantech WISE-5000 series or Siemens SIMATIC IPC427E, can further process IC695ALG508 data locally before forwarding summarized analytics to cloud-based MES or ERP platforms. This edge-to-cloud architecture supports predictive maintenance algorithms that detect RTD drift, sensor degradation, or abnormal thermal signatures before they escalate into unplanned downtime events. Variable frequency drives (VFDs) controlling motors in temperature-sensitive zones also benefit from this data loop — drive parameters can be automatically adjusted based on real-time thermal feedback from the IC695ALG508, closing the control loop between measurement and actuation.

Power integrity for the RX3i rack is maintained by industrial DIN-rail power supplies such as the GE IC695PSA140, ensuring stable backplane voltage that protects the IC695ALG508's precision analog circuitry from power-line disturbances. The complete data chain — from RTD sensor through isolated input module, PLC CPU, industrial switch, protocol gateway, HMI, SCADA, and edge analytics — represents a fully connected smart factory architecture built on the reliability of GE PACSystems hardware.

Many industrial facilities face persistent challenges in temperature data visibility: legacy RTD transmitters output analog 4–20 mA signals that cannot be directly integrated into modern Ethernet-based SCADA systems; multiple PLCs from different vendors create protocol fragmentation that prevents unified monitoring; and remote production zones lack the network infrastructure for real-time alarm delivery to control rooms.

The IC695ALG508 addresses these challenges at the hardware level. Its 8-channel isolated design allows a single module to consolidate temperature inputs from multiple field zones, reducing the number of I/O racks required and simplifying wiring. Channel isolation prevents ground loops and cross-channel interference — a common source of measurement error in multi-sensor installations. By integrating directly into the PACSystems RX3i backplane, the module eliminates the need for external signal conditioners or analog-to-digital converters, reducing both hardware cost and potential failure points.

For sites with mixed-protocol environments, the RX3i CPU's support for Profinet, Ethernet/IP, and gateway-enabled Modbus TCP allows the IC695ALG508's data to be shared across heterogeneous control networks. Alarm conditions detected by the CPU — such as over-temperature, sensor open-circuit, or out-of-range readings — can be forwarded to SCADA alarm servers, SMS notification systems, and MES platforms simultaneously, ensuring that no critical thermal event goes undetected regardless of where operators are located.

System expansion is straightforward within the PACSystems RX3i architecture: additional IC695ALG508 modules can be added to the same backplane or distributed across remote I/O drops using Profinet device expansion, scaling temperature monitoring capacity without redesigning the control network. This modularity supports phased smart factory upgrades, allowing facilities to expand data acquisition capabilities incrementally as production lines grow.

Q1: What communication protocols does the GE IC695ALG508 support for SCADA integration?The IC695ALG508 integrates into the PACSystems RX3i backplane and communicates with upper-layer systems through the RX3i CPU's network interfaces, which support Profinet I/O and Ethernet/IP natively. Modbus TCP connectivity is available via protocol gateway devices. This allows the module's RTD data to be accessed by SCADA platforms including GE Cimplicity, iFIX, Ignition, and WinCC through standard OPC-UA or Modbus TCP drivers.

Q2: How does channel isolation improve measurement reliability in noisy factory environments?Each of the 8 input channels on the IC695ALG508 is electrically isolated from adjacent channels and from the backplane bus. This isolation prevents ground potential differences between sensor installation points from introducing measurement errors, and ensures that a fault or noise event on one channel does not affect readings on other channels — critical in environments with variable-frequency drives, welding equipment, or high-current motor loads nearby.

Q3: Can the IC695ALG508 support remote diagnostics and predictive maintenance applications?Yes. The module provides diagnostic data — including open-circuit detection, over-range indication, and module health status — that is accessible through the PACSystems RX3i CPU's diagnostic data tables. This information can be forwarded to SCADA systems or edge computing platforms for trend analysis, enabling predictive maintenance workflows that identify sensor degradation or process anomalies before they cause production interruptions.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the IC695ALG508?All IC695ALG508 units supplied by NANKMOS carry a 12-month warranty and undergo functional testing prior to shipment to verify channel accuracy, isolation integrity, and backplane communication. Units are sourced from verified supply channels and are available from in-stock inventory for fast global dispatch. For technical pre-sales support or compatibility verification, contact [email protected] or +86 18359268345.
