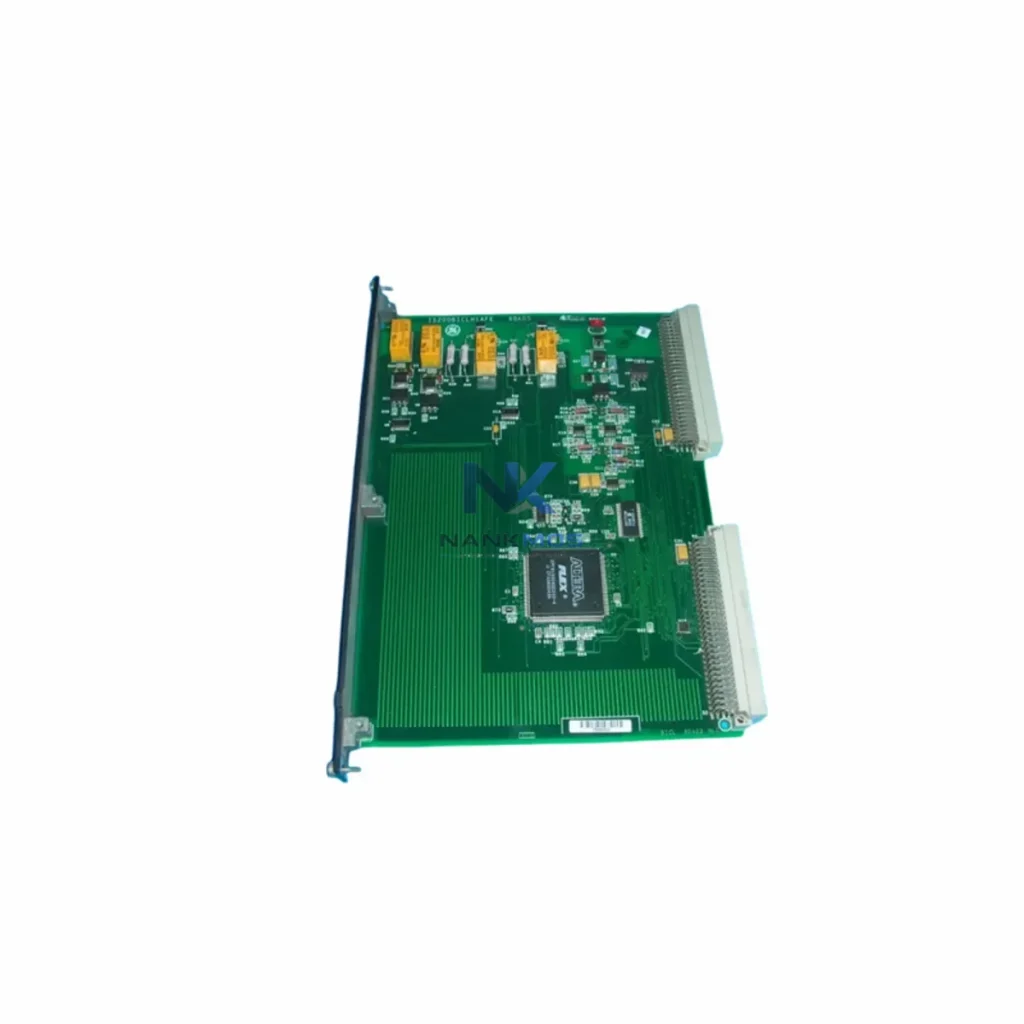

GE IS200BICLH1AFE Industrial Communication Interface Board

Product Details

IS200BICLH1AFE Product Description

The GE IS200BICLH1AFE is a high-performance Speedtronic interface board engineered for the GE Mark VI turbine control platform. Designed to serve as a critical node in the industrial data chain, this board enables seamless communication between field-level devices, PLC controllers, distributed I/O modules, HMI panels, SCADA systems, and upper-level supervisory networks. In smart factory and power generation environments where data integrity and network continuity are non-negotiable, the IS200BICLH1AFE delivers the protocol bridging and signal routing capabilities that modern automation architectures demand.

From the moment a field signal is captured at a sensor or transmitter, the IS200BICLH1AFE ensures that data travels reliably through the control backbone. Acting as a communication interface within the Mark VI system, it coordinates signal acquisition from I/O packs, processes real-time status data, and routes diagnostic information to connected SCADA platforms and HMI workstations. This end-to-end data flow — from signal origin to visualization layer — is what defines its role in connected factory design.

In a fully integrated smart factory or power plant environment, the IS200BICLH1AFE operates at the heart of the control data loop. Field instruments — including thermocouples, pressure transmitters, and vibration sensors — feed raw signals into the Mark VI I/O packs such as the IS200TBCIH1C terminal board and associated I/O modules. The IS200BICLH1AFE interfaces directly with these packs, collecting and routing process data across the Mark VI backplane to the main controller boards.

The Mark VI controller, supported by boards like the IS200VCMIH2C VME communication module, aggregates this data and transmits it upstream via IONet — GE's proprietary high-speed deterministic network. From there, the data reaches the IS200DSPXH1B digital signal processor board, which handles real-time computation and alarm logic. Simultaneously, the network layer connects to HMI workstations running GE's Cimplicity SCADA platform, where operators monitor turbine performance, set-points, and alarm states in real time.

For facilities integrating GE Mark VI systems with third-party SCADA platforms or MES layers, protocol conversion is handled through OPC-UA gateways or Modbus TCP bridges. Industrial Ethernet switches — such as managed switches supporting PROFINET or EtherNet/IP — extend the network reach to remote I/O panels and edge devices. The IS200BICLH1AFE ensures that the signal chain from field device to supervisory system remains unbroken, with deterministic latency and high fault tolerance.

Remote diagnostic capability is another key strength of this architecture. Through the Mark VI's built-in diagnostic framework, maintenance engineers can interrogate the IS200BICLH1AFE's communication status, I/O pack health, and network link quality from a remote HMI or SCADA terminal — without requiring physical access to the control cabinet. This reduces mean time to repair (MTTR) and supports predictive maintenance strategies aligned with Industry 4.0 objectives.

When paired with edge computing gateways that aggregate data from multiple Mark VI controllers, the IS200BICLH1AFE contributes to plant-wide data visibility. Historian servers — such as those running OSIsoft PI or GE Proficy Historian — receive time-stamped process data for trend analysis, compliance reporting, and performance benchmarking. The complete data chain, from the IS200BICLH1AFE's I/O interface through to the historian and analytics dashboard, forms the backbone of a transparent, data-driven production environment.

Many industrial sites operating legacy GE Mark VI turbine control systems face persistent challenges: protocol fragmentation between the Mark VI IONet backbone and modern Ethernet-based SCADA platforms, data silos between turbine control and plant-wide MES systems, and limited remote visibility into controller and I/O pack health. The IS200BICLH1AFE directly addresses these pain points.

Protocol Unification: By serving as the interface between Mark VI I/O packs and the controller backplane, the IS200BICLH1AFE ensures that all field data — regardless of sensor type or signal format — is normalized within the Mark VI architecture before being passed to upper-level systems via OPC-UA or Modbus TCP bridges. This eliminates the protocol mismatch that often causes data gaps between turbine control and plant SCADA layers.

Production Line Transparency: With the IS200BICLH1AFE maintaining reliable I/O communication, operators gain continuous visibility into turbine operating parameters — speed, temperature, vibration, fuel flow — displayed in real time on Cimplicity HMI screens or third-party SCADA dashboards. Alarm events are logged with millisecond timestamps, enabling precise root-cause analysis after any trip or fault condition.

Remote Monitoring and Diagnostics: The board's integration within the Mark VI diagnostic framework allows remote engineers to assess communication link status, I/O pack fault codes, and board-level health indicators without dispatching field technicians. This capability is especially valuable for unmanned or remotely operated power generation facilities.

System Scalability: As plant automation requirements grow, the IS200BICLH1AFE supports system expansion by maintaining backward compatibility within the Mark VI and Mark VIe architecture. Additional I/O packs, communication modules, and network segments can be integrated without disrupting existing data flows, making it a future-proof investment for long-term automation infrastructure.

Q1: What communication protocols does the GE IS200BICLH1AFE support? The IS200BICLH1AFE operates within the GE Mark VI architecture, which uses IONet as its primary high-speed deterministic communication protocol. Integration with external SCADA, HMI, or MES systems is achieved via OPC-DA/UA servers or Modbus RTU/TCP gateways connected to the Mark VI controller layer. Direct Ethernet or PROFINET connectivity requires an appropriate protocol bridge module.

Q2: How does this board perform in terms of communication latency and network stability? Within the Mark VI IONet architecture, the IS200BICLH1AFE supports deterministic, low-latency communication between I/O packs and the controller — typically in the sub-millisecond range for critical control loops. Network stability is maintained through the Mark VI's redundant communication architecture, which provides automatic failover in the event of a link fault, ensuring continuous data flow without operator intervention.

Q3: Can the IS200BICLH1AFE be integrated with third-party SCADA or HMI systems? Yes. While the IS200BICLH1AFE is native to the GE Mark VI platform, integration with third-party SCADA systems (such as Wonderware, Ignition, or Siemens WinCC) is achievable through OPC-UA gateways or Modbus TCP bridges installed at the Mark VI controller level. This allows plant operators to consolidate turbine data within a unified SCADA environment alongside other automation assets.

Q4: What quality assurance and warranty coverage is provided? Every GE IS200BICLH1AFE unit supplied by NANKMOS undergoes functional testing and communication verification prior to shipment. All units are covered by a 12-Month Warranty from the date of delivery. In-stock units are available for immediate dispatch, with global shipping support. For technical pre-sales consultation or post-sales support, contact our team at [email protected] or +86 18359268345.
