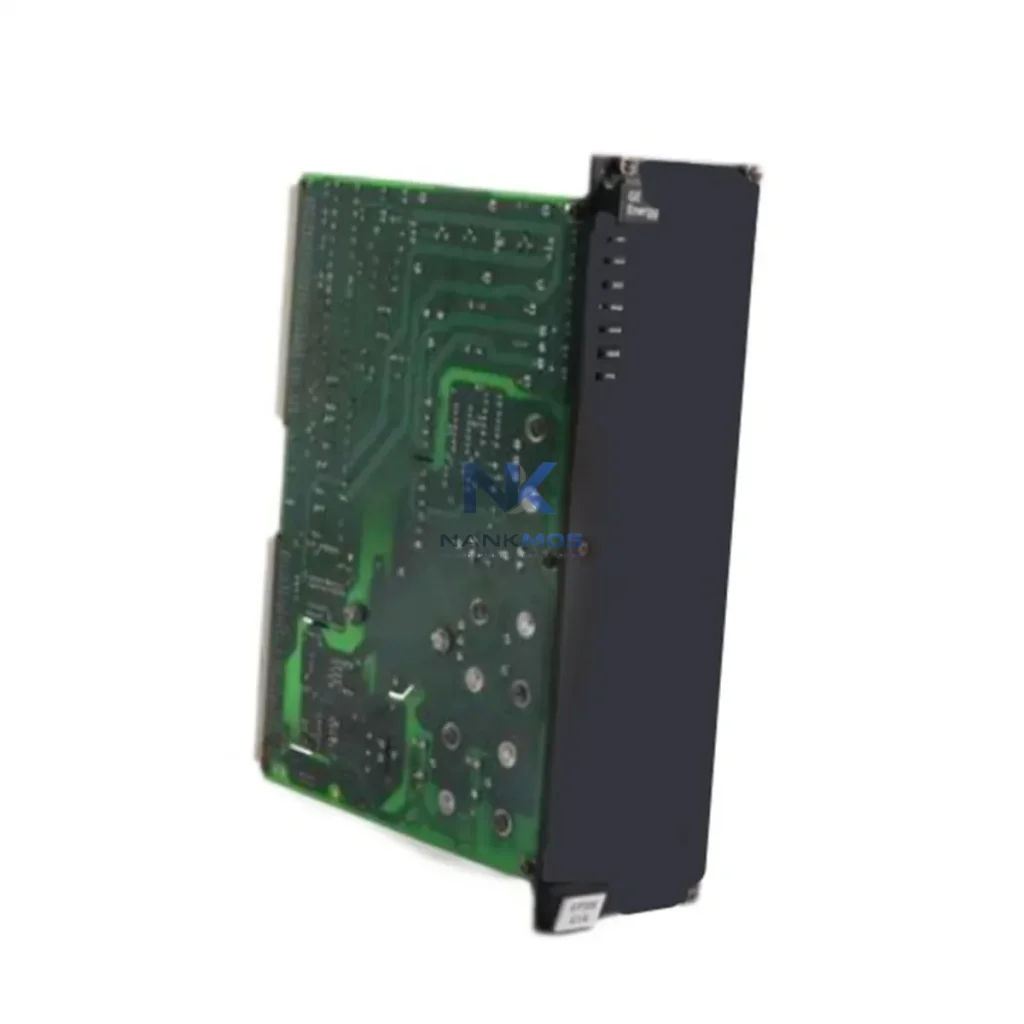

GE IS200BICLH1AED IGBT Drive Source Bridge PCB

Product Details

IS200BICLH1AED Product Description

The GE IS200BICLH1AED is a high-reliability IGBT Drive Source Bridge PCB engineered for GE Mark VI turbine control systems. In modern smart factory environments, this board functions as a critical node in the industrial data chain — bridging power conversion hardware with the supervisory and diagnostic layers that keep production lines transparent, responsive, and continuously optimized. Whether deployed in gas turbine power generation, combined-cycle plants, or heavy industrial drive applications, the IS200BICLH1AED delivers the switching precision and signal integrity that upstream control networks depend on for real-time feedback and closed-loop automation.

Within a Mark VI architecture, the IS200BICLH1AED interfaces directly with the IGBT gate driver stack, receiving firing commands from the Mark VI controller boards — such as the IS200VCRCH1B (Voltage and Current Regulator Card) and the IS200DSPXH1B (Digital Signal Processor Board) — and translating those commands into precise gate pulses that govern inverter switching. This tight coupling between the control layer and the power stage is what enables the Mark VI platform to achieve sub-millisecond response times, a prerequisite for stable grid-tied generation and variable-speed drive applications.

Understanding the IS200BICLH1AED's role requires tracing the full data flow from field-level sensing to enterprise-level visibility. At the base of the chain, process sensors — thermocouples, pressure transducers, and speed pickups — feed raw analog and digital signals into GE Mark VI I/O terminal boards such as the IS200TBAIH1C (Analog Input Terminal Board) and the IS200TBCIH1C (Contact Input Terminal Board). These boards condition and digitize field signals, passing structured data upstream through the Mark VI IONet to the core processor boards.

The IS200VCMIH2C (VME Communications Module) aggregates this I/O data and coordinates with the IS200DSPXH1B to execute real-time control algorithms. The resulting gate firing commands are routed to the IS200BICLH1AED, which drives the IGBT switching bridge with the timing precision required for stable power conversion. Simultaneously, the Mark VI controller exports process variables — current, voltage, switching frequency, fault codes — back through IONet to the IS200UCVEH2A (Unit Control and VME Ethernet Board), which serves as the gateway between the deterministic control network and the plant's standard Ethernet infrastructure.

From the UCVEH, data flows to the plant SCADA layer via OPC-DA or OPC-UA, feeding GE Cimplicity dashboards or third-party SCADA platforms with live turbine performance metrics. HMI operators can monitor IGBT junction temperatures, DC bus voltage, and drive output frequency in real time, with alarm thresholds configured to trigger automated responses — load shedding, bypass switching, or maintenance alerts — without manual intervention. Edge gateway devices, such as those running GE's Predix edge software stack or compatible third-party industrial IoT gateways, can further aggregate this data for cloud-based analytics, predictive maintenance modeling, and fleet-wide performance benchmarking.

For facilities running mixed-vendor automation environments, protocol conversion at the SCADA boundary is handled by dedicated communication gateways — for example, Moxa or ProSoft gateways that bridge IONet-sourced OPC data to Modbus TCP, PROFIBUS DP, or EtherNet/IP for integration with Siemens S7 PLCs, Allen-Bradley ControlLogix controllers, or third-party DCS platforms. This architecture ensures that the IS200BICLH1AED's real-time switching data is not siloed within the GE ecosystem but is available across the plant's unified data fabric, supporting cross-system alarm correlation, energy efficiency reporting, and regulatory compliance logging.

Industrial sites operating aging Mark VI installations frequently encounter a set of recurring data challenges that the IS200BICLH1AED — when properly integrated — helps resolve:

Protocol Fragmentation: Legacy turbine control systems often run proprietary communication stacks that cannot natively export data to modern SCADA or MES platforms. By maintaining a fully functional IS200BICLH1AED in the drive bridge position, the Mark VI controller retains its ability to generate structured, timestamped process data that OPC-UA gateways can translate into standard industrial protocols, eliminating the data dead zones that arise from degraded or substituted hardware.

Data Silos and Production Transparency: When drive bridge boards fail or are replaced with non-OEM substitutes, the fidelity of switching feedback data degrades, causing SCADA historians to log incomplete or inaccurate drive performance records. The IS200BICLH1AED's OEM-grade signal integrity ensures that every switching event is accurately reflected in the control system's data stream, supporting production transparency and audit-ready reporting.

Remote Monitoring and Diagnostics: The Mark VI platform's remote diagnostic capability depends on accurate, continuous data from every board in the control chain. A compromised drive bridge board introduces noise and latency into the feedback loop, degrading the quality of remote diagnostic sessions conducted via GE's ToolboxST or third-party remote access platforms. Replacing a failed board with a tested IS200BICLH1AED restores the signal baseline required for reliable remote fault isolation.

Alarm Tracking and System Expansion: As plants expand capacity or integrate new generation units, the Mark VI architecture scales by adding I/O boards and drive modules. Maintaining a consistent hardware standard — including OEM-spec IGBT bridge boards — ensures that alarm logic, interlock configurations, and SCADA tag mappings remain valid across the expanded system without requiring recalibration or software patching.

Q1: Does the IS200BICLH1AED introduce communication latency in the Mark VI control loop? No. The IS200BICLH1AED operates as a hardware gate driver interface, not a software communication node. Gate firing commands are transmitted via the Mark VI backplane at deterministic hardware speeds, with no protocol overhead or software stack latency. The board's switching response is governed by the IGBT gate driver circuitry, which operates in the microsecond range — well within the timing requirements of the Mark VI control loop.

Q2: Is the IS200BICLH1AED compatible with both Mark VI and Mark VIe control architectures? The IS200BICLH1AED is designed for the GE Mark VI platform. Compatibility with Mark VIe depends on the specific drive configuration and backplane revision. We recommend verifying the target system's hardware revision and consulting the Mark VI/VIe hardware compatibility matrix before installation. Our technical team can assist with cross-reference validation prior to shipment.

Q3: How is network stability maintained when replacing the IS200BICLH1AED during a planned outage? Because the IS200BICLH1AED is a hardware board rather than a network-addressable device, its replacement does not require IP reconfiguration or network topology changes. The Mark VI controller automatically re-establishes the control loop upon board installation and system restart. All SCADA tags, OPC subscriptions, and historian connections remain active throughout the replacement process, minimizing data gaps in the plant historian.

Q4: What pre-shipment testing is performed, and what does the 12-month warranty cover? Every IS200BICLH1AED unit undergoes functional verification testing prior to shipment, including gate driver circuit continuity checks, IGBT interface signal validation, and visual inspection for component integrity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with full traceability documentation. Global shipping is available with standard lead times; expedited options are available upon request. Contact [email protected] or +86 18359268345 for stock confirmation and shipping schedules.
