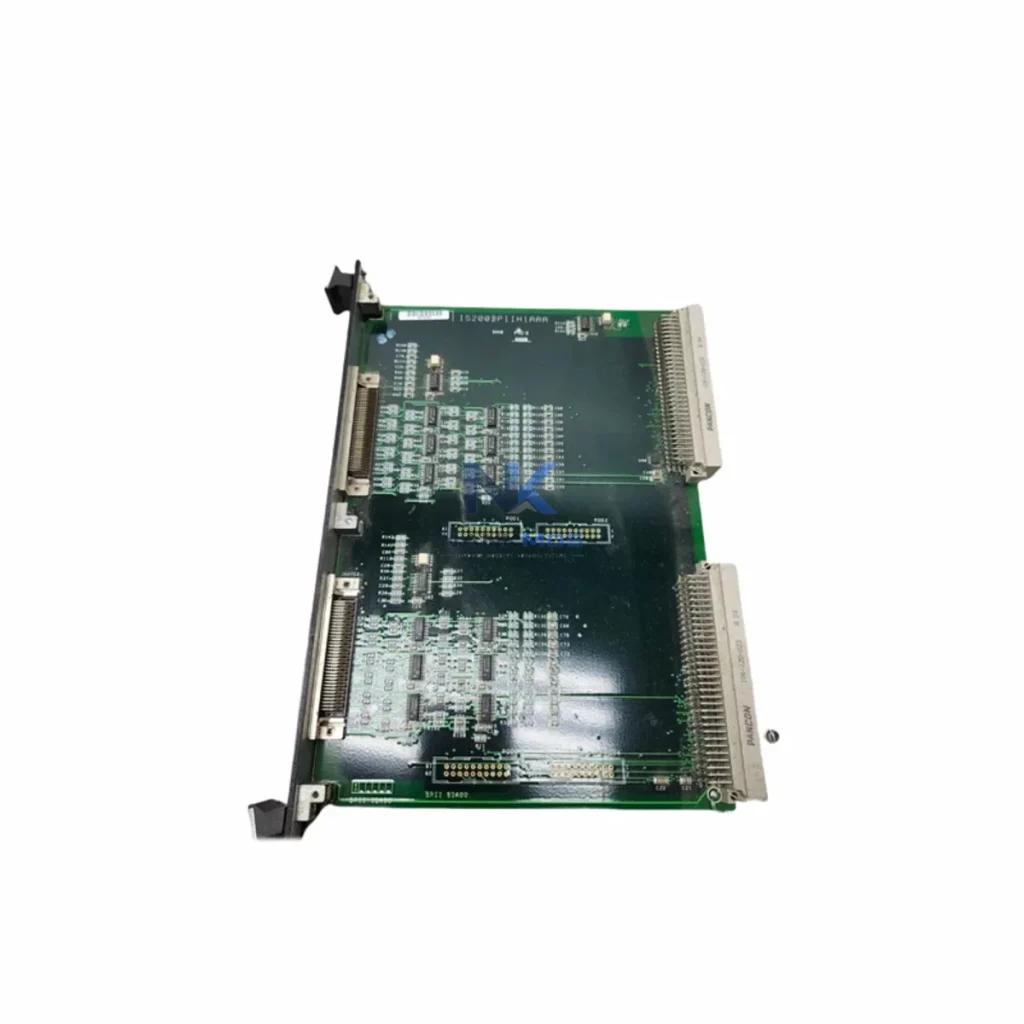

GE IS200BPIIH1AAA Industrial Network Interface

Product Details

IS200BPIIH1AAA Product Description

The GE IS200BPIIH1AAA is a high-performance BPI (Backplane Interface) communication board engineered for GE Mark VI turbine control systems. Designed to serve as the critical data bridge between field-level devices and upper-layer control networks, this module enables seamless, real-time data exchange across the full automation stack — from signal acquisition at the sensor level through PLC processing, remote I/O aggregation, HMI visualisation, SCADA supervision, and cloud-edge analytics. In smart factory environments where uptime, data integrity, and protocol interoperability are non-negotiable, the IS200BPIIH1AAA delivers the network stability and communication depth that modern industrial operations demand.

At its core, the IS200BPIIH1AAA functions as the backbone communication interface within the GE Mark VI control platform, managing high-speed data transfer between the controller's internal backplane and external network segments. Its architecture supports multi-node communication topologies, enabling distributed I/O modules, servo drive feedback loops, and field instrumentation to synchronise with the central control logic at deterministic cycle times. This determinism is essential for turbine governor control, where millisecond-level response to process variables directly impacts plant safety and efficiency.

Understanding the IS200BPIIH1AAA's role requires mapping the complete data flow it enables within a connected factory architecture. At the field level, process sensors — including thermocouples, pressure transmitters, and vibration probes — feed raw analogue and digital signals into terminal boards such as the GE IS200TBCIH1C and IS200TBAIH1C, which condition and route these signals to the Mark VI controller rack. The IS200BPIIH1AAA sits at the heart of this rack, managing the backplane communication bus that interconnects the I/O packs, the controller module (such as the IS215UCVEH2A VCMI controller), and the network interface layer.

From the controller, processed data travels upstream via the IONet Ethernet backbone — a GE-proprietary deterministic network — to the IS200IOCIH1A I/O controller interface, which aggregates data from multiple distributed I/O packs and forwards it to the plant's SCADA layer. At the SCADA level, GE Cimplicity or third-party platforms receive real-time process values, alarm states, and control setpoints through OPC-DA or Modbus TCP/IP gateways. Operators at HMI workstations — often running GE ToolboxST or equivalent supervisory software — can monitor turbine speed, exhaust temperature, fuel flow, and vibration signatures with sub-second refresh rates.

For plants integrating edge computing, the IS200BPIIH1AAA's network output can be bridged to an industrial edge gateway — such as those supporting MQTT or OPC-UA northbound protocols — enabling data forwarding to cloud analytics platforms for predictive maintenance modelling. Variable frequency drives (VFDs) controlling auxiliary equipment such as cooling fans and fuel pumps also connect into this data ecosystem via Modbus RTU or PROFIBUS DP links, with their operational parameters visible at the SCADA dashboard alongside turbine control data. The IS200EPCTG1A Ethernet port card and IS200DSPXH1D digital signal processor board are typical companion modules that extend the Mark VI system's network reach and processing capacity in such integrated architectures.

Industrial managed switches — rated for DIN-rail mounting and operating temperature ranges of -40°C to +70°C — form the physical network fabric connecting the Mark VI rack to the plant LAN. Redundant ring topologies using RSTP or MRP protocols ensure that a single cable fault does not interrupt the real-time data stream. The IS200BPIIH1AAA's communication design is compatible with these redundant Ethernet architectures, supporting the high-availability requirements of power generation and process industry applications.

Many industrial sites operating legacy GE Mark VI systems face a common set of data integration challenges: protocol fragmentation, data silos between the control layer and the enterprise network, limited remote visibility, and difficulty scaling the automation architecture as production demands grow. The IS200BPIIH1AAA directly addresses these pain points by providing a stable, high-bandwidth backplane communication path that eliminates bottlenecks between the I/O layer and the controller.

Protocol Unification: Sites running mixed-protocol environments — where some field devices speak Modbus RTU, others use PROFIBUS DP, and the control system uses GE's proprietary IONet — often struggle to achieve a unified data view. The IS200BPIIH1AAA, combined with appropriate protocol gateway modules, enables data from all these sources to be normalised and presented to the SCADA layer through a single OPC-DA or Modbus TCP/IP interface, eliminating the need for separate data collection systems.

Remote Monitoring and Diagnostics: Unplanned downtime in turbine control applications carries significant financial and safety consequences. By maintaining a reliable backplane communication link, the IS200BPIIH1AAA ensures that remote diagnostic tools — including GE's ToolboxST diagnostic suite — can continuously monitor module health, communication error rates, and I/O pack status from a central engineering workstation or remote VPN connection. Alarm events are transmitted in real time to the SCADA historian, enabling post-event analysis and root-cause identification without requiring on-site inspection.

Production Line Transparency: In combined-cycle power plants and industrial process facilities, achieving full production transparency requires that every sensor reading, actuator command, and alarm event be captured, timestamped, and stored in a process historian. The IS200BPIIH1AAA's deterministic communication architecture ensures that no data packets are dropped during high-load conditions, maintaining the data completeness that process historians and MES systems require for accurate production reporting.

System Scalability: As plant operators add new I/O packs, expand the turbine control system to cover additional units, or integrate new field devices, the IS200BPIIH1AAA's backplane interface accommodates these expansions without requiring controller replacement. Its compatibility with the broader Mark VI and Mark VIe module ecosystem — including power supply modules such as the IS200PSCDH1A and communication interface cards — means that system growth is managed through modular addition rather than wholesale architecture redesign.

Q1: What communication protocols does the GE IS200BPIIH1AAA support, and is it compatible with third-party SCADA systems? The IS200BPIIH1AAA operates within the GE Mark VI backplane using GE's IONet proprietary protocol for internal rack communication. For external network integration, the Mark VI system supports Modbus TCP/IP, GE SRTP, and OPC-DA, enabling connectivity with third-party SCADA platforms including Wonderware, Ignition, and Siemens WinCC via standard OPC or Modbus gateways. Direct PROFIBUS or PROFINET integration requires an additional protocol gateway module.

Q2: How does the IS200BPIIH1AAA ensure network stability in high-noise industrial environments? The module is designed to GE's Mark VI environmental specifications, including EMC compliance for industrial control environments with high electromagnetic interference from variable frequency drives, power transformers, and switching equipment. The backplane communication bus uses differential signalling and error-detection protocols to maintain data integrity. For the external Ethernet network, industrial-grade managed switches with RSTP redundancy are recommended to eliminate single points of failure in the plant LAN.

Q3: Can the IS200BPIIH1AAA support remote diagnostics and what tools are required? Yes. When the Mark VI system is connected to the plant network, GE's ToolboxST software provides full remote diagnostic capability, including real-time module status monitoring, communication error logging, I/O pack health checks, and firmware version management. Remote access is typically configured via a secure VPN connection to the plant engineering workstation. The IS200BPIIH1AAA's backplane interface ensures that diagnostic data from all connected I/O packs and controller modules is available to ToolboxST without interrupting normal control operations.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the IS200BPIIH1AAA? All IS200BPIIH1AAA units supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional verification to confirm communication interface integrity and module identification. Units are sourced from verified supply channels and inspected for physical condition, firmware compatibility, and backplane connector integrity prior to dispatch. In-stock units are available for immediate shipment, with lead times confirmed at the time of order placement.
