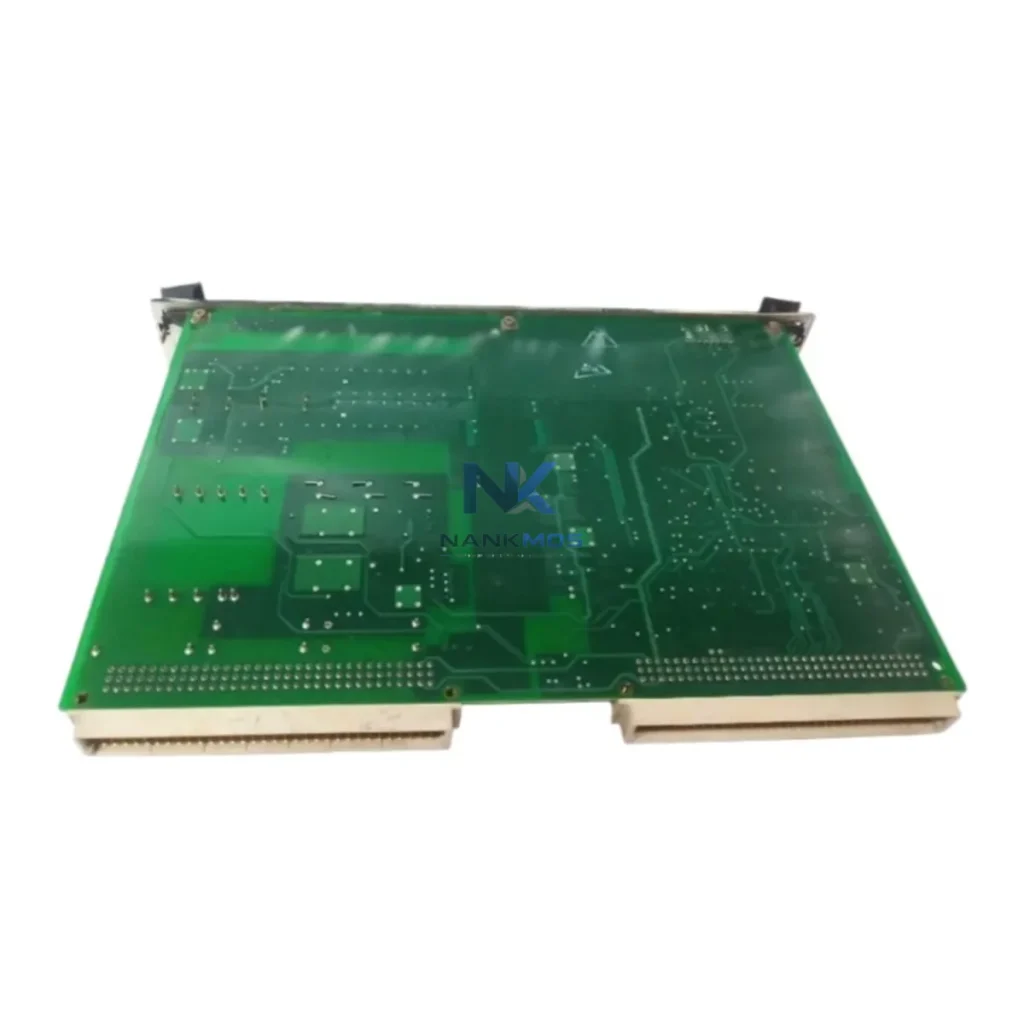

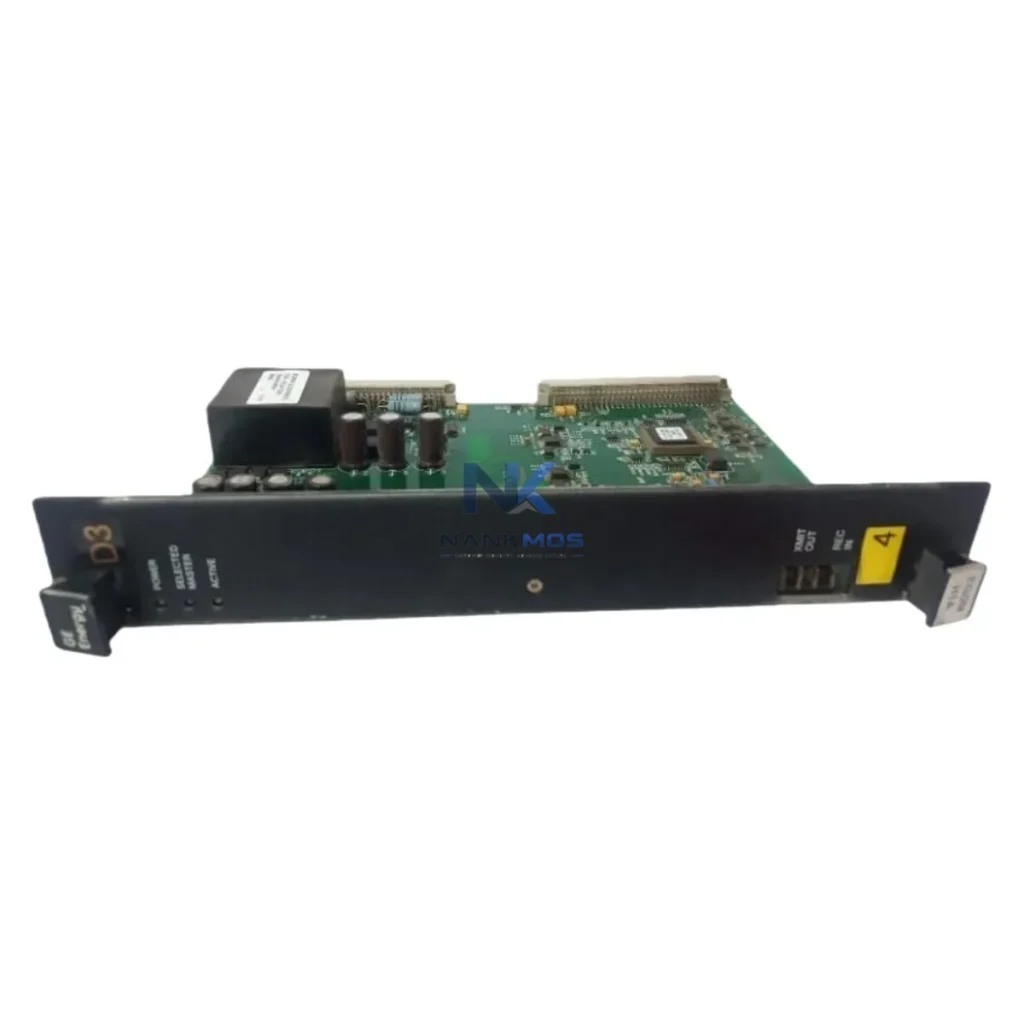

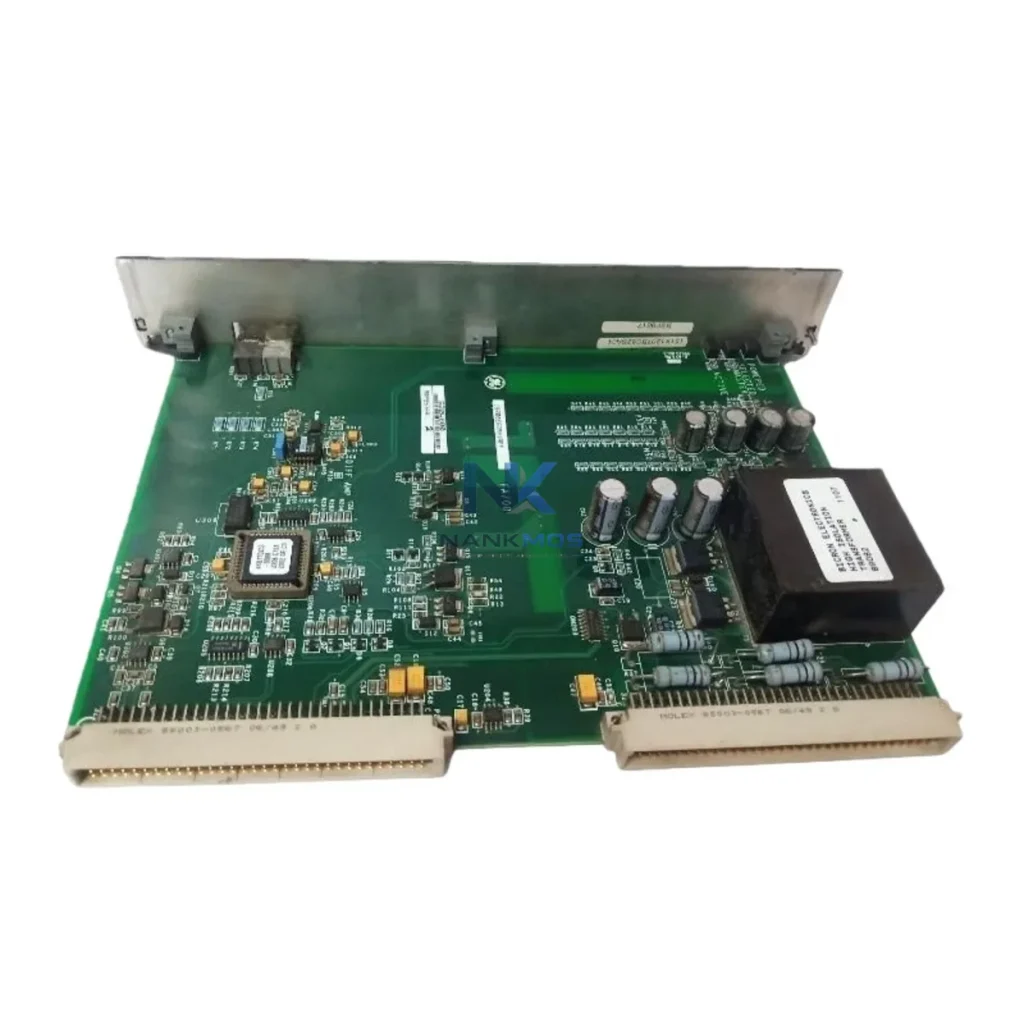

GE IS200EGDMH1AFG Ethernet Gateway Module

Product Details

IS200EGDMH1AFG Product Description

The GE IS200EGDMH1AFG is not a standalone component — it is a precision-engineered communication node designed to operate within the full depth of the GE Mark VI turbine and process control ecosystem. Understanding its role requires examining how it interacts across every layer of the control architecture.

At the control layer, the IS200EGDMH1AFG serves as the Ethernet gateway that bridges the Mark VI controller core — typically the IS215UCVEH2AE or IS215UCVEH2AC main control processor — to the plant-level Ethernet network. Without a properly configured gateway module, the controller's internal IONET bus cannot communicate with SCADA systems, historian servers, or remote HMI stations. The IS200EGDMH1AFG resolves this by providing a deterministic, low-latency Ethernet bridge that preserves the real-time integrity of the control loop.

At the I/O layer, the gateway works in close coordination with analog and digital I/O boards such as the IS200AAIAH1A analog input module and the IS200DTURH1BBB turbine I/O board. These modules feed process signals — temperature, pressure, speed, and vibration — into the controller, and the IS200EGDMH1AFG ensures that aggregated I/O data is accurately transmitted upstream to the DCS or SCADA layer without signal degradation or latency spikes.

At the communication layer, the IS200EGDMH1AFG supports dual Ethernet ports, enabling network segmentation between the control network and the plant information network. This architecture is critical in facilities where cybersecurity zoning is enforced. The module is compatible with Modbus TCP, allowing integration with third-party devices such as power meters, protection relays, and variable frequency drives that do not natively speak IONET. In redundant network topologies, the IS200EGDMH1AFG can be paired with a secondary gateway to eliminate single points of failure at the communication layer.

At the power layer, the IS200EGDMH1AFG draws regulated 24 VDC from the Mark VI power distribution backplane, typically supplied by the IS200EPCTG1A power converter module. Stable, clean DC power is essential for maintaining Ethernet link integrity, particularly in environments with high electromagnetic interference from large motors, transformers, or variable speed drives. The power architecture of the Mark VI rack ensures that the gateway module receives conditioned power with minimal ripple, protecting the communication hardware from voltage transients.

At the HMI layer, the IS200EGDMH1AFG enables connectivity to GE's ToolboxST engineering workstation and to operator interface terminals running Cimplicity or third-party SCADA platforms. Engineers use the Ethernet gateway to perform online configuration changes, firmware updates, and real-time diagnostic monitoring without interrupting the control process. This live-access capability significantly reduces planned maintenance windows and supports condition-based maintenance strategies.

At the redundancy layer, the IS200EGDMH1AFG is fully compatible with GE Mark VI Triple Modular Redundancy (TMR) configurations. In a TMR system, three independent controller boards — such as the IS215UCVEH2AE — operate in parallel, with voting logic determining the correct output. The gateway module participates in this redundancy scheme by maintaining synchronized communication paths across all three controller channels, ensuring that a single hardware fault does not disrupt plant-level data visibility or remote control capability.

At the protection layer, the IS200EGDMH1AFG works alongside protection I/O modules such as the IS200TRPAH1BDD protection relay interface board. In turbine protection applications, the gateway ensures that trip signals and alarm states are communicated to the plant DCS within the required response time, supporting both automatic protective actions and operator-initiated shutdowns. The module's onboard diagnostics continuously monitor Ethernet link status and report faults to the ToolboxST diagnostic console.

At the maintenance layer, the IS200EGDMH1AFG's modular VME form factor allows hot-swap replacement in systems designed for online maintenance. Spare module availability is a critical factor in long-term plant reliability, and NANKMOS maintains verified stock of the IS200EGDMH1AFG alongside complementary modules including the IS200VCRCH1BBB VME communication card and the IS200BICLH1ABA bus interface card. Each unit shipped by NANKMOS undergoes pre-shipment functional testing to verify Ethernet link establishment, protocol handshake integrity, and power consumption within specification.

The IS200EGDMH1AFG is deployed across a wide range of heavy industrial environments where the GE Mark VI platform is the control system of choice:

Power Generation: In gas turbine and steam turbine power plants, the IS200EGDMH1AFG connects the Mark VI turbine controller to the plant DCS, enabling centralized monitoring of turbine speed, exhaust temperature, compressor pressure ratio, and fuel flow. Operators can view real-time turbine health data on Cimplicity HMI screens and respond to alarms without requiring physical access to the control cabinet.

Oil & Gas / Petrochemical: In compressor stations and LNG processing facilities, the gateway bridges the Mark VI controller to the plant safety instrumented system (SIS) and process historian. This integration supports regulatory compliance reporting and enables remote diagnostics by OEM service engineers, reducing the need for on-site visits during routine condition assessments.

Water & Wastewater Treatment: In large pumping stations and water treatment plants using GE Mark VI for pump and blower control, the IS200EGDMH1AFG provides the Ethernet backbone for SCADA integration, enabling remote monitoring of flow rates, pressure, and motor current from a central control room.

Mining & Metallurgy: In ore processing and smelting operations, the gateway supports integration between the Mark VI controller and plant-wide MES systems, enabling production data collection, energy monitoring, and predictive maintenance scheduling based on real-time equipment telemetry.

Marine & Offshore: On LNG carriers and offshore platforms where GE Mark VI controls gas turbine-driven compressors or generators, the IS200EGDMH1AFG provides the communication link between the turbine control system and the vessel's integrated automation system (IAS), supporting remote monitoring from the bridge or engine control room.

Q1: Is the IS200EGDMH1AFG compatible with both simplex and TMR Mark VI configurations? Yes. The IS200EGDMH1AFG is designed to operate in both simplex (single-controller) and Triple Modular Redundancy (TMR) Mark VI configurations. In TMR systems, the gateway participates in the redundant communication architecture, maintaining synchronized Ethernet connectivity across all three controller channels. No hardware modification is required — the module's operating mode is configured through ToolboxST during system commissioning.

Q2: What network protocols does the IS200EGDMH1AFG support, and can it integrate with third-party SCADA systems? The IS200EGDMH1AFG supports IONET (GE's proprietary control network protocol) and Modbus TCP over standard Ethernet (IEEE 802.3). This dual-protocol capability allows the module to communicate natively with other Mark VI components on the IONET bus while simultaneously providing Modbus TCP access to third-party SCADA platforms, historians, and HMI systems. Integration with Wonderware, Ignition, and Cimplicity has been validated in field installations.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term spare parts availability? Every IS200EGDMH1AFG supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes a pre-shipment functional test that verifies Ethernet link establishment, power consumption, and protocol communication. NANKMOS maintains ongoing inventory of the IS200EGDMH1AFG and related Mark VI modules to support long-term spare parts programs for power plants, petrochemical facilities, and other critical infrastructure operators. For warranty claims or technical support, contact [email protected].
