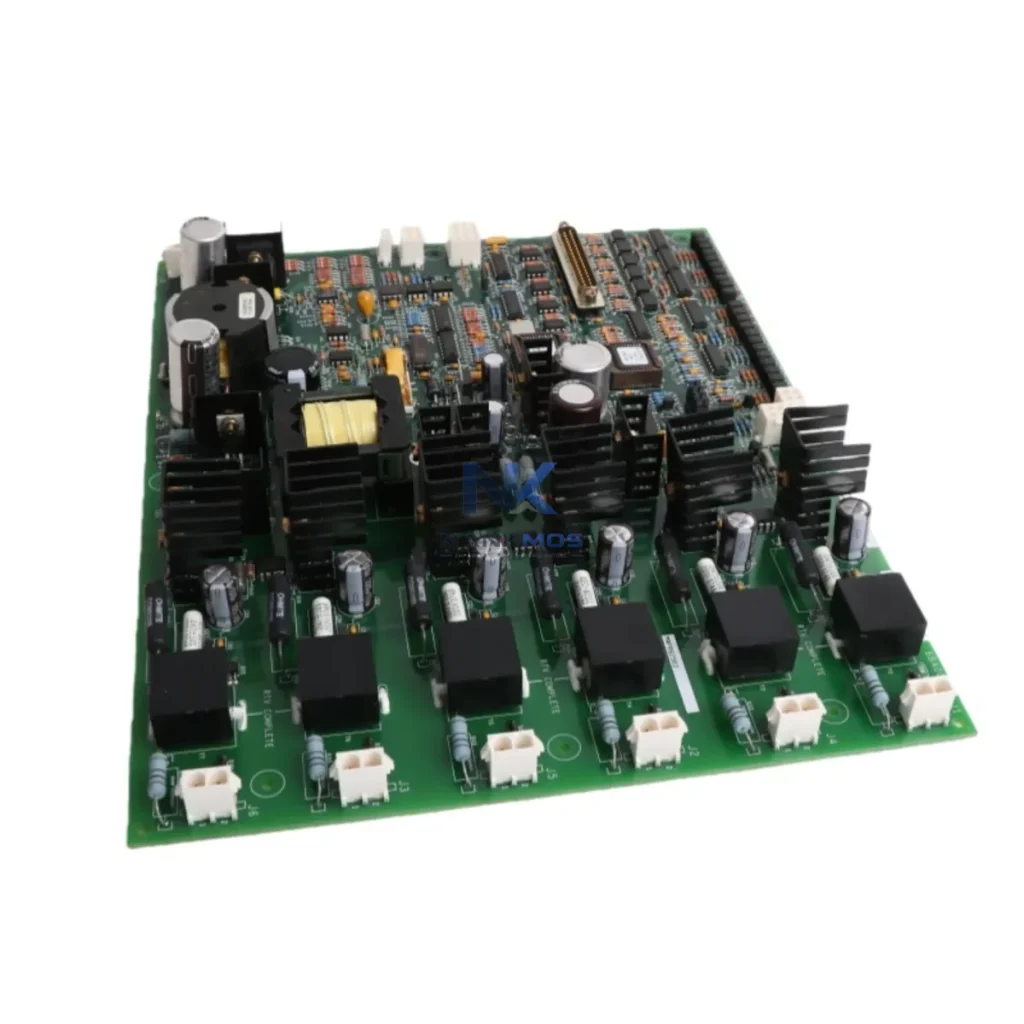

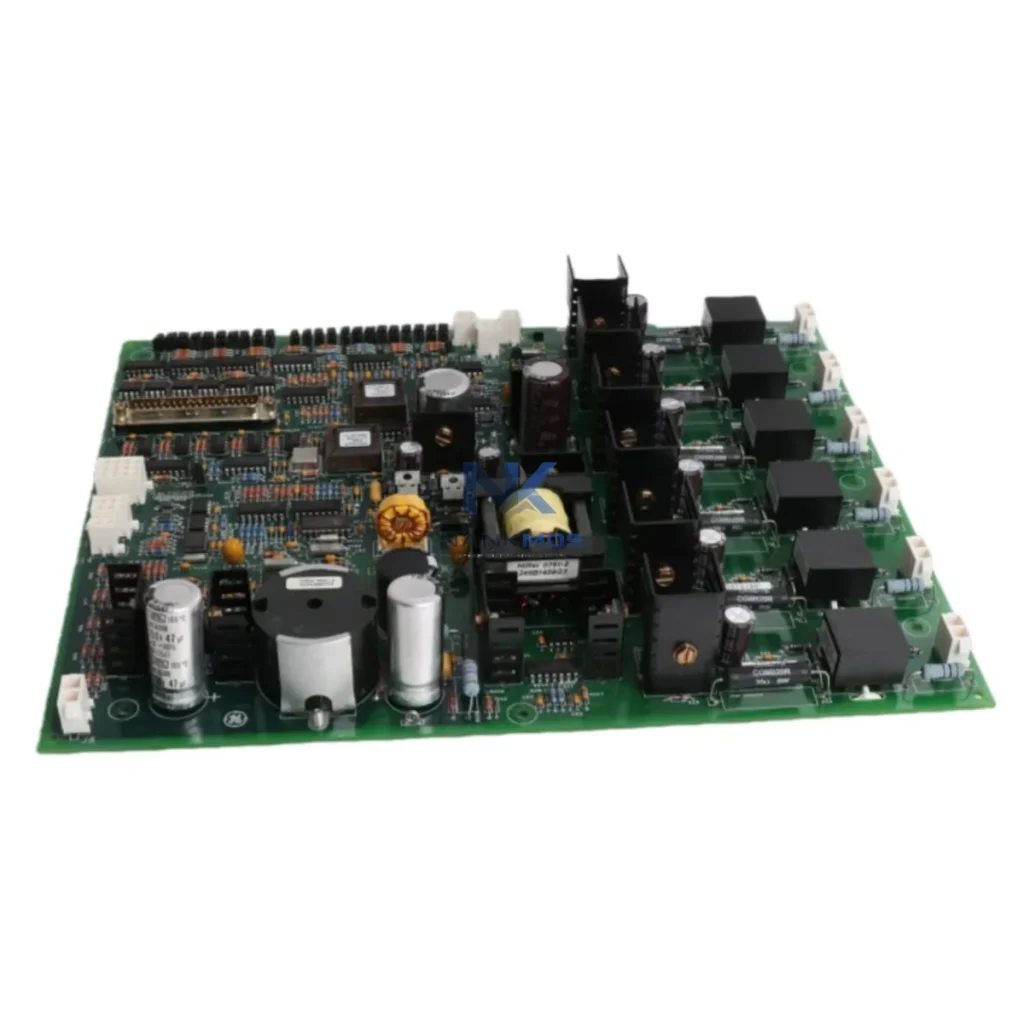

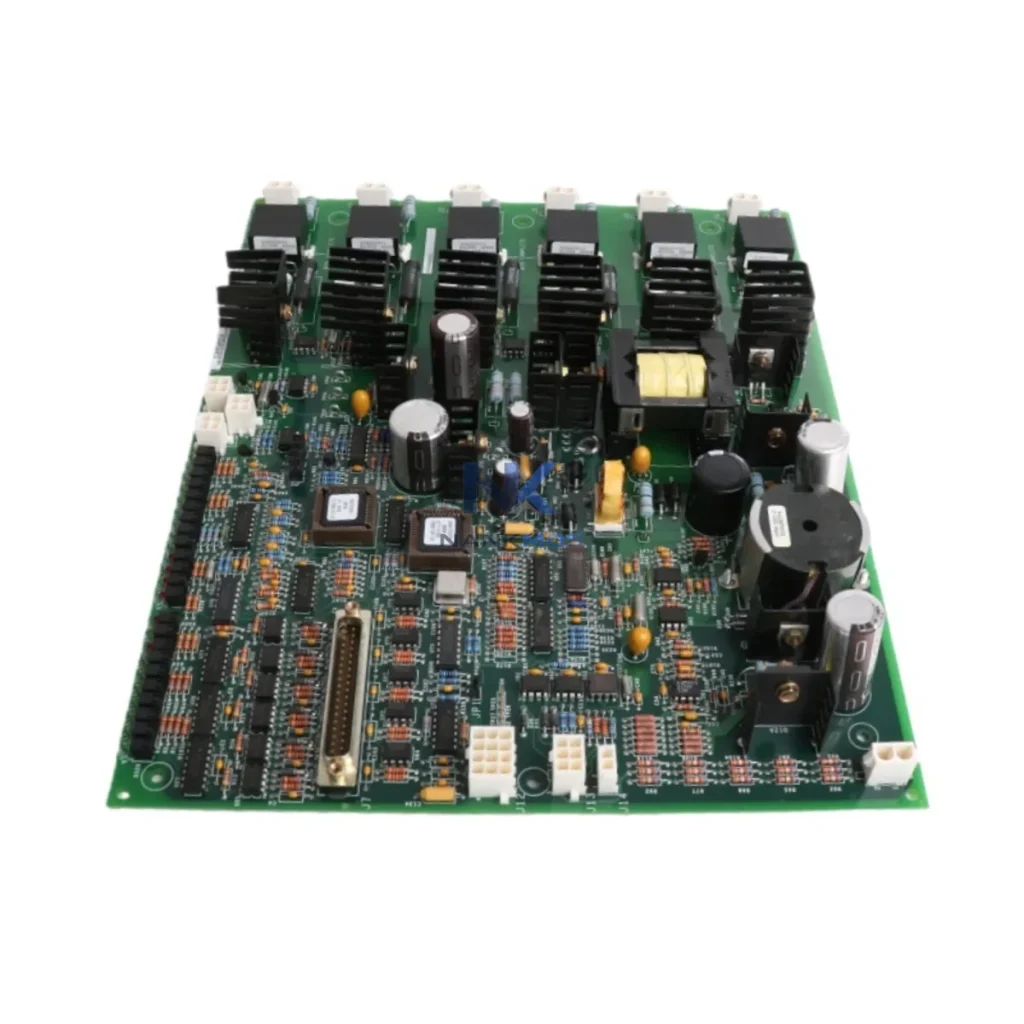

GE IS200EHPAG1DAB Gate Pulse Amplifier

Product Details

IS200EHPAG1DAB Product Description

The GE IS200EHPAG1DAB is a high-performance Gate Pulse Amplifier engineered for GE Mark VI turbine control systems, delivering precision gate signal amplification and robust industrial network connectivity across complex automation architectures. In modern smart factory environments, where every millisecond of signal latency and every byte of process data carries operational weight, the IS200EHPAG1DAB serves as a critical node in the data chain — bridging field-level power electronics with upper-layer control, monitoring, and diagnostic platforms.

Designed to operate within GE's Mark VI distributed control ecosystem, this module interfaces directly with turbine excitation and gate drive circuits, ensuring that pulse signals are amplified, conditioned, and transmitted with the accuracy demanded by high-voltage power conversion applications. Its integration into the Mark VI backplane architecture enables seamless communication with adjacent I/O modules, controller boards, and network interface cards, forming a tightly coupled control loop that supports real-time data exchange across the plant network.

In a fully integrated smart factory or power generation facility, the IS200EHPAG1DAB does not operate in isolation — it is one link in a continuous data chain that spans from raw field signals to enterprise-level analytics. Understanding this data flow is essential for engineers designing or maintaining GE Mark VI-based control systems.

At the field level, gate pulse signals originate from power semiconductor devices — IGBTs, thyristors, or SCRs — within the excitation or converter cabinet. The IS200EHPAG1DAB receives low-level gate command signals from the Mark VI controller, amplifies them to the voltage and current levels required to drive these power devices, and simultaneously feeds back status and diagnostic data through the VME backplane. This bidirectional data path is the foundation of closed-loop turbine control.

The Mark VI controller board — such as the IS200VCMIH2C or IS215VCMIH2C VME Controller Module — processes this feedback in real time, executing control algorithms that govern turbine speed, load, and excitation. The controller communicates upstream via GE's IONet protocol, a deterministic Ethernet-based network that connects all Mark VI racks within the control system. IONet ensures that data from the IS200EHPAG1DAB's gate drive circuits reaches the controller with minimal latency, enabling the sub-millisecond response times required for turbine protection and control.

From the Mark VI controller, process data flows to the plant's SCADA layer through a dedicated gateway interface. The IS200IOCIH1B or similar I/O controller interface modules aggregate data from multiple I/O boards — including analog input modules like the IS200AAIAH1A and digital output modules such as the IS200DAIAH1A — and present a unified data stream to the ToolboxST engineering workstation and Cimplicity HMI platform. Operators monitoring the HMI can observe real-time gate pulse status, excitation current levels, and fault diagnostics sourced directly from the IS200EHPAG1DAB's feedback loop.

For facilities deploying edge computing or industrial IoT gateways, data from the Mark VI network can be extracted via OPC-UA or Modbus TCP bridges — such as those provided by third-party edge gateway devices — and forwarded to cloud-based data historians or MES platforms. This enables long-term trend analysis, predictive maintenance scheduling, and remote performance benchmarking across multiple turbine units or plant sites. The IS200EHPAG1DAB's role in this architecture is to ensure that the gate drive data — the most time-critical signal in the excitation chain — is always accurate, always available, and always traceable through the network stack.

Power supply integrity for the IS200EHPAG1DAB and its associated Mark VI rack is maintained by dedicated industrial power supply modules, such as the IS200EPCTG1A Power Distribution Board, which conditions and distributes DC power across the VME backplane. Stable power delivery is non-negotiable in gate pulse amplification applications, where voltage transients can corrupt pulse timing and trigger nuisance trips. The combination of a reliable power distribution module and the IS200EHPAG1DAB's onboard signal conditioning ensures that the gate drive chain remains stable even under demanding load conditions.

Many industrial facilities operating GE Mark VI turbine control systems encounter a common set of challenges as their automation infrastructure ages or expands: protocol fragmentation, data silos, limited remote visibility, and difficulty scaling the control network to accommodate new equipment or monitoring requirements.

The IS200EHPAG1DAB addresses the most fundamental of these challenges — the integrity of the gate drive signal chain. When gate pulse amplifier boards degrade or fail, the symptoms are often misdiagnosed as controller faults or network communication errors, because the downstream effects — erratic excitation behavior, turbine trips, or inconsistent load response — manifest at the system level rather than at the component level. Replacing a faulty IS200EHPAG1DAB with a verified, tested unit immediately restores signal fidelity and eliminates the root cause of these cascading faults.

For facilities struggling with data silos, the Mark VI's IONet architecture provides a structured path to integration. By ensuring that all I/O modules, gate drive boards, and controller cards are functioning correctly and communicating on the IONet backbone, plant engineers can leverage ToolboxST's diagnostic and trending tools to build a comprehensive picture of turbine health. Alarm management becomes more effective when the data feeding the alarm system — including gate pulse feedback from the IS200EHPAG1DAB — is reliable and continuous.

Remote diagnostics are increasingly important for facilities with limited on-site engineering resources. The Mark VI's network architecture supports remote access to controller diagnostics via ToolboxST, allowing off-site engineers to review gate drive status, fault logs, and historical trends without requiring physical access to the control room. This capability depends entirely on the health of the underlying hardware — including the IS200EHPAG1DAB — and on the integrity of the IONet communication path.

System expansion is another area where the IS200EHPAG1DAB's compatibility with the broader Mark VI ecosystem provides value. As facilities add turbine units, upgrade excitation systems, or integrate new power conversion equipment, the Mark VI architecture's modular design allows new I/O boards and gate drive modules to be added to existing racks without disrupting the running system. Each IS200EHPAG1DAB installed in an expanded rack immediately participates in the IONet data network, making its signals available to the controller and, through the controller, to the SCADA and HMI layers.

Q1: What communication protocol does the IS200EHPAG1DAB use, and is it compatible with standard industrial networks?The IS200EHPAG1DAB communicates via GE's IONet protocol over the Mark VI VME backplane. IONet is a deterministic, Ethernet-based proprietary network optimized for real-time turbine control data. While it is not a standard Modbus or PROFIBUS interface, the Mark VI controller aggregates IONet data and can bridge it to standard industrial protocols — including Modbus TCP, OPC-UA, and DNP3 — through appropriate gateway configurations, enabling integration with plant-wide SCADA and historian systems.

Q2: How does the IS200EHPAG1DAB support remote diagnostics and predictive maintenance?The module's gate drive feedback data is continuously available on the IONet network and can be accessed remotely via ToolboxST engineering software. Diagnostic parameters — including gate pulse timing, fault status, and board health indicators — are logged by the Mark VI controller and can be trended over time to identify degradation patterns before they result in unplanned outages. This supports condition-based maintenance strategies and reduces the need for scheduled physical inspections.

Q3: What is the warranty coverage, and how is the IS200EHPAG1DAB tested before shipment?Every IS200EHPAG1DAB supplied by NANKMOS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification testing to confirm board integrity, signal output characteristics, and backplane interface compatibility. Test records are available upon request. Units are shipped in anti-static packaging with appropriate handling documentation to ensure safe delivery and installation.

Q4: Can the IS200EHPAG1DAB be used in Mark VIe systems, and what are the network expansion considerations?The IS200EHPAG1DAB is designed for GE Mark VI systems. Compatibility with Mark VIe architectures should be verified against the specific rack and controller configuration, as Mark VIe uses an updated I/O network (IONet over standard Ethernet) with different backplane specifications. For system expansion projects, NANKMOS can advise on compatible I/O modules, controller boards, and network interface cards to ensure seamless integration within the existing or upgraded control architecture.
