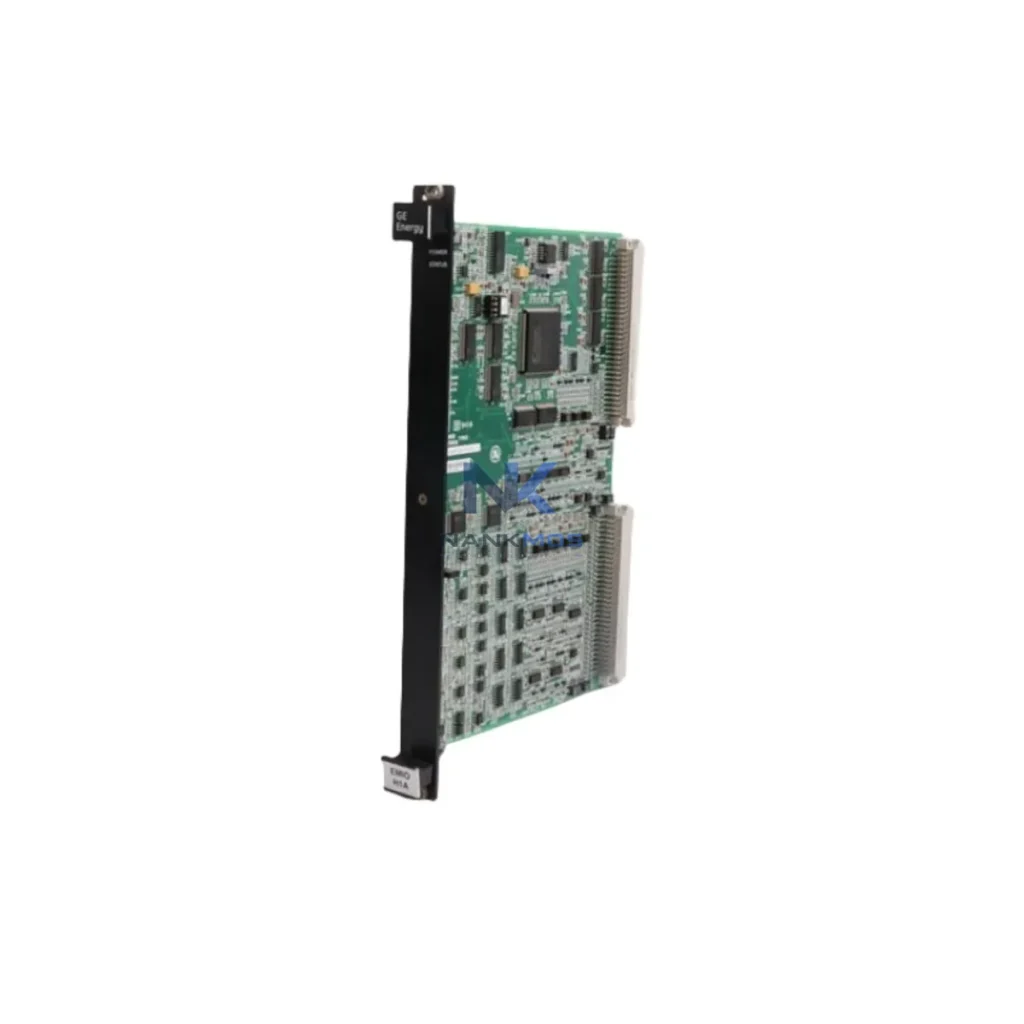

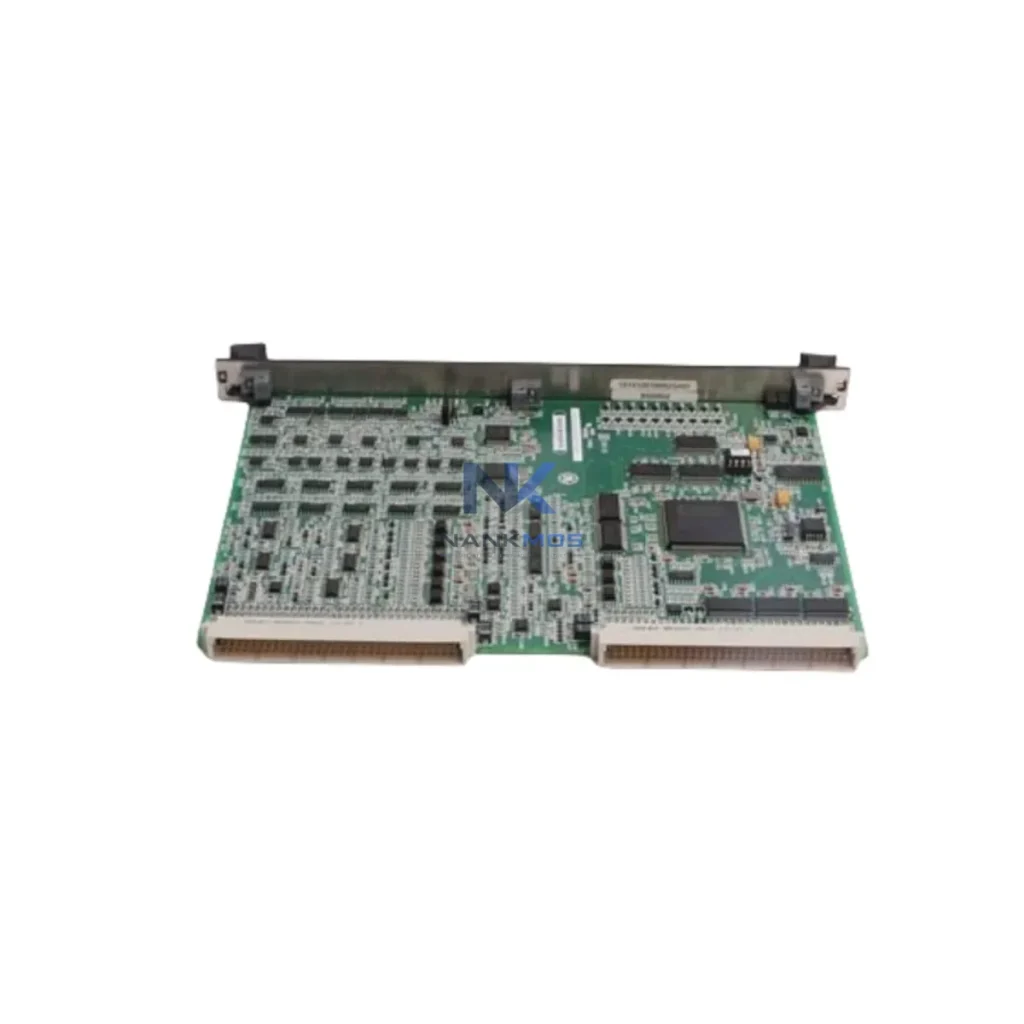

GE IS200EMIOH1A EMI Filter Module

Product Details

IS200EMIOH1A Product Description

The GE IS200EMIOH1A is a dedicated EMI Filter Module engineered for the Speedtronic Mark VI turbine control platform. Designed to suppress electromagnetic interference at the I/O and signal conditioning layer, this module plays a critical role in maintaining signal integrity across the full control architecture. By filtering conducted and radiated noise from power and signal lines, the IS200EMIOH1A ensures that upstream controllers, communication networks, and downstream actuators operate within their specified noise immunity thresholds — a prerequisite for reliable turbine management in continuous-duty industrial environments.

The IS200EMIOH1A does not operate in isolation — it is a functional layer within a tightly integrated Mark VI control architecture. Understanding its role requires examining the full system topology from the controller core outward to field devices.

At the control layer, the IS215UCVEH2A or IS215UCVEH2AE VME Controller Card serves as the primary CPU, executing turbine sequencing logic and managing all I/O communication via the IONet backbone. The IS200EMIOH1A is positioned to protect the signal paths feeding into these controllers, ensuring that noise generated by high-current switching equipment — variable frequency drives, transformer inrush, or arc flash events — does not corrupt the analog and digital signals processed by the CPU.

On the power supply layer, modules such as the IS200EPCTG1A Power Distribution Board and IS200PSCDG1A Power Supply Card provide regulated DC rails to the Mark VI rack. EMI generated at the power conversion stage is one of the primary sources of conducted interference; the IS200EMIOH1A works in conjunction with these power modules to suppress noise before it propagates into sensitive signal circuits.

The I/O layer of the Mark VI system typically includes modules such as the IS200AIAAH1A Analog Input Module and IS200DTURH1A Digital I/O Turbine Module. These modules acquire thermocouple, RTD, 4–20 mA, and discrete signals from field instruments including thermocouples on turbine exhaust stages, vibration probes, and speed sensors. Without effective EMI filtering, high-frequency noise on these signal lines can cause false trips, measurement drift, or communication errors on the IONet segment — all of which the IS200EMIOH1A is specifically designed to prevent.

At the communication layer, the Mark VI relies on IONet — a deterministic Ethernet-based network — to exchange data between the controller, I/O packs, and HMI workstations running Cimplicity HMI or ToolboxST configuration software. EMI-induced jitter or packet loss on this network can degrade control loop performance; the IS200EMIOH1A's filtering function directly supports communication stability across this layer.

For redundant architectures — common in critical power generation applications — the Mark VI supports TMR (Triple Modular Redundancy) configurations using three independent controller sets (R, S, T). In these deployments, the IS200EMIOH1A is typically installed across all three redundant I/O paths, ensuring that a noise event on one channel does not create a voting discrepancy that triggers an unnecessary turbine trip. Companion modules such as the IS200VTURH1A Turbine I/O Pack and IS200TRLYH1A Relay Output Module are also part of this redundant signal chain.

At the HMI and diagnostics layer, operators use ToolboxST to monitor signal quality, review alarm logs, and perform loop calibration. Clean, noise-free signals — enabled by the IS200EMIOH1A — are essential for accurate diagnostics and for distinguishing genuine process anomalies from instrumentation artifacts.

Power Generation (Gas & Steam Turbines): The IS200EMIOH1A is most commonly deployed in gas turbine and combined-cycle power plants where the Mark VI platform manages fuel control, compressor protection, and exhaust temperature monitoring. In these environments, large generators and excitation systems produce significant EMI that must be suppressed to protect the control system's measurement accuracy and trip reliability.

Petrochemical & Refinery Compressor Trains: Centrifugal and axial compressors in refinery service are often controlled by Mark VI systems. Variable speed drives on auxiliary equipment generate harmonic noise that can couple into control wiring. The IS200EMIOH1A provides the filtering layer that keeps compressor surge control and anti-surge valve positioning signals clean and responsive.

LNG & Offshore Platforms: Marine and offshore installations demand the highest levels of EMI immunity due to the proximity of radar, radio, and high-power electrical equipment. The IS200EMIOH1A's filtering capability supports Mark VI deployments in these environments, where signal integrity is directly linked to personnel safety and process containment.

Steel & Metallurgical Plants: Arc furnaces and large motor drives in steel production create some of the most severe EMI environments in industry. Mark VI systems controlling rolling mill drives or furnace temperature profiles rely on EMI filtering modules to maintain measurement fidelity across long cable runs from field instruments to the control room.

Water & Wastewater Treatment: Large pump stations and aeration blowers controlled by Mark VI or hybrid architectures benefit from EMI filtering at the I/O layer, particularly where variable frequency drives are used extensively and signal cable routing cannot always be fully segregated from power cables.

Q1: Is the IS200EMIOH1A compatible with both simplex and TMR Mark VI configurations? Yes. The IS200EMIOH1A is designed for use within the Mark VI rack system and is compatible with both simplex and Triple Modular Redundancy (TMR) architectures. In TMR deployments, a separate unit is typically installed in each of the R, S, and T I/O paths to ensure that EMI filtering is applied uniformly across all redundant channels, preventing noise-induced voting discrepancies between controller sets.

Q2: What is the recommended maintenance interval, and does NANKMOS provide warranty coverage? GE recommends periodic inspection of EMI filter modules as part of the Mark VI preventive maintenance schedule, typically aligned with annual outage windows. NANKMOS supplies the IS200EMIOH1A with a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. All units are pre-shipment tested to verify filtering performance before dispatch, and our inventory is maintained in climate-controlled storage to preserve module integrity.

Q3: Can the IS200EMIOH1A be installed without a full system shutdown? Module replacement procedures for the Mark VI are defined in GE's site-specific maintenance documentation. In simplex configurations, replacement typically requires a controlled shutdown of the affected I/O pack. In TMR configurations, it may be possible to replace a module in one redundant path while the remaining two paths maintain control — however, this must be evaluated by a qualified Mark VI system engineer based on the specific plant configuration, safety instrumented system (SIS) requirements, and applicable operating procedures. NANKMOS technical support can assist with pre-replacement planning and module verification.
