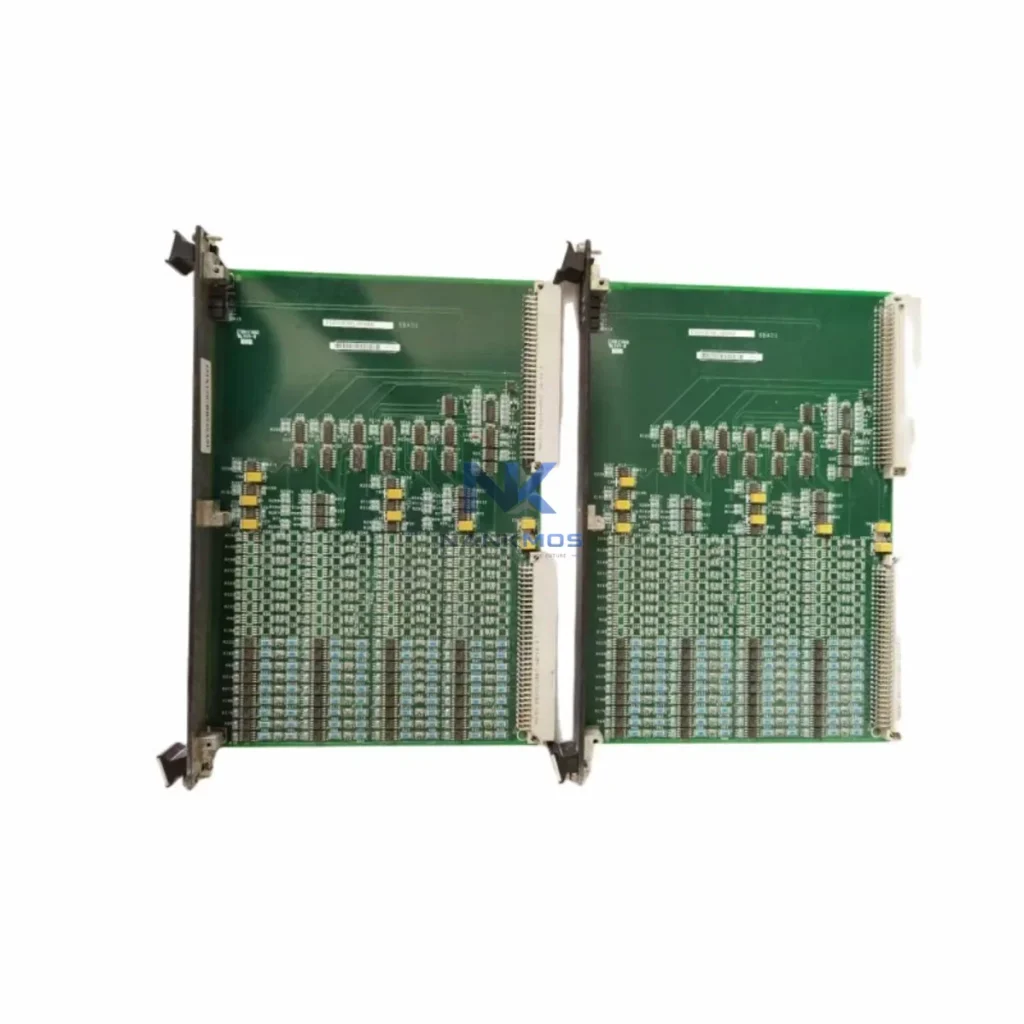

GE IS200ESELH2AAA Exciter Selector Module

Product Details

IS200ESELH2AAA Product Description

The GE IS200ESELH2AAA is a precision-engineered exciter selector module purpose-built for GE Mark VI and Mark VIe turbine control systems. Designed to operate within GE's distributed control architecture, this module manages excitation source selection and switching logic for generator excitation systems, ensuring seamless transitions between excitation channels without disrupting turbine operation. Its role in the control hierarchy spans the interface between the control layer and the excitation execution layer, making it a critical component for power generation reliability, system redundancy, and long-term operational continuity.

At NANKMOS, every IS200ESELH2AAA unit is sourced from verified supply chains, subjected to functional bench testing prior to dispatch, and backed by a 12-Month Warranty. Our global inventory infrastructure supports rapid deployment to power generation facilities, petrochemical plants, and industrial turbine installations worldwide.

The IS200ESELH2AAA does not operate in isolation — it is an integral node within GE's layered Mark VI turbine control architecture. Understanding its contextual integration requires examining how it interacts with adjacent modules across every control layer.

At the control layer, the IS200ESELH2AAA receives switching commands from the Mark VI main controller boards, such as the IS215UCVEH2A (UCVE controller card) or the IS200UCVEH2BAA, which execute the turbine protection and sequencing logic. These controllers communicate via the VME backplane, issuing excitation mode commands that the ESEL module interprets and routes to the appropriate excitation hardware channel.

The I/O layer is served by modules such as the IS200VTURH1BBA (turbine I/O terminal board) and the IS200TRLYH1BCC (relay output terminal board), which aggregate field signals — including generator field current feedback, excitation voltage references, and protection trip signals — and present them to the control bus. The IS200ESELH2AAA uses these signals to validate excitation source status before executing a channel switch.

For communication and diagnostics, the Mark VIe architecture relies on the IS420ESWAH1A IONet Ethernet switch to route diagnostic data between the ESEL module, the HMI workstation, and the plant DCS. This enables real-time monitoring of excitation selector state, alarm annunciation, and remote diagnostics without interrupting turbine operation.

The power layer is managed by GE Mark VI power supply modules such as the IS200PSCDH1A, which provides regulated 28 VDC to the VME rack. Stable power delivery is essential for the IS200ESELH2AAA to maintain deterministic switching behavior, particularly during generator start-up sequences and load rejection events.

At the HMI layer, operators interact with the excitation selector state through GE's ToolboxST configuration environment and CIMPLICITY HMI displays, which visualize excitation channel status, selector position, and fault diagnostics. The IS200ESELH2AAA's state is continuously polled and displayed, supporting operator situational awareness during critical transitions.

The execution layer downstream of the IS200ESELH2AAA includes static excitation systems and brushless exciter hardware. The module's output switching signals are conditioned through terminal boards such as the IS200ECTBH1A (excitation control terminal board), which interfaces the digital selector logic with the analog excitation field circuits.

For protection and redundancy, the IS200ESELH2AAA is designed to operate within TMR architectures where three independent controller paths vote on excitation switching decisions. This eliminates single-point failures in the excitation control path, a critical requirement for base-load gas turbines and combined-cycle power plants. Companion protection modules such as the IS200EPCTG1B (excitation protection card) provide overcurrent and field ground fault protection that works in concert with the selector module.

Long-term maintenance and sparing strategies for Mark VI excitation systems should include the IS200ESELH2AAA as a critical spare, alongside the UCVE controller, IONet switch, and excitation terminal boards. NANKMOS maintains ready stock of these modules to support planned outage windows and emergency replacement scenarios with minimal lead time.

Power Generation — Gas & Steam Turbines: The IS200ESELH2AAA is most commonly deployed in GE Frame 6B, 7EA, 7FA, and 9FA gas turbine installations, as well as GE steam turbine generator sets. In these applications, the exciter selector manages transitions between primary and backup excitation sources during generator synchronization, load following, and planned maintenance switching. Its deterministic switching logic is essential for maintaining generator terminal voltage stability during grid disturbances.

Combined-Cycle Power Plants: In combined-cycle configurations, multiple turbine-generator units share a common plant DCS. The IS200ESELH2AAA's integration with the Mark VI IONet architecture allows centralized monitoring of excitation selector states across all units, supporting coordinated reactive power dispatch and voltage regulation across the plant.

Petrochemical and Refinery Compressor Drives: Large gas turbine-driven compressor trains in LNG, ethylene, and refinery applications use Mark VI control systems with excitation selector modules to manage generator excitation during black-start sequences and emergency shutdown recovery. The IS200ESELH2AAA's robust design supports continuous operation in high-ambient-temperature enclosures typical of these environments.

Mining and Metals Processing: High-power synchronous motor drives in mining hoists and rolling mill applications use excitation control architectures similar to turbine generators. Mark VI-based excitation selector modules provide the switching reliability required for high-inertia load applications where excitation loss can cause costly process interruptions.

Marine and Offshore Power Systems: Offshore platform power generation systems using GE turbine-generators require excitation control modules rated for marine environmental conditions. The IS200ESELH2AAA's sealed module design and wide operating temperature range support deployment in offshore generator control panels subject to vibration, humidity, and salt-air exposure.

Q1: Is the IS200ESELH2AAA compatible with both Mark VI simplex and TMR architectures? Yes. The IS200ESELH2AAA is designed to operate in both simplex and Triple Modular Redundancy (TMR) Mark VI configurations. In TMR systems, three ESEL modules receive independent switching commands from the R, S, and T controller paths, with the voted output driving the excitation hardware. This architecture eliminates single-point failure risk in the excitation control path. Confirm your specific rack configuration with your GE Mark VI system documentation (ToolboxST project file) before ordering to ensure the correct hardware revision is selected.

Q2: What is the recommended spare parts strategy for IS200ESELH2AAA in a long-term maintenance plan? For facilities operating GE Mark VI turbine control systems, we recommend maintaining at least one IS200ESELH2AAA as a critical cold spare per turbine unit. Given the module's role in excitation source selection, its failure can result in generator trip and unplanned outage. NANKMOS stocks tested IS200ESELH2AAA units with a 12-Month Warranty, enabling rapid deployment during planned outage windows or emergency replacements. Pair this spare with the UCVE controller card, IONet switch, and excitation terminal board for a comprehensive excitation control spare kit.

Q3: How is the IS200ESELH2AAA commissioned and verified after installation? Commissioning the IS200ESELH2AAA involves inserting the module into the correct VME rack slot as defined in the Mark VI hardware configuration drawing, then using GE's ToolboxST software to verify module recognition, I/O assignment, and excitation selector logic configuration. Functional verification includes forcing excitation channel switching commands from the HMI and confirming correct relay output states on the downstream excitation terminal board. All NANKMOS-supplied IS200ESELH2AAA units are bench-tested prior to shipment to confirm module recognition and basic I/O functionality, reducing on-site commissioning risk.
