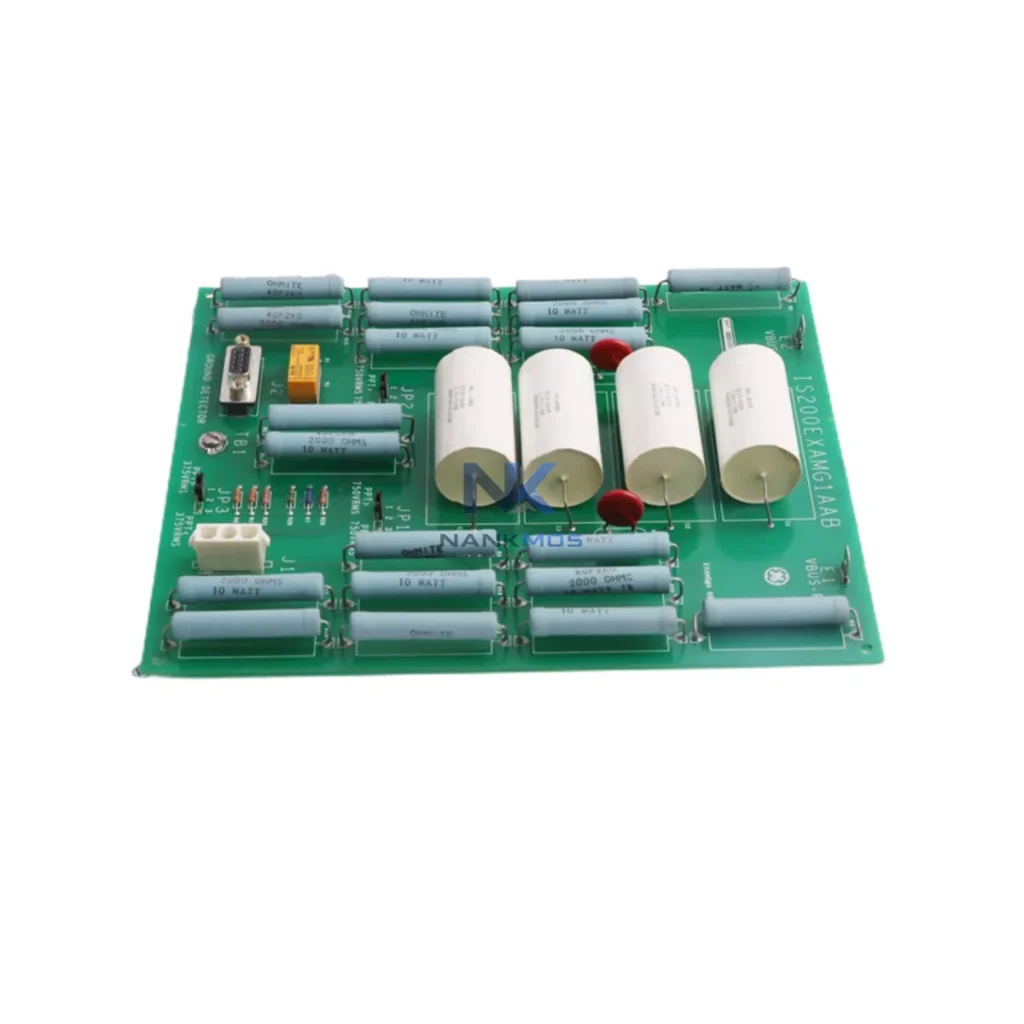

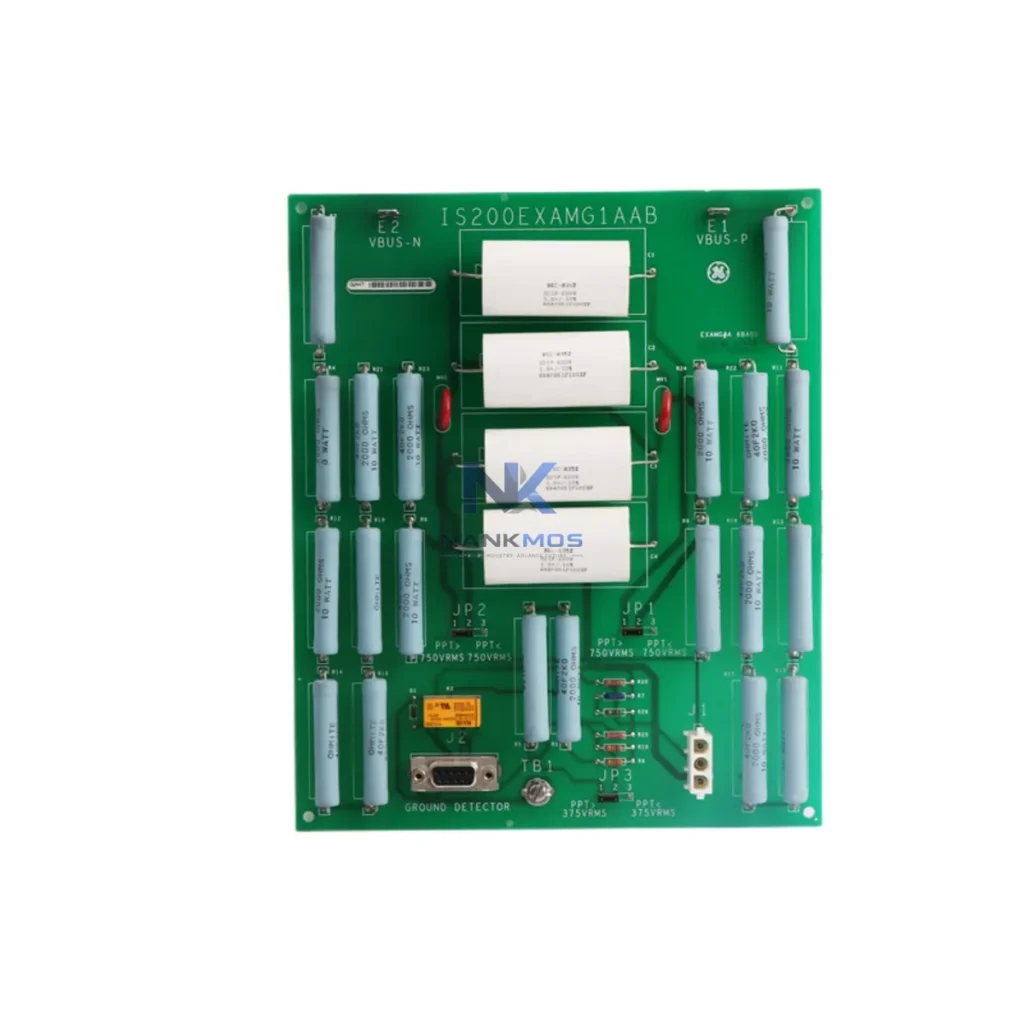

GE IS200EXAMG1AAB Excitation Amplifier Module

Product Details

IS200EXAMG1AAB Product Description

The GE IS200EXAMG1AAB is a precision excitation amplifier module engineered for GE Mark VI turbine control systems, delivering reliable signal conditioning, protocol-transparent communication, and seamless integration across the full industrial data chain. In modern smart factory environments, where every millisecond of signal latency and every byte of process data carries operational weight, the IS200EXAMG1AAB serves as a critical node connecting field-level excitation hardware to supervisory control, remote diagnostics, and enterprise data visualization platforms.

Deployed within GE's Mark VI distributed control architecture, this module interfaces directly with the turbine excitation subsystem, conditioning analog signals from field sensors and transducers before routing processed data upstream through the Mark VI I/O network. Its role in the data chain begins at the physical layer — capturing raw excitation feedback from generator field windings and voltage regulators — and extends through protocol-level communication to PLCs, HMI terminals, SCADA servers, and historian databases. The IS200EXAMG1AAB is not simply a signal amplifier; it is a structured data gateway that ensures excitation state information is available, accurate, and actionable across every layer of the automation hierarchy.

Understanding the IS200EXAMG1AAB's value requires tracing the complete data flow it enables within a connected turbine control environment. At the field level, excitation sensors and voltage transducers generate continuous analog signals reflecting generator field current, terminal voltage, and reactive power output. The IS200EXAMG1AAB amplifies and conditions these signals, converting raw field-level data into clean, calibrated values that the Mark VI controller — typically housed in a VMIVME or TMR (Triple Modular Redundant) rack — can process with high confidence.

Within the Mark VI rack, the IS200EXAMG1AAB operates alongside companion modules such as the IS200EACFG1A analog I/O conditioner and the IS200TRLYH1B relay output module, sharing the VME backplane bus to exchange excitation state data with the main processor board. The Mark VI controller aggregates this data and transmits it over the IONet industrial Ethernet backbone to upstream systems. At the network layer, an IS200IOCFG1A I/O configuration module or an IS200BICLH1A backplane interface card may serve as the bridge between the VME rack and the plant-wide Ethernet segment, enabling the excitation data stream to reach SCADA servers and historian platforms without protocol conversion overhead.

For plants running GE's Cimplicity or iFIX SCADA platforms, the IS200EXAMG1AAB's conditioned excitation data appears as live process tags — generator field voltage, excitation current setpoint deviation, AVR (Automatic Voltage Regulator) output — displayed on HMI screens at the control room level. Operators monitoring a Wonderware InTouch or Ignition-based HMI can observe real-time excitation trends, configure alarm thresholds, and trigger remote setpoint adjustments without physical access to the turbine hall. In multi-unit power plants, where a single SCADA server may supervise four to eight generating units simultaneously, the IS200EXAMG1AAB's reliable signal output ensures that each unit's excitation state is independently tracked and historically logged.

At the edge, plants deploying industrial IoT gateways — such as Moxa MGate protocol converters or Advantech WISE-5000 series edge controllers — can bridge the Mark VI IONet data stream to cloud-based analytics platforms via MQTT or OPC-UA, enabling predictive maintenance models to consume excitation trend data alongside vibration, temperature, and load signals from other field devices. Remote I/O modules such as the IS200ERIOH1A extend the Mark VI's reach to distributed sensor clusters across the turbine skid, feeding additional analog inputs into the same data chain that the IS200EXAMG1AAB anchors at the excitation subsystem level.

Variable frequency drives (VFDs) managing auxiliary systems — cooling fans, lube oil pumps, seal gas compressors — communicate their operational status back to the Mark VI controller via Modbus TCP or PROFIBUS DP, where their data is correlated with excitation state to provide a holistic view of turbine health. The IS200EXAMG1AAB's role in this architecture is foundational: without accurate, low-noise excitation signal conditioning, the entire data chain from field sensor to enterprise dashboard loses fidelity at its most critical measurement point.

Protocol Fragmentation: Many turbine control sites operate mixed-protocol environments where legacy Mark V or Mark IV systems coexist with newer Mark VI or Mark VIe installations. The IS200EXAMG1AAB, designed natively for the Mark VI backplane, eliminates the signal conditioning gap at the excitation layer, ensuring that excitation data is available in a format the Mark VI controller can natively process and forward — without requiring custom analog-to-digital conversion hardware or signal repeaters.

Data Islands and Visibility Gaps: Excitation subsystems are frequently the last area of a turbine control architecture to be integrated into plant-wide SCADA visibility. Sites running older DCS configurations often have excitation data trapped in standalone AVR controllers with no network output. Replacing or supplementing these with IS200EXAMG1AAB modules within a Mark VI rack immediately connects excitation state data to the plant IONet, eliminating the data island and making excitation trends visible in the same SCADA dashboard as turbine speed, exhaust temperature, and compressor discharge pressure.

Remote Monitoring and Alarm Tracking: The IS200EXAMG1AAB supports the Mark VI's alarm management framework, allowing excitation fault conditions — field overcurrent, AVR deviation, excitation loss — to be surfaced as SCADA alarms with full timestamp, severity classification, and acknowledgment tracking. Remote operations centers can receive these alarms via email, SMS, or SCADA push notification, enabling rapid response without on-site personnel.

Production Line Transparency and System Expansion: As plants expand generating capacity or add new turbine units, the Mark VI's modular architecture — anchored by modules like the IS200EXAMG1AAB — allows excitation monitoring to scale without redesigning the control network. Additional racks, I/O modules, and network switches can be added to the IONet segment, with each new IS200EXAMG1AAB instance automatically discoverable by the SCADA historian and contributing its data to the plant-wide performance database.

Q1: What communication protocols does the IS200EXAMG1AAB support for SCADA integration? The IS200EXAMG1AAB operates on the GE Mark VI VME backplane and communicates natively over the Mark VI IONet industrial Ethernet protocol. For integration with third-party SCADA platforms such as Ignition, Wonderware, or Cimplicity, the Mark VI controller acts as the protocol gateway, supporting OPC-DA, OPC-UA, and Modbus TCP interfaces. Direct Modbus RTU or PROFIBUS DP connectivity requires an external protocol converter or gateway module.

Q2: How does the IS200EXAMG1AAB perform in high-noise industrial environments, and what is its network stability profile? The IS200EXAMG1AAB is designed to GE's Mark VI environmental specifications, including EMI/RFI shielding, wide operating temperature tolerance, and vibration resistance appropriate for turbine hall installation. Its analog signal conditioning circuitry incorporates filtering to suppress electrical noise from adjacent power electronics, ensuring stable, low-drift signal output even in environments with high-frequency switching noise from VFDs and power converters.

Q3: Can the IS200EXAMG1AAB be integrated into an existing Mark VI system without a full control system upgrade? Yes. The IS200EXAMG1AAB is a slot-replaceable VME backplane module. It can be installed into an existing Mark VI rack without firmware upgrades to the main controller, provided the rack's I/O configuration file is updated to recognize the new module address. GE's Toolbox software supports online module configuration, minimizing downtime during integration. All units supplied by NANKMOS are pre-tested and shipped with configuration documentation.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the IS200EXAMG1AAB? Every IS200EXAMG1AAB unit supplied by NANKMOS undergoes functional verification testing prior to dispatch, including backplane interface continuity checks, analog signal path validation, and power supply rail testing. All units are covered by a 12-Month Warranty from the date of shipment. In-stock units are available for same-day or next-day dispatch, with global logistics support to minimize lead time for urgent maintenance and replacement requirements.
