GE IS200ISBBG1AAA Industrial Network Gateway

Product Details

IS200ISBBG1AAA Product Description

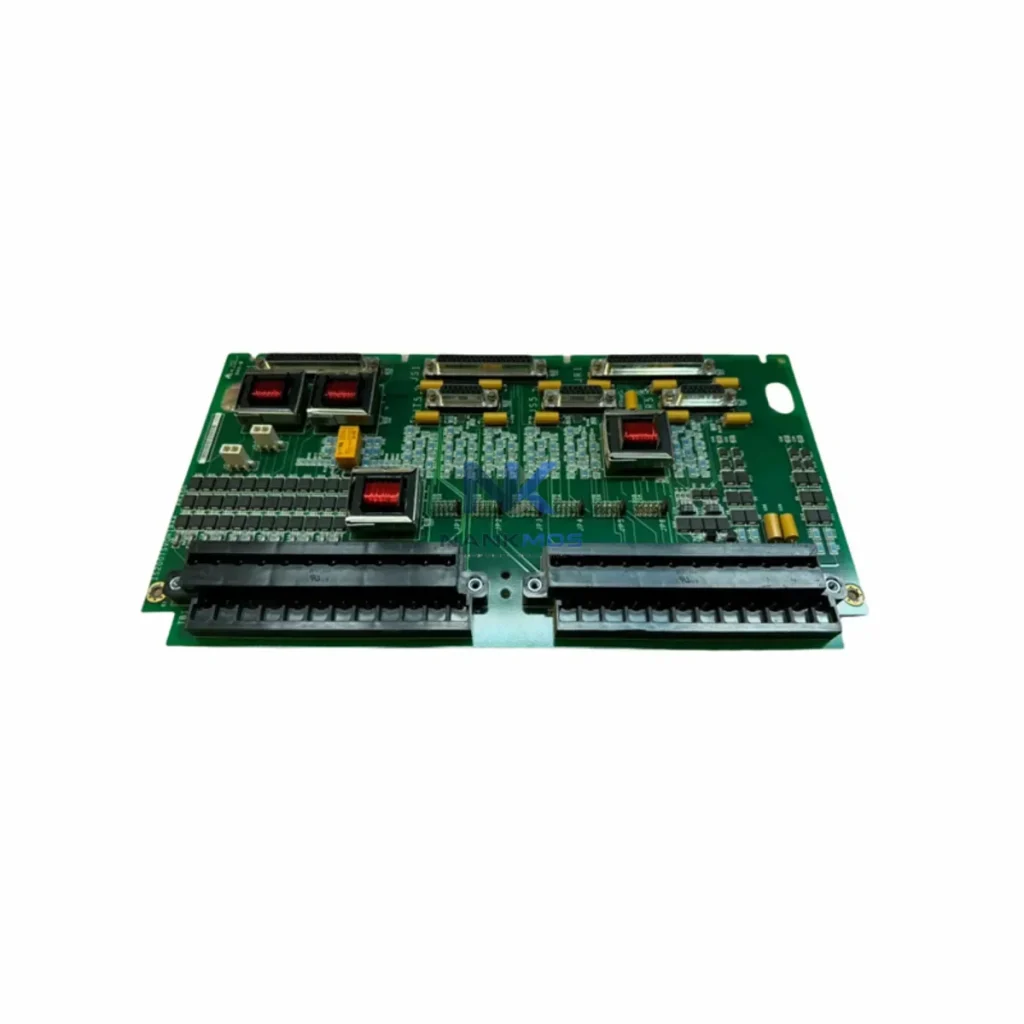

The GE IS200ISBBG1AAA is a high-reliability bus bypass communication card engineered for GE Mark VI turbine control systems. Designed to serve as a critical node in the industrial data chain, this module bridges field-level device signals with upper-layer SCADA, HMI, and distributed control architectures through GE's proprietary IONet Ethernet protocol. In smart factory environments where continuous uptime, real-time visibility, and deterministic data delivery are non-negotiable, the IS200ISBBG1AAA delivers the network backbone that keeps turbine assets connected, monitored, and responsive.

From signal acquisition at the turbine I/O level through protocol conversion, network transmission, alarm feedback, and remote diagnostics, this card occupies a pivotal position in the complete automation data flow. Its integration with the Mark VI controller platform enables seamless communication between field instrumentation, control logic, and supervisory systems — eliminating data silos and enabling plant-wide transparency.

In a fully integrated smart factory or power generation facility, the GE IS200ISBBG1AAA functions as the communication backbone between the turbine's field I/O layer and the plant's supervisory infrastructure. The data flow begins at the sensor and actuator level — thermocouples, pressure transmitters, vibration sensors, and speed pickups — where raw process signals are acquired by GE Mark VI I/O modules such as the IS200VTURH1BEE (turbine I/O terminal board) and the IS200TREGH1B (turbine regulation board). These signals are conditioned and passed to the Mark VI controller core via the backplane bus, where the IS200ISBBG1AAA card manages the bypass routing and ensures uninterrupted data continuity even during partial system faults.

Once data is consolidated at the controller level, the IONet Ethernet protocol carries real-time process values upstream to the plant's SCADA server. In GE Mark VI installations, this typically involves integration with GE iFIX or Cimplicity HMI platforms, where operators monitor turbine speed, exhaust temperature, fuel flow, and vibration trends on live dashboards. The IS200ISBBG1AAA ensures that the IONet data packets are correctly routed and that the bypass logic does not introduce latency into the control loop — a critical requirement for gas turbine and steam turbine applications where response times are measured in milliseconds.

For remote diagnostics and predictive maintenance, the data chain extends further. Process historians such as GE Proficy Historian archive time-series data from the Mark VI system, enabling trend analysis, anomaly detection, and maintenance scheduling without requiring on-site personnel. Edge gateway devices — including industrial protocol converters that bridge IONet to standard OPC-UA or Modbus TCP — allow third-party SCADA platforms and cloud-based analytics tools to consume Mark VI data alongside data from other plant assets such as ABB ACS880 variable frequency drives, Siemens S7-300 PLCs, and Yokogawa CENTUM VP DCS systems operating in adjacent process areas.

The IS200ISBBG1AAA also plays a role in alarm management and event logging. When a turbine protection threshold is breached — overspeed, high exhaust temperature, or low lube oil pressure — the Mark VI controller generates a trip signal that is simultaneously logged in the event historian, transmitted to the SCADA alarm console, and, in networked installations, forwarded to remote operations centers via industrial Ethernet switches such as the Hirschmann RS20 or Moxa EDS-308 series. This end-to-end alarm propagation chain depends on the reliable bus bypass function that the IS200ISBBG1AAA provides — ensuring that even if a primary communication path is interrupted, the bypass route maintains data integrity and control continuity.

For facilities expanding their digital infrastructure, the IS200ISBBG1AAA integrates naturally into broader IIoT architectures. Paired with GE IS200VCMIH2C VME communication interface modules and IS200EPCTG1A protection cards, it supports a scalable, modular approach to turbine control network design — allowing plant engineers to add remote I/O nodes, expand SCADA connectivity, or integrate new HMI workstations without disrupting the existing control architecture.

Protocol Fragmentation: Many power generation and industrial facilities operate mixed-vendor environments where GE Mark VI systems must coexist with Siemens, ABB, or Rockwell Automation PLCs. The IS200ISBBG1AAA, as part of the Mark VI communication stack, supports gateway configurations that translate IONet data into OPC-UA or Modbus TCP, enabling cross-platform data exchange without custom middleware development.

Data Silos and Plant Transparency: Without a reliable bus bypass card, a single communication fault can isolate the turbine controller from the SCADA layer, creating a data blackout that prevents operators from monitoring critical parameters. The IS200ISBBG1AAA eliminates this risk by maintaining an active bypass path, ensuring that turbine data remains continuously visible on HMI screens and historian databases regardless of primary bus status.

Remote Monitoring and Diagnostics: For unmanned or remotely operated turbine installations, the ability to diagnose faults without dispatching field technicians is a significant operational advantage. The IS200ISBBG1AAA's integration with the Mark VI diagnostic framework allows remote engineers to read fault codes, review event logs, and assess module health via the SCADA interface — reducing mean time to repair (MTTR) and minimizing unplanned downtime.

System Scalability and Future-Proofing: As plant operators add new monitoring points, expand to additional turbine units, or integrate renewable energy assets into the control network, the IS200ISBBG1AAA's role as a stable communication node ensures that the Mark VI architecture can accommodate these changes without requiring a complete network redesign. Its compatibility with the broader Mark VI and Mark VIe module ecosystem provides a clear upgrade path as automation requirements evolve.

Q1: What communication protocol does the GE IS200ISBBG1AAA use, and is it compatible with third-party SCADA systems? The IS200ISBBG1AAA operates on GE's IONet industrial Ethernet protocol, which is native to the Mark VI and Mark VIe turbine control platforms. For integration with third-party SCADA systems such as Wonderware, Ignition, or Siemens WinCC, an OPC-UA or Modbus TCP gateway is typically deployed at the network boundary. This configuration allows the Mark VI system to share real-time process data with any OPC-compliant supervisory platform without modifying the core control architecture.

Q2: How does the bus bypass function affect network stability and control loop performance? The bypass function managed by the IS200ISBBG1AAA is designed to maintain communication continuity during partial bus faults or module replacement events. By providing an alternate data path, it prevents a single point of failure from interrupting the control loop. In turbine applications where deterministic communication is essential, this bypass capability ensures that scan cycle times remain consistent and that no control data is lost during network transitions.

Q3: Can the IS200ISBBG1AAA support remote diagnostics and predictive maintenance workflows? Yes. When integrated with GE Proficy Historian or a compatible process historian, the IS200ISBBG1AAA enables continuous archiving of turbine performance data. Remote engineers can access trend data, fault event logs, and module status information via the SCADA interface without requiring physical access to the control panel. This capability is particularly valuable for offshore, remote, or unmanned turbine installations where on-site diagnostics are logistically challenging.

Q4: What quality assurance and warranty coverage is provided with the IS200ISBBG1AAA? Every IS200ISBBG1AAA unit supplied by NANKMOS undergoes pre-shipment functional testing to verify communication integrity, bus bypass operation, and module identification. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. In-stock units are available for immediate dispatch, with expedited shipping options for urgent maintenance requirements.
