Honeywell 05701-A-0361 DCS Engineering Card

Product Details

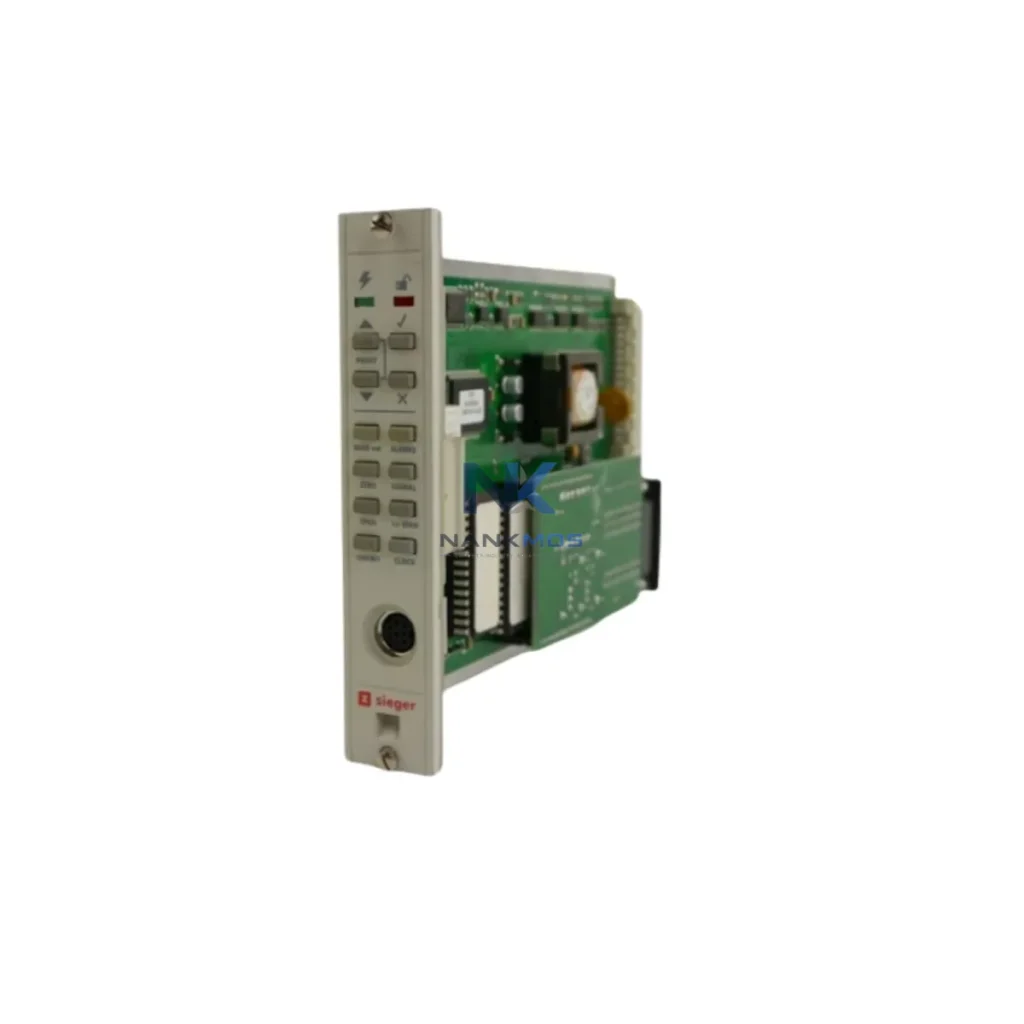

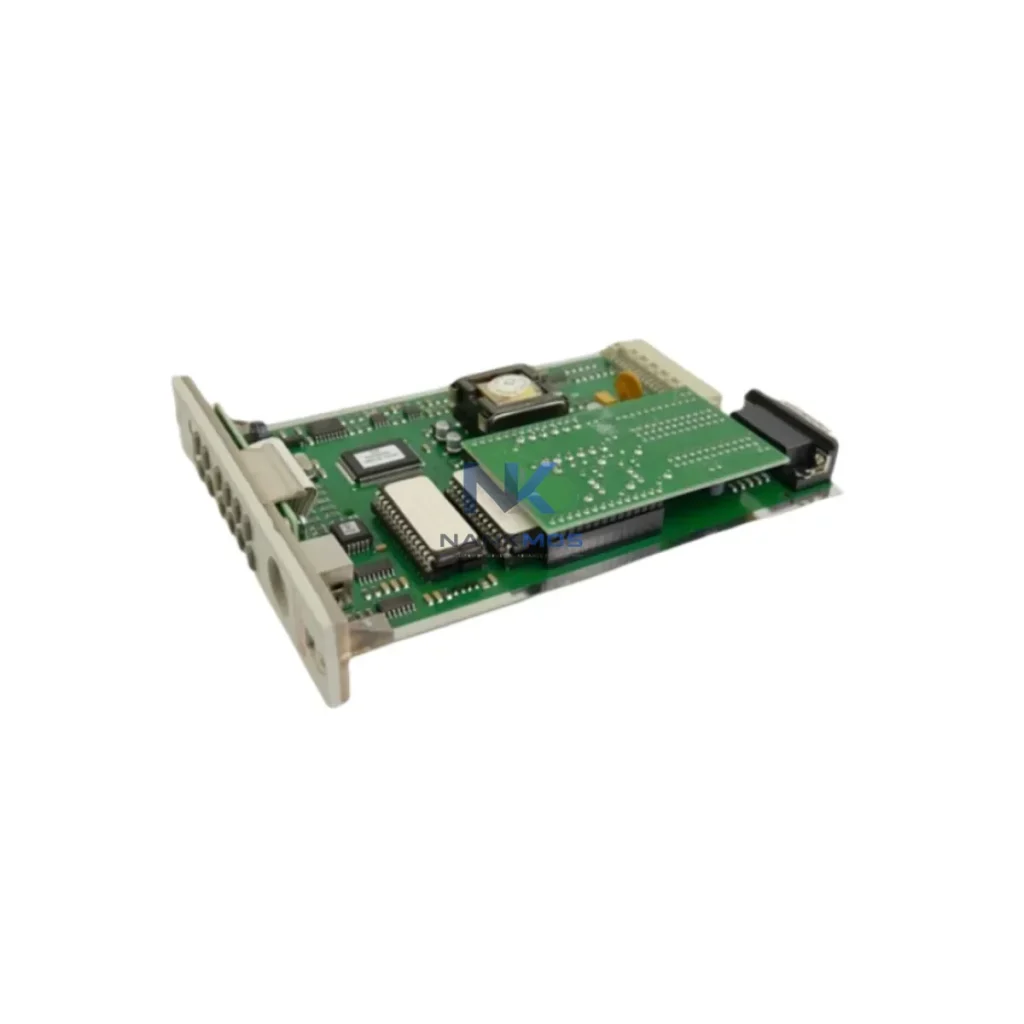

05701-A-0361 Product Description

The Honeywell 05701-A-0361 Engineering Card is a precision-engineered interface module designed for seamless integration within the Honeywell TDC 3000 and TPS distributed control architecture. Its primary function is to serve as the engineering workstation gateway — the critical node through which control engineers configure, commission, and maintain the entire plant automation hierarchy.

Within a complete TDC 3000 control architecture, the 05701-A-0361 operates in close coordination with the Honeywell LCN (Local Control Network) backbone, interfacing directly with Universal Control Network (UCN) nodes and High-Performance Process Manager (HPM) controllers. The engineering card enables real-time parameter downloads, loop tuning, and diagnostic interrogation across all connected process modules without interrupting live production sequences.

System coherence depends on the integrity of the engineering interface layer. The 05701-A-0361 supports configuration synchronization with Honeywell AM (Application Module) nodes and History Module (HM) units, ensuring that setpoint changes, alarm limit revisions, and control strategy modifications are propagated consistently across the distributed network. When paired with Honeywell NIM (Network Interface Module) gateways, the engineering card extends its reach to field device networks, enabling HART pass-through diagnostics and device descriptor management from a centralized engineering console.

For plants operating redundant control architectures, the 05701-A-0361 integrates with Honeywell redundant HPM controller pairs and redundant LCN node configurations, providing bumpless switchover visibility and post-failover audit logging. Engineers can verify redundancy health, confirm active/standby status, and initiate controlled switchover tests directly through the engineering workstation interface supported by this card.

The card also plays a key role in I/O layer management. When the TDC 3000 system incorporates Honeywell IOP (Input/Output Processor) modules and FTA (Field Termination Assembly) units, the 05701-A-0361 provides the configuration pathway for channel-level scaling, signal conditioning parameters, and fault masking. This ensures that analog input signals from pressure transmitters, thermocouples, and flow meters are correctly mapped to control strategy variables without manual reconfiguration at the field level.

HMI integration is equally supported. The engineering card coordinates with Honeywell GUS (Global User Station) and Universal Station (US) operator consoles, enabling display configuration, trend group setup, and alarm priority management from the engineering tier. Changes made through the 05701-A-0361 interface are immediately reflected across all operator stations on the LCN, maintaining display consistency across multi-console control rooms.

For plants undergoing modernization or migration from legacy TDC 2000 architectures, the 05701-A-0361 supports phased integration strategies. It can coexist with Honeywell Data Hiway (DHW) legacy nodes during transition periods, allowing engineers to maintain backward compatibility while progressively migrating control strategies to the TDC 3000 platform. This reduces migration risk and preserves operational continuity during capital upgrade projects.

Power distribution integrity is maintained through compatibility with the Honeywell LCN Power Supply Module and standard TDC 3000 backplane power rails. The engineering card draws regulated DC power from the cabinet power distribution system, and its low-power design minimizes thermal load within the engineering workstation enclosure — an important consideration in high-density rack installations common in petrochemical and power generation control rooms.

The Honeywell 05701-A-0361 Engineering Card serves critical roles across a broad spectrum of process industries where TDC 3000 and TPS platforms remain the backbone of plant automation:

Petrochemical & Refinery Operations: In continuous process plants, the engineering card enables real-time control strategy modification during turnaround planning, allowing engineers to pre-load revised loop configurations and alarm rationalization updates before scheduled maintenance windows. This reduces commissioning time and minimizes production downtime during restart sequences.

Power Generation: Thermal power stations and combined-cycle plants rely on TDC 3000 for boiler management, turbine control, and balance-of-plant automation. The 05701-A-0361 provides the engineering interface for coordinating control strategy updates across multiple HPM controllers simultaneously, ensuring that fuel-air ratio adjustments and load-following parameters are consistently applied across all generation units.

Chemical & Specialty Manufacturing: Batch process facilities use the engineering card to manage recipe-driven control strategies, where frequent parameter changes between production campaigns require a reliable, auditable engineering interface. The card supports configuration version management and change logging, providing the traceability required for GMP-compliant manufacturing environments.

Water & Wastewater Treatment: Municipal and industrial water treatment plants operating TDC 3000 systems use the 05701-A-0361 for remote engineering access to distributed pump control, chemical dosing, and filtration process modules. The card's LCN interface capability supports multi-site engineering from a centralized control facility.

Metals & Mining: Smelting operations, ore processing plants, and rolling mill automation systems benefit from the engineering card's ability to manage high-channel-count I/O configurations and coordinate control strategy updates across geographically distributed process areas within a single TDC 3000 network domain.

Q1: Is the Honeywell 05701-A-0361 compatible with both TDC 3000 and TPS (Total Plant Solution) architectures? Yes. The 05701-A-0361 is designed for the Honeywell TDC 3000 platform and is fully compatible with TPS-era system configurations that retain the LCN backbone. It interfaces with all standard LCN node types including HPM, AM, HM, and NIM modules. For plants that have partially migrated to Experion PKS, compatibility should be verified against the specific LCN-to-Experion bridge configuration in use at your facility.

Q2: What pre-shipment testing and quality assurance processes apply to this engineering card? Every Honeywell 05701-A-0361 unit supplied by NANKMOS undergoes pre-shipment functional verification, including power-on self-test confirmation, LCN communication interface check, and visual inspection for component integrity. Units are supplied with a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Detailed test records are available upon request for quality-critical procurement processes.

Q3: How does NANKMOS support long-term inventory availability and engineering continuity for TDC 3000 spare parts? NANKMOS maintains dedicated stock of Honeywell TDC 3000 and TPS spare components, including engineering cards, I/O processors, network interface modules, and power supply units. Our inventory strategy prioritizes obsolescence-risk components to support plants committed to long-term TDC 3000 operation. Orders are typically processed and shipped within standard lead times, with expedited fulfillment available for critical maintenance requirements. Contact [email protected] or +86 18359268345 for current stock confirmation and technical compatibility consultation.
