Honeywell 10310/3/1CC Communication Gateway

Product Details

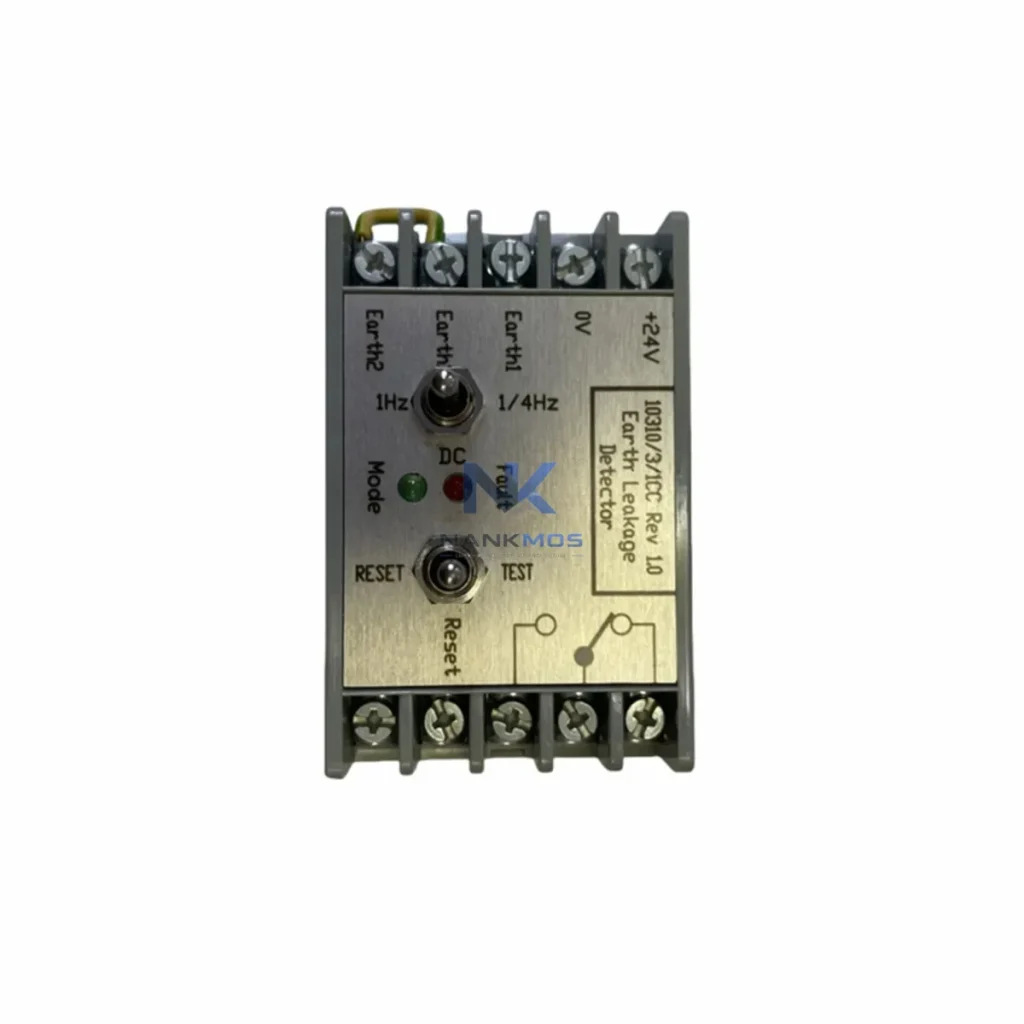

10310/3/1CC Product Description

The Honeywell 10310/3/1 CC-SIS is a purpose-built industrial network interface module designed to bridge the Safety Manager system with plant-wide automation networks. In modern smart factory environments, safety instrumented systems (SIS) cannot operate as isolated islands — they must exchange real-time status, alarm states, and diagnostic data with DCS controllers, SCADA platforms, HMI terminals, and edge computing layers. The 10310/3/1 CC-SIS fulfils this role with deterministic, protocol-aware communication that keeps safety logic transparent and auditable across the entire data chain.

From field-level signal acquisition through to enterprise dashboards, this module acts as the critical link between the Honeywell Safety Manager's internal logic bus and external automation networks. Whether the upstream system is a Honeywell Experion PKS DCS, a third-party SCADA server running OPC-DA or OPC-UA, or a remote HMI panel on a PROFIBUS DP segment, the 10310/3/1 CC-SIS ensures that safety-related data flows with the integrity and latency performance that process industries demand.

A typical smart factory safety data chain begins at the process field level, where pressure transmitters, temperature sensors, gas detectors, and emergency shutdown (ESD) valves feed discrete and analogue signals into the Safety Manager I/O chassis. The Honeywell 10310/3/1 CC-SIS card sits within this chassis and manages the communication pathway from the Safety Manager's logic solver to the plant automation backbone.

On the control network side, the Safety Manager communicates with the Honeywell Experion PKS C300 Controller via the CC-SIS link, enabling the DCS to receive real-time SIS status without compromising the safety system's independence. This architecture is fundamental to IEC 61511-compliant designs where the SIS and BPCS (Basic Process Control System) must remain logically separated yet operationally visible to each other.

Moving up the data hierarchy, the Honeywell Safety Manager SM chassis — populated with SM-SLM (Safety Logic Module) and SM-SCM (Safety Communication Module) cards — aggregates field-level safety data and passes consolidated status packets through the 10310/3/1 CC-SIS interface to the plant SCADA server. Operators monitoring the Honeywell Experion Station HMI can view SIS trip states, bypass conditions, and partial stroke test results in real time, without requiring direct access to the Safety Manager engineering workstation.

For facilities running mixed-vendor automation architectures, the CC-SIS gateway data can be bridged through an industrial protocol converter — such as a Moxa MGate or HMS Anybus gateway — to translate Honeywell-proprietary status frames into standard Modbus TCP or PROFINET packets consumable by third-party SCADA systems or Siemens S7-series PLCs on the same plant network. This interoperability layer is essential in brownfield expansions where legacy control systems must coexist with modern SIS infrastructure.

At the edge layer, industrial Ethernet switches with managed VLAN segmentation — such as those from the Hirschmann MACH or Phoenix Contact FL SWITCH series — provide the network backbone that carries CC-SIS data packets between the Safety Manager cabinet and the control room server rack. Proper network segmentation ensures that SIS communication traffic is isolated from general plant IT traffic, preserving deterministic latency and cybersecurity boundaries.

Remote diagnostic capability is another key value of the 10310/3/1 CC-SIS integration. When connected to an Experion PKS historian or a third-party data historian such as OSIsoft PI, every SIS event — trip, reset, bypass, partial stroke — is time-stamped and archived. Maintenance engineers can perform root-cause analysis remotely, reviewing alarm sequences and I/O state logs without travelling to site. This capability directly supports predictive maintenance programmes and regulatory compliance reporting in oil and gas, chemical, and power generation facilities.

For facilities expanding their SIS footprint, additional Honeywell SM-SCM communication modules and CC-SIS interface cards can be added to the Safety Manager chassis to support redundant communication paths or additional network segments, ensuring the data link architecture scales with production capacity without requiring a full system redesign.

Protocol Fragmentation: Many process plants operate with a mix of Honeywell Safety Manager SIS, third-party DCS platforms, and legacy SCADA systems that speak different protocols. The 10310/3/1 CC-SIS resolves this by providing a standardised CC-SIS communication interface that can be bridged to OPC-UA or Modbus TCP at the network layer, eliminating the need for custom software drivers or manual data re-entry between systems.

Data Silos Between SIS and DCS: Without a dedicated SIS-DCS communication interface, safety system status is often invisible to the DCS operator until a trip occurs. The 10310/3/1 CC-SIS enables continuous, real-time status sharing between the Safety Manager and the Experion PKS DCS, giving operators early warning of pre-trip conditions, bypass states, and diagnostic faults — transforming reactive alarm management into proactive process oversight.

Remote Monitoring Gaps: In geographically distributed facilities — offshore platforms, pipeline stations, remote chemical plants — the inability to remotely monitor SIS health is a significant operational risk. By integrating the 10310/3/1 CC-SIS into a plant-wide SCADA or historian architecture, remote operations centres gain full visibility of SIS status, enabling 24/7 remote diagnostics and reducing the frequency of costly site visits.

Production Line Transparency: Modern smart factory initiatives require that every layer of the automation stack — from field instruments to enterprise MES and ERP systems — contributes to a unified data model. The 10310/3/1 CC-SIS ensures that safety system data is not excluded from this model, enabling production planners and safety engineers to correlate SIS events with production KPIs, downtime records, and maintenance schedules in a single integrated view.

Alarm Rationalisation and Traceability: Regulatory frameworks such as IEC 61511 and OSHA PSM require detailed records of SIS alarm events, bypass authorisations, and proof-test results. The CC-SIS communication link provides the data pathway for these records to flow automatically into the plant historian and SCADA alarm management system, supporting audit-ready traceability without manual logging.

Q1: What communication protocols does the Honeywell 10310/3/1 CC-SIS support? The 10310/3/1 CC-SIS is a dedicated Honeywell CC-SIS (Safety Manager Communication Interface) card that operates on the Honeywell Safety Manager internal communication bus. At the network level, it interfaces with the Honeywell Experion PKS DCS via the CC-SIS link. For integration with third-party SCADA or PLC systems, OPC-UA or Modbus TCP bridging is typically implemented at the gateway layer using a protocol converter upstream of the Safety Manager network.

Q2: How does the 10310/3/1 CC-SIS maintain network stability in a safety-critical environment? The CC-SIS interface is designed for deterministic, low-latency communication within the Safety Manager architecture. It supports redundant communication paths when paired with a redundant SM-SCM module configuration, ensuring that a single network fault does not interrupt SIS-DCS data exchange. Network segmentation via managed industrial Ethernet switches further isolates SIS traffic from general plant network congestion.

Q3: Can the 10310/3/1 CC-SIS be integrated with non-Honeywell SCADA or HMI systems? Yes. While the CC-SIS card is native to the Honeywell Safety Manager and Experion PKS ecosystem, its data can be exposed to third-party SCADA and HMI platforms via OPC-UA servers or Modbus TCP gateways installed at the DCS or network layer. This allows operators using Wonderware, Ignition, iFIX, or other SCADA platforms to receive real-time SIS status data without modifying the Safety Manager configuration.

Q4: What does the 12-month warranty cover, and what is the shipping and testing process? Every Honeywell 10310/3/1 CC-SIS unit supplied by NANKMOS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes outgoing quality inspection to verify physical integrity, connector condition, and firmware version. Units are shipped in anti-static packaging with full documentation. In-stock units are available for prompt dispatch; lead times for non-stock configurations are confirmed at the time of enquiry. For technical pre-sales support or RFQ, contact [email protected] or call +86 18359268345.
