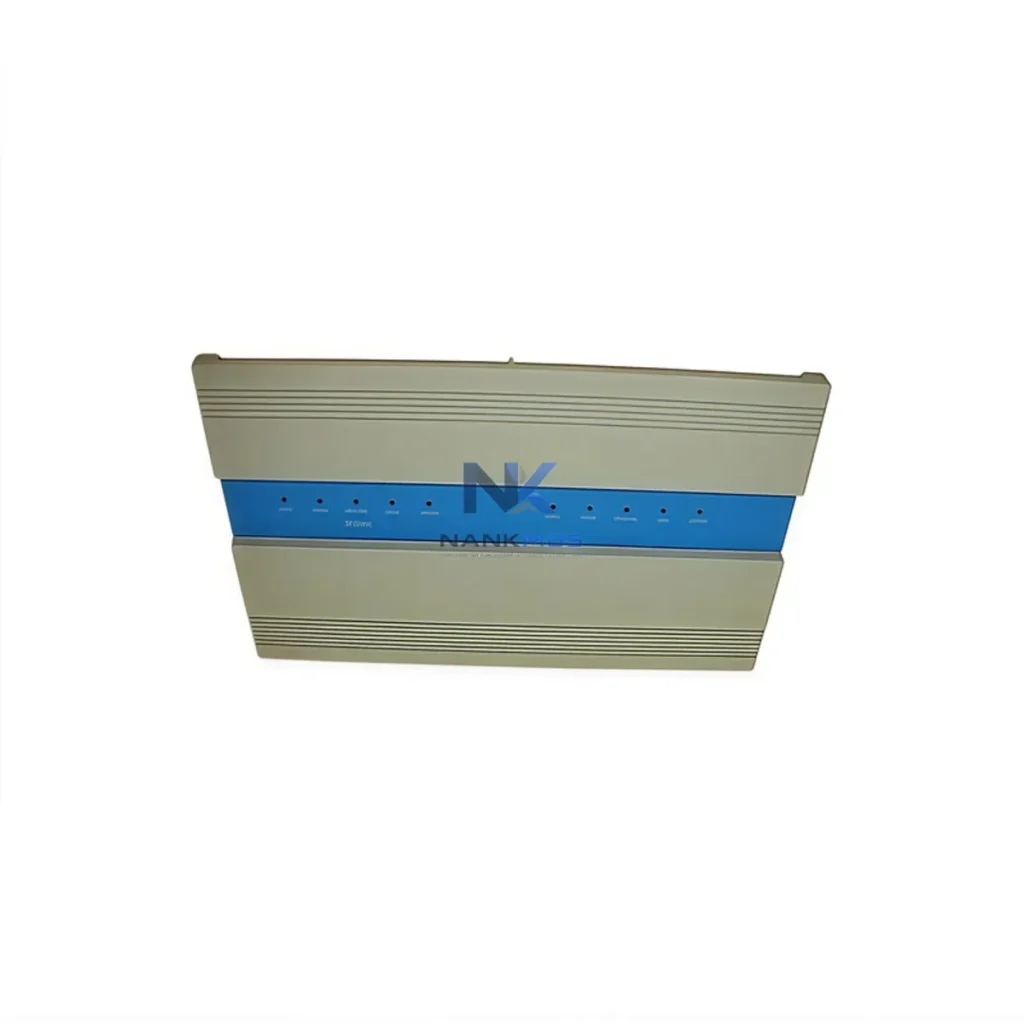

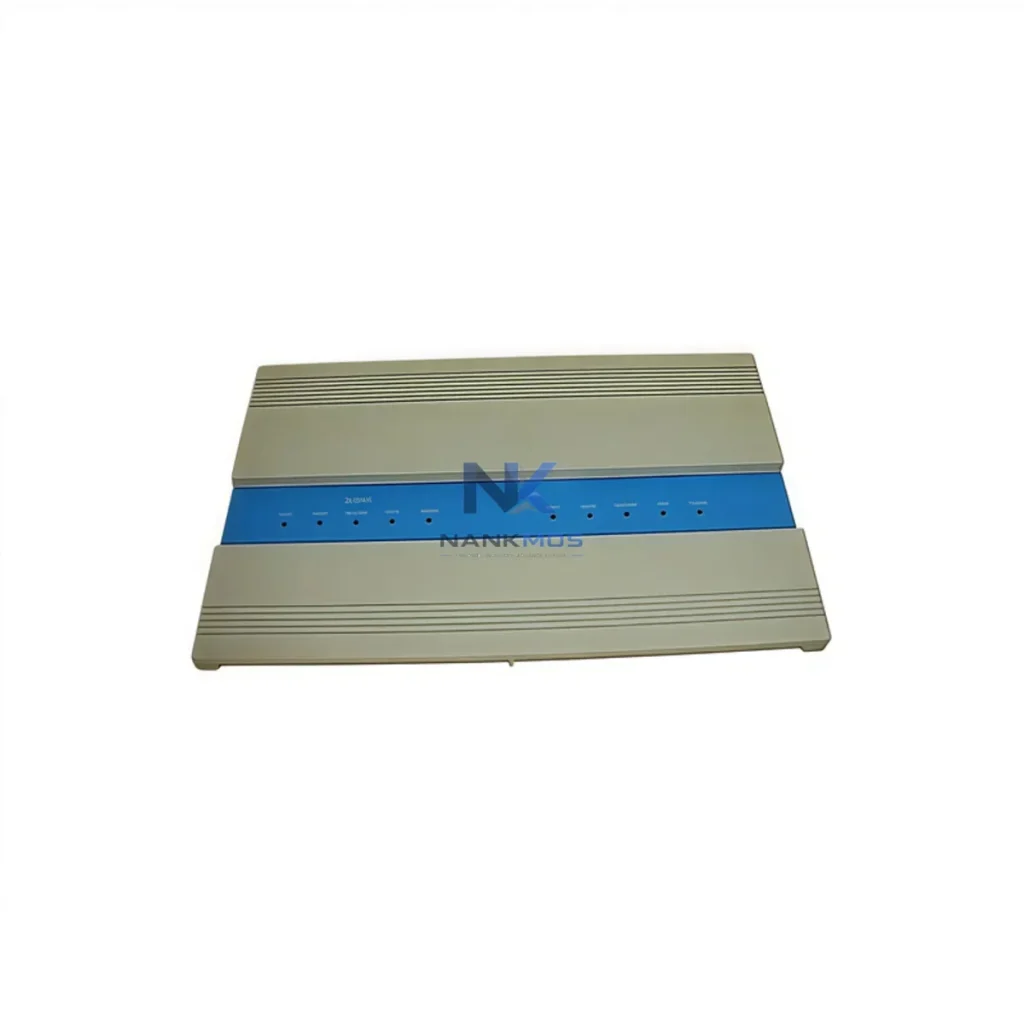

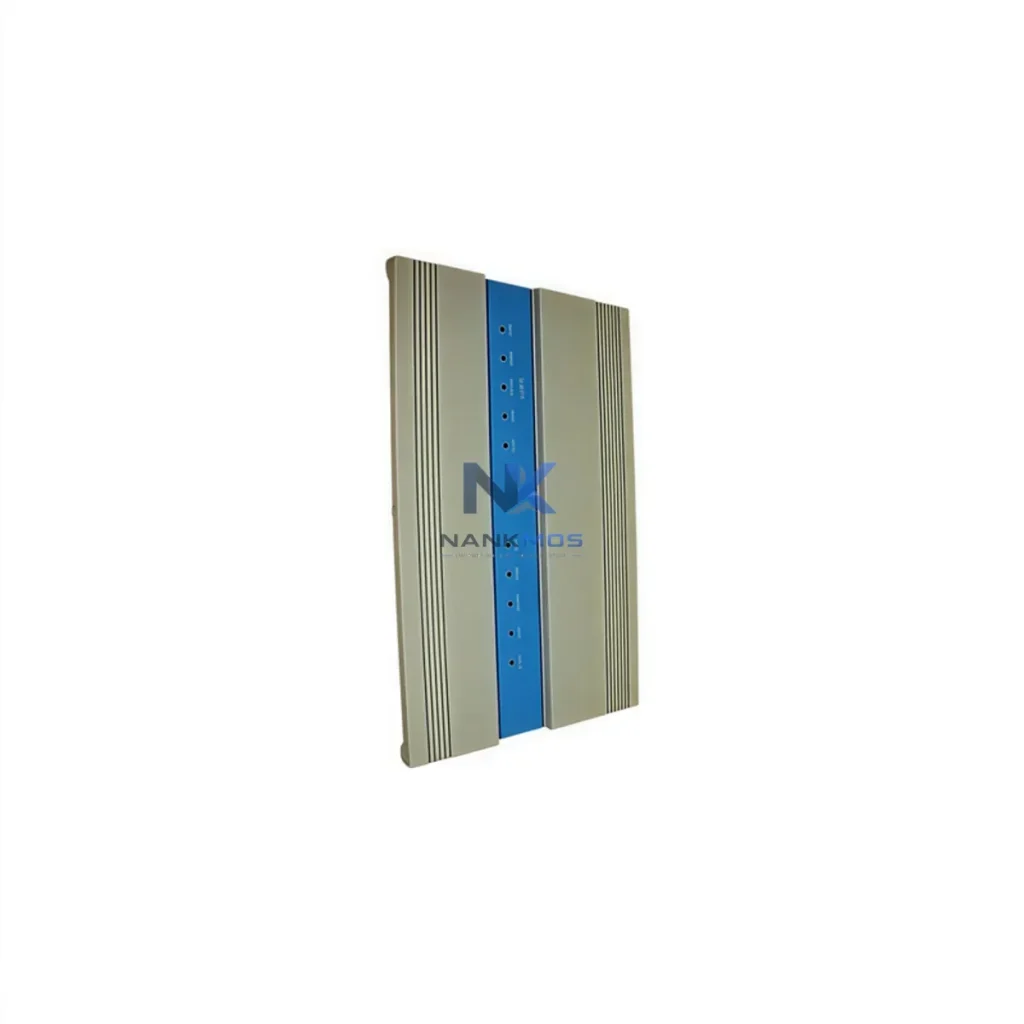

Honeywell 51304069-100 DCS Power Supply Module

Product Details

51304069-100 Product Description

The Honeywell 51304069-100 is not a standalone component — it is a foundational power layer element within the Honeywell TDC 3000 and TotalPlant Solution (TPS) distributed control architecture. In a fully integrated automation platform, stable and regulated power delivery is the prerequisite for every other system layer to function reliably. This module supplies the precise DC voltage rails required by the High-Performance Process Manager (HPPM) and the Advanced Process Manager (APM), ensuring that the control processors maintain deterministic scan cycles without voltage-induced faults or unexpected resets.

At the I/O layer, the 51304069-100 powers analog input cards, digital output modules, and smart transmitter interface cards that connect field instruments — including pressure transmitters, flow meters, and temperature sensors — back to the control processor. Without a stable power supply, signal integrity across these I/O channels degrades, leading to measurement drift, false alarms, and compromised process control. The module's regulated output ensures that cards such as the Honeywell 51304485-100 Analog Input Module and the 51304516-100 Digital Output Module receive clean, consistent power throughout the production cycle.

At the communication layer, the Local Control Network (LCN) and Universal Control Network (UCN) rely on powered network interface modules and gateway cards to maintain real-time data exchange between the process manager, the History Module (HM), and the Application Module (AM). The 51304069-100 supports the power infrastructure that keeps these communication pathways active, preventing network dropouts that could isolate a process manager from the supervisory layer. In architectures where the Honeywell NIM (Network Interface Module) or the UCN Node Interface Module (UCNNIM) is deployed, consistent power delivery is critical to maintaining sub-second network response times.

For redundancy design, the 51304069-100 is engineered to participate in N+1 power redundancy configurations. In high-availability process plants — such as continuous chemical reactors, offshore platform control systems, or power generation facilities — a single power supply failure cannot be permitted to interrupt control. By deploying a redundant 51304069-100 alongside the primary unit, engineers ensure automatic failover without process interruption. This redundancy architecture aligns with the broader Honeywell TDC 3000 philosophy of fault-tolerant control, where the Redundant Controller Module (RCM) and the Fault-Tolerant Ethernet (FTE) switch infrastructure also contribute to system resilience.

At the HMI and supervisory layer, the Universal Station (US) and the Global User Station (GUS) workstations depend on a stable control network, which in turn depends on the power integrity provided by modules like the 51304069-100. Operators monitoring process graphics, trend displays, and alarm summaries on the TPS console require that the underlying control processors and I/O modules remain continuously powered and communicating. Any power instability at the cabinet level propagates upward to the HMI layer as data gaps, stale values, or communication timeouts.

From a maintenance and diagnostics perspective, the 51304069-100 simplifies long-term asset management. Its modular form factor allows field engineers to perform hot-swap replacement during scheduled maintenance windows without requiring a full system shutdown. When integrated with Honeywell's Plant Resource Manager (PRM) or a third-party CMMS, the power supply's operational history can be tracked alongside other critical cabinet components, enabling predictive maintenance scheduling and reducing unplanned downtime. The module's compatibility with standard TDC 3000 cabinet backplanes means that spare inventory management is straightforward — a single part number covers multiple cabinet positions across the plant.

Continuous Process Manufacturing: In petrochemical refineries and chemical processing plants, the TDC 3000 architecture manages critical process loops — reactor temperature, column pressure, and flow control — around the clock. The 51304069-100 ensures that the power layer supporting these loops never becomes a single point of failure. Plants running continuous distillation columns or catalytic cracking units depend on uninterrupted power to their process managers to maintain product quality and safety margins.

Power Generation and Utilities: Thermal power stations and combined-cycle gas turbine plants use Honeywell TDC 3000 systems to coordinate boiler controls, turbine sequencing, and emissions monitoring. In these environments, the power supply module must sustain operation across wide ambient temperature ranges and tolerate the electrical noise generated by large rotating machinery. The 51304069-100's regulated output and robust design make it suitable for turbine hall control cabinets where EMI levels are elevated.

Oil and Gas Upstream and Midstream: Offshore platforms and onshore gas processing facilities deploy TDC 3000 systems for wellhead control, separator management, and pipeline compression. In these safety-critical environments, the power supply module supports the control processors that interface with Emergency Shutdown (ESD) systems and Fire and Gas (F&G) detection networks. Reliable power delivery at the cabinet level is a prerequisite for maintaining SIL-rated control loop integrity.

Water and Wastewater Treatment: Municipal water authorities and industrial effluent treatment plants use distributed control systems to manage pump sequencing, chemical dosing, and filtration cycles. The 51304069-100 supports the I/O modules that monitor flow rates, pH levels, and turbidity sensors, ensuring that the control system maintains continuous visibility over the treatment process without power-related data gaps.

Metals, Mining, and Minerals Processing: Smelters, concentrators, and rolling mills operate under harsh electrical environments with significant harmonic distortion and voltage fluctuations. The TDC 3000 power supply module's regulated output protects sensitive control electronics from these disturbances, maintaining stable operation of the process managers that coordinate furnace temperature control, conveyor sequencing, and material handling automation.

Q1: Is the Honeywell 51304069-100 compatible with both TDC 3000 and TotalPlant Solution (TPS) cabinet architectures? Yes. The 51304069-100 is designed for the Honeywell TDC 3000 platform, which evolved into the TotalPlant Solution (TPS) architecture. The module's mechanical form factor and electrical output specifications are compatible with standard TDC 3000 cabinet backplanes used across both generations of the platform. Engineers upgrading from TDC 3000 to TPS can retain existing power supply modules, reducing retrofit costs and maintaining spare parts commonality across the plant.

Q2: Can the 51304069-100 be installed in a redundant power configuration, and what is the failover behavior? Yes. The TDC 3000 cabinet architecture supports N+1 redundant power supply configurations. When a primary 51304069-100 unit fails or is removed for maintenance, the redundant unit assumes full load automatically without interrupting the control processor or I/O module operation. This hot-standby behavior is transparent to the process — no operator intervention is required, and no control loop disturbance occurs during the transition. NANKMOS recommends maintaining at least one spare 51304069-100 unit in site inventory to support rapid replacement during unplanned failures.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term spare parts availability for legacy TDC 3000 systems? The 12-Month Warranty covers full functional performance of the 51304069-100 from the date of shipment. If the module fails to perform to its original specification within the warranty period due to manufacturing or component defects, NANKMOS will provide a replacement or repair at no additional cost. For long-term spare parts support, NANKMOS maintains dedicated inventory of legacy Honeywell TDC 3000 components, including power supply modules, I/O cards, and communication modules, to support plants that are extending the operational life of their existing control architecture. Each unit is tested prior to shipment to verify output voltage regulation, load response, and thermal performance.
