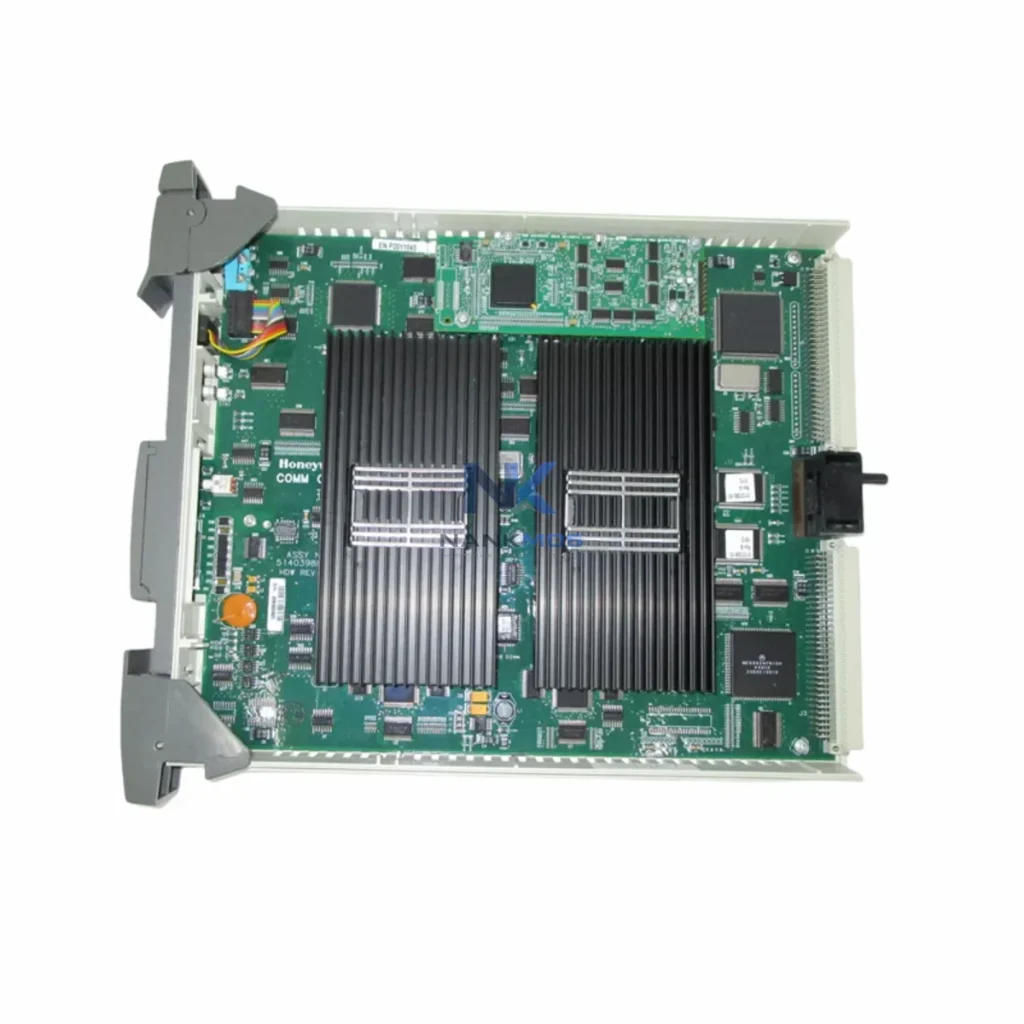

Honeywell 51403988-150 51306701-175 Communication Gateway

Product Details

51403988-150 51306701-175 Product Description

The Honeywell 51403988-150 is a Serial Link Driver module engineered for the TDC 3000 Distributed Control System (DCS) platform. As a dedicated industrial communication gateway, it bridges field-level devices and upper-layer supervisory systems across the complete smart factory data chain — from signal acquisition at the sensor layer through protocol conversion, network transmission, real-time monitoring, alarm feedback, remote diagnostics, and data visualization up to enterprise-level SCADA and MES integration. In modern industrial automation environments where data continuity and network reliability are non-negotiable, the 51403988-150 delivers the connectivity backbone that keeps production transparent and responsive.

In a fully connected smart factory, the Honeywell 51403988-150 Serial Link Driver occupies a critical position in the data flow architecture. At the field level, sensors and transmitters — including pressure, temperature, and flow instruments — feed raw process data into the TDC 3000 DCS via the Universal Control Network (UCN). The 51403988-150 acts as the serial communication bridge that allows this data to traverse from the DCS backplane to external systems that do not natively speak the Honeywell LCN/UCN protocol.

Within the TDC 3000 environment, the module works alongside components such as the Honeywell 51304485-100 Advanced Process Manager (APM) and the 51401288-100 Network Interface Module to maintain coherent data routing across control nodes. When a PLC or remote I/O rack — for example a Honeywell HC900 Hybrid Controller — needs to exchange setpoints or status data with the TDC 3000 supervisory layer, the 51403988-150 provides the serial handshake that makes this cross-platform communication possible without requiring a full protocol stack replacement.

Moving up the data chain, the serial link output from the 51403988-150 connects to SCADA gateways and HMI servers. Industrial edge gateways — such as those running on platforms compatible with OPC-DA or OPC-UA — can ingest the serial data stream and republish it as structured tags accessible to Wonderware, iFIX, or Ignition SCADA systems. This enables operators at the control room HMI to view live process variables, trend historical data, and receive alarm notifications sourced directly from TDC 3000 field controllers, all without manual data entry or batch uploads.

For facilities running mixed-vendor environments, the 51403988-150 also supports integration pathways toward Honeywell Experion PKS migration projects, where legacy TDC 3000 nodes must coexist with newer DCS infrastructure during phased upgrades. Industrial Ethernet switches — such as managed switches supporting IEEE 802.3 with VLAN segmentation — sit between the serial-to-Ethernet converters and the plant network backbone, ensuring that TDC 3000 traffic is isolated from general IT traffic and protected against latency spikes that could affect control loop performance.

At the data visualization and reporting layer, the structured data flowing through the 51403988-150 feeds into historian servers and MES platforms, enabling production KPI dashboards, OEE calculations, and energy consumption tracking. Remote diagnostics tools can poll the DCS node status via the serial link, allowing maintenance engineers to identify communication faults, buffer overflows, or node dropouts without requiring physical access to the control cabinet — a capability that is especially valuable for offshore, remote, or hazardous-area installations.

Many industrial sites operating legacy DCS platforms face persistent data challenges: protocol fragmentation between older serial-based controllers and modern Ethernet-native systems, data silos where field data never reaches the SCADA or MES layer, and limited remote visibility into control system health. The Honeywell 51403988-150 directly addresses these pain points.

Protocol Unification: By providing a standardized serial communication interface within the TDC 3000 architecture, the 51403988-150 eliminates the need for custom protocol adapters or middleware patches when connecting legacy DCS nodes to modern supervisory systems. Engineers can configure the serial link parameters to match the target device's baud rate, parity, and stop bits, ensuring clean data handshakes without signal corruption.

Breaking Data Silos: Process data that previously remained locked within the TDC 3000 control network can now be surfaced to SCADA historians, cloud analytics platforms, and enterprise ERP systems. This end-to-end data visibility supports production line transparency, enabling shift supervisors and plant managers to make data-driven decisions based on real-time process conditions rather than lagging manual reports.

Remote Monitoring and Alarm Tracking: With the serial link active, remote diagnostic sessions can query node health, communication error counters, and buffer status from the SCADA workstation. Alarm events generated at the field level are propagated through the 51403988-150 to the HMI alarm management system, where they can be acknowledged, escalated, and logged with full timestamp and operator attribution — supporting both regulatory compliance and root-cause analysis workflows.

System Scalability: As production capacity grows or new process units are added, the 51403988-150 supports incremental expansion of the TDC 3000 communication network without requiring a full system redesign. Additional serial devices can be daisy-chained or connected via RS-485 multi-drop topology, and the module's backplane interface ensures that new nodes are recognized by the DCS without disrupting existing control loops.

Q1: What communication protocols does the Honeywell 51403988-150 support? The 51403988-150 Serial Link Driver supports serial communication standards including RS-232, RS-422, and RS-485, and interfaces with the Honeywell TDC 3000 Local Control Network (LCN) and Universal Control Network (UCN) via the DCS backplane. It is designed to bridge serial-based field devices and external systems with the TDC 3000 supervisory layer, enabling protocol-transparent data exchange without requiring third-party middleware.

Q2: How does this module support remote diagnostics and network stability? The 51403988-150 maintains a persistent serial link between the TDC 3000 DCS and connected external systems, allowing SCADA and HMI platforms to continuously poll node status, communication error registers, and data buffer health. This real-time diagnostic visibility enables maintenance teams to detect and resolve communication faults remotely, reducing unplanned downtime and eliminating the need for on-site intervention for routine network health checks.

Q3: Is the Honeywell 51403988-150 compatible with modern SCADA and HMI systems? Yes. When paired with a serial-to-Ethernet converter or an OPC server gateway, the 51403988-150 can feed structured process data to modern SCADA platforms such as Wonderware System Platform, Ignition by Inductive Automation, or Honeywell Experion PKS. This makes it a practical solution for phased DCS migration projects where legacy TDC 3000 nodes must coexist with newer control infrastructure during the transition period.

Q4: What quality assurance and warranty coverage is provided? Every Honeywell 51403988-150 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify serial communication integrity, backplane interface continuity, and module initialization. All units are covered by a 12-Month Warranty against manufacturing defects and communication failures. In-stock units are available for fast global shipping, with full traceability documentation provided upon request.
