Honeywell ACX633 51196655-100 Power Supply Module

Product Details

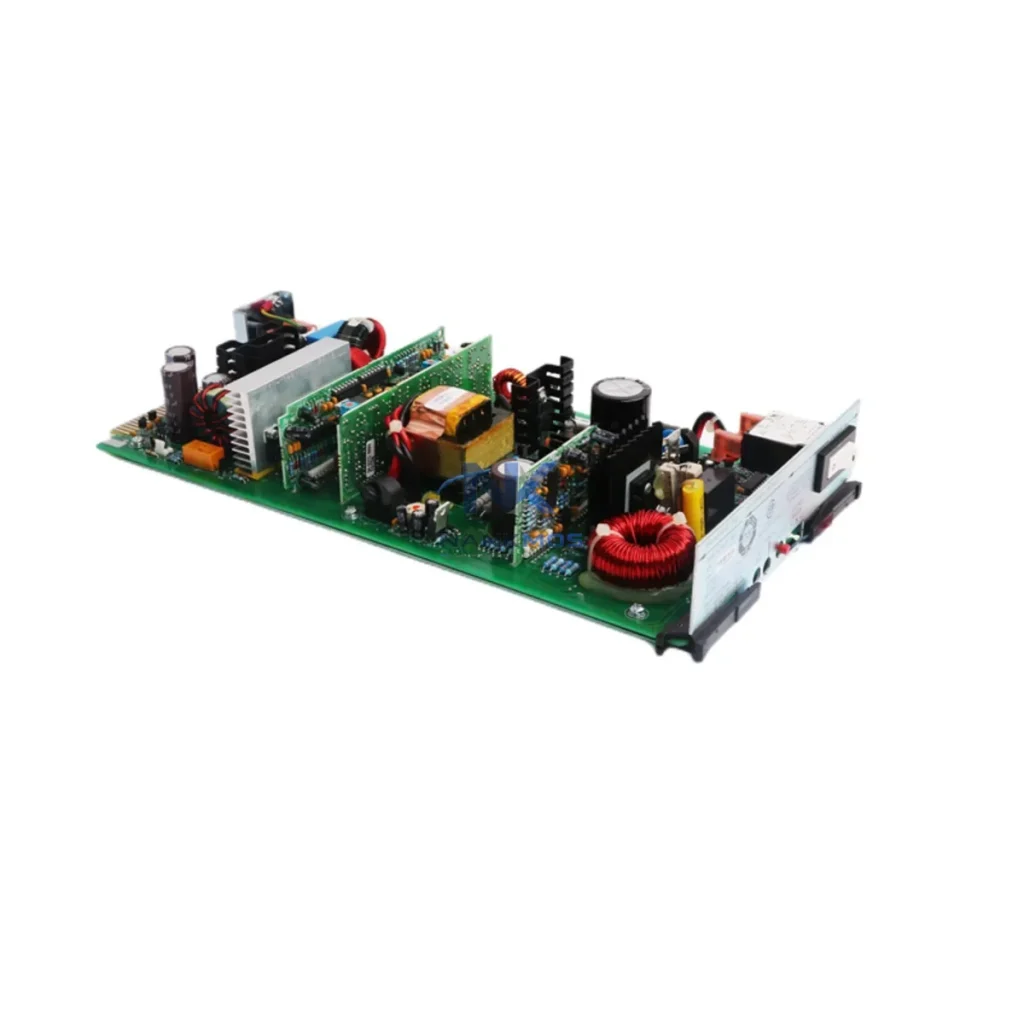

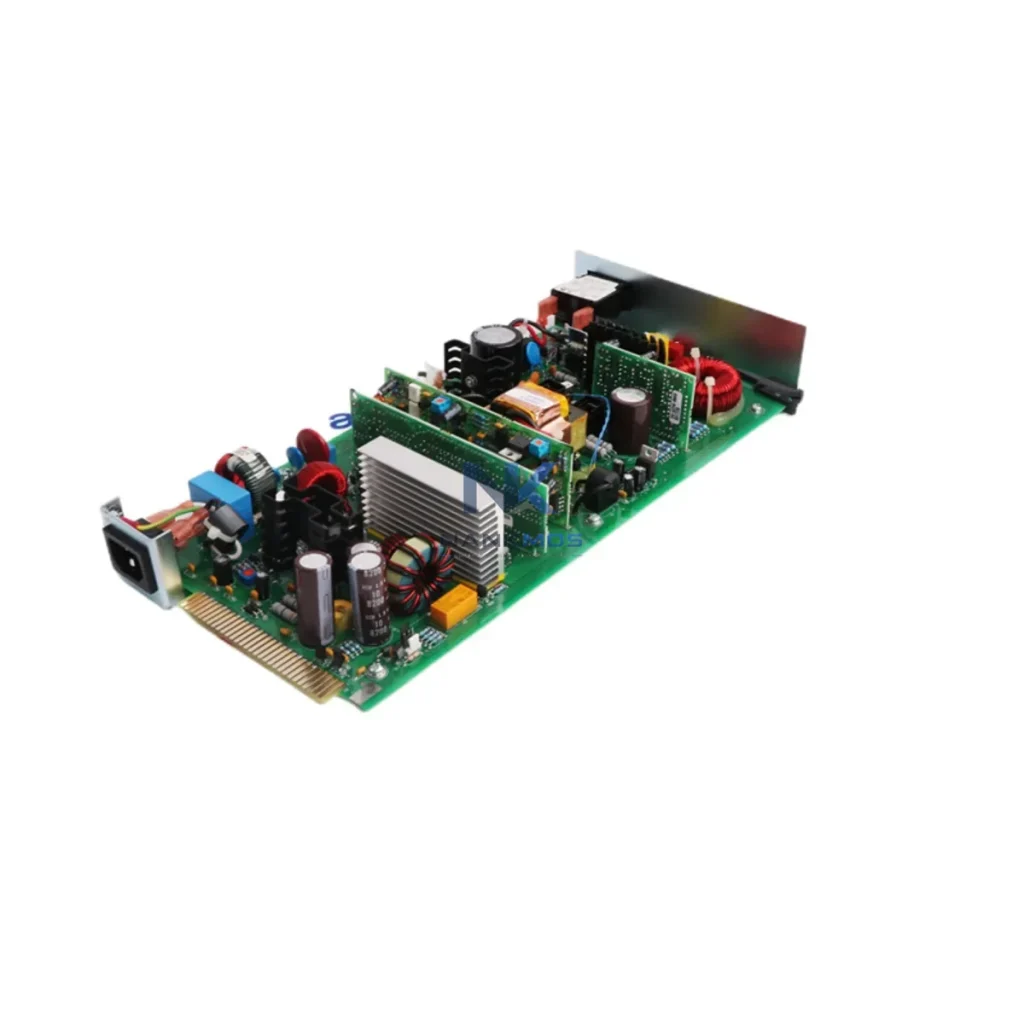

ACX633 51196655-100 Product Description

The Honeywell ACX633 (P/N 51196655-100) is a field-proven, industrial-grade DC power supply module engineered for the TDC3000 Distributed Control System platform. Designed to deliver stable, regulated power to critical control hardware, the ACX633 plays a central role in energy-control architecture — ensuring that every downstream component, from I/O modules to communication cards, receives clean, conditioned power with minimal conversion loss. In energy-intensive production environments, an unstable or inefficient power supply is one of the most common sources of unplanned downtime and thermal overload. The ACX633 addresses this directly with a high-efficiency conversion topology that reduces heat dissipation, lowers the thermal load on the control cabinet, and extends the operational lifespan of adjacent hardware.

In a fully integrated TDC3000 control architecture, the ACX633 power supply module functions as the foundational energy layer that every other component depends on. The High-Performance Manager (HPM) — the primary process controller in TDC3000 — relies on stable, conditioned DC power to execute scan cycles without interruption. Any voltage sag or ripple at the power supply level propagates directly into HPM scan jitter, which in turn affects PID loop performance and process stability.

The ACX633 is equally critical for the Local Control Network (LCN) communication infrastructure. LCN nodes, including the Application Module (AM) and History Module (HG), require consistent power to maintain deterministic data exchange across the network. When paired with the Honeywell 51196653-100 LCN power supply or the 51401469-100 redundant power module, the ACX633 supports a fully redundant power distribution scheme that eliminates single points of failure in the DCS power rail.

On the I/O side, the ACX633 supplies power to field termination assemblies and I/O link modules that interface with analog input cards (such as the 51304485-100 AI card), digital output modules, and thermocouple input cards. These I/O modules feed real-time process data — temperature, pressure, flow, and valve position — into the HPM for closed-loop control. A stable power supply ensures that signal conditioning circuits within these I/O cards operate within their specified accuracy bands, preventing false readings that could trigger unnecessary shutdowns or mask developing faults.

For facilities that have integrated Honeywell's Universal Control Network (UCN) with remote I/O nodes or smart field devices, the ACX633 also supports the power requirements of UCN interface modules. These modules bridge the TDC3000 platform to HART-enabled transmitters and valve positioners, enabling digital diagnostics and energy-aware device management. When combined with a Honeywell PM I/O power conditioner or a 24 VDC field power distributor, the ACX633 contributes to a layered power strategy that isolates field-side disturbances from the control-side power rail.

In plants that have extended TDC3000 with OPC-based SCADA integration or Honeywell's Experion PKS migration layer, the ACX633 continues to serve as the backbone power source for legacy TDC3000 nodes that remain in service. Maintaining original Honeywell hardware in these hybrid architectures is critical for preserving DCS certification and avoiding costly re-validation of control strategies.

Power supply efficiency is rarely the first variable engineers examine when auditing production line energy consumption — but it is consistently one of the highest-impact levers available. In a TDC3000-based control system managing a refinery, chemical plant, or power generation facility, the aggregate power draw of dozens of HPM, AM, HG, and I/O modules is substantial. Each module's power supply contributes to the total thermal load of the control room, which in turn drives HVAC energy consumption. By replacing aged or degraded power supply modules with the ACX633, facilities can reduce conversion losses, lower cabinet temperatures, and extend the mean time between failures (MTBF) of heat-sensitive components such as electrolytic capacitors and optocouplers in adjacent I/O cards.

The ACX633 also supports predictive maintenance strategies. In a well-instrumented TDC3000 environment, power supply output voltage and current draw can be monitored via the system's built-in hardware diagnostics. Trending these values over time allows maintenance teams to identify modules approaching end-of-life before they cause an unplanned outage. This approach — monitoring power supply health as part of a broader condition-based maintenance program — directly reduces unplanned downtime, which is the single largest driver of lost production throughput in continuous process industries.

From a production line rhythm perspective, the ACX633 contributes to scan cycle stability in the HPM. Consistent, clean DC power ensures that the HPM's processor executes control algorithms at the configured scan rate without interruption. In fast-loop applications — such as compressor surge control or reactor temperature management — even a brief power disturbance can cause a scan overrun that trips a safety interlock. By maintaining power quality at the module level, the ACX633 helps sustain the production line cadence that process engineers have optimized for maximum throughput and minimum energy waste per unit of output.

For facilities managing energy costs under ISO 50001 or similar energy management frameworks, the ACX633 supports the instrumentation layer that feeds energy data into the management system. When TDC3000 I/O modules are connected to power meters, current transformers, and energy transducers on motor control centers and drive panels, the quality of the power supply directly affects the accuracy and reliability of the energy data collected. Accurate energy data is the foundation of any credible energy reduction program — and the ACX633 ensures that foundation is solid.

All ACX633 51196655-100 units supplied by NANKMOS are sourced from verified channels, subjected to pre-shipment functional testing, and covered by a 12-month warranty. Stock is maintained for immediate dispatch to minimize control system downtime during emergency replacements.

Q1: Can the ACX633 51196655-100 directly replace a failed power supply in an active TDC3000 system? Yes. The ACX633 is a direct form-fit-function replacement for the original Honeywell 51196655-100 power supply module. It is designed for hot-swap installation in TDC3000 power distribution racks where redundant power is available, minimizing or eliminating process interruption during replacement. Always verify rack slot compatibility and confirm redundant power is active before removing the failed module.

Q2: What energy efficiency improvements can be expected after replacing an aged power supply with the ACX633? Aged power supply modules typically exhibit increased conversion losses due to capacitor degradation and component drift, resulting in higher heat output and reduced output voltage regulation. Replacing with a new ACX633 restores the module to original efficiency specifications, reducing thermal load in the control cabinet and improving output stability for connected I/O and communication modules. Quantified savings depend on the number of modules replaced and the facility's cooling infrastructure.

Q3: Is the ACX633 compatible with TDC3000 systems that have been partially migrated to Experion PKS? Yes. In hybrid TDC3000/Experion PKS architectures, legacy TDC3000 nodes — including HPM, AM, and LCN infrastructure — continue to operate on their original power distribution hardware. The ACX633 is fully compatible with these legacy nodes and does not require any firmware or configuration changes. It supports the power requirements of TDC3000 hardware regardless of whether the supervisory layer has been migrated to Experion PKS.

Q4: What does the 12-month warranty cover, and what is the typical lead time for in-stock units? The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In-stock ACX633 units are available for same-day or next-business-day dispatch. For urgent replacement requirements, contact NANKMOS directly to confirm current stock levels and expedited shipping options.
