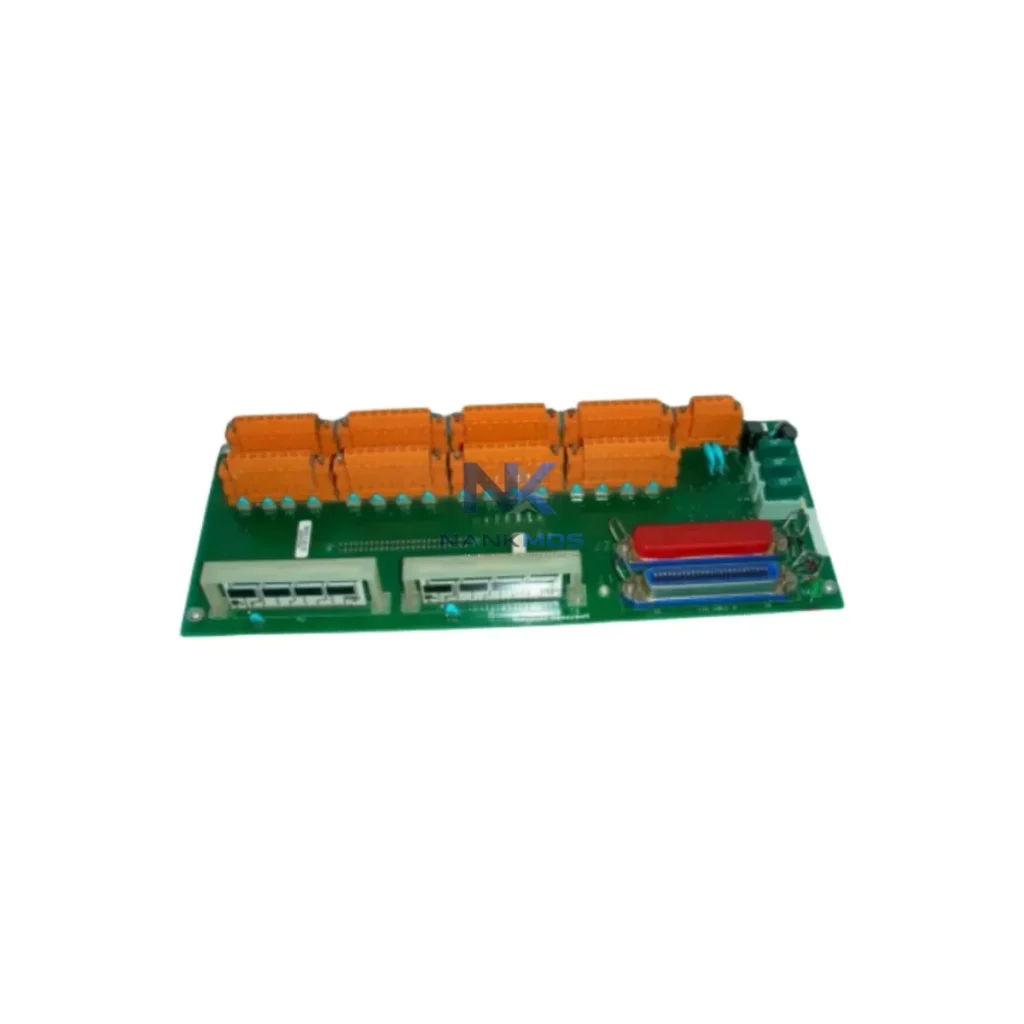

Honeywell MU-TAOY22 Analog Output Module

Product Details

MU-TAOY22 Product Description

The Honeywell MU-TAOY22 is a high-precision analog output module engineered for the TDC 3000 and TPS Distributed Control System (DCS) platforms. Designed for demanding industrial environments, this module delivers stable, low-drift analog signal output that directly supports energy-efficient drive control, load management, and production line optimization. With its proven compatibility across Honeywell's process automation architecture, the MU-TAOY22 plays a central role in reducing unnecessary energy consumption, minimizing thermal load on downstream equipment, and maintaining consistent production rhythm across complex manufacturing facilities.

In modern smart factories, analog output modules are the critical interface between the control layer and the field device layer. The MU-TAOY22 converts digital control commands from the DCS processor into precise 4–20 mA or 1–5 V analog signals, enabling accurate setpoint delivery to variable frequency drives (VFDs), servo amplifiers, control valves, and motorized actuators. This precision directly translates into measurable energy savings: by eliminating signal overshoot and reducing hunting in closed-loop control, the module ensures that motors and drives operate at their optimal efficiency point rather than cycling unnecessarily at full load.

The MU-TAOY22 operates as a precision signal source within a broader power-aware automation architecture. In a typical TDC 3000 or TPS DCS installation, the module receives process variable data from field-mounted sensors — including Honeywell ST 3000 smart pressure transmitters and temperature sensors — and translates the controller's output into a clean analog command signal. This signal is then delivered to downstream field devices such as Honeywell HC900 hybrid controllers, third-party variable frequency drives (VFDs), or servo drive amplifiers managing pump and compressor motor loads.

When integrated with a Honeywell Experion PKS supervisory layer or a SCADA platform, the MU-TAOY22 enables closed-loop energy management strategies. The SCADA system monitors real-time power consumption data from power monitoring modules and energy meters, while the DCS uses the MU-TAOY22 to trim drive setpoints dynamically — reducing motor speed during low-demand periods and ramping output precisely when production throughput requires it. This eliminates the energy waste associated with fixed-speed motor operation and reduces heat generation in motor control centers (MCCs).

In multi-axis or multi-zone production lines, the MU-TAOY22 works alongside Honeywell MU-TAIH02 analog input modules and MU-TDID12 digital I/O modules to form a complete field I/O subsystem. The analog input modules capture feedback from flow transmitters, pressure sensors, and position encoders, while the MU-TAOY22 closes the loop by issuing corrective output commands. This coordinated I/O strategy ensures that each drive and actuator in the production line operates within its optimal efficiency band, reducing both energy consumption and mechanical wear.

For facilities using Honeywell FSC Safety Controllers or integrating safety PLCs into the DCS architecture, the MU-TAOY22 supports safe state output behavior, ensuring that analog outputs de-energize correctly during emergency shutdowns — preventing uncontrolled motor rundown and protecting both equipment and personnel. Communication between the DCS and higher-level systems is handled via Honeywell FTE (Fault Tolerant Ethernet) or OPC-DA/UA gateways, allowing energy management data to flow seamlessly to plant-level MES and ERP platforms.

One of the most significant sources of energy waste in process manufacturing is imprecise analog control. When output modules deliver noisy, drifting, or inaccurate signals to variable frequency drives and control valves, the result is continuous micro-corrections that keep motors and actuators in a state of perpetual adjustment. This not only wastes electrical energy but also generates excess heat, accelerates component wear, and shortens the service life of drives and bearings.

The Honeywell MU-TAOY22 addresses this directly through its high-resolution digital-to-analog conversion and low output impedance design. By delivering a stable, accurate 4–20 mA command signal, the module allows VFDs to maintain their programmed speed reference without hunting, reducing motor current draw and lowering the thermal load on both the drive and the motor. In pump and fan applications — which account for a substantial share of industrial energy consumption — even a 5–10% reduction in unnecessary speed variation can translate into meaningful energy savings over a production year.

Beyond individual drive efficiency, the MU-TAOY22 contributes to production line rhythm stability. In batch processing or continuous flow manufacturing, inconsistent analog output can cause downstream equipment to fall out of synchronization, leading to product quality issues, increased scrap rates, and unplanned downtime. By maintaining precise setpoint delivery, the module helps production lines sustain their designed throughput rate with minimal intervention, reducing the energy cost per unit of output.

Predictive maintenance strategies also benefit from stable analog output. When drives and actuators receive consistent, accurate command signals, their operating patterns become more predictable, making it easier for condition monitoring systems to detect early signs of mechanical degradation — such as increasing current draw at a fixed speed setpoint — before a failure occurs. This reduces unplanned downtime, avoids the energy spikes associated with emergency restarts, and extends the productive life of capital equipment.

Every MU-TAOY22 unit supplied by NANKMOS undergoes a comprehensive pre-shipment functional test, verifying output accuracy, channel isolation, and signal stability across the full operating range. Units are shipped with full traceability documentation and are backed by a 12-month warranty, ensuring that your production line investment is protected from day one.

Q1: How does the MU-TAOY22 contribute to energy savings in a DCS-controlled production line? The MU-TAOY22 delivers precise, stable 4–20 mA analog output signals to field devices such as variable frequency drives, control valves, and servo amplifiers. By eliminating signal noise and output drift, it prevents unnecessary motor speed corrections and actuator hunting — reducing energy consumption, lowering thermal load on drives, and improving overall system efficiency. When integrated with a SCADA or energy management system, it enables dynamic setpoint adjustment based on real-time load demand.

Q2: Is the MU-TAOY22 compatible with systems beyond the Honeywell TDC 3000 and TPS DCS? The MU-TAOY22 is designed and optimized for the Honeywell TDC 3000 and TPS DCS platforms. In hybrid architectures, its standard 4–20 mA output can interface with third-party PLCs, SCADA systems, and standalone VFDs via appropriate signal conditioning. For full compatibility verification in non-standard configurations, we recommend consulting the module's technical datasheet or contacting our engineering support team.

Q3: What is the pre-shipment testing process, and what does the 12-month warranty cover? Every MU-TAOY22 unit undergoes a full functional test prior to dispatch, including output accuracy verification across both channels, channel isolation testing, and signal stability checks under simulated load conditions. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty service includes replacement or repair, with fast turnaround to minimize production downtime.

Q4: How quickly can the MU-TAOY22 be sourced, and is stock available for urgent replacement needs? NANKMOS maintains ready inventory of the MU-TAOY22 to support urgent maintenance and replacement requirements. Units are available for immediate dispatch, with expedited shipping options for critical production line situations. Contact our team at [email protected] or +86 18359268345 to confirm current stock levels and lead times for your specific requirement.
