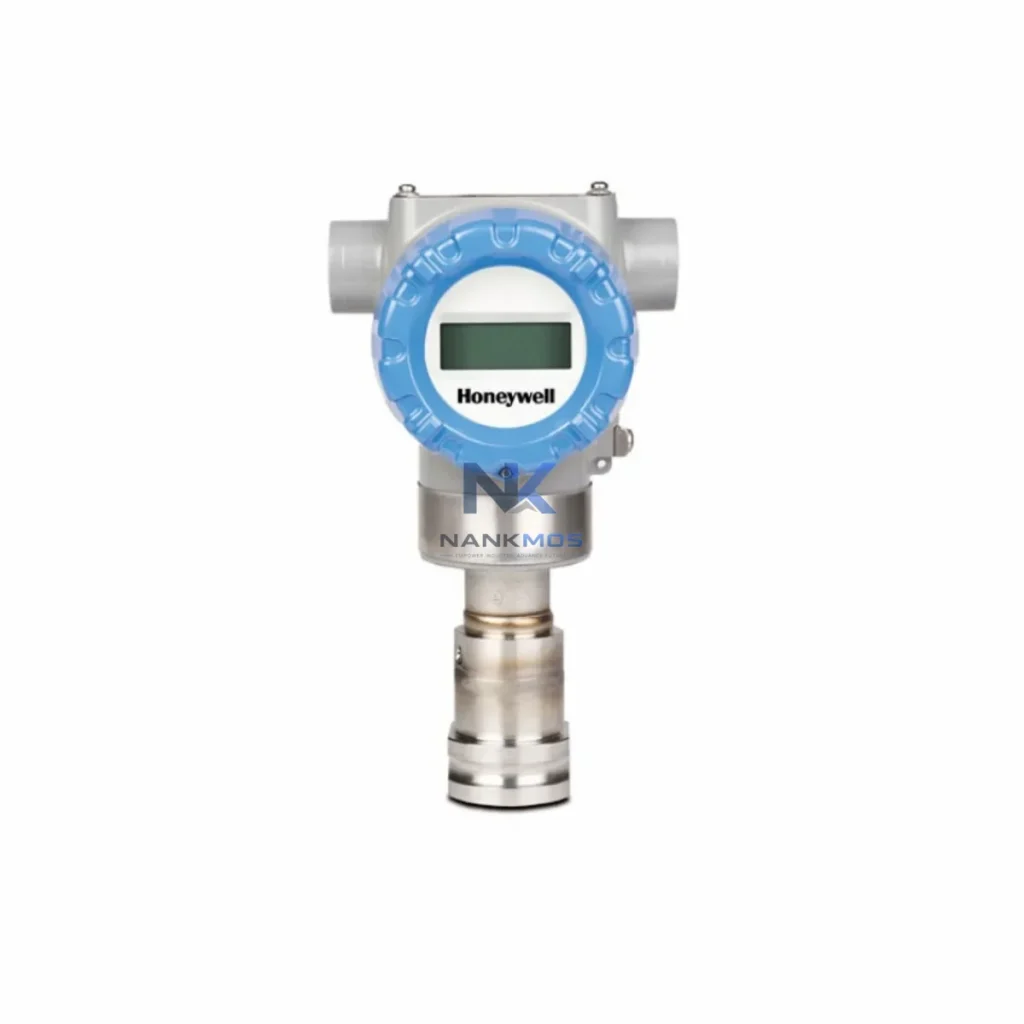

STG740-E1GC4A-1-A-AHB-11S-10A0 STG700 Product Description

The Honeywell STG740-E1GC4A-1-A-AHB-11S-10A0 is a high-performance differential pressure transmitter from the STG700 Series, engineered for seamless integration into modern distributed control system (DCS) and process automation architectures. Designed to deliver exceptional measurement accuracy, long-term signal stability, and full compatibility with HART-based field networks, this transmitter serves as a critical sensing node within layered industrial control environments. Whether deployed in oil and gas processing, chemical plants, power generation, water treatment, or advanced manufacturing, the STG740-E1GC4A-1-A-AHB-11S-10A0 provides the measurement integrity and system coherence that demanding process control applications require.

At NANKMOS, every STG740-E1GC4A-1-A-AHB-11S-10A0 unit is subject to pre-shipment functional testing and ships with a 12-Month Warranty, ensuring verified performance from day one of installation. Our inventory is maintained for rapid global dispatch, supporting both planned capital projects and urgent maintenance replacement scenarios.

The STG740-E1GC4A-1-A-AHB-11S-10A0 is not a standalone instrument — it is a functional element within a multi-layer automation architecture. In a typical Honeywell Experion PKS or TDC 3000 environment, this transmitter connects to HART-enabled I/O cards such as the Honeywell HC900 Analog Input Module or the Series C I/O subsystem, feeding real-time differential pressure data into the control layer for PID loop execution and process optimization.

At the controller level, the Honeywell C300 Process Controller or HC900 Hybrid Controller receives the 4–20 mA signal and executes regulatory control strategies — flow computation, level inference, or filter differential monitoring — with deterministic scan rates. The STG740 integrates directly into these control strategies without signal conditioning intermediaries, reducing latency and improving loop performance.

For installations requiring field-level diagnostics and asset management, the STG740-E1GC4A-1-A-AHB-11S-10A0 communicates via HART to a Honeywell Field Device Manager (FDM) or compatible AMS Device Manager, enabling remote configuration, calibration verification, and predictive maintenance scheduling without process interruption. This diagnostic capability is essential in high-availability architectures where unplanned shutdowns carry significant operational cost.

In redundant process measurement designs, the STG740 is often paired with a secondary transmitter — such as the Honeywell STG800 Series gauge pressure transmitter — on the same process tap, with the DCS performing signal selection or averaging logic. This redundancy strategy is common in SIL 2 safety instrumented systems (SIS) where the Honeywell FSC Safety Controller or Safety Manager SC validates measurement integrity against independent sensor channels.

At the power layer, the STG740 operates on loop power supplied through Honeywell-compatible 24 VDC field power distributors or Pepperl+Fuchs zener barriers and galvanic isolators, ensuring intrinsic safety compliance in Zone 1/Zone 2 hazardous areas. Signal isolators such as the P+F KFD2-STC4-Ex1 or equivalent Honeywell-approved isolators maintain signal integrity across long cable runs in electrically noisy environments.

At the HMI and SCADA layer, process values from the STG740 are visualized on Honeywell Experion Station or third-party SCADA platforms via OPC-DA/UA data bridges, providing operators with real-time trend displays, alarm management, and historical data logging. The transmitter's HART variables — primary variable (PV), secondary variable (SV), percent range, and loop current — are all accessible for advanced process analytics and KPI dashboards.

For modular panel and marshalling cabinet designs, the STG740 connects through terminal blocks and junction boxes to the DCS I/O marshalling layer, where Honeywell MLCP (Multi-Line Control Panel) or equivalent structured wiring systems organize field signals before entry into the controller backplane. This structured approach simplifies commissioning, reduces wiring errors, and accelerates loop checkout during plant startup.

In summary, the STG740-E1GC4A-1-A-AHB-11S-10A0 functions as a precision measurement anchor within the I/O and field instrument layer, supporting control layer execution, safety system validation, diagnostic asset management, and HMI visualization — all within a unified, HART-native automation architecture.

Oil & Gas Processing: In upstream and midstream facilities, the STG740-E1GC4A-1-A-AHB-11S-10A0 monitors differential pressure across separator vessels, filter coalescers, and heat exchangers. Its SIL 2 capability and ATEX/IECEx certification make it suitable for Zone 1 hazardous area installation, where measurement reliability directly impacts process safety and regulatory compliance.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the STG740 measures boiler feedwater differential pressure, steam flow across orifice plates, and condenser vacuum — critical parameters for turbine protection systems and efficiency optimization. Integration with the plant DCS via HART I/O ensures that these measurements feed directly into turbine control and load dispatch strategies.

Chemical & Petrochemical: Reactor differential pressure monitoring, distillation column tray pressure drop measurement, and pump suction/discharge differential monitoring are typical STG740 applications in chemical plants. The transmitter's high overpressure protection and corrosion-resistant wetted materials support continuous operation in aggressive process media environments.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities deploy the STG740 for filter bed differential pressure monitoring, pump performance trending, and flow measurement via differential pressure across Venturi or orifice elements. Its IP67 enclosure rating and wide ambient temperature range support outdoor installation in variable climate conditions.

Mining & Metallurgy: In mineral processing and smelting operations, the STG740 monitors slurry pump differential pressure, flotation cell level inference, and compressed air system differential — applications where measurement robustness and long calibration intervals reduce maintenance burden in remote or harsh environments.

Packaging & Discrete Manufacturing: Compressed air and pneumatic system differential pressure monitoring using the STG740 ensures consistent actuator performance and early detection of filter fouling or compressor degradation, supporting overall equipment effectiveness (OEE) improvement programs.

Q1: Is the STG740-E1GC4A-1-A-AHB-11S-10A0 compatible with third-party DCS platforms beyond Honeywell Experion? Yes. The STG740 outputs a standard 4–20 mA analog signal with superimposed HART communication, making it universally compatible with any DCS or PLC platform equipped with analog input cards — including Siemens SIMATIC S7, ABB System 800xA, Emerson DeltaV, Yokogawa CENTUM VP, and Rockwell ControlLogix. HART pass-through capability depends on the I/O card specification of the host system. For HART-enabled I/O cards, full device configuration and diagnostics are accessible via the host asset management system.

Q2: What are the installation and commissioning requirements for the STG740 in a SIL 2 safety instrumented system? For SIL 2 applications, the STG740-E1GC4A-1-A-AHB-11S-10A0 must be installed per the Honeywell SIL Safety Manual, which specifies proof test intervals, diagnostic coverage requirements, and wiring segregation from non-safety circuits. The transmitter must be connected to a SIL-rated logic solver — such as the Honeywell Safety Manager SC or Triconex Tricon — via dedicated SIL I/O cards. Functional safety assessment (FSA) documentation, including PFD calculations and proof test procedures, should be prepared in accordance with IEC 61511 requirements before commissioning.

Q3: What does the NANKMOS 12-Month Warranty cover, and how is long-term spare parts availability managed? The NANKMOS 12-Month Warranty covers manufacturing defects, calibration drift beyond specification, and electronic component failure under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing — including loop current verification, HART communication check, and zero/span calibration — before dispatch. For long-term spare parts planning, NANKMOS maintains buffer inventory of STG700 Series transmitters and associated accessories (manifolds, coplanar flanges, mounting brackets) to support both scheduled maintenance cycles and emergency replacement requirements. Contact [email protected] or +86 18359268345 for availability confirmation and lead time.
