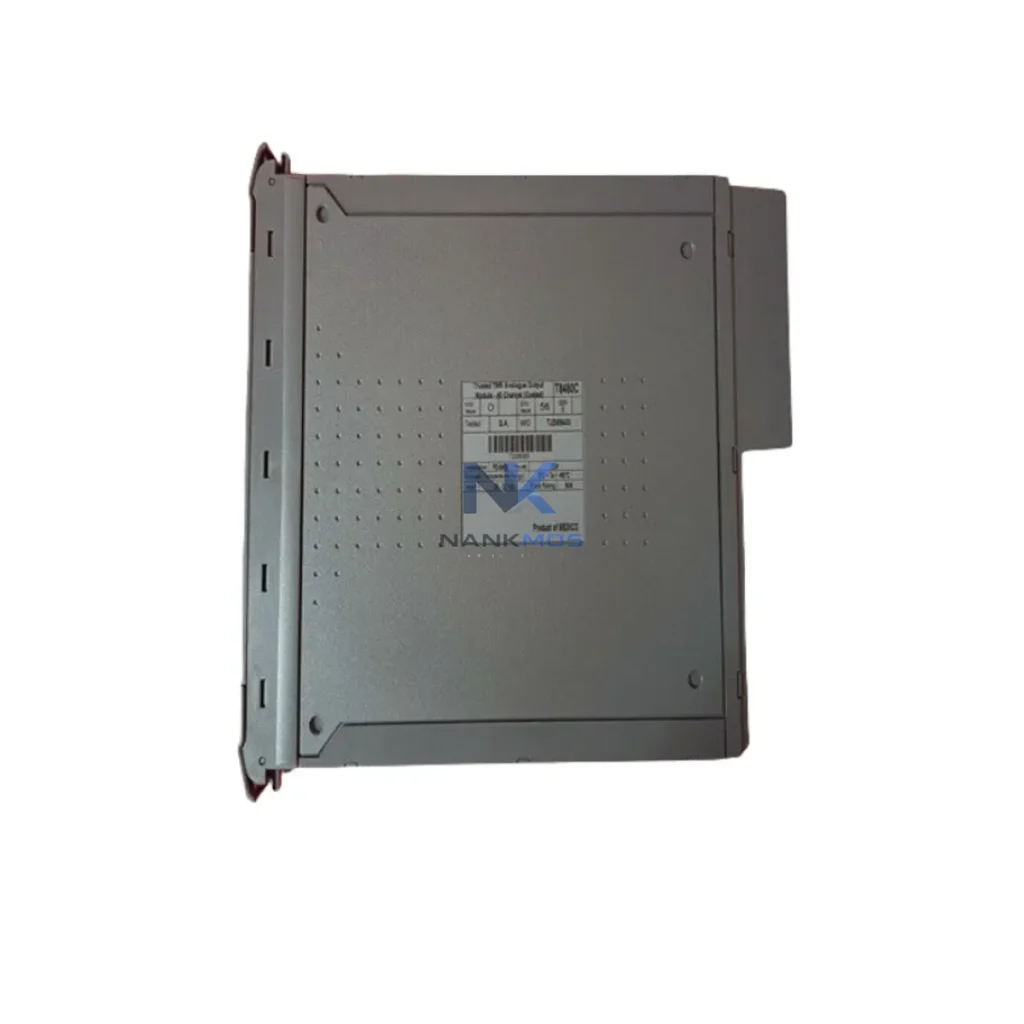

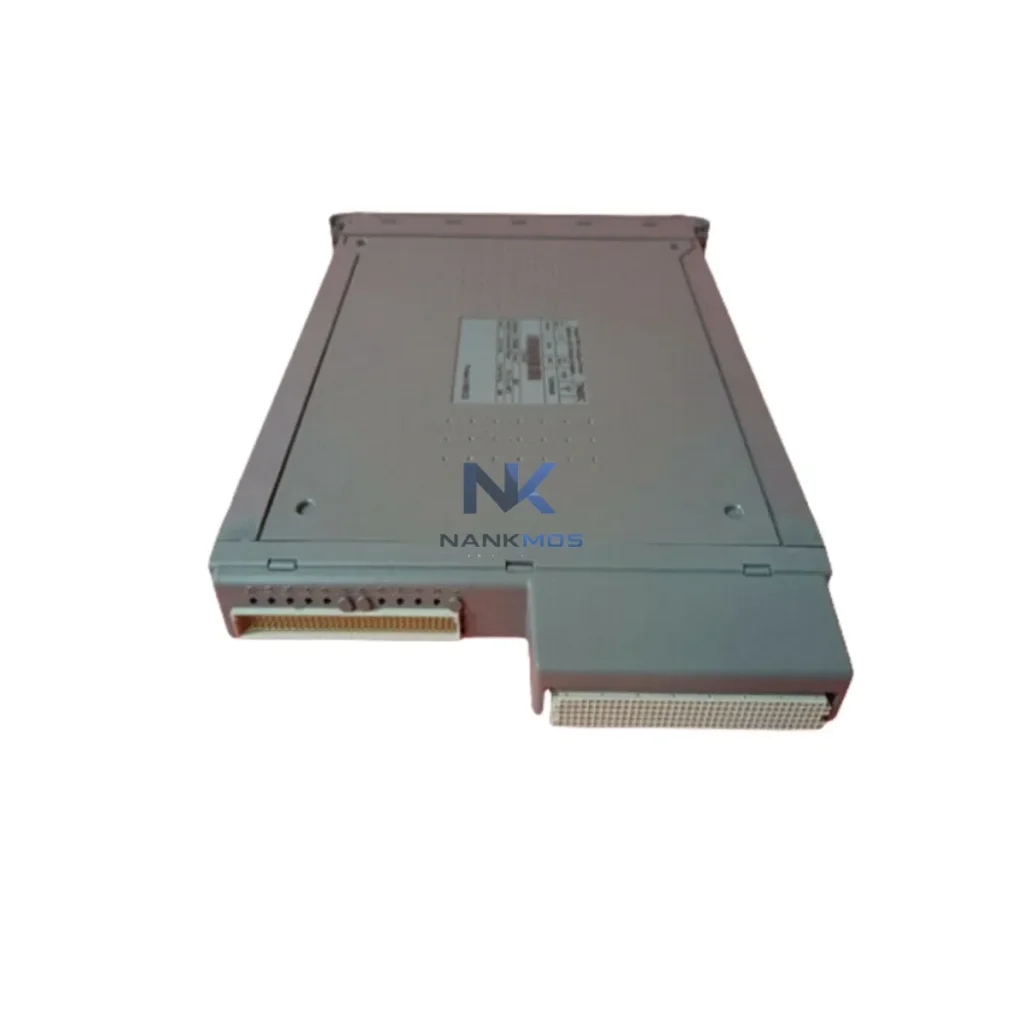

ICS Triplex T8480C Digital Input Module

Product Details

T8480C Product Description

The ICS Triplex T8480C is a high-integrity Digital Input (DI) module engineered for deployment within the Trusted TMR (Triple Modular Redundancy) safety control platform. Designed to meet the rigorous demands of SIL 3-rated process safety applications, the T8480C delivers deterministic signal acquisition, fault-tolerant voting logic, and seamless contextual integration across layered industrial control architectures. Whether deployed in upstream oil and gas, petrochemical processing, power generation, or critical infrastructure environments, the T8480C provides the signal reliability and diagnostic transparency that modern safety-instrumented systems demand.

At its core, the T8480C captures discrete field signals and routes them through the Trusted platform's triple-redundant processing fabric. Each input channel is independently monitored across three parallel processing lanes, with the TMR voting mechanism continuously comparing channel states to detect and isolate faults without interrupting process execution. This architecture ensures that a single-channel failure does not propagate to the safety output, preserving system availability while maintaining the integrity required for SIL 3 compliance. The module's design philosophy prioritizes both fault detection coverage and spurious trip avoidance — a balance critical in high-consequence process environments.

From a control architecture perspective, the T8480C occupies the I/O layer of the Trusted platform hierarchy, interfacing directly with field instrumentation while communicating upward to the CPU layer for real-time process decision-making. The module is rack-mounted within the Trusted chassis, sharing a common backplane with companion modules such as the T8431 Analog Input Module, T8451 Digital Output Module, and T8461 Relay Output Module. This co-location on a shared backplane minimizes inter-module latency and ensures synchronised scan cycles across the I/O subsystem — a prerequisite for time-critical safety logic execution.

System coherence is further reinforced through the Trusted platform's centralised power architecture. The T8800 Power Supply Module and its redundant companion provide regulated, monitored power to all rack-resident modules, including the T8480C. Power rail integrity is continuously supervised, with any deviation triggering diagnostic alerts at the CPU level before field-level consequences can occur. This power-layer integration ensures that the T8480C operates within a fully supervised electrical environment, reducing the risk of undetected power-induced signal anomalies.

Communication architecture plays an equally important role in the T8480C's system context. The Trusted platform's T8100 Main Processor Module and T8110 Communication Processor manage data exchange between the I/O layer and supervisory systems via standard industrial protocols including Modbus TCP, OPC DA/UA, and proprietary Trusted network interfaces. This communication stack enables the T8480C's channel-level diagnostic data — including open-circuit detection, short-circuit flags, and voting discrepancy alerts — to be surfaced in real time at the SCADA or DCS level, supporting proactive maintenance and rapid fault resolution.

For applications requiring expanded I/O capacity, the T8480C integrates naturally with the Trusted platform's modular expansion architecture. Additional DI capacity can be added via parallel T8480C modules within the same chassis, or extended across remote I/O racks using the T8830 Remote I/O Interface Module. This scalability allows engineers to design control architectures that grow with process requirements without requiring controller replacement or significant re-engineering. The modular approach also supports phased commissioning strategies, where I/O capacity is added incrementally as plant sections are brought online.

HMI and operator interface integration is supported through the platform's communication layer, with the T8480C's real-time channel states accessible via Trusted ToolSuite engineering software. This toolset provides channel-level diagnostics, force and override management, and configuration validation — all essential capabilities during loop checkout, pre-commissioning, and ongoing maintenance cycles. The ability to interrogate individual DI channels without interrupting process execution significantly reduces commissioning time and minimises planned downtime during periodic proof testing.

In redundant architecture deployments, the T8480C supports hot-standby and fault-tolerant configurations where dual or triple controller sets share a common I/O bus. This arrangement, often implemented alongside the T8403 Trusted TMR CPU Module, ensures that controller failover does not interrupt I/O scanning or safety logic execution. The seamless handover capability is particularly valuable in continuous process industries where even brief control interruptions carry significant safety and economic consequences.

Protection layer considerations are addressed through the T8480C's built-in channel isolation and surge protection features, which guard against field-side transients and ground loops that are common in industrial environments. When paired with external signal conditioning components such as Zener barriers or galvanic isolators at the marshalling cabinet level, the T8480C forms part of a comprehensive signal integrity chain that extends from the field instrument to the safety controller. This layered protection approach is consistent with IEC 61511 functional safety engineering practices and supports the documentation requirements of formal safety lifecycle management.

Long-term maintenance efficiency is a defining characteristic of the T8480C's design. The module supports online replacement within the Trusted chassis, allowing field engineers to swap a suspect module without de-energising the rack or interrupting process control. Combined with the platform's self-diagnostic routines — which continuously exercise internal logic paths and report health status to the CPU — the T8480C minimises both planned and unplanned maintenance interventions over the system's operational lifetime. All units supplied by NANKMOS are drawn from tested, verified stock and are covered by a comprehensive 12-Month Warranty, providing procurement confidence for both project and spares applications.

The T8480C achieves its full operational value when deployed as part of a coherent Trusted TMR platform architecture. A complete safety controller configuration typically centres on the T8403 TMR CPU Module, which executes the safety application program and manages the voting arbitration across all I/O channels. The CPU communicates with the T8480C and other I/O modules via the Trusted backplane, ensuring deterministic scan times and synchronised data exchange across the control layer.

Analog process variables are acquired through companion modules such as the T8431 Analog Input Module, which handles 4–20 mA and thermocouple signals from field transmitters. On the output side, the T8451 Digital Output Module drives solenoid valves, motor starters, and other discrete actuators, while the T8461 Relay Output Module provides hardwired trip outputs for emergency shutdown functions. Together with the T8480C, these modules form the complete I/O subsystem of a Trusted safety controller, covering the full signal range from field sensor to final element.

Power integrity across the rack is maintained by the T8800 Power Supply Module, with redundant power feeds ensuring continuous operation even during a single power supply failure. Remote I/O expansion is facilitated by the T8830 Remote I/O Interface Module, enabling distributed I/O architectures across large plant areas without compromising the TMR integrity of the central controller. Engineering and maintenance access is provided through Trusted ToolSuite, which delivers channel-level diagnostics, configuration management, and proof test support from a single integrated software environment.

The T8480C is deployed across a broad spectrum of safety-critical industrial applications where discrete signal integrity and fault-tolerant control are non-negotiable requirements. In oil and gas processing, the module monitors emergency shutdown (ESD) pushbuttons, valve position feedback, and high-level switch inputs within SIL 3-rated safety instrumented functions (SIFs). Its TMR voting architecture ensures that spurious trips caused by single-channel faults are suppressed, maintaining process availability while preserving safety integrity.

In power generation environments — including gas turbine control, steam turbine protection, and nuclear auxiliary systems — the T8480C provides the discrete input backbone for turbine trip logic, generator protection interlocks, and auxiliary equipment monitoring. The module's deterministic response time and high diagnostic coverage make it suitable for fast-acting protection functions where millisecond-level response is required.

For petrochemical and refinery applications, the T8480C integrates into burner management systems (BMS), compressor protection panels, and reactor safety systems. Its ability to detect open-circuit and short-circuit faults on individual input channels — and report these conditions to the SCADA system without interrupting safety logic — supports the continuous monitoring requirements of IEC 61511 safety lifecycle management.

In water and wastewater treatment facilities, the module monitors pump run/fail status, valve open/closed feedback, and level switch inputs across distributed treatment processes. Its rack-based architecture and online replacement capability minimise maintenance disruption in facilities that operate continuously with limited maintenance windows. Similar deployment patterns apply in mining and minerals processing, where the T8480C monitors conveyor interlocks, crusher protection inputs, and emergency stop circuits across geographically dispersed control points.

Q1: Is the T8480C compatible with all Trusted TMR chassis and backplane configurations? The T8480C is designed for use within the ICS Triplex Trusted TMR platform and is compatible with standard Trusted chassis configurations that support the TMR I/O backplane. Compatibility should be verified against the specific chassis revision and firmware version of the target system. NANKMOS can provide compatibility guidance based on your existing platform configuration and system revision documentation.

Q2: Can the T8480C be replaced online without interrupting safety logic execution? Yes. The Trusted TMR platform supports online module replacement for I/O modules including the T8480C, provided the system is operating in a healthy TMR state with the remaining two lanes maintaining voting integrity. Online replacement procedures must be followed in accordance with the ICS Triplex Trusted platform maintenance documentation. All replacement units supplied by NANKMOS are pre-tested and covered by a 12-Month Warranty to ensure reliable return-to-service performance.

Q3: What diagnostic information does the T8480C provide at the SCADA or DCS level? The T8480C provides channel-level diagnostic data including open-circuit detection, short-circuit flags, voting discrepancy alerts, and module health status. This information is accessible via the Trusted platform's communication processor using standard protocols such as Modbus TCP or OPC DA/UA, enabling real-time diagnostic visibility at the operator workstation or historian. Trusted ToolSuite additionally provides engineering-level access to channel forcing, override management, and proof test support functions.
